Hyper A+ Server AS -2125HS-TNR

(AS -2125HS-TNR)

instock

Categories: Servers, SuperMicro, Rack Servers

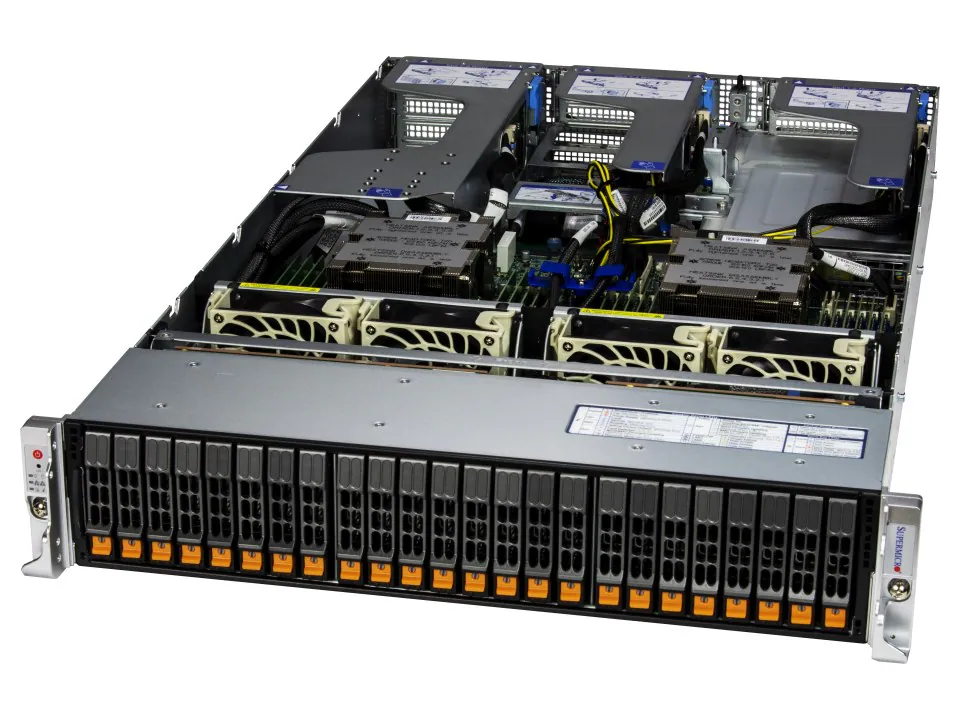

2U Hyper with 24 hot-swap 2.5″ NVMe/SATA bays and 1 PCIe 5.0 x16 slot

Key Features

Dual AMD EPYC™ 9004/9005* Series Processors
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
24 Hot-swap 2.5″ NVMe/SATA/SAS drive bays
2 M.2 PCIe 3.0 NVMe slots
Dual 1600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

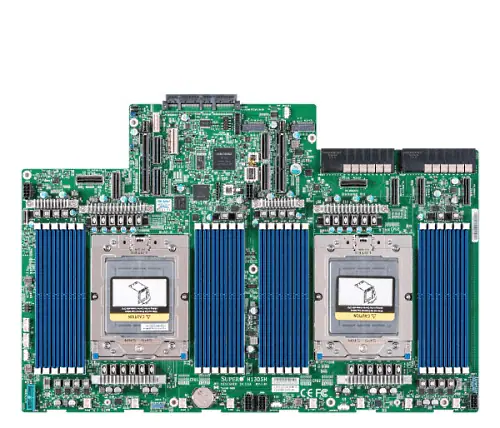

Super H13DSH

CPU	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors (* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 320C/640T
Note	Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

- Up to 3 double-width GPUs

Supported GPU

- NVIDIA PCIe: H100, L40S

- View GPU Options

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
- Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)

- View Memory Options

Memory Voltage

- 1.1V

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port

BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Form Factor	2U
Model	CSE-HS219-R1K63P-A

Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)

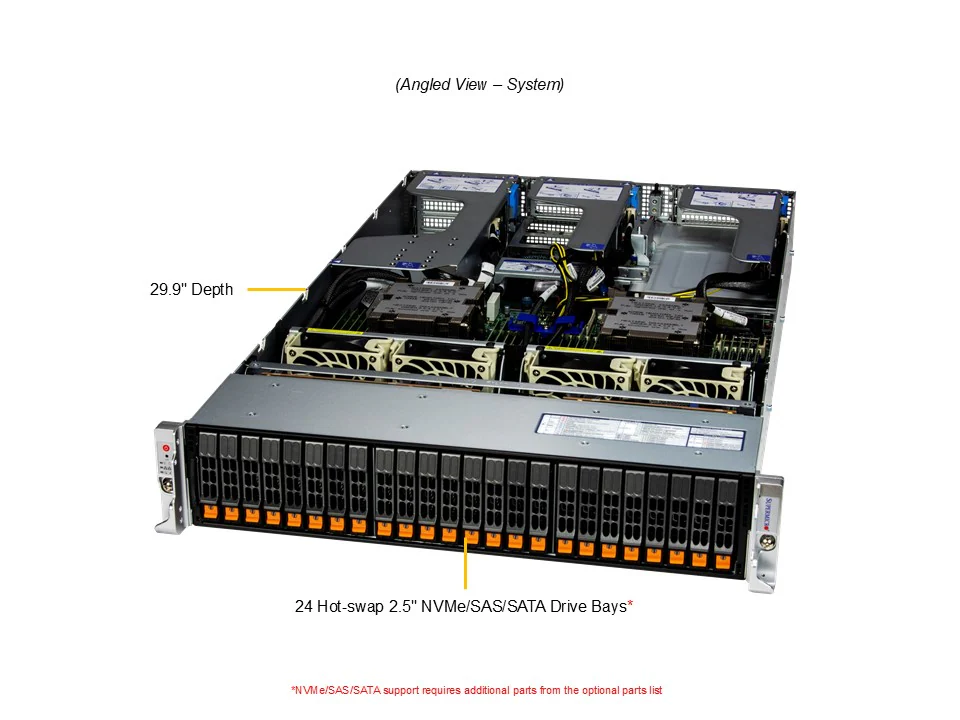

Depth	29.9″ (760 mm)
Package	10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight	Gross Weight: 72 lbs (32.7 kg) Net Weight: 39 lbs (17.7 kg)
Available Color	Black front & silver body

LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

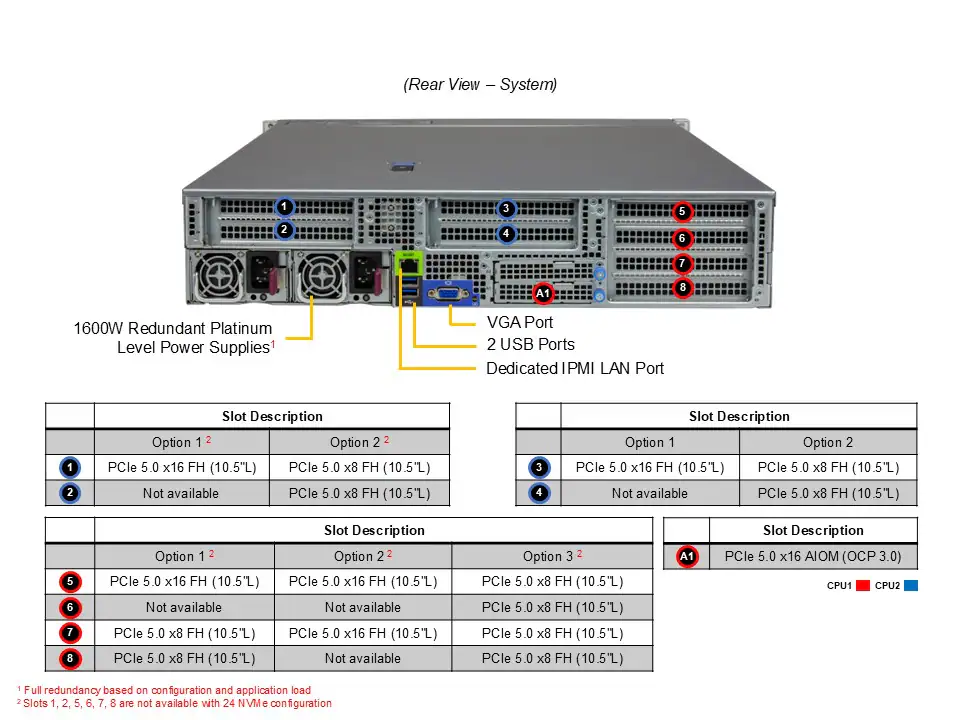

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option A*
  - 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option B*
  - 2 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option C*
  - 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option D*
  - 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
  - 2 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option E*
  - 4 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option F*
  - 4 PCIe 5.0 x16 (in x16) FHFL double-width slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option G*
  - 3 PCIe 5.0 x16 (in x16) FHFL double-width slots
  - 2 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option H*
  - 2 PCIe 5.0 x16 (in x16) FHFL double-width slots
  - 4 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option I*
  - 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
  - 6 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

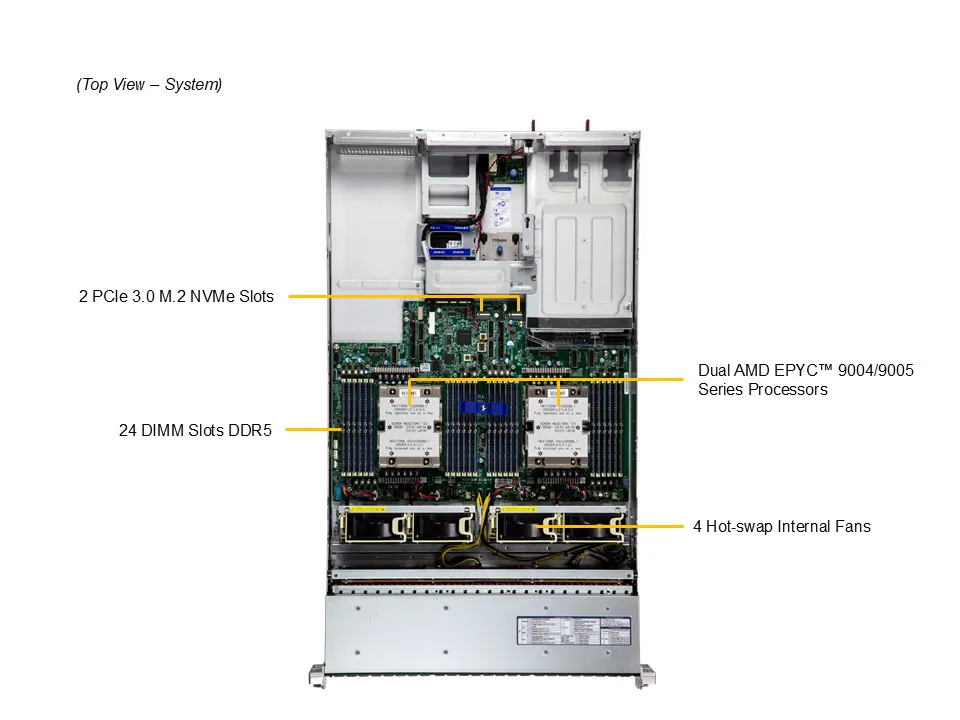

- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

…

- View AOC Options

Drive Bays Configuration

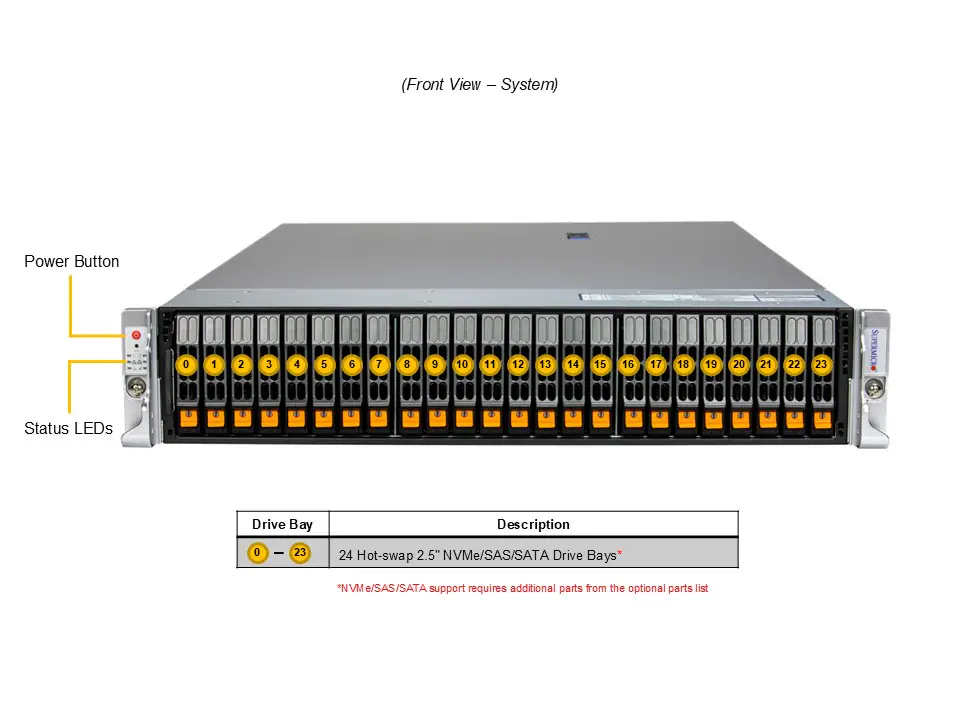

- Default: Total 24 bays
  - 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds
Air Shroud	2 Air Shrouds

2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
