Hyper A+ Server AS -2126HS-TN

(AS -2126HS-TN)

instock

Categories: Servers, SuperMicro, Rack Servers

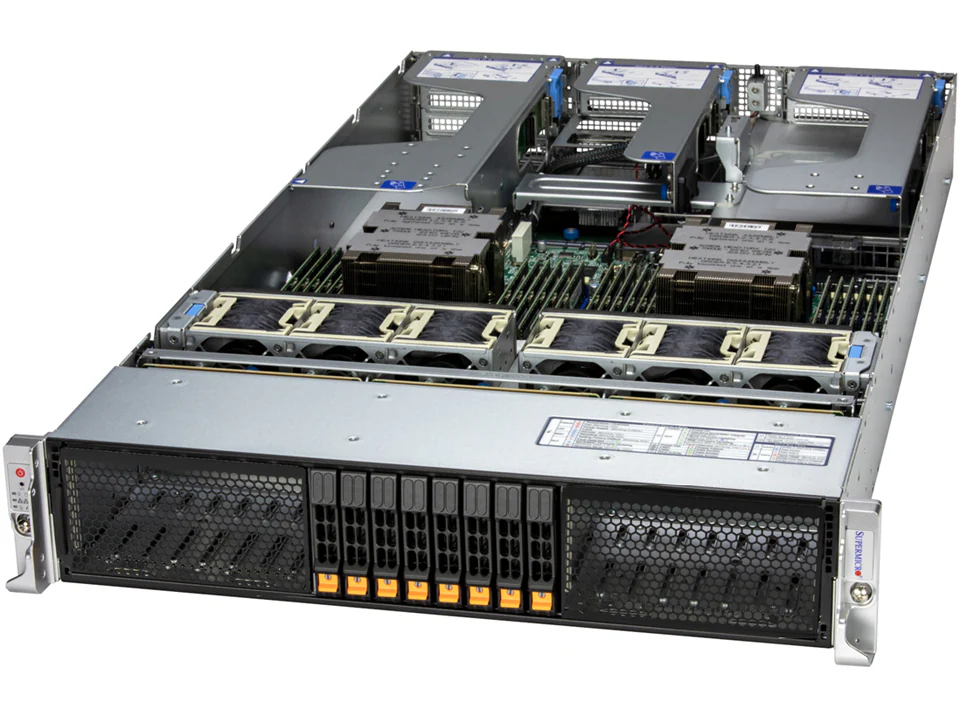

2U Hyper with up to 24 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

Key Features

Dual AMD EPYC™ 9005/9004 Series Processors
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
Up to 24 front hot-swap 2.5″ NVMe/SATA drive bays
2 M.2 PCIe 3.0 NVMe slots
Capabilities for GPU and CXL 2.0 support
Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

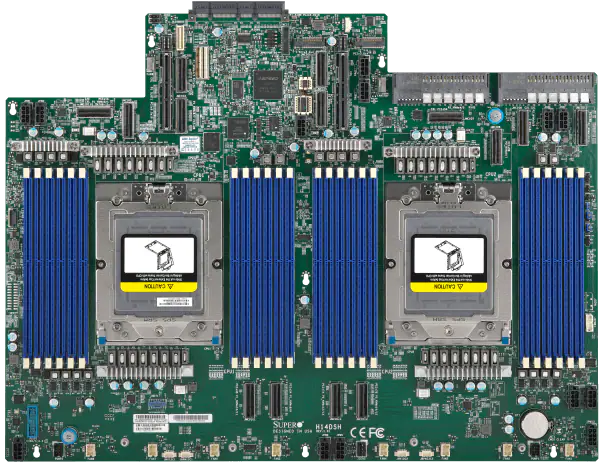

Super H14DSH

CPU	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors
Core Count	Up to 384C/768T
Note	Supports up to 500W TDP CPUs * *Air Cooled CPUs with TDP over 400W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

- Up to 3 double-width GPUs

Supported GPU

- NVIDIA PCIe: H100 NVL, RTX 6000 Ada Generation, L4

- View GPU Options

GPU-GPU Interconnect

- PCIe

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
- Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

- View Memory Options

Memory Voltage

- 1.1V

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

IPMI

- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
TPM	1 TPM Onboard/port 80

BIOS Type	AMI 64MB SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) KVM with dedicated LAN IPMI 2.0 Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! IPMIView
Power configurations	ACPI/APM Power Management Power-on mode control for AC power loss recovery Power button override mechanism,

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support

Form Factor	2U Rackmount
Model	CSE-HS201-R000NFP

Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)

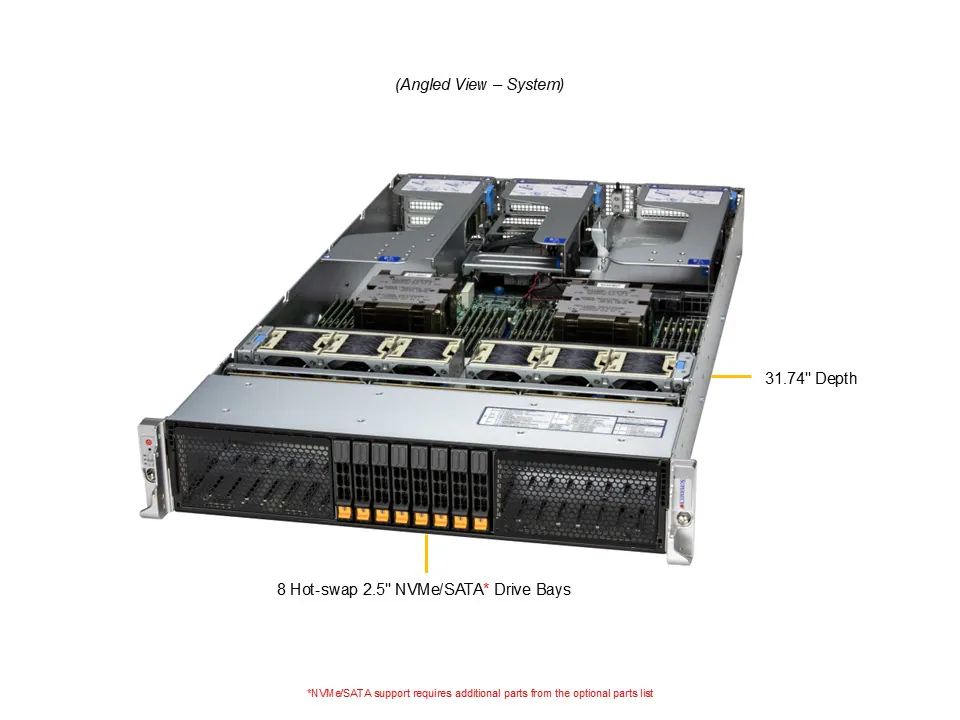

Depth	31.74″ (806.2 mm)
Package	9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight	Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg)
Available Color	Silver

LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

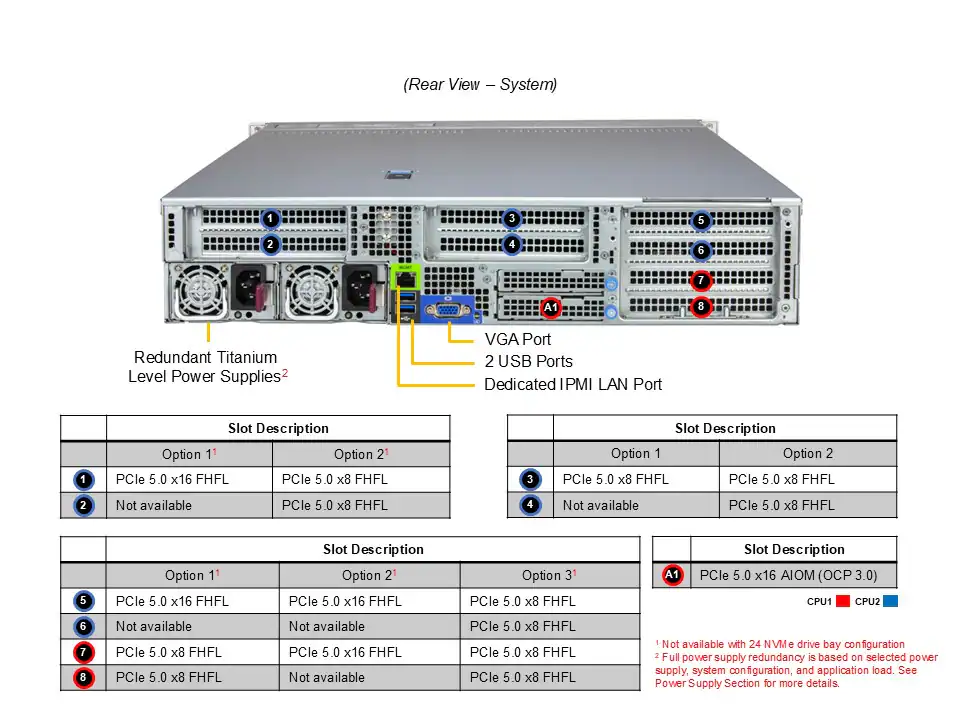

PCI-Express (PCIe) Configuration

- Option A*
  - 4 PCIe 5.0 x16 FHFL double-width slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- Option B*
  - 8 PCIe 5.0 x8 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

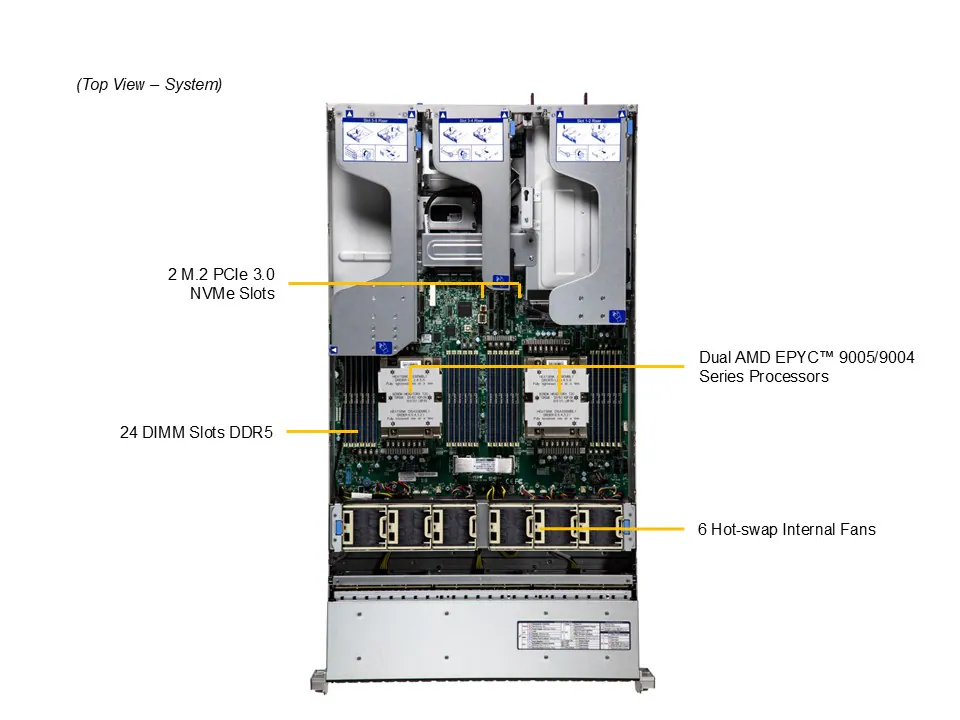

- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

- View AOC Options

CXL Support

- Up to 4 CXL 2.0 x16 devices

Drive Bays Configuration

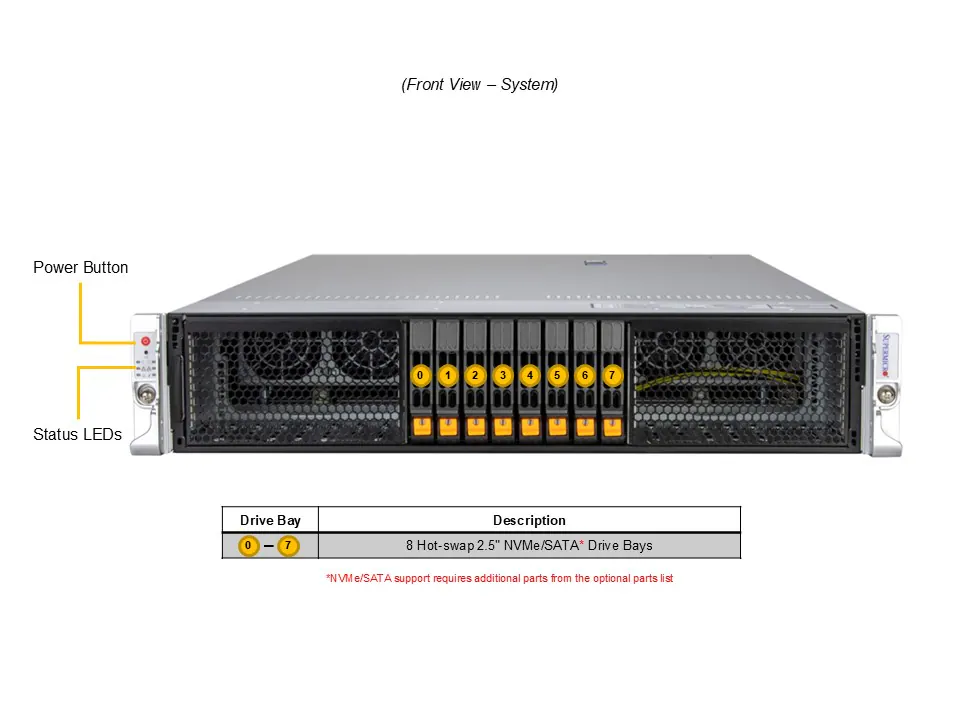

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SATA* drive bays

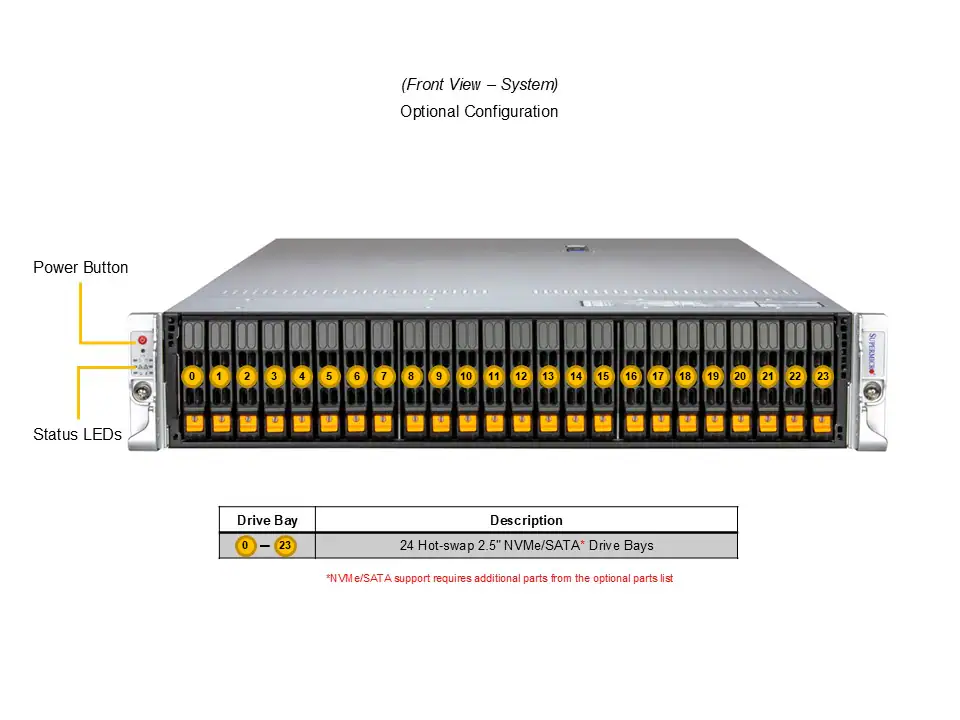

- Option A: Total 24 bays
  - 24 front hot-swap 2.5″ NVMe*/SATA* drive bays
- (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 6 counter-rotating 60x60x56mm Fan(s)
Air Shroud	2 Air Shrouds

2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 2700W: 200-240Vac 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 150A / Min: 0A (200Vac-220Vac) Max: 225A / Min: 0A (200Vac-240Vac) Max: 165A / Min: 0A (220Vac-230Vac) Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
