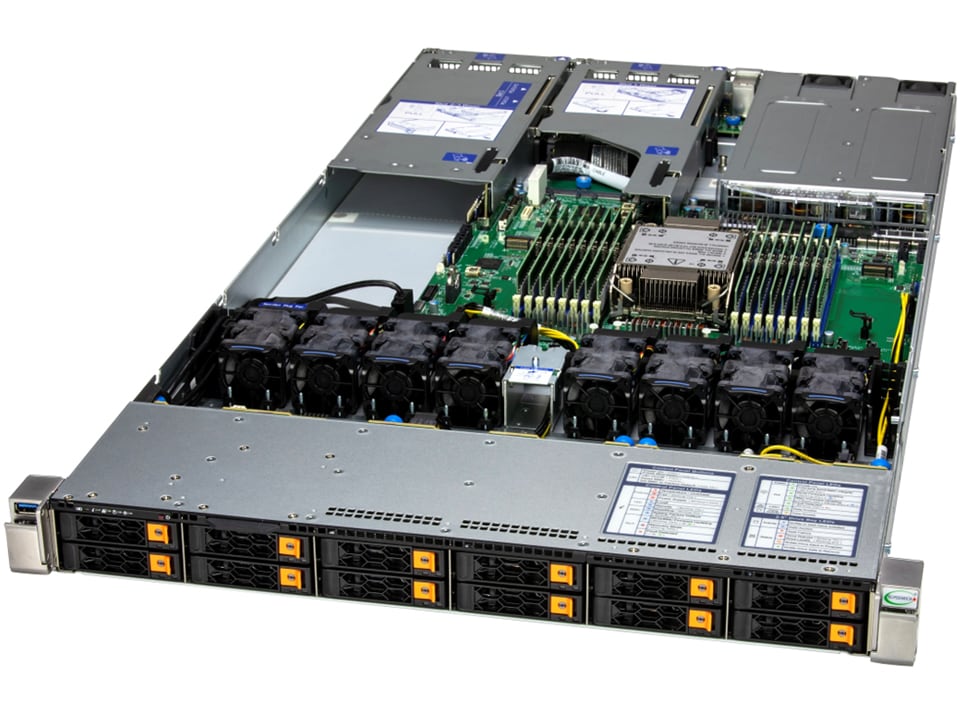

Hyper SuperServer SYS-112H-TN

(SYS-112H-TN)

instock

Categories: Servers, SuperMicro, Rack Servers

1U UP Hyper supporting up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Key Features

Hyper is a flagship performance rackmount server optimized for scale-out cloud workloads.
Single Intel® Xeon® 6 Processor.
16 DIMM slots support RDIMM / MRDIMM(1DPC)
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

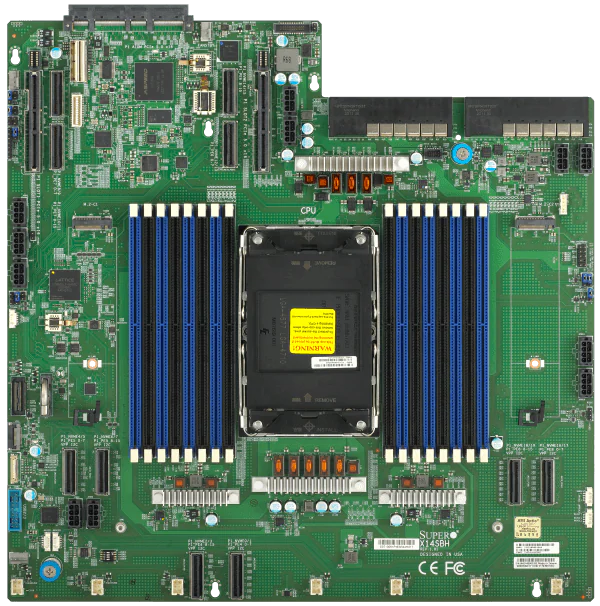

Super X14SBH

CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache E-cores: Up to 144C/144T; Up to 108MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 1 double-width or 3 single-width GPUs

Supported GPU

- NVIDIA PCIe: L40S, L4
- Intel PCIe: Intel Data Center GPU Flex 170

- View GPU Options

CPU-GPU Interconnect

- PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

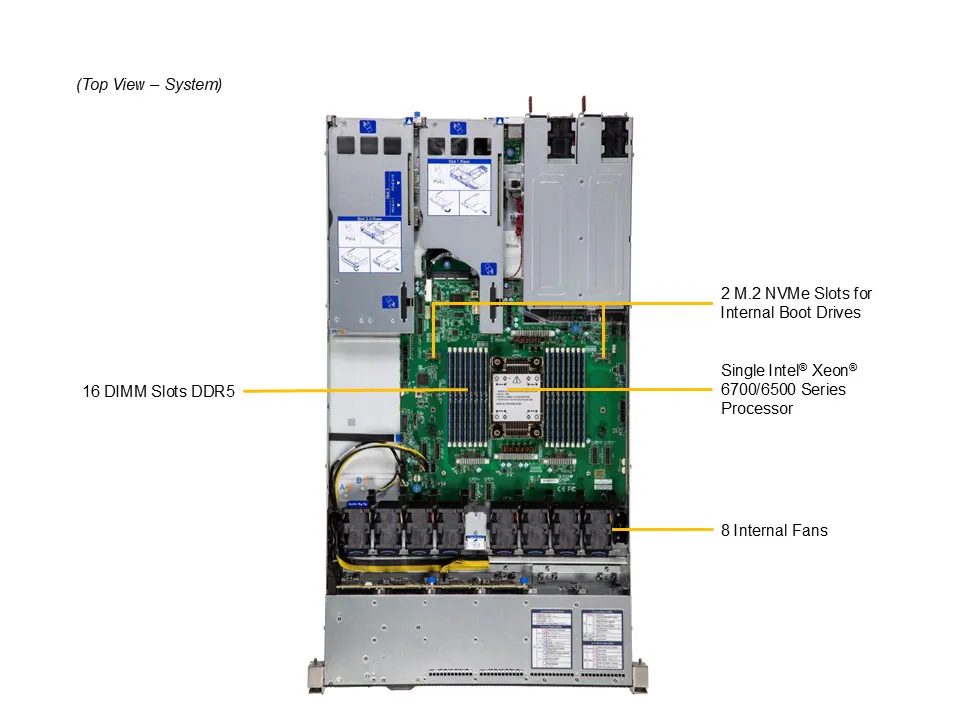

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
- Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

NVMe

- NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

- View NVMe Options

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.2 Gen1 ports(Rear) 1 USB 3.2 Gen1 port(Front)
Video	1 VGA port

BIOS Type

AMI 64MB SPI Flash

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-HS101-R000NFP

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	30.66″ (778.7 mm)
Package	8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight	Gross Weight: 41.4 lbs (18.8 kg) Net Weight: 19.2 lbs (8.7 kg)
Available Color	Silver

LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

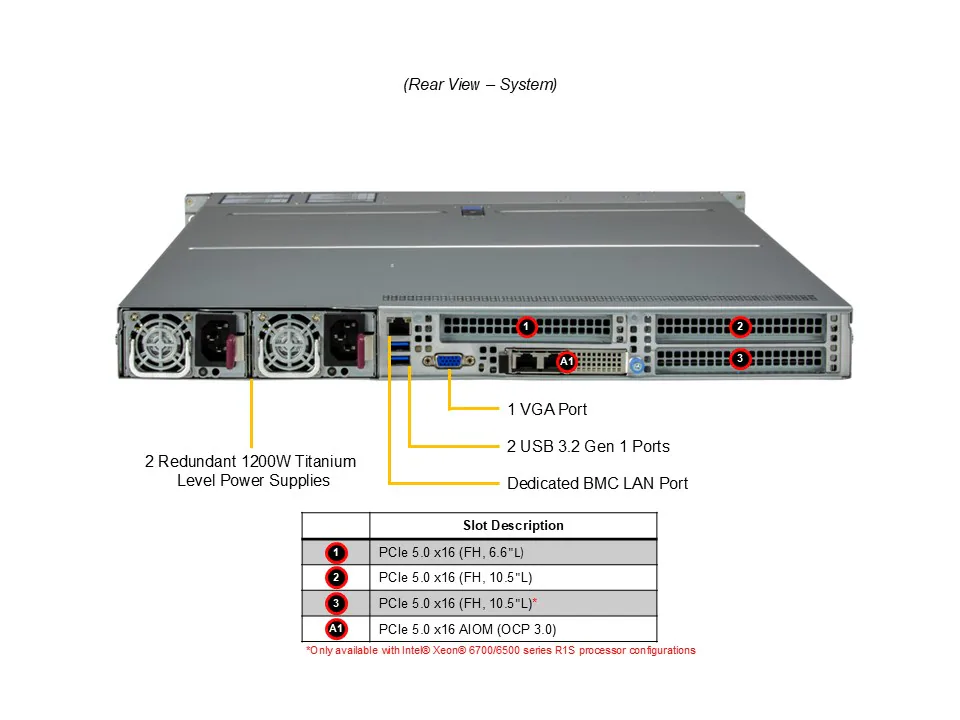

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 5.0 x16 (in x16) FHHL slot
  - 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
  - 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
- Option A*
  - 1 PCIe 5.0 x16 (in x16) FHHL slot
  - 2 PCIe 5.0 x16 (in x16) FHFL slots
  - 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

- View AOC Options

Drive Bays Configuration

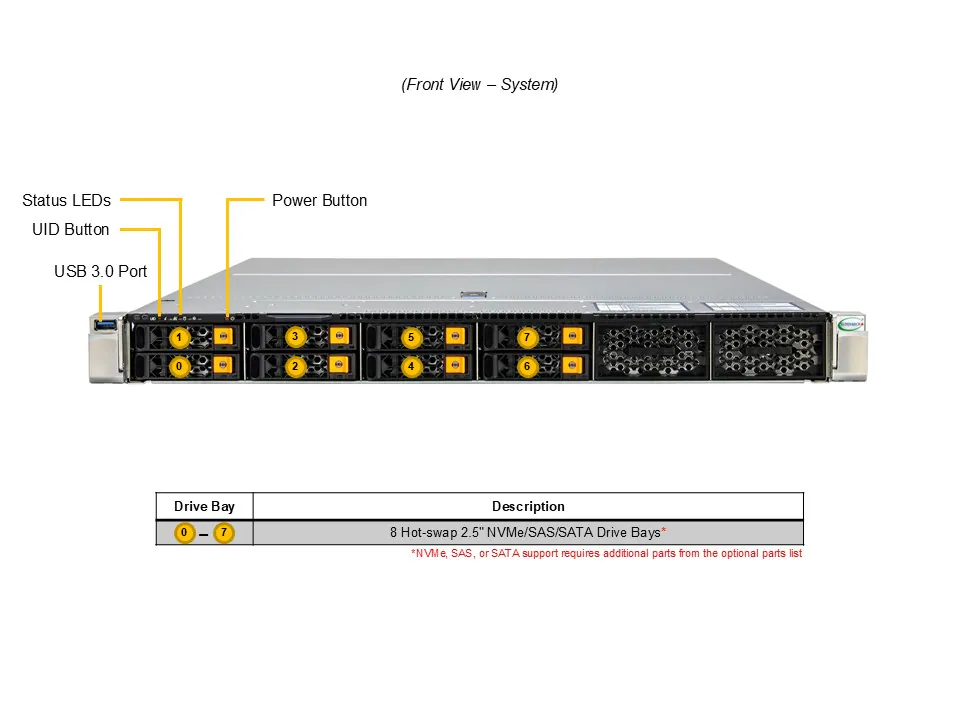

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays

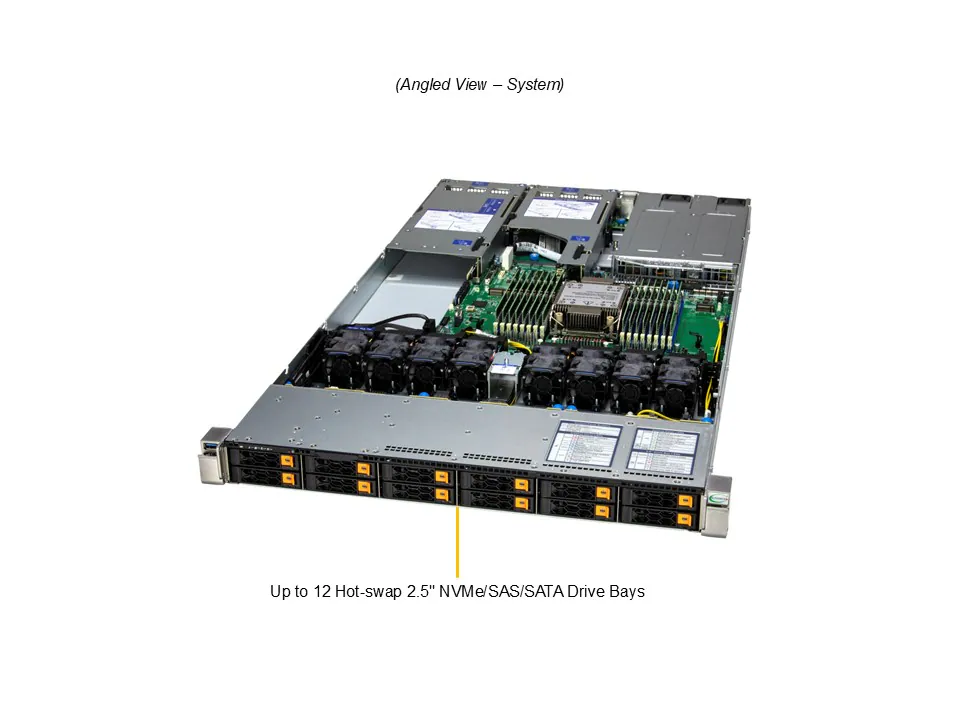

- Option A: Total 12 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  - 4 front hot-swap 2.5″ SAS*/SATA* drive bays

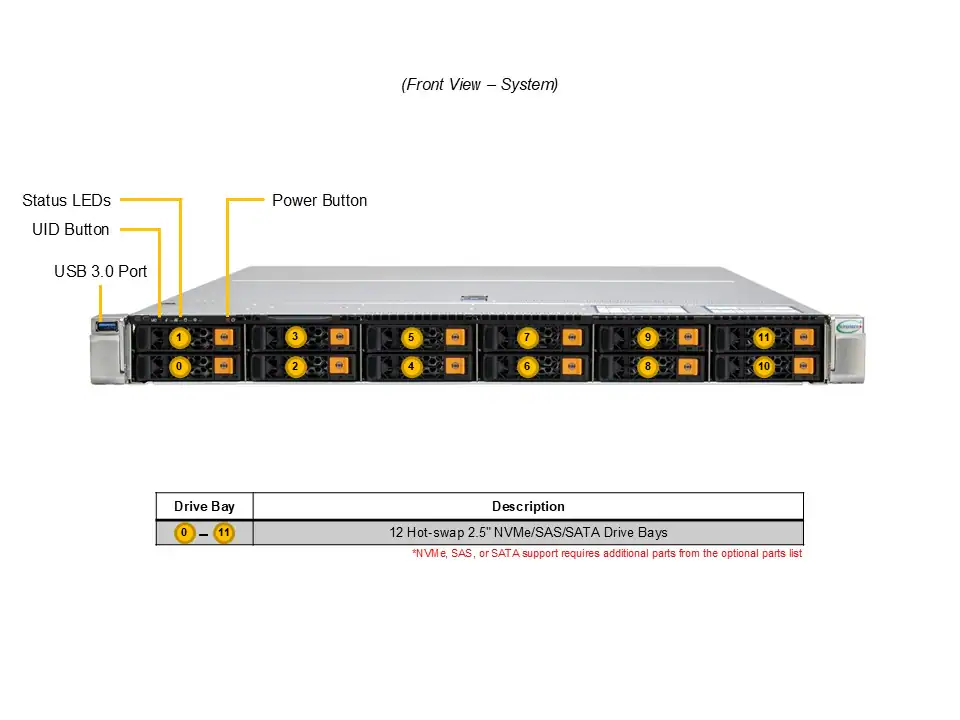

- Option B: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)

- View M.2 Options

Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud	1 CPU Air Shroud

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
