Hyper SuperServer SYS-120H-TNR

(SYS-120H-TNR)

instock

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
3 PCIe 4.0 x16 slots with support for GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
8x 2.5″ hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe/SATA drive slots; Optional RAID support via storage add-on card
8 heavy duty hot-swap fans with optimal fan speed control

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)

Max GPU Count

Memory

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4
- Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 RJ45 1GbE with Intel® I350-AM4 (optional) 4 SFP 1GbE with Intel® I350-AM4 (optional) 2 RJ45 10GBASE-T with Intel® X550-AT2 (optional) 2 SFP+ 10GbE with Intel® X710-BM2 (optional) 4 SFP+ 10GbE with Intel® XL710-BM1 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 4 SFP28 25GbE (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) View AIOM Options View AOC Options

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-HS119-R1K24P

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	29.4″ (747 mm)
Package	8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight	Gross Weight: 49 lbs (22.2 kg) Net Weight: 34 lbs (15.4 kg)
Available Color	N/A

LED	HDD activity LAN1 activity Power System information
Buttons	Power On/Off UID button

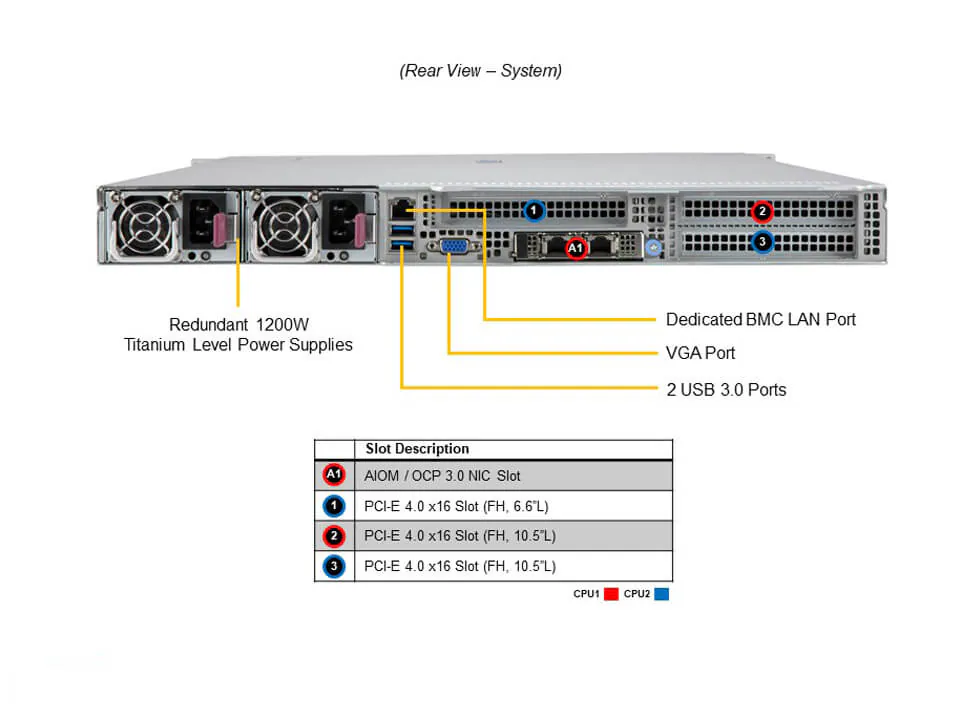

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 4.0 x16 FHHL slot
  - 2 PCIe 4.0 x16 FH/10.5″L slots
  - 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)

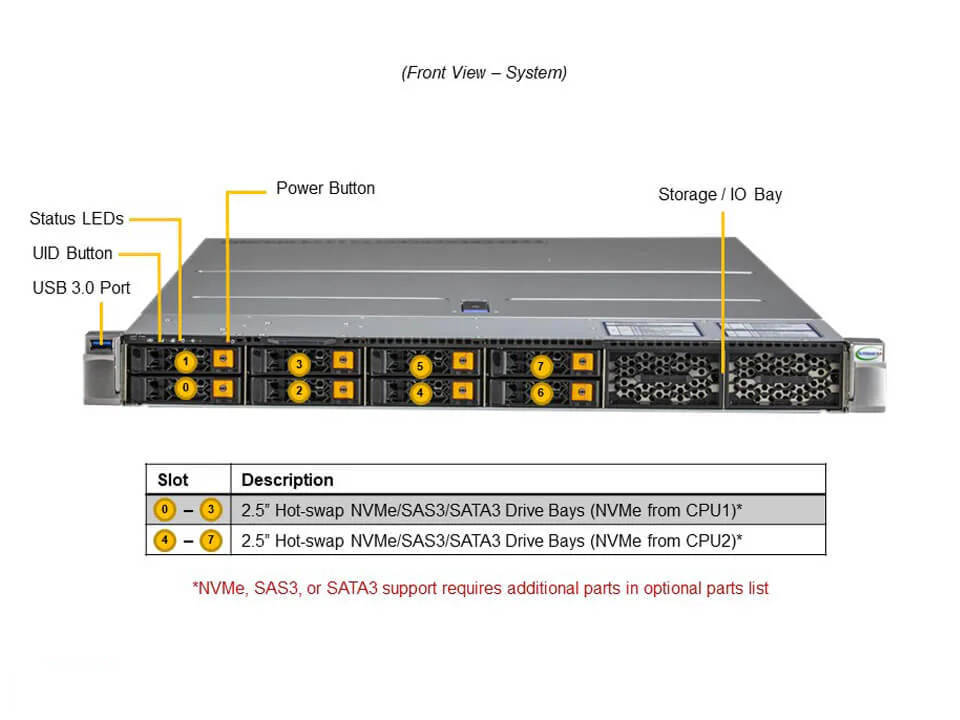

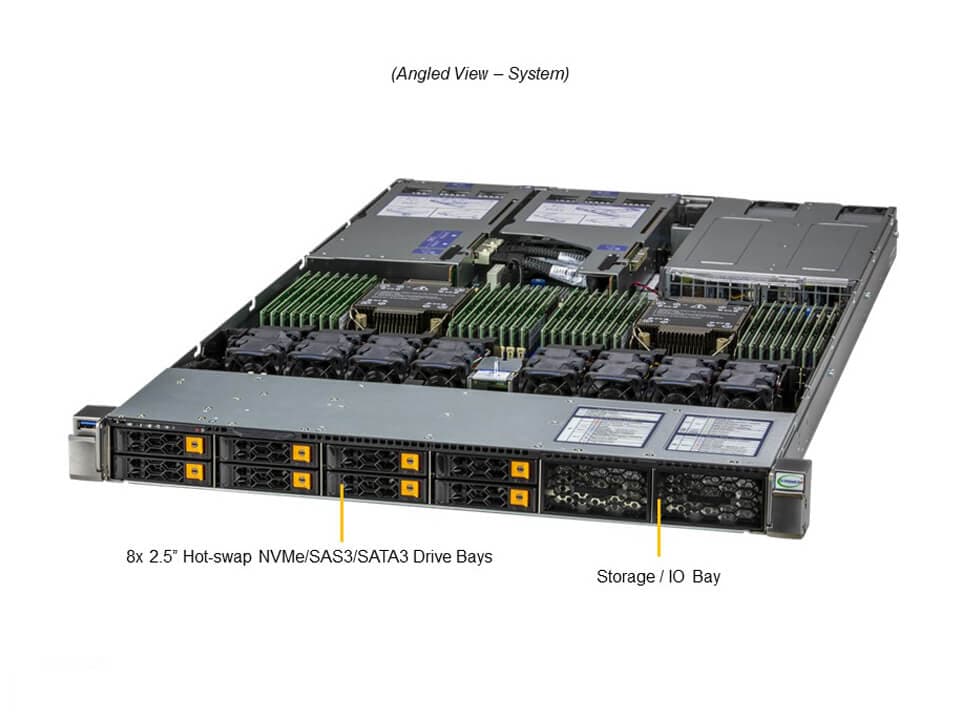

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- Option A: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

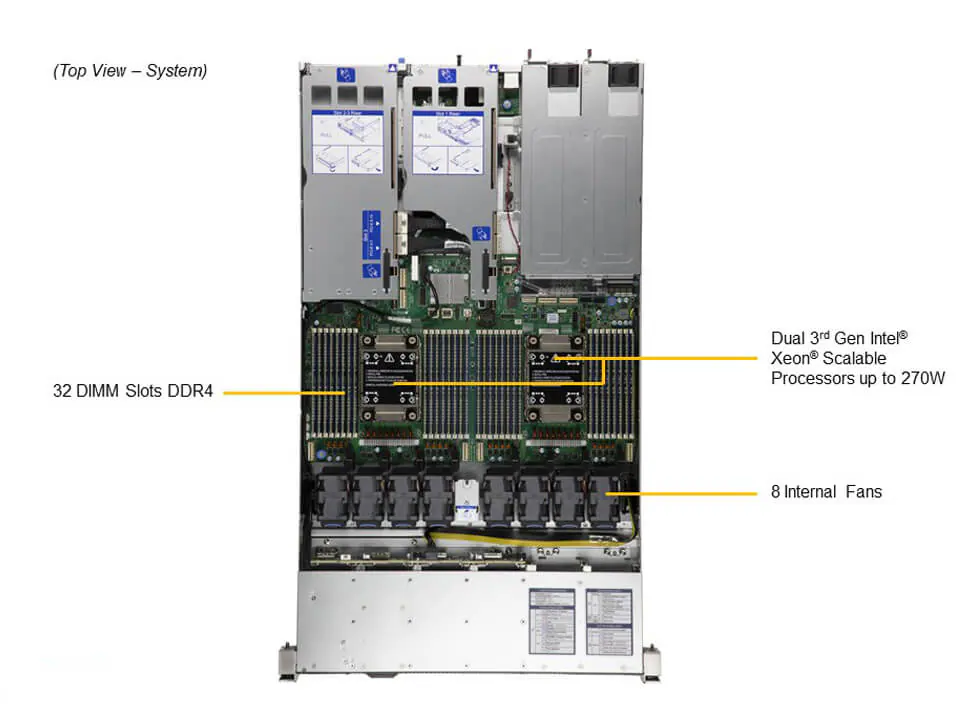

Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud	2 Air Shrouds

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
