Hyper SuperServer SYS-122H-TN

(SYS-122H-TN)

instock

Categories: Servers, SuperMicro, Rack Servers

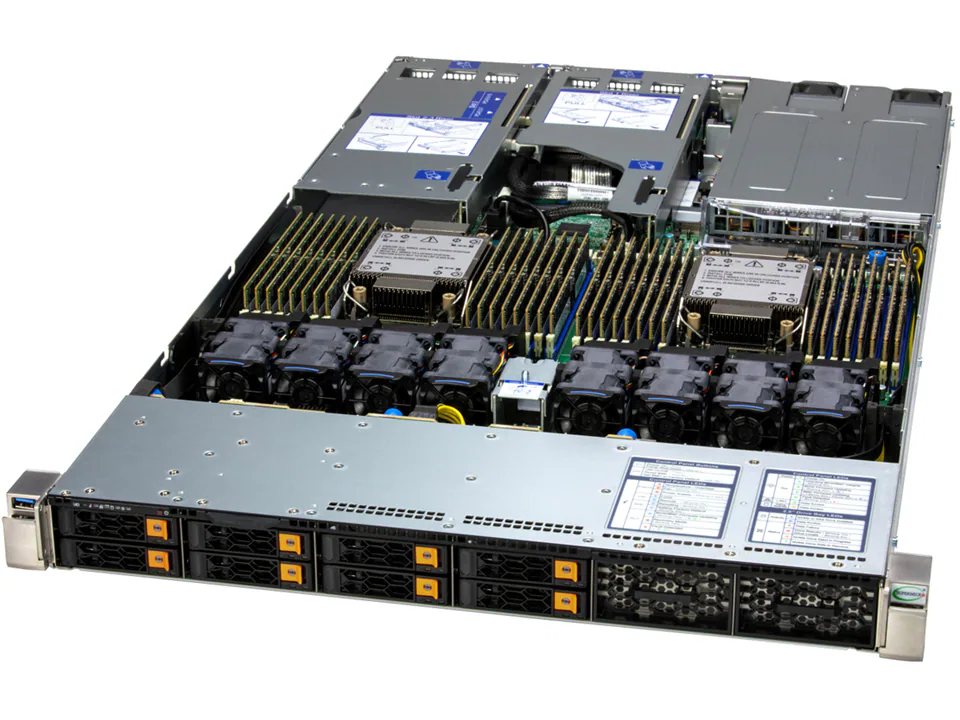

1U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot

Key Features

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
32 DIMM slots supporting up to 8TB of memory
3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
8x 2.5″ hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

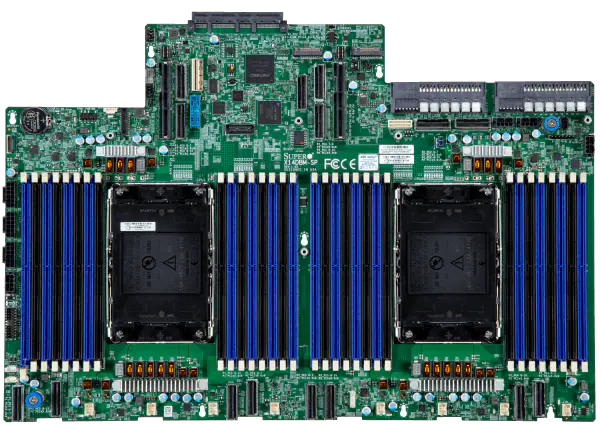

Super X14DBM-SP

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.

Max GPU Count

- Up to 1 double-width or 3 single-width GPUs

Memory

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)
- Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

NVMe

- NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

- View NVMe Options

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 1 USB 3.0 port(front)
Video	1 VGA port

BIOS Type

AMI 64MB SPI Flash

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-HS119-R000NP2

Height	1.71″ (43.6 mm)
Width	17.3″ (438.4 mm)
Depth	29.27″ (743.38 mm)
Package	7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight	Gross Weight: 41 lbs (18.6 kg) Net Weight: 18.7 lbs (8.5 kg)
Available Color	Silver

LED	HDD activity LAN1 activity Power System information
Buttons	Power On/Off UID button

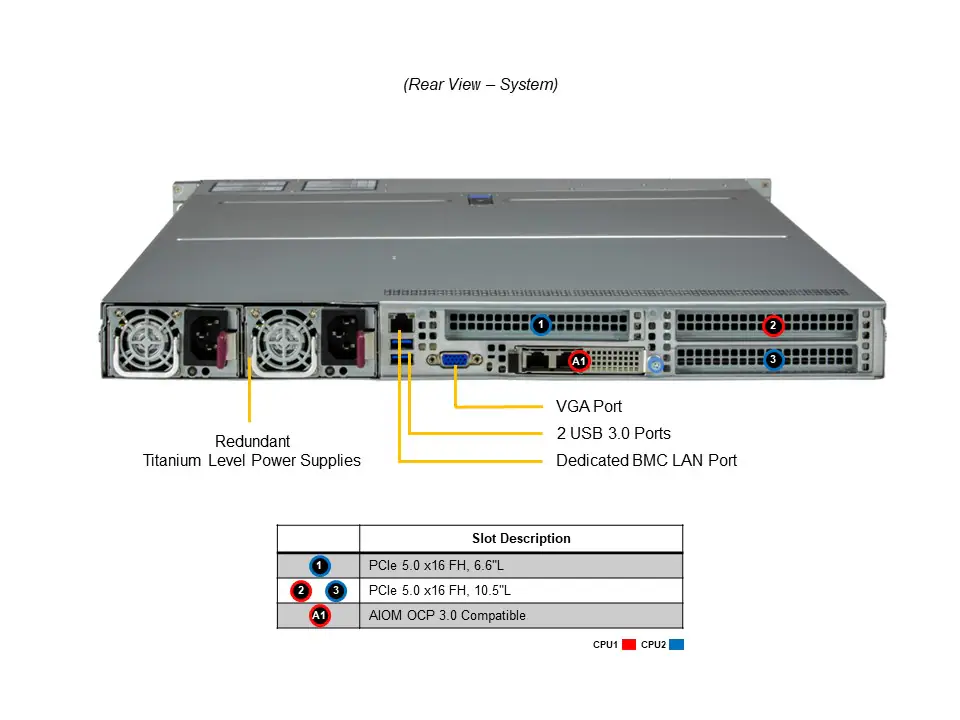

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 5.0 x16 FHHL slot
  - 2 PCIe 5.0 x16 FH/10.5″L slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

- View AOC Options

Drive Bays Configuration

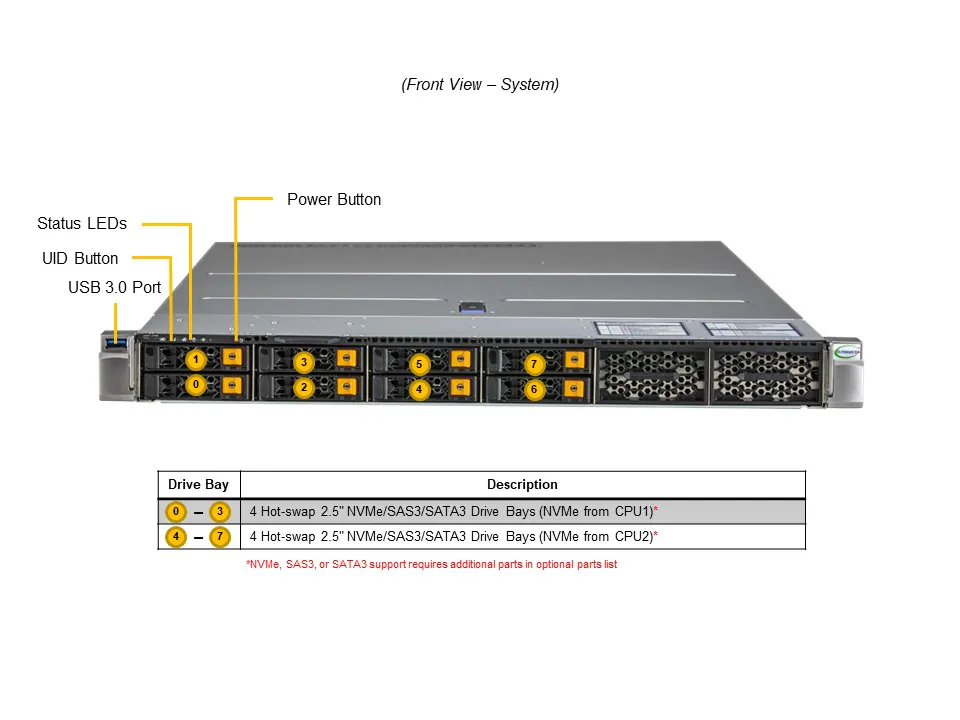

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays

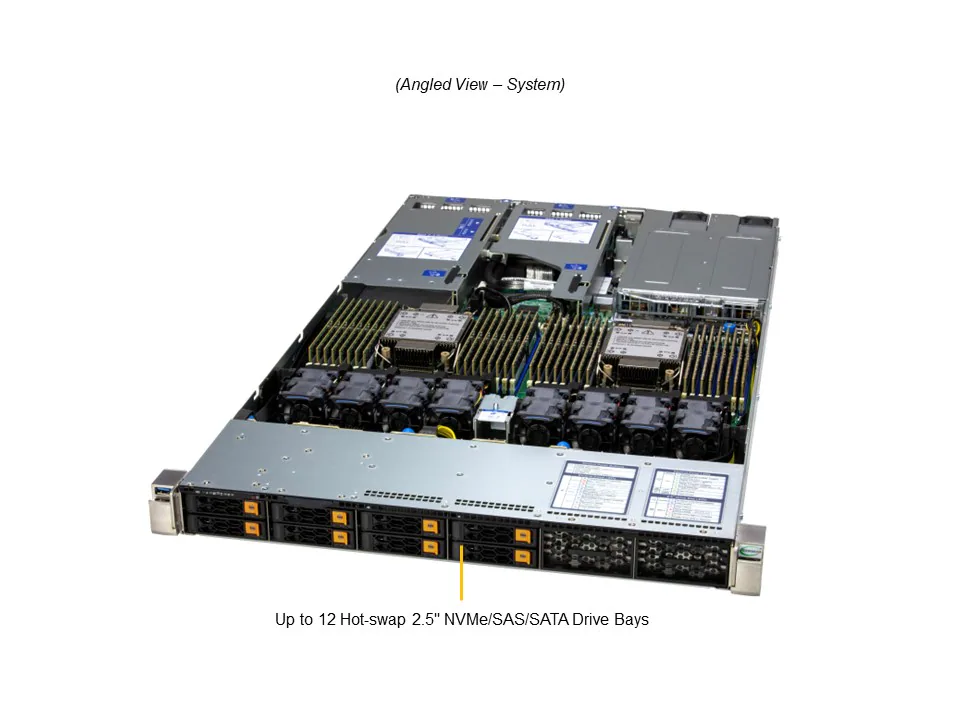

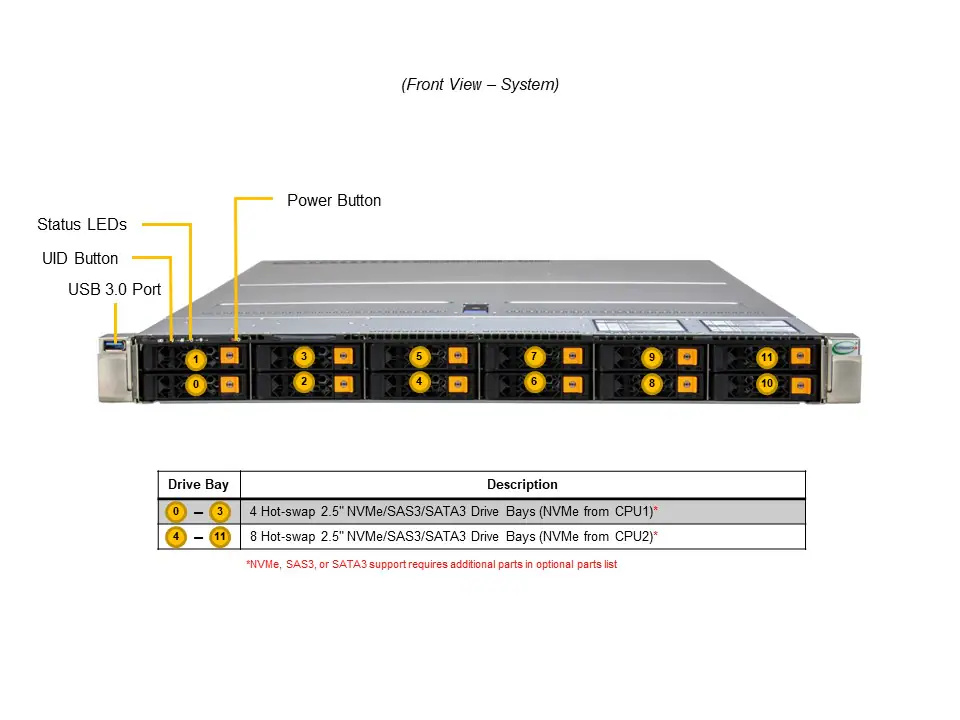

- Option A: Total 12 bays
  - 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

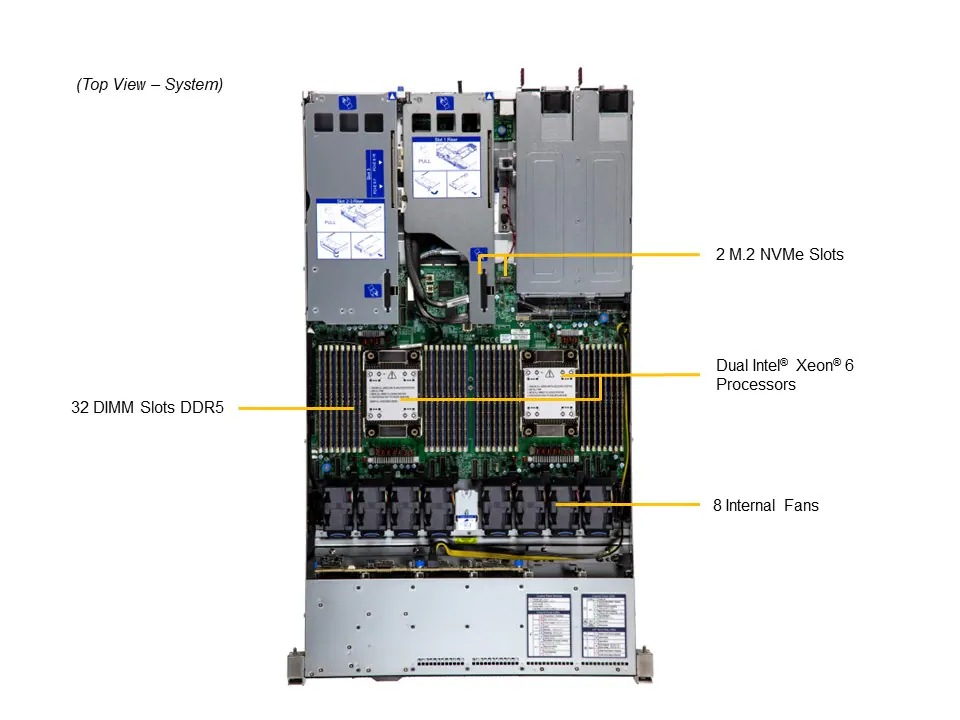

M.2

- 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Air Shroud	2 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
