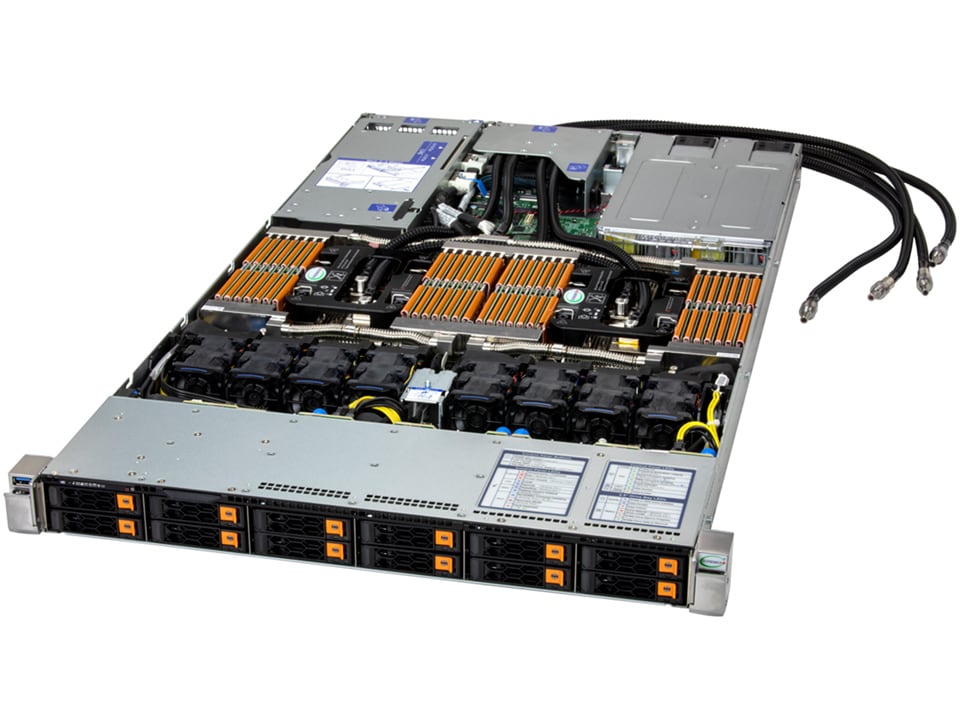

Hyper SuperServer SYS-122HA-TN-LCC

(SYS-122HA-TN-LCC)

instock

Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W with D2C liquid cooling
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM

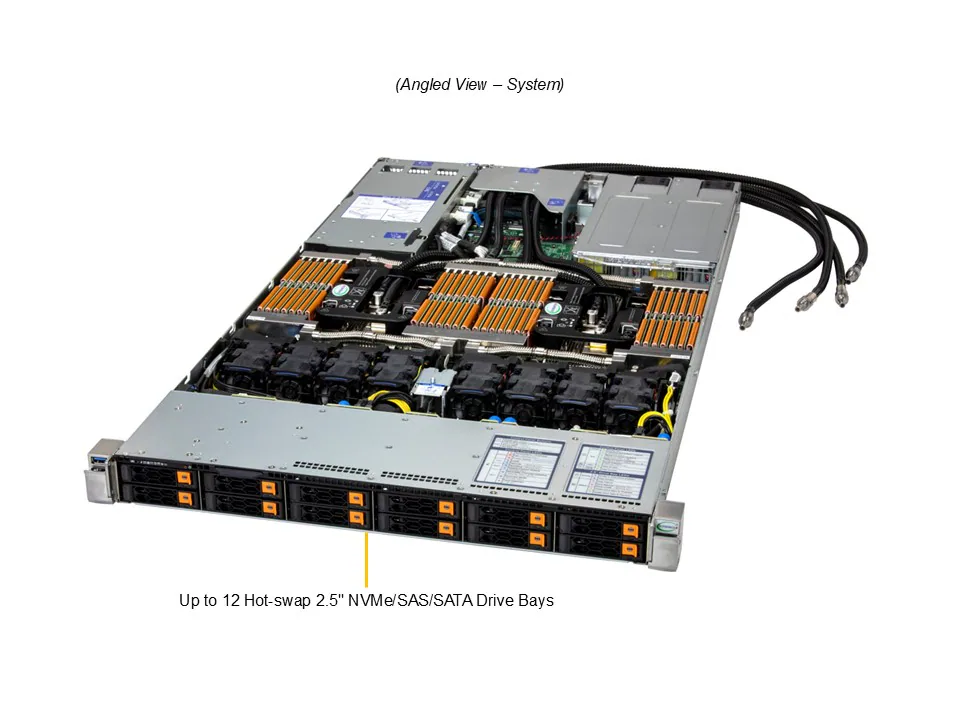

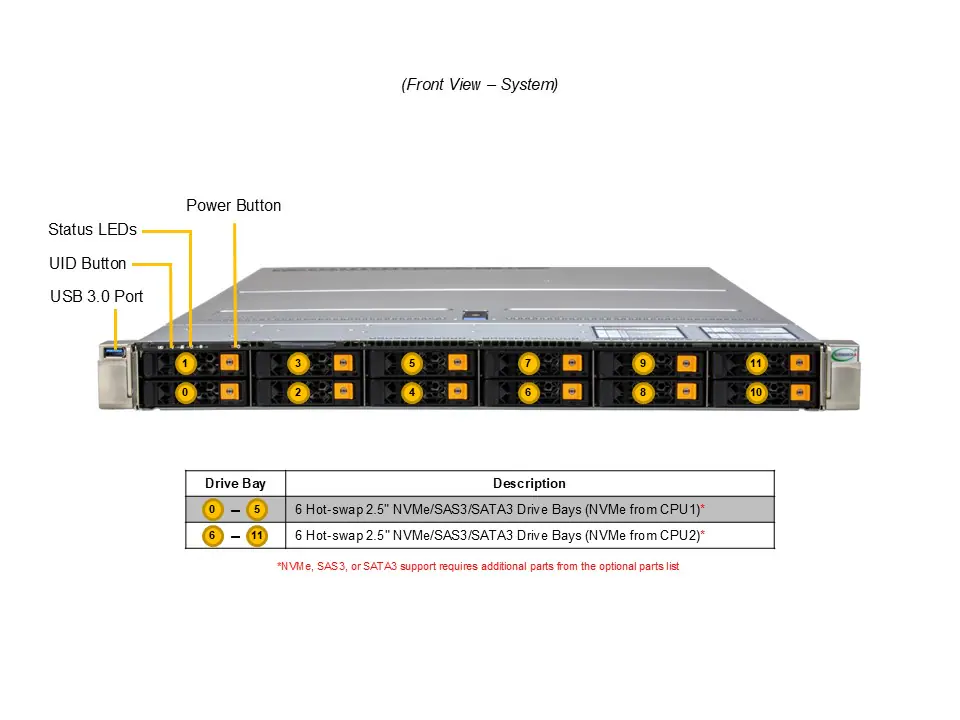

12 2.5″ hot-swap NVMe drive bays
2 PCIe 5.0 x16 slots (full-height, 10.5″ length)
1 AIOM/OCP 3.0 NIC slot for flexible networking options
Redundant titanium level power supplies with options from 1600W to 2600W
1U Rackmount chassis with 30.66″ (778.7mm) depth

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

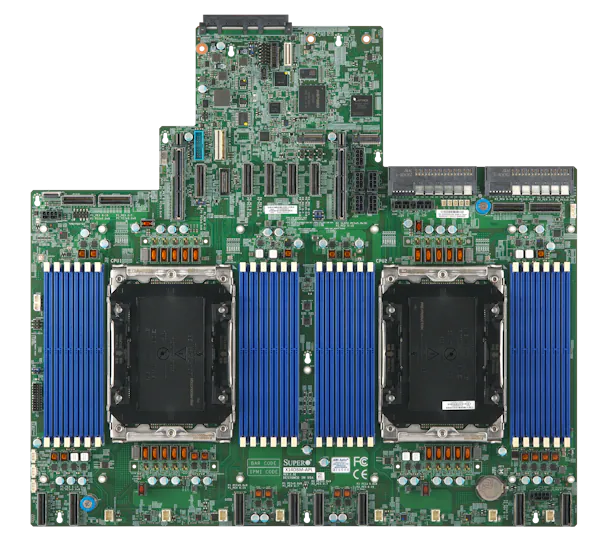

CPU	Dual Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache per CPU
Note	Supports up to 500W TDP CPUs (Liquid Cooled)

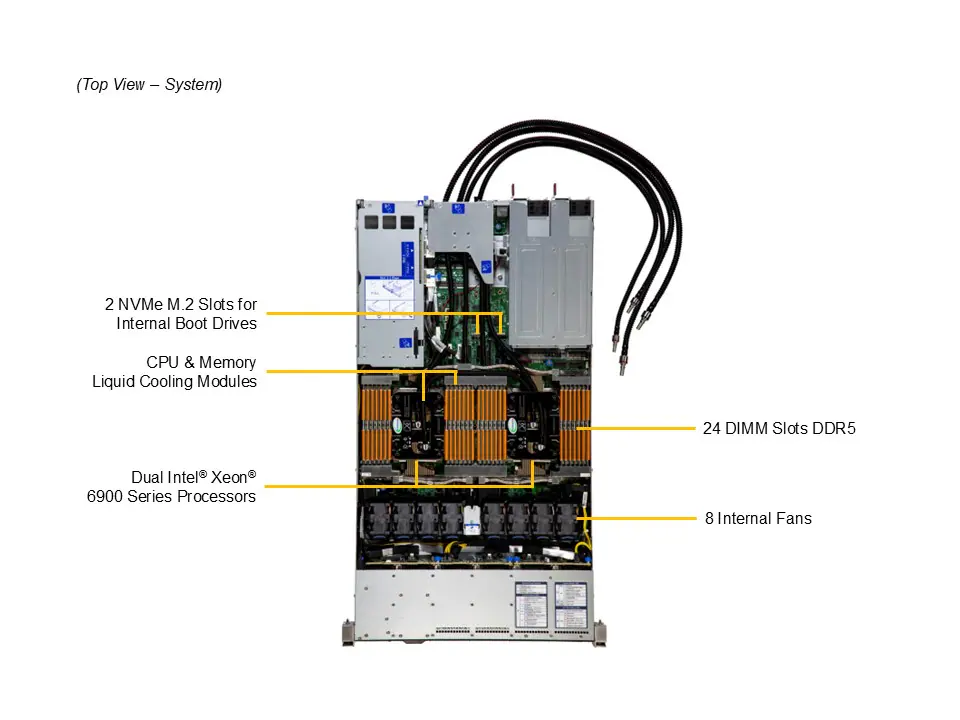

Memory

- Slot Count: 24 DIMM slots
- Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM

Memory Voltage

NVMe

Chipset

Network Connectivity

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	1U Rackmount
Model	CSE-HS101-R000NFP

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)
Depth	30.66″ (778.7 mm)
Package	8.82″ (H) x 26.46″ (W) x 43.31″ (D)
Weight	Gross Weight: 41.4 lbs (18.8 kg) Net Weight: 19.2 lbs (8.7 kg)
Available Color	Silver

LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

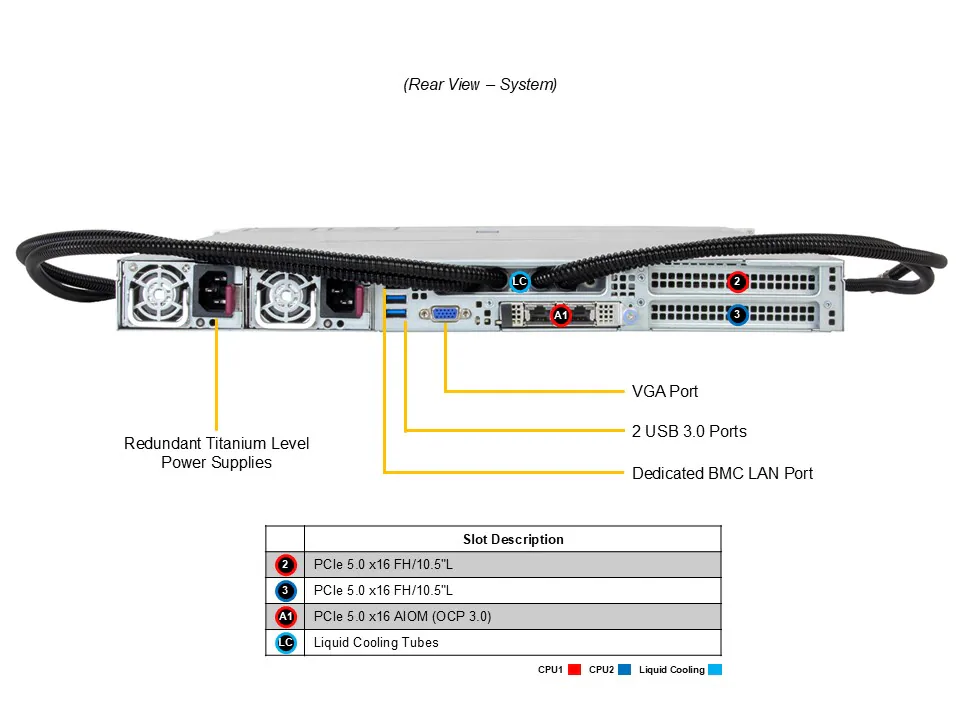

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x16 FH/10.5″L slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

Drive Bays Configuration

M.2

Fans	Up to 8 counter-rotating 40x40x56mm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate

2x 1600W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
