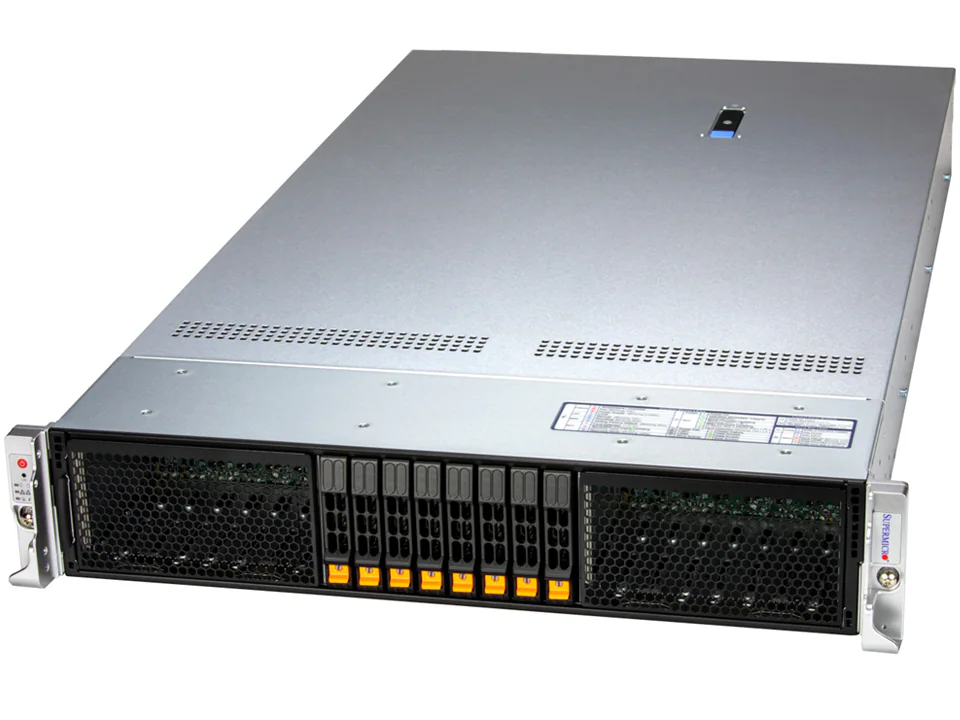

Hyper SuperServer SYS-212HA-TN

(SYS-212HA-TN)

instock

Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
Single Intel® Xeon® 6 6900 series Processor.
12 DIMM slots supporting up to 3TB of 8800 MRDIMM
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

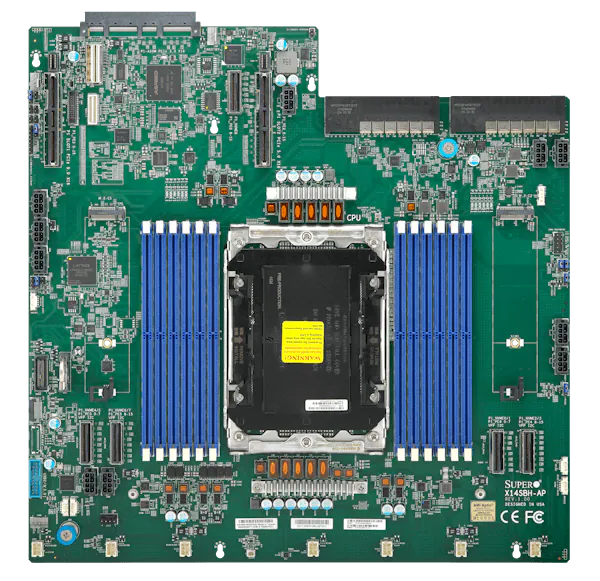

CPU	Single Socket BR (LGA-7529) Intel® Xeon® 6900 series processors with P-cores
Core Count	Up to 128C/256T; Up to 504MB Cache
Note	Supports up to 500W TDP CPUs (Air Cooled)

Memory

- Slot Count: 12 DIMM slots
- Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
- Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM

Memory Voltage

NVMe

Chipset

Network Connectivity

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-HS201-R000NFP

Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)
Depth	31.74″ (806.2 mm)
Package	9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight	Gross Weight: 75 lbs (34 kg) Net Weight: 45 lbs (20.5 kg)
Available Color	Silver

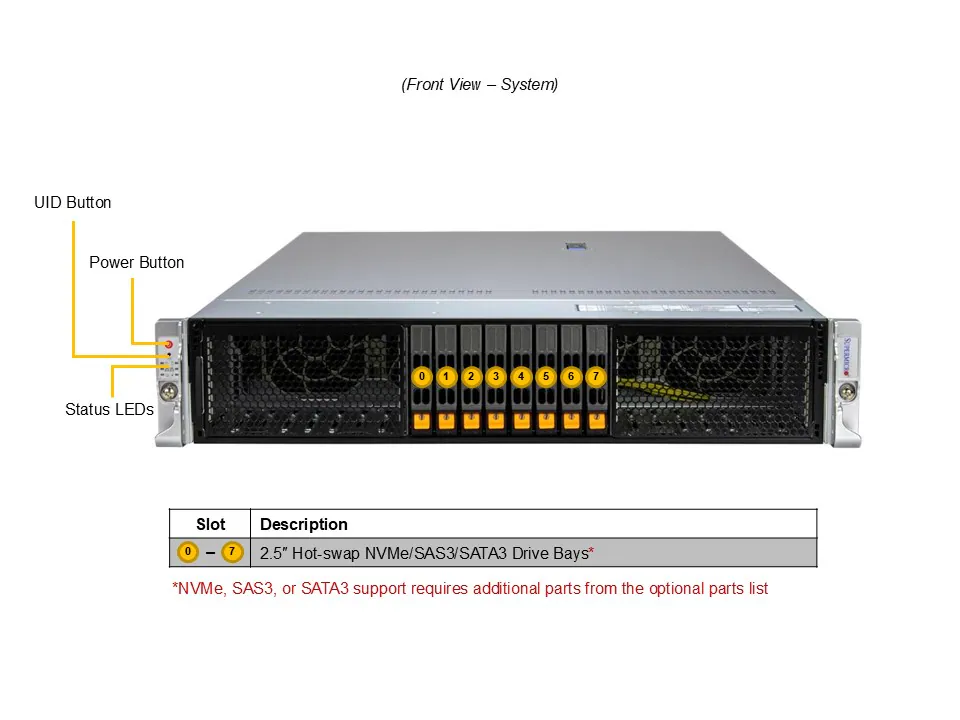

LED	HDD activity LAN1 activity Power status System information
Buttons	Power On/Off UID button

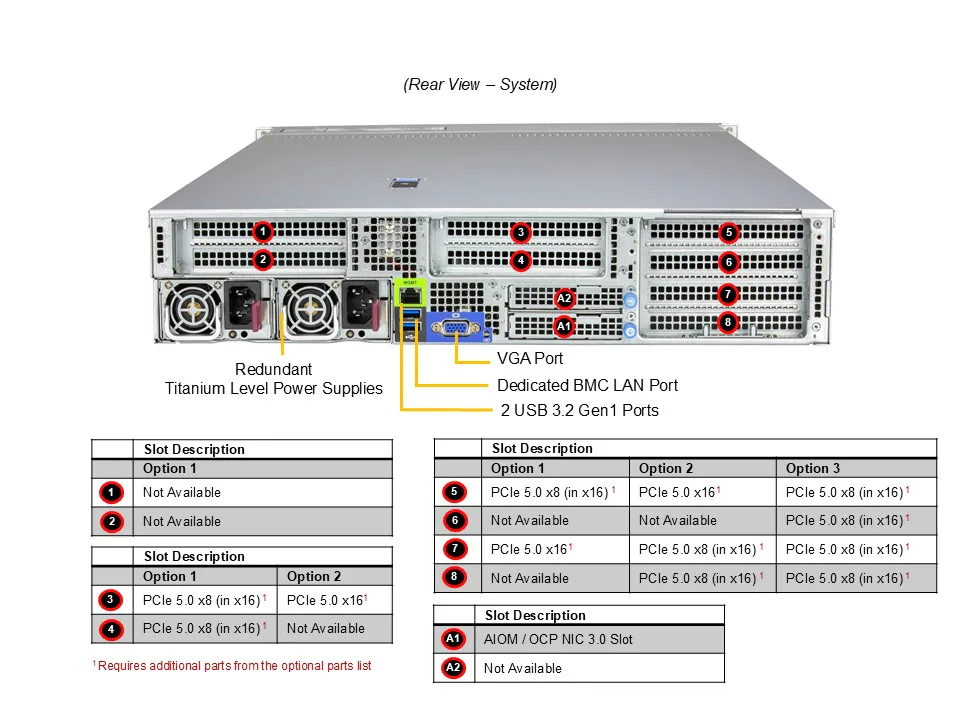

PCI-Express (PCIe) Configuration

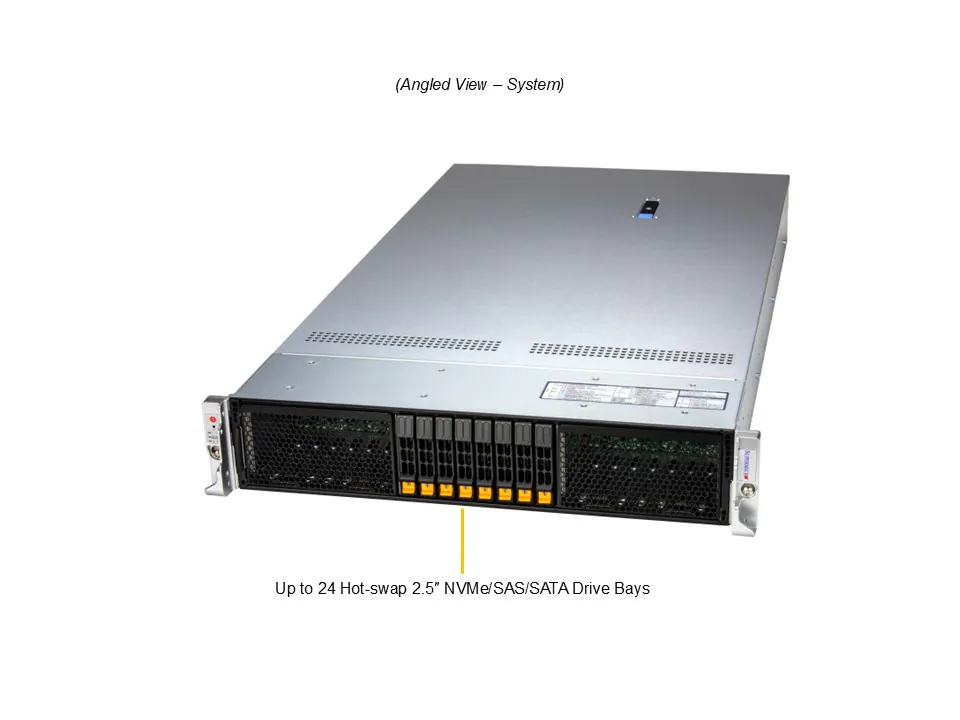

Drive Bays Configuration

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- Option A: Total 24 bays
  - 24 front hot-swap 2.5″ SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

Fans	Up to 6 counter-rotating 60x60x56mm Fan(s)

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
