Hyper SuperServer SYS-222H-TN

(SYS-222H-TN)

instock

Categories: Servers, SuperMicro, Rack Servers

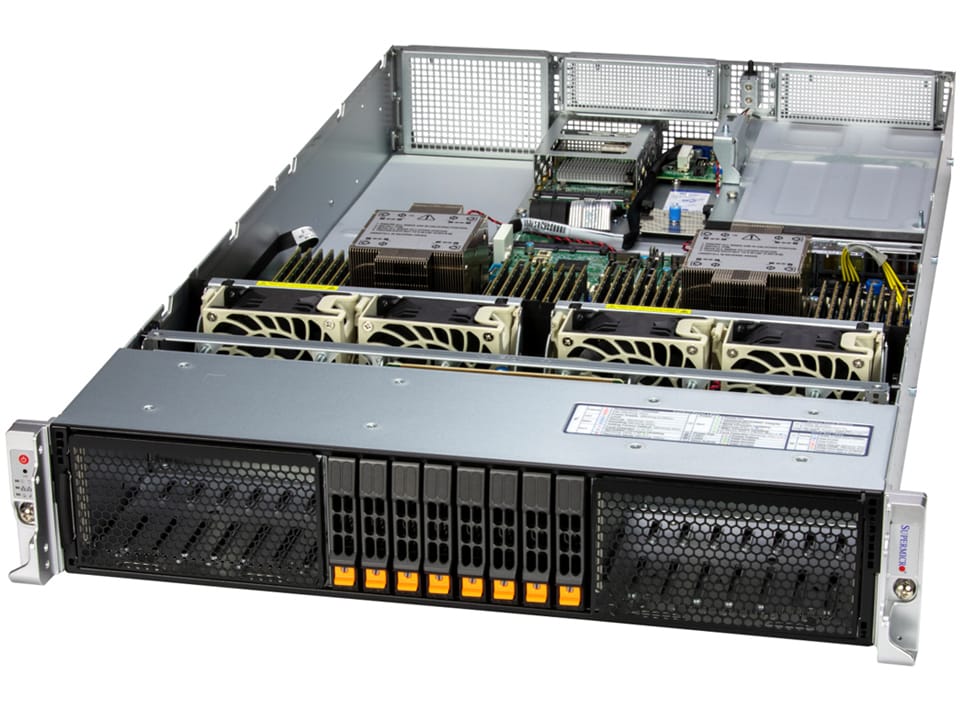

2U Hyper with 8 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 slots + up to 2 PCIe 5.0 x16 AIOM slots

Key Features

Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores

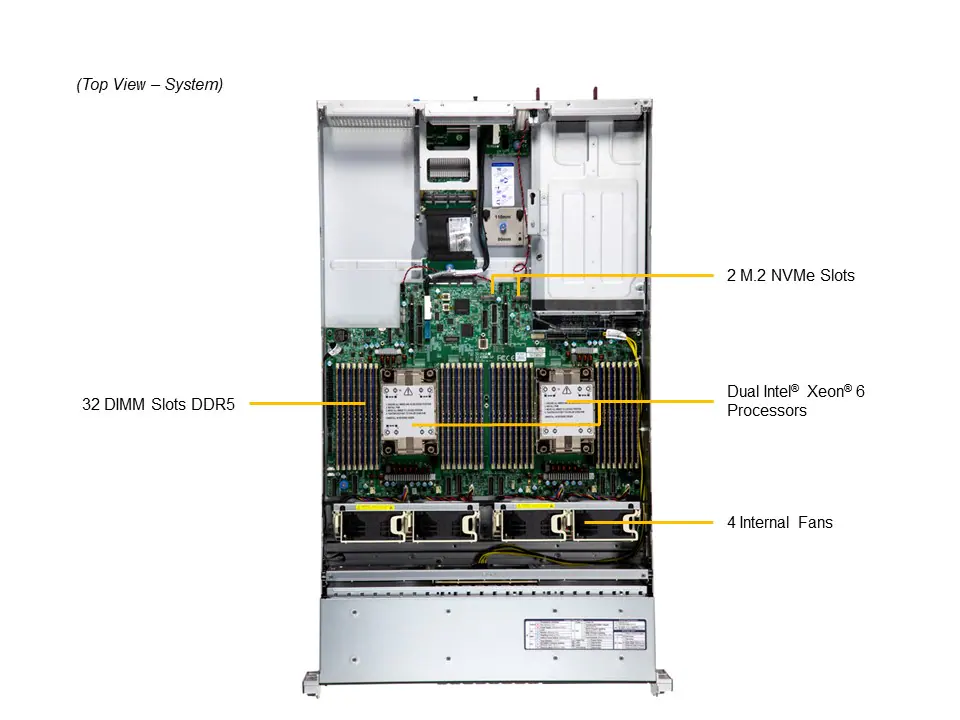

32 DIMM slots supporting up to 8TB of memory
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
8x 2.5″ hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5″ hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

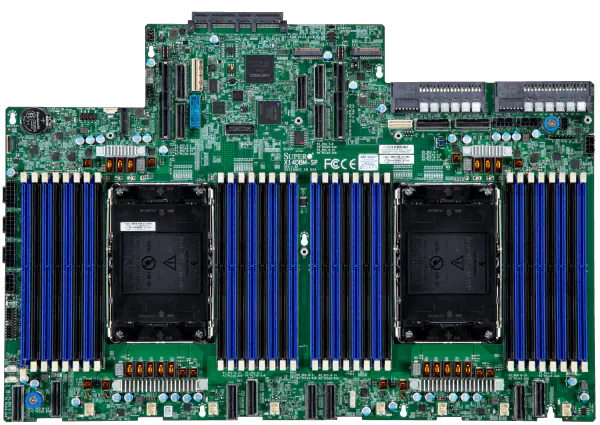

Super X14DBM-SP

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled)

Max GPU Count

- Up to 4 double-width or 8 single-width GPUs

Supported GPU

- NVIDIA PCIe: H100 NVL, L40S

- View GPU Options

Memory

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
- Max Memory (1DPC): Up to 1TB 8000MT/s ECC DDR5 MRDIMM (P-core only)
- Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

NVMe

- NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)

- View NVMe Options

Chipset

- System on Chip

Network Connectivity

- Via AIOM

- View AIOM Options
- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear) 2 USB 3.0 ports(Header)
Video	1 VGA port

BIOS Type

AMI 64MB SPI Flash

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-HS219-R000NP

Height	3.5″ (88 mm)
Width	17.3″ (438.4 mm)
Depth	29.73″ (755.2 mm)
Package	10.12″ (H) x 23.82″ (W) x 37.28″ (D)
Weight	Gross Weight: 66 lbs (30 kg) Net Weight: 40 lbs (18.2 kg)
Available Color	Silver

LED	HDD activity LAN1 activity LAN2 acticity Power Fail Power status System information (overheat/UID)
Buttons	Power On/Off UID button

PCI-Express (PCIe) Configuration

- Option A*
  - 4 PCIe 5.0 x16 FH/10.5″L double-width slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  - 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
- Option B*
  - 8 PCIe 5.0 x8 (in x16) FH/10.5″L slots
  - 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  - 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
- (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

- View AOC Options

CXL Support

- Up to 4 CXL 2.0 x16/x8 devices

Drive Bays Configuration

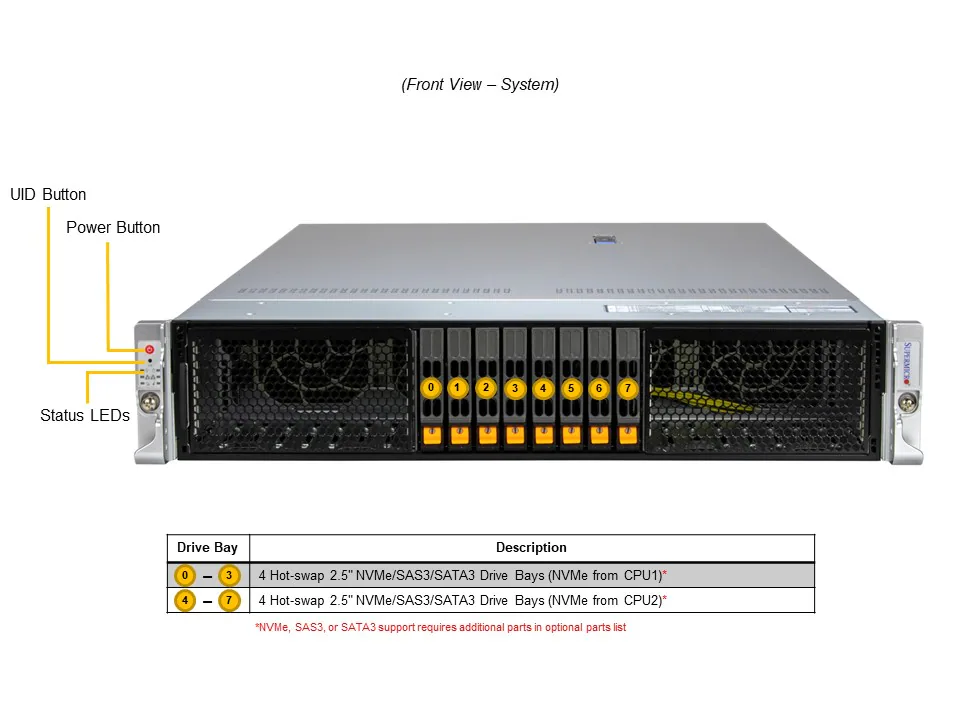

- Default: Total 8 bays
  - 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- Option A: Total 16 bays
  - 16 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays

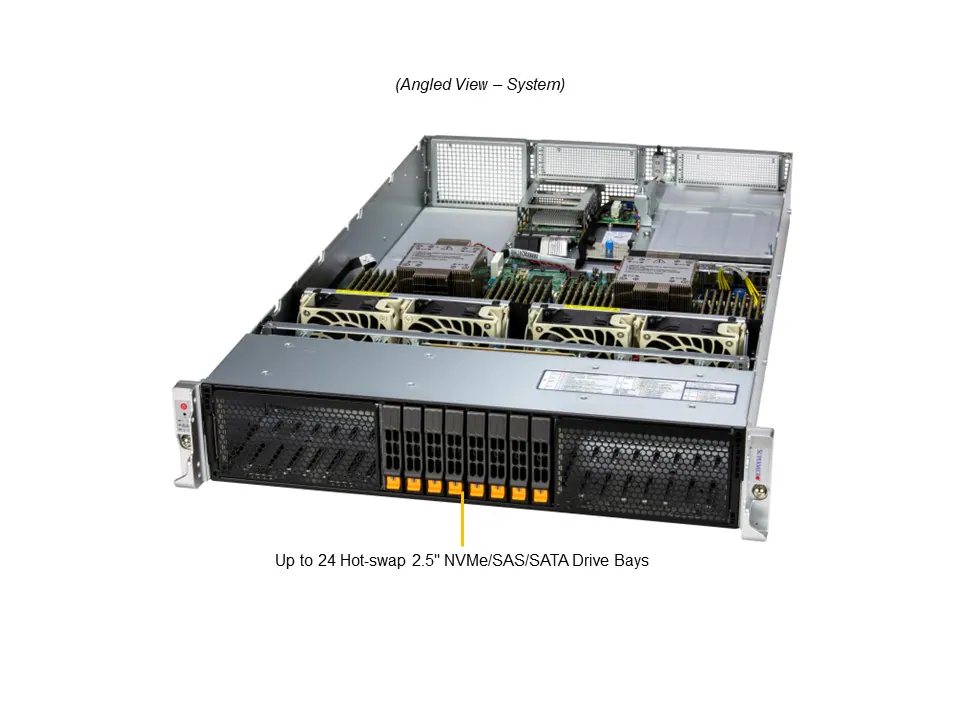

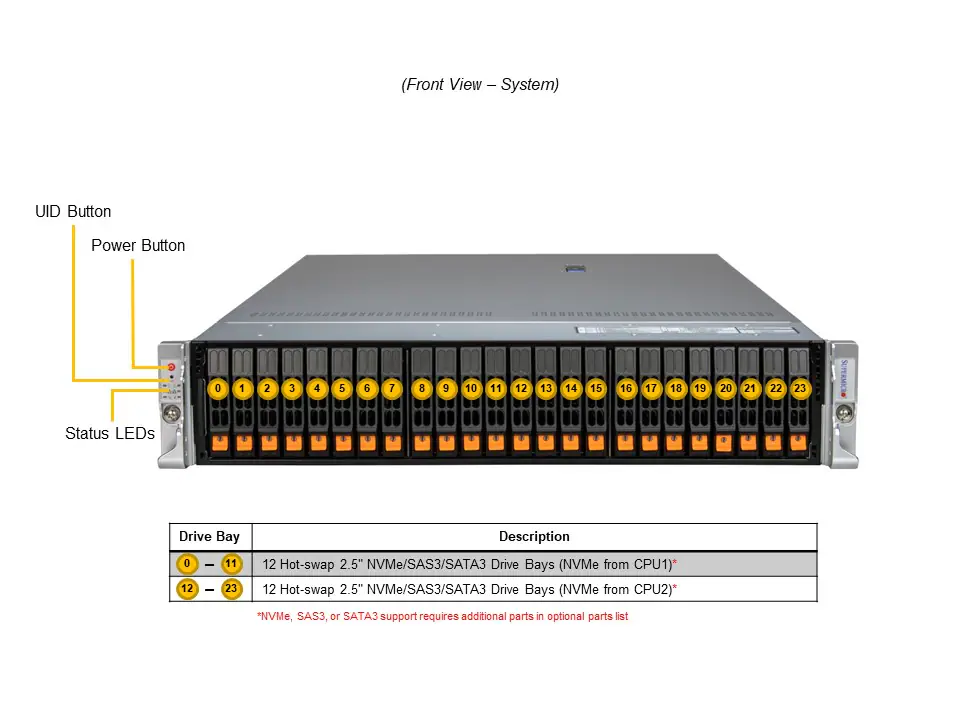

- Option B: Total 24 bays
  - 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
