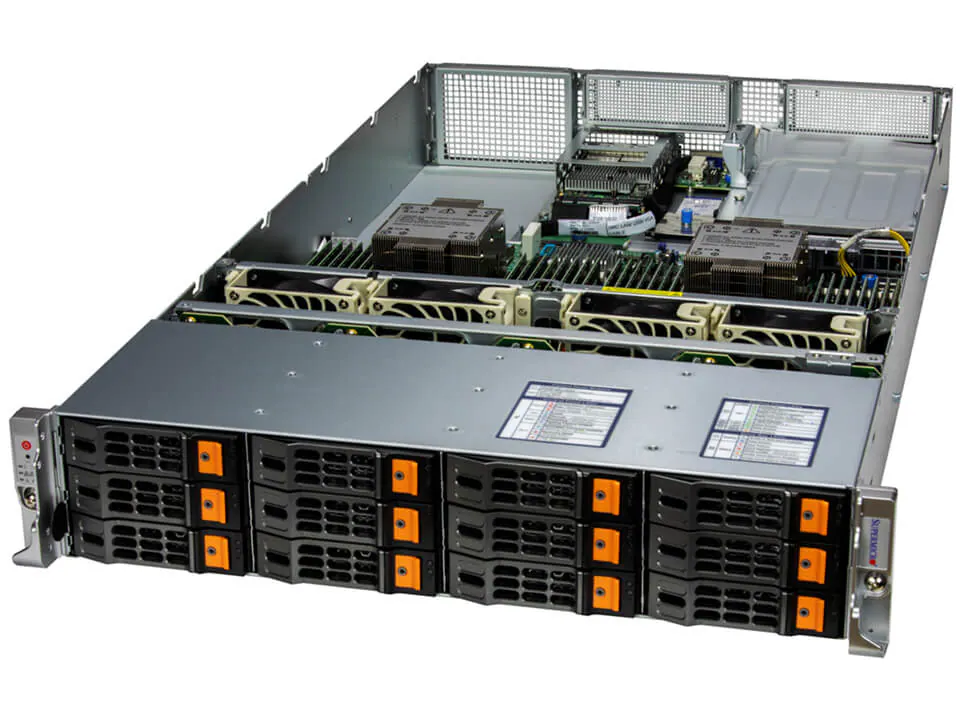

Hyper SuperServer SYS-621H-TN12R

(SYS-621H-TN12R)

instock

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
32 DIMM slots supporting up to 8TB of memory; RDIMMs up to DDR5-5600

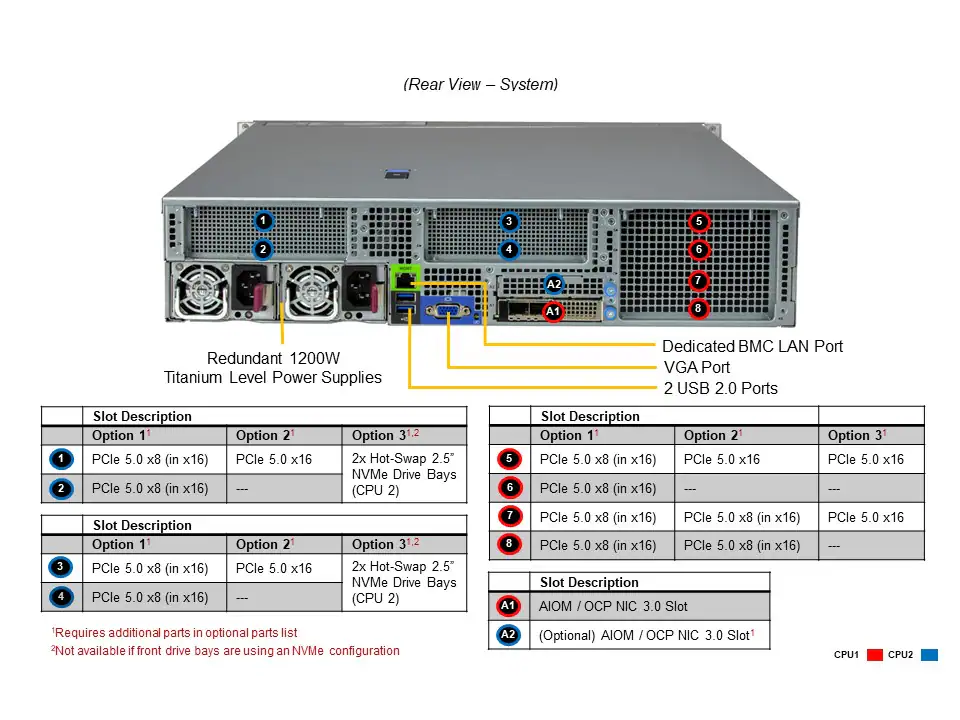

Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
4 heavy duty hot-swap fans with optimal fan speed control

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled)

Max GPU Count

Supported GPU

Certification

Memory

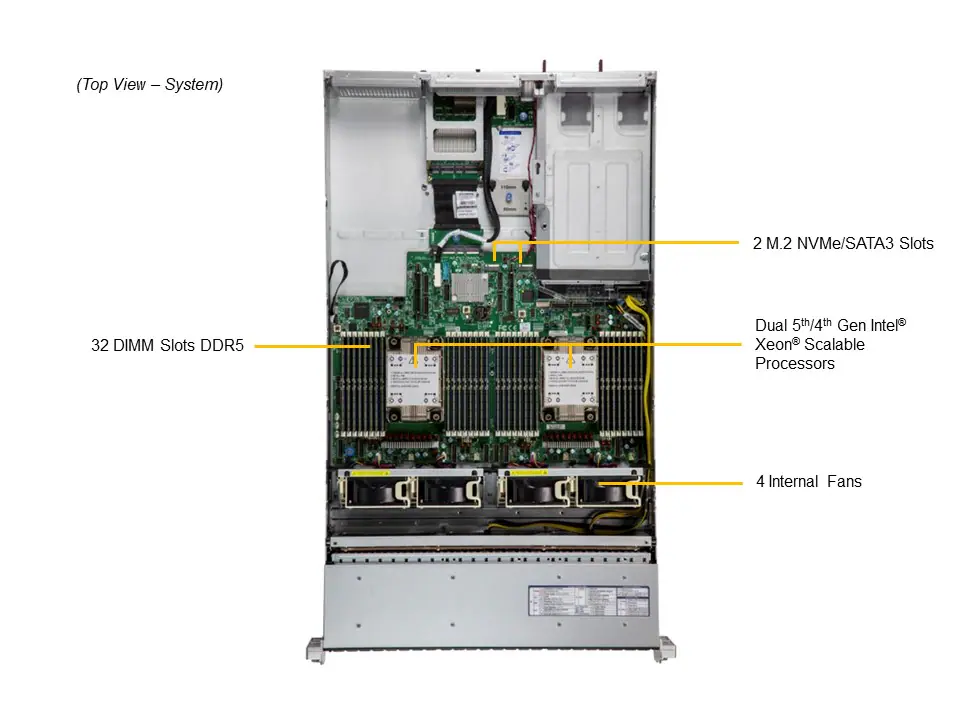

- Slot Count: 32 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
- Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options

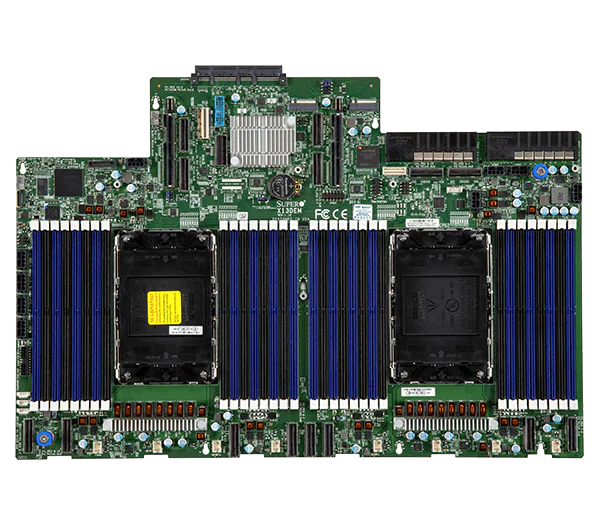

Chipset	Intel® C741
Network Connectivity	Via AIOM View AIOM Options View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 2.0 ports(rear) 2 USB 3.2 Gen1 ports(Header)
Video	1 VGA port

BIOS Type

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-HS829-R1K24P

Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)
Depth	31.6″ (803 mm)
Package	10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight	Gross Weight: 63 lbs (28.6 kg) Net Weight: 37 lbs (16.8 kg)
Available Color	N/A

LED	HDD activity LAN1 activity Power System information
Buttons	Power On/Off UID button

PCI-Express (PCIe) Configuration

M.2

Drive Bays Configuration

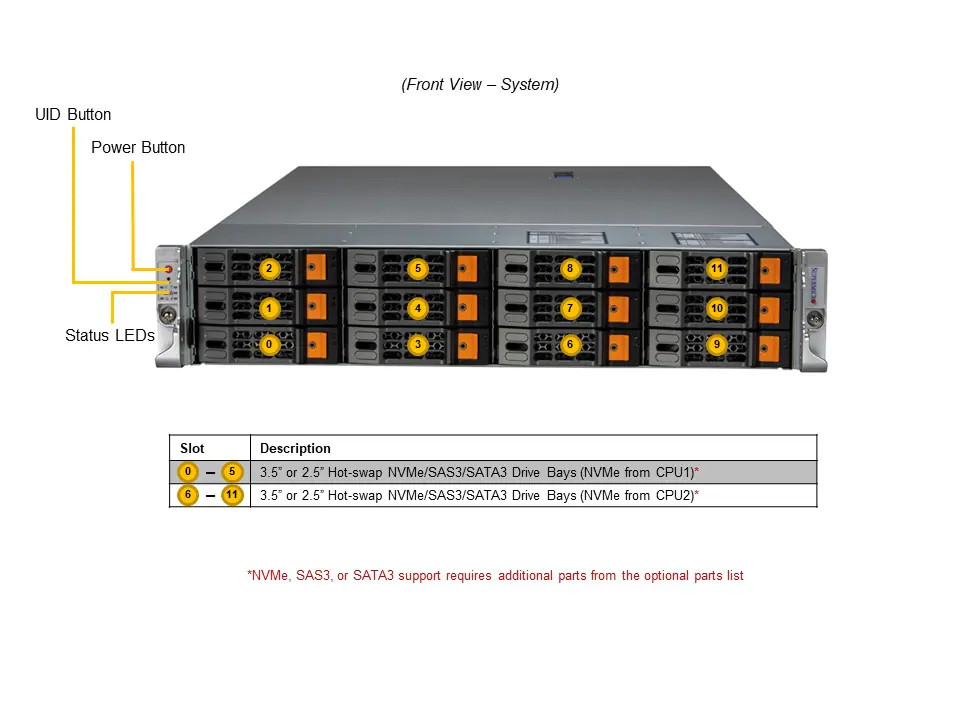

- Default: Total 12 bays

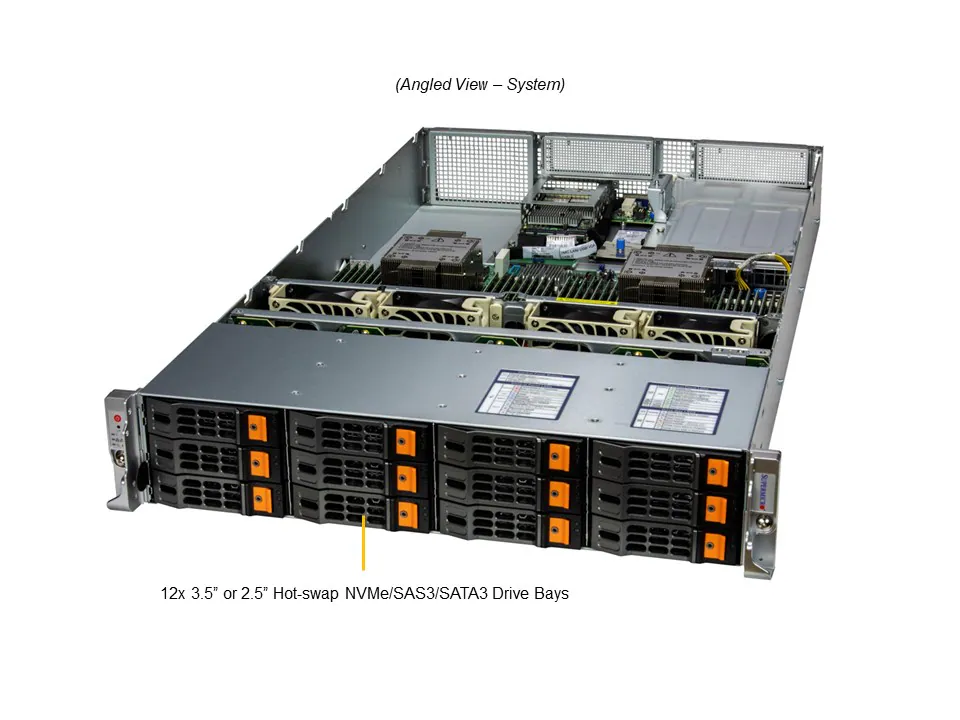

  - 12 front hot-swap 3.5″ NVMe*/SAS*/SATA* drive bays
- (*NVMe/SAS/SATA support may require additional storage controller and/or cables)

M.2

Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds

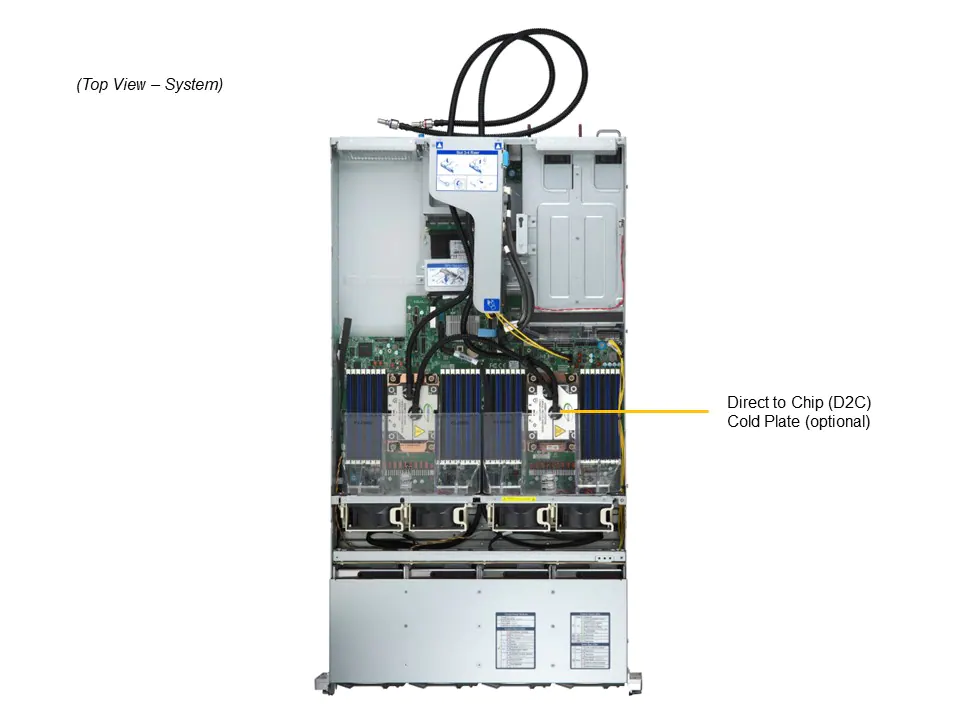

Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)

2x 1200W Redundant Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 66.7A / Min: 0A (100Vac-127Vac) Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac) Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB	Max: 2.1A / Min: 0A
Output Type	Backplanes (gold finger)
