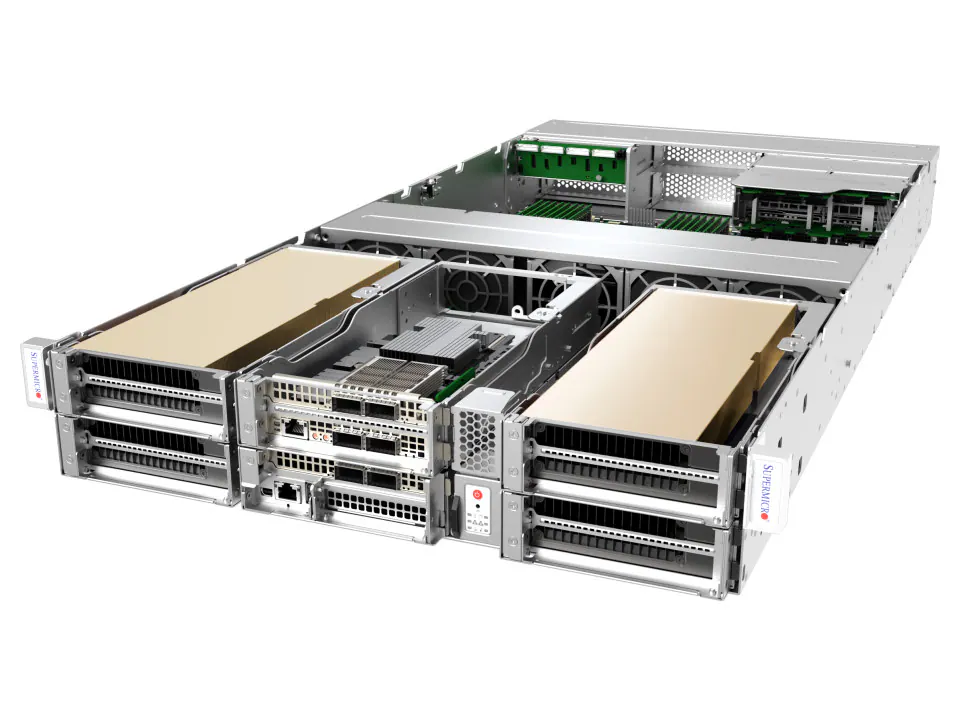

IoT SuperServer SYS-212GB-FNR Coming Soon

(SYS-212GB-FNR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, GPU Servers

UP Intel 2U PCIe GPU System with up to 4 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200

Key Features

  1. Single Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores up to 350W with air cooling
  2. Support for up to 4 double-width PCIe GPU accelerator cards
  3. Up to 16 DIMMs supporting up to 1TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC or 512GB DDR5-8000 in 1DPC
  4. Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
  5. Up to 4 front hot-swap E1.S NVMe drive bays
  6. 3 Redundant 2000W Titanium Level power supplies
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

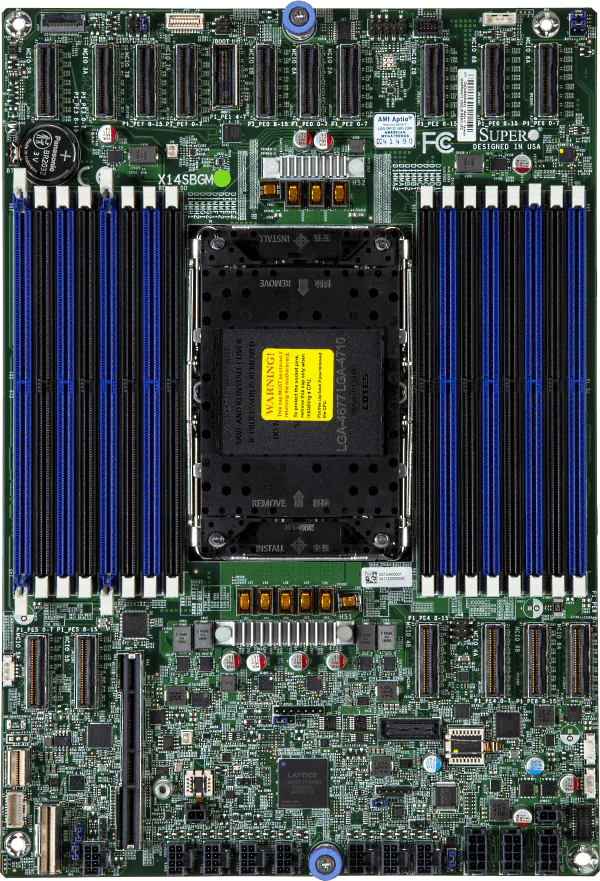

Super X14SBGM
CPU
Core Count
  • Up to 80C/160T
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 4 double-width GPUs


Supported GPU
    • NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB)

CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect


GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)


Memory
    • Slot Count: 16 DIMM slots/8 Channels
    • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM
    • Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM

Memory Voltage
    • 1.1V


Chipset
    • System on Chip


Network Connectivity

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 3.0 Type-A port(Rear)
Video
  • 1 mini-DP port
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Software
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Form Factor
  • 2U Rackmount
Model
Height
  • 3.43″ (87 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 35.43″ (900 mm)
Package
  • 11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight
  • Gross Weight: 84 lbs (38 kg)
  • Net Weight: 66 lbs (30 kg)
Available Color
  • Silver
LED
  • HDD activity
Buttons
  • Power On/Off
PCI-Express (PCIe) Configuration
    • Default
      • 4 PCIe 5.0 x16 FHFL double-width slots
      • 3 PCIe 5.0 x16 FHFL slots

M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)


Drive Bays Configuration
    • Default: Total 4 bays
      • 4 front hot-swap E1.S NVMe drive bays


M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)


Fans
  • Up to 6x 6cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
3x 2000W Redundant Titanium Level (96%) power supplies
Dimension (WxHxL)73.5 x 40 x 185 mm
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Recycle
