IoT SuperServer SYS-220HE-FTNR

(SYS-220HE-FTNR)

instock

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

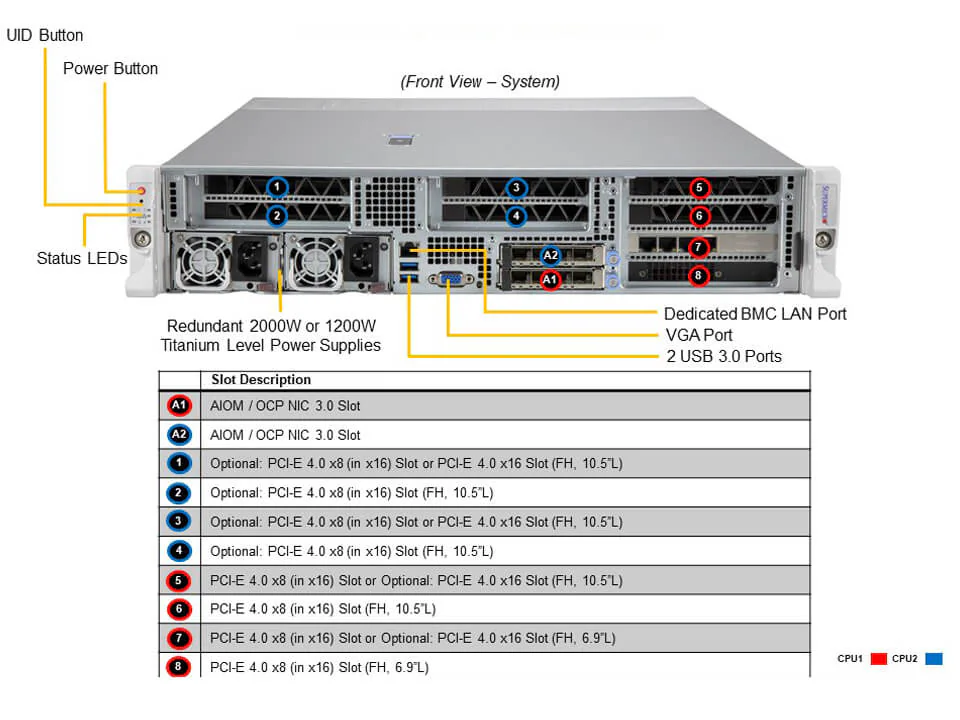

3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default);
1 PCIe 4.0 x16 expansion slots (Optional)

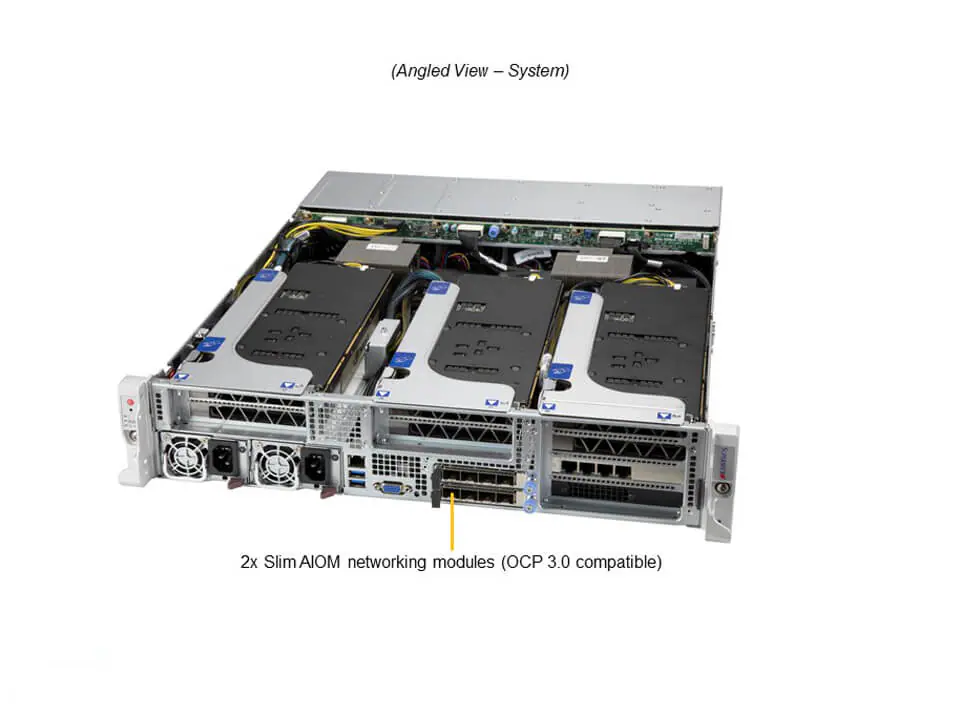

Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)

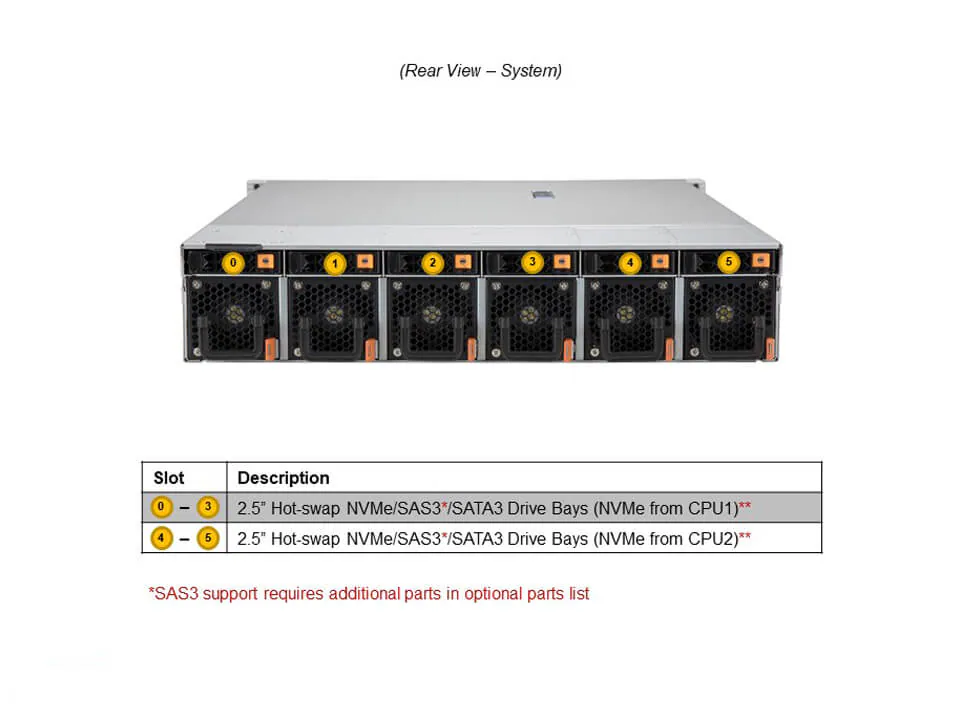

Up to 6x 2.5″ hot-swap drive bays with options to support NVMe/SATA drives
6 heavy duty hot-swap fans with optimal fan speed control Front I/O, tool-less design
Redundant 2000W redundant AC power supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Note	Supports up to 270W TDP CPUs (Air Cooled)

Max GPU Count

Supported GPU

CPU-GPU Interconnect

Memory

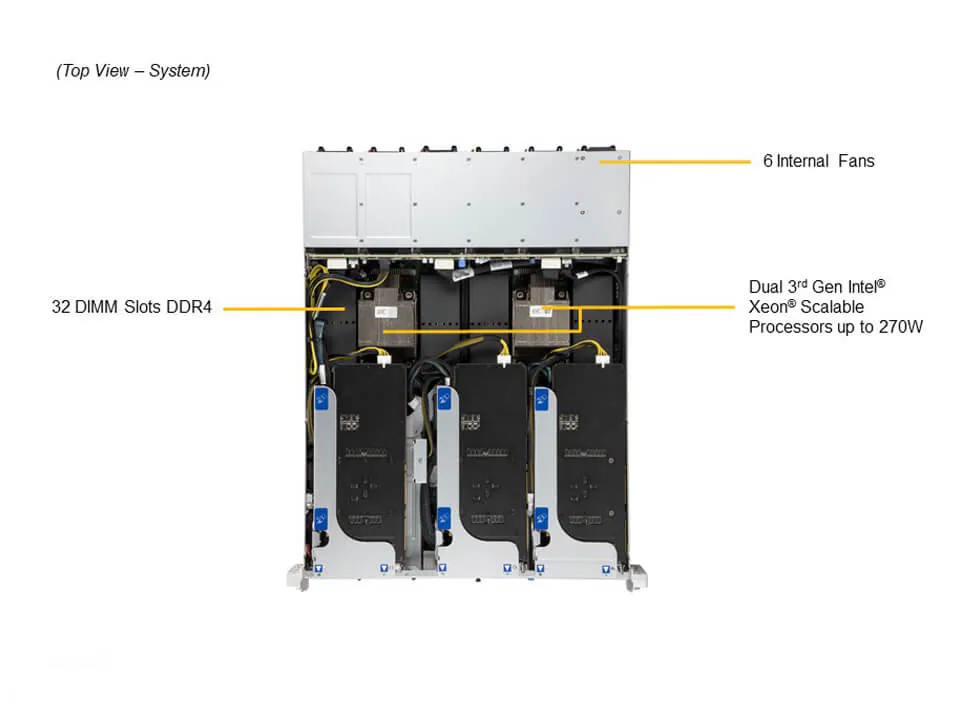

- Slot Count: 32 DIMM slots
- Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage

SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe	NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) View NVMe Options
Chipset	Intel® C621A
Network Connectivity	2 RJ45 1GbE with Intel® I350-AM2 (optional) 4 SFP 1GbE with Intel® I350-AM4 (optional) 2 RJ45 10GBASE-T with Intel® X550-AT2 (optional) 2 SFP+ 10GbE with Intel® X710-BM2 (optional) 4 SFP+ 10GbE with Intel® XL710-BM1 (optional) 4 SFP+ 10GbE with Intel® X710-TM4 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 4 SFP28 25GbE (optional) 2 QSFP28 100GbE with Broadcom® BCM57508 (optional) 4 RJ45 1GbE with Intel® I350-AM4 (optional) View AIOM Options View AOC Options

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-HE211-R000NFP

Height	3.5″ (88.9 mm)
Width	17.2″ (436.88 mm)
Depth	22.6″ (574 mm)
Package	9.7″ (H) x 23.5″ (W) x 36.9″ (D)
Weight	Gross Weight: 47.4 lbs (21.5 kg) Net Weight: 34.4 lbs (15.6 kg)
Available Color	Silver

LED	HDD activity LED LAN1 activity LAN2 activity Power Fail Power status LED System information
Buttons	Power On/Off UID button

PCI-Express (PCIe) Configuration

Drive Bays Configuration

M.2

Fans	Up to 6 Counter-rotating, Hot-swappable 60x60x56mm Fan(s)
Air Shroud	4 Air Shrouds

1x 2000W Redundant Titanium (certification pending) Level (96%) power supply

Dimension (WxHxL)	73.5 x 40 x 203 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only) 2000W: 230-240Vac / 50-60Hz 2000W: 230-240Vdc / 50-60Hz (for China only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 83A (100Vac-127Vac) Max: 150A (200Vac-220Vac) Max: 166A / Min: 0A (200Vac-240Vac) Max: 165A (220Vac-230Vac) Max: 166A (230Vac-240Vac)
12V SB	Max: 3.5A
Output Type	Backplanes (gold finger)
