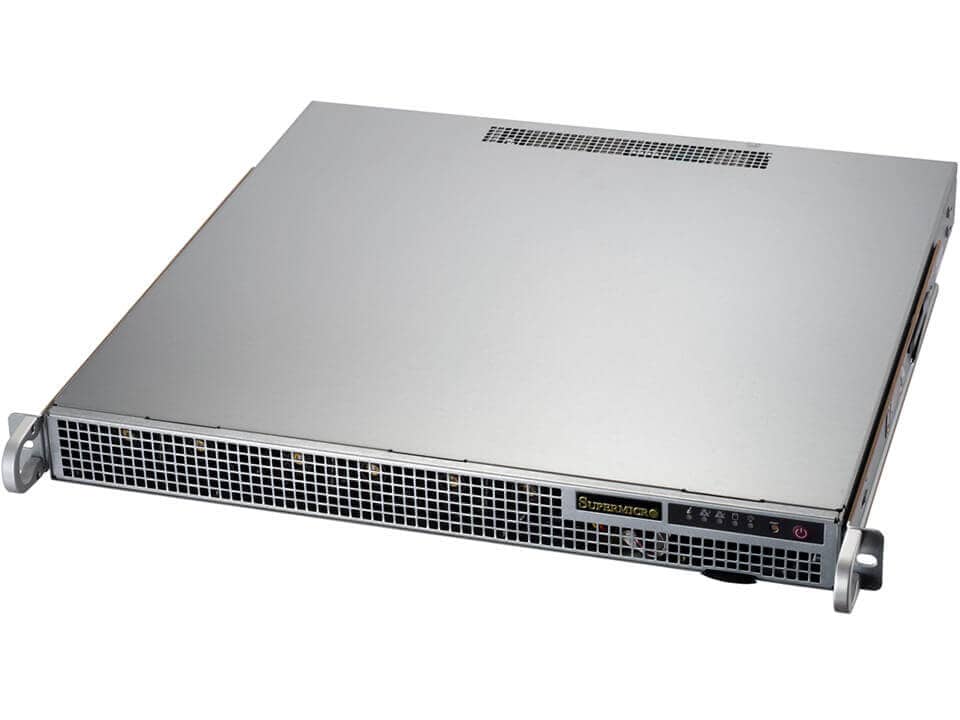

Mainstream A+ Server AS -1015A-MT

(AS -1015A-MT)

instock

Categories: Servers, SuperMicro, Rack Servers

1U UP Mainstream with up to 4 internal 2.5″ SATA bays and 1 PCIe 5.0 slot

Key Features

AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 Series Processor up to 170W TDP
4 DDR5 UDIMM slots, ECC/Non-ECC DDR5-5200 up to total 192GB
1 PCIe 5.0 x16 FHHL slot
IPMI 2.0 + KVM with Dedicated LAN (1GbE)
Dual 1GbE LAN (Intel® I210-AT)
500W High-Efficiency Power Supply Platinum Level Certified

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

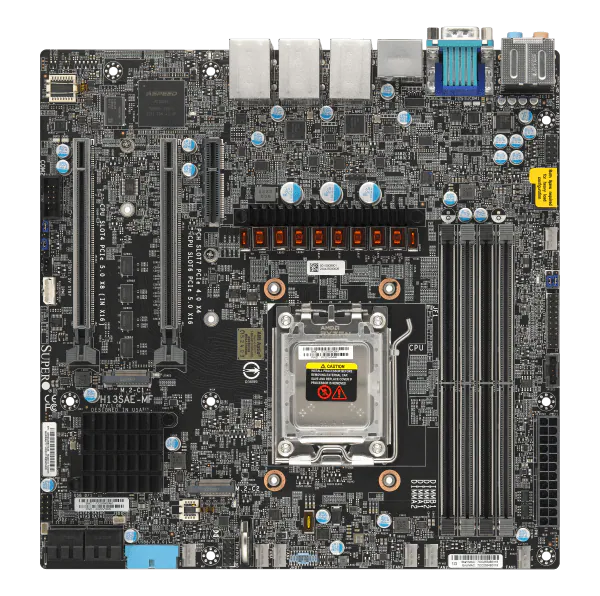

Super H13SAE-MF

CPU	Single processor(s) AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count	Up to 16C/32T
Note	Supports 60W – 170W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 1 single-width GPU

Supported GPU

- NVIDIA PCIe: RTX 4000 Ada Generation, RTX A4000, L4, A2
- AMD PCIe: Radeon Pro W7500

- View GPU Options

CPU-GPU Interconnect

- PCIe 5.0 x16 CPU-to-GPU Interconnect

Memory

- Slot Count: 4 DIMM slots
- Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA	SATA (6Gbps) ; RAID 0/1 support
NVMe	NVMe; RAID 0/1 support(Native)
Chipset	AMD B650

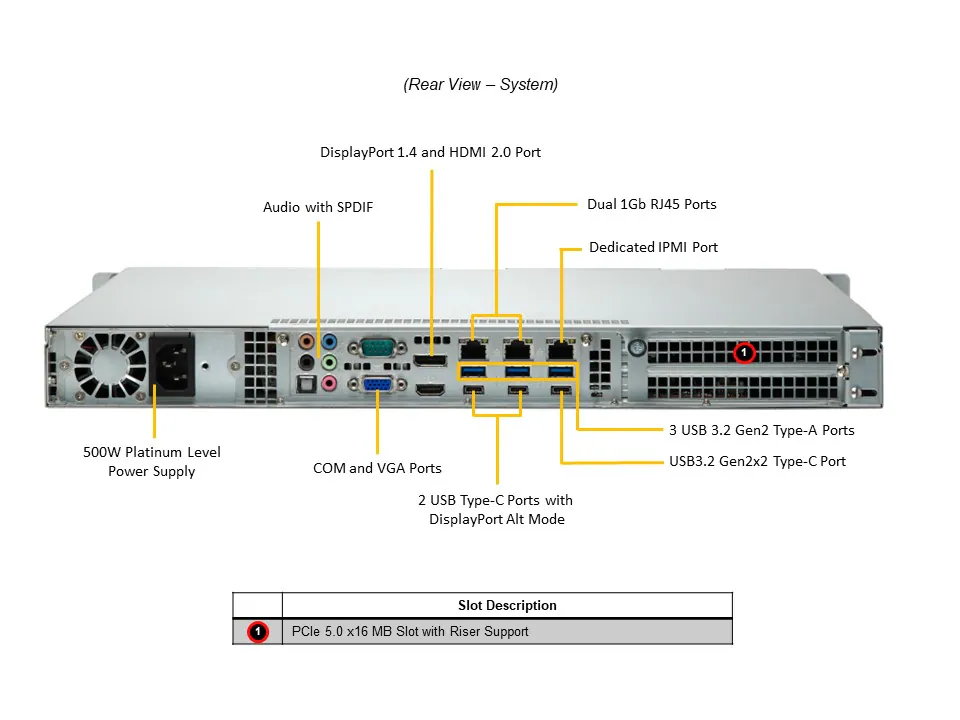

Network Connectivity	1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel® I210-AT View AOC Options

<td class=”description border_b”

1 VGA port
1 DisplayPort 1.4 port
1 HDMI 2 port

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	3 Type-A ports(Rear) 2 Type-C ports(Rear) 1 Type-C port(Rear)
Video
Audio	Rear Audio
TPM	1 TPM header

BIOS Type

AMI 32MB SPI Flash

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Supply Chain Security: Remote Attestation Runtime BMC Protections

FAN	Status monitor for speed control
Voltage	+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Other Features	8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature	CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

Form Factor	1U
Model	CSE-514-505

Height	1.7″ (43 mm)
Width	17.2″ (437 mm)

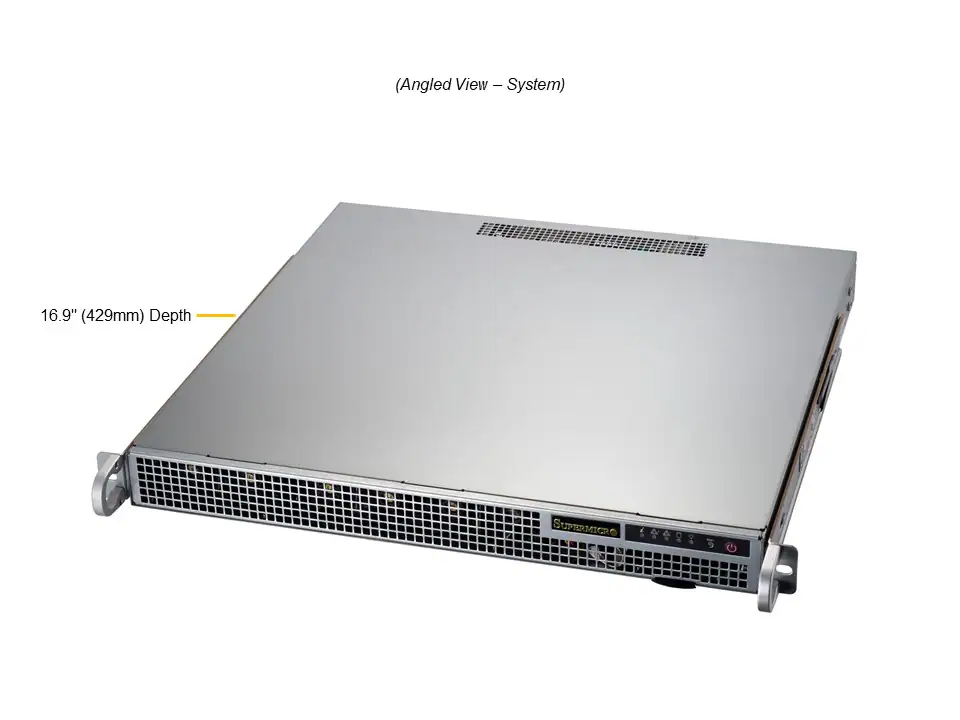

Depth	16.9″ (429 mm)
Package	8″ (H) x 27″ (W) x 24″ (D)
Weight	Gross Weight: 16 lbs (7.26 kg)
Available Color	Silver

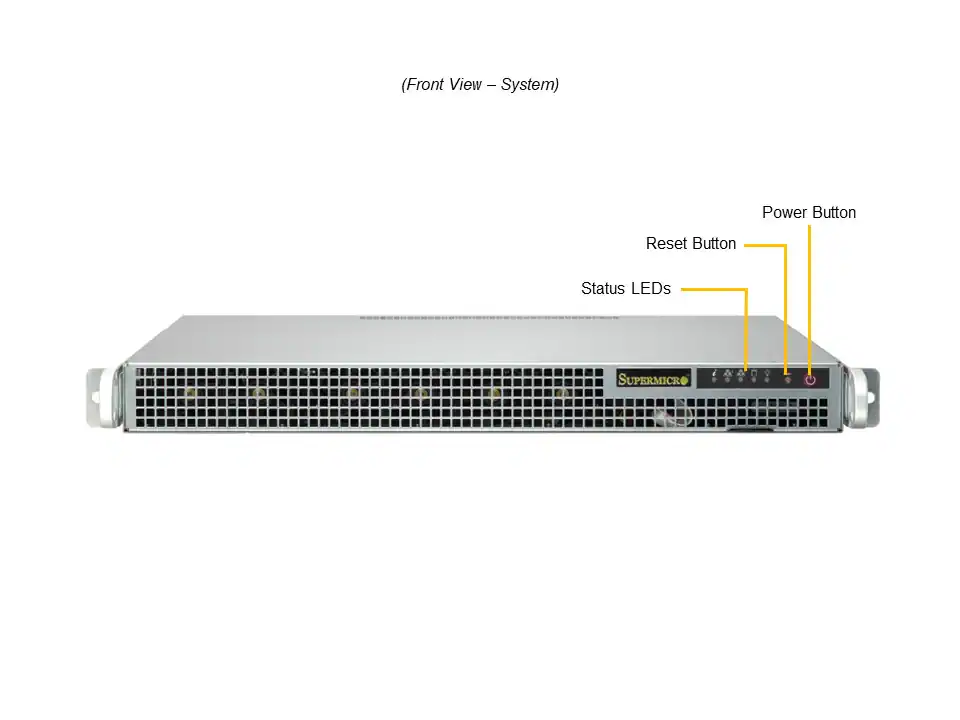

LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED
Buttons	Power On/Off button System Reset button

PCI-Express (PCIe) Configuration

- Default
  - 1 PCIe 5.0 x16 FHHL slot

- View AOC Options

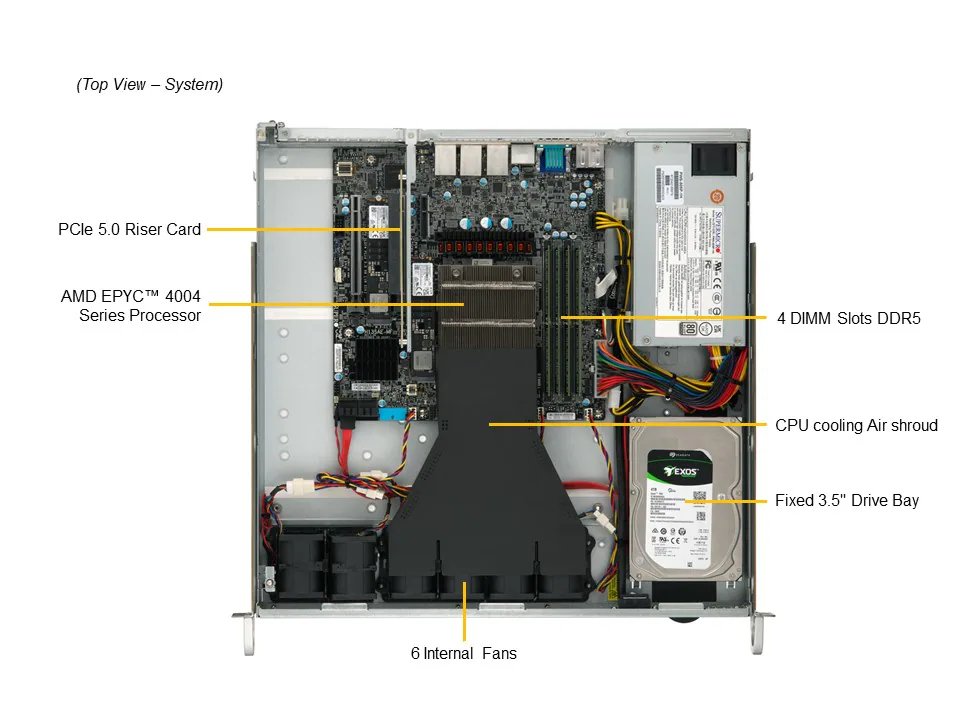

Drive Bays Configuration

- Default: Total 1 bay
  - 1 internal fixed 3.5″ SATA drive bay
- Option A: Total 4 bays
  - 4 internal fixed 2.5″ SATA* drive bays
- (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)

- View Drive Options

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

- View M.2 Options

Fans	Up to 6x 40mm Fan(s)
Air Shroud	1 Air Shroud

1x 500W Platinum Level (93%) power supply

Dimension (WxHxL)	100 x 40 x 180 mm
Input	500W: 100-240Vac 500W: 100-240Vac / 50-60Hz
+12V	Max: 41A / Min: 0.5A (100Vac-240Vac) Max: 41A / Min: 0.5A
5V SB	Max: 3A / Min: 0A
Output Type	24pin ATX
Certification	Platinum Level

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
