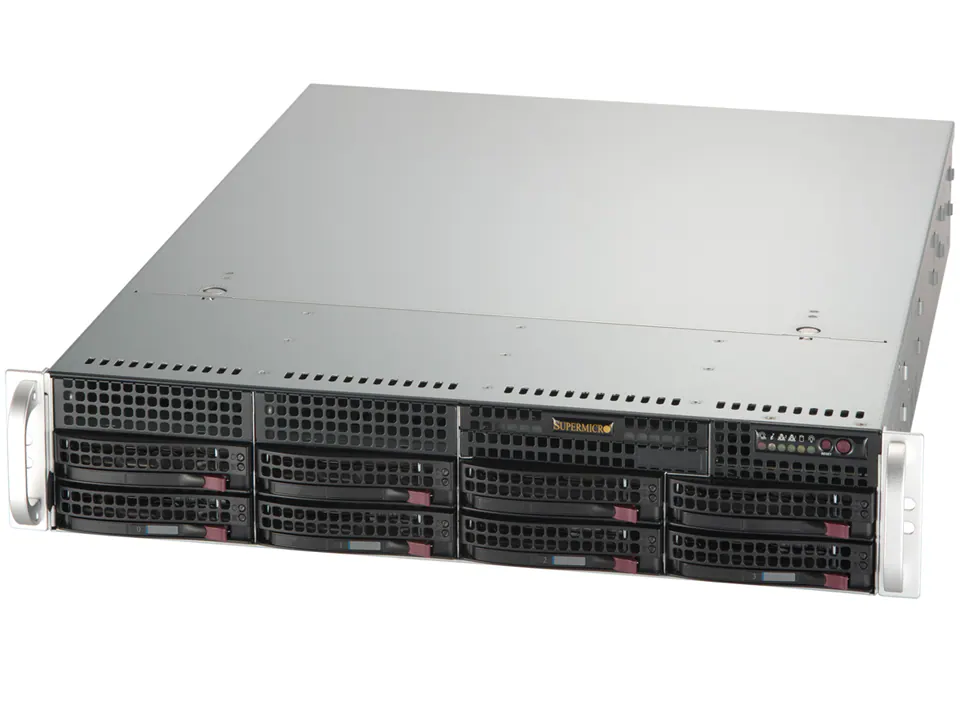

Mainstream A+ Server AS -2015A-TR

(AS -2015A-TR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

2U UP Mainstream with up to 8 hot-swap 3.5″ SAS/SATA bays, 2 PCIe 5.0 x16 slots (can be configured as 16/NA or 8/8) and 1 PCIe 4.0 x4 slot
Key Features

  1. AMD EPYC™ 4004 / 4005 or Ryzen™ 7000 / 9000 series LGA1718 up to 170W TDP Processors
  2. 4 DDR5-5200 UDIMM ECC/Non-ECC slots supporting up to 192GB memory
  3. 2 PCIe 5.0 x16 HHHL slots (16/NA or 8/8)
  4. IPMI 2.0 + KVM with Dedicated LAN (1GbE)
    Dual 1GbE LAN (Intel® I210-AT)
  5. 800W High-Efficiency Power Supply Titanium Level Certified
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

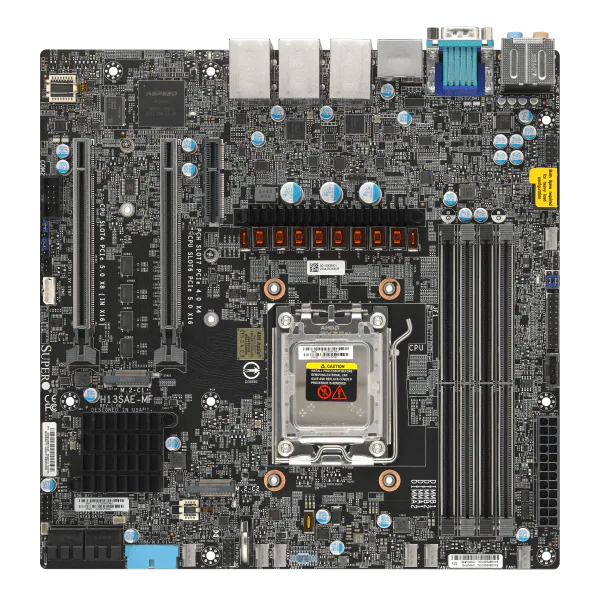

Super H13SAE-MF
CPU
  • Single processor(s)
  • AMD EPYC™ 4004 / 4005 or AMD Ryzen™ 7000 / 9000 Series Processors
Core Count
  • Up to 16C/32T
Note
  • Supports 60W – 170W TDP CPUs (Air Cooled)
Max GPU Count
    • Up to 1 double-width or 2 single-width GPUs


Supported GPU
    • NVIDIA PCIe: RTX A2000, L4

CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect


Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 192GB 5200MT/s ECC/non-ECC DDR5 UDIMM

Memory Voltage
    • 1.1V


SATA
    • SATA (6Gbps) ; RAID 0/1 support


NVMe
    • NVMe; RAID 0/1 support(Native)


Chipset
    • AMD B650


Network Connectivity

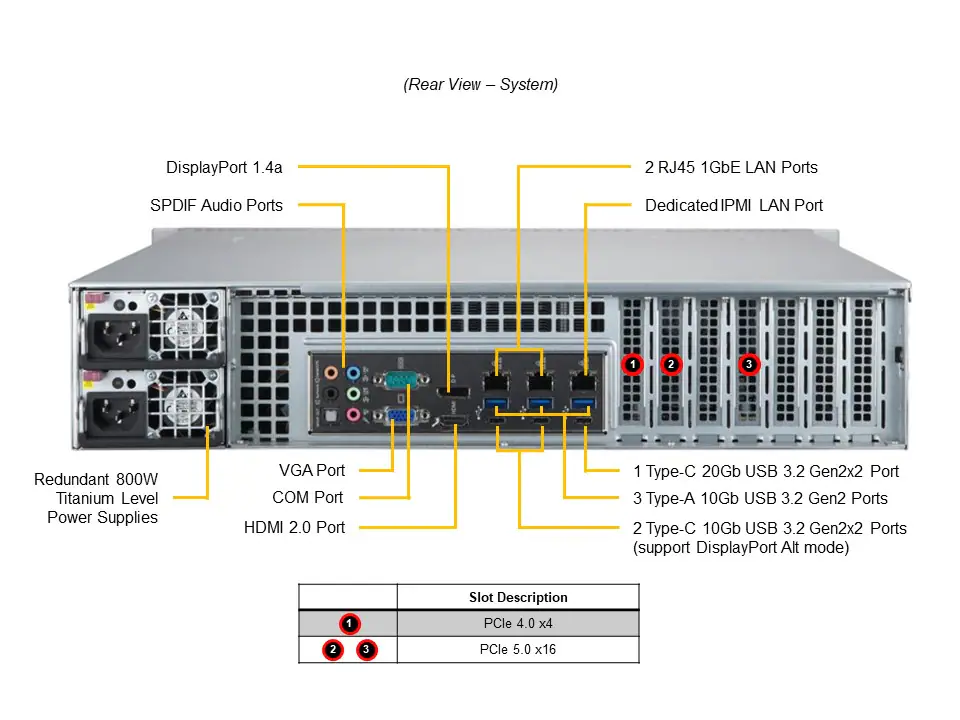

    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 2 RJ45 1GbE with Intel® I210-AT

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 3 Type-A ports(Rear)
  • 2 Type-C ports(Rear)
  • 1 Type-C port(Rear)
Video
  • 1 VGA port
  • 1 DisplayPort 1.4 port
  • 1 HDMI 2 port
Audio
  • Rear Audio
TPM
  • 1 TPM header
BIOS Type
  • AMI 32MB SPI Flash
Software
Power configurations
  • ACPI 6.0 Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
FAN
  • Status monitor for speed control
Voltage
  • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM
Other Features
  • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature
  • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Form Factor
  • 2U
Model
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 52 lbs (23.59 kg)
  • Net Weight: 37 lbs (16.78 kg)
Available Color
  • Black
LED
  • HDD activity LED
  • Network Activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED
Buttons
  • Power On/Off button
  • System Reset button
PCI-Express (PCIe) Configuration
    • Default
      • 1 PCIe 4.0 x4 LP slot
      • 2 PCIe 5.0 x16 LP slots

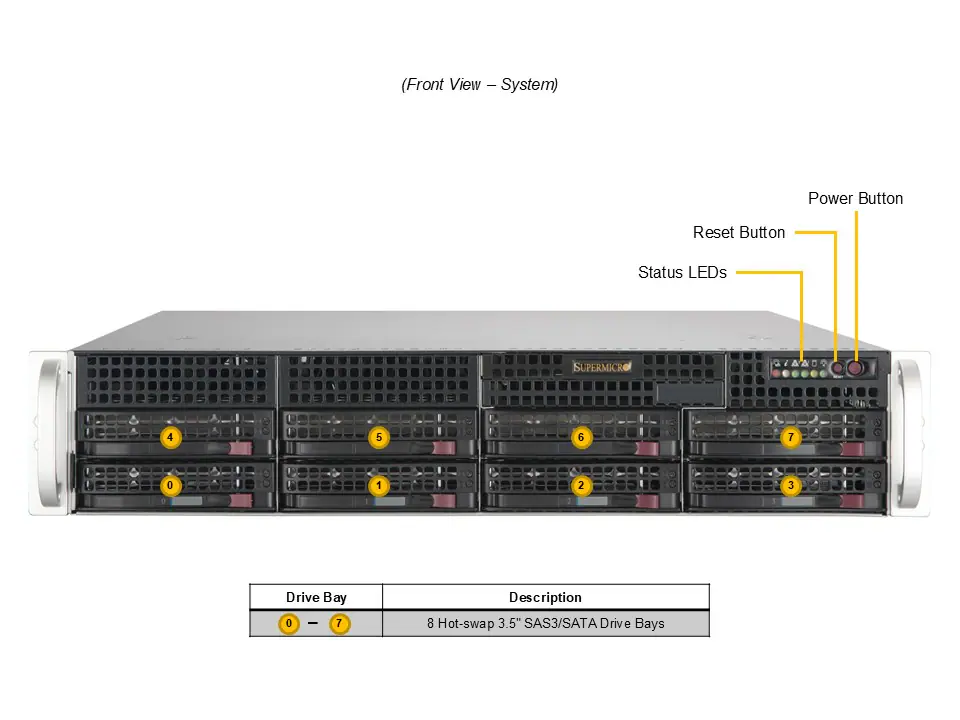

Drive Bays Configuration
    • Default: Total 8 bays
      • 8 front hot-swap 3.5″ SAS/SATA drive bays

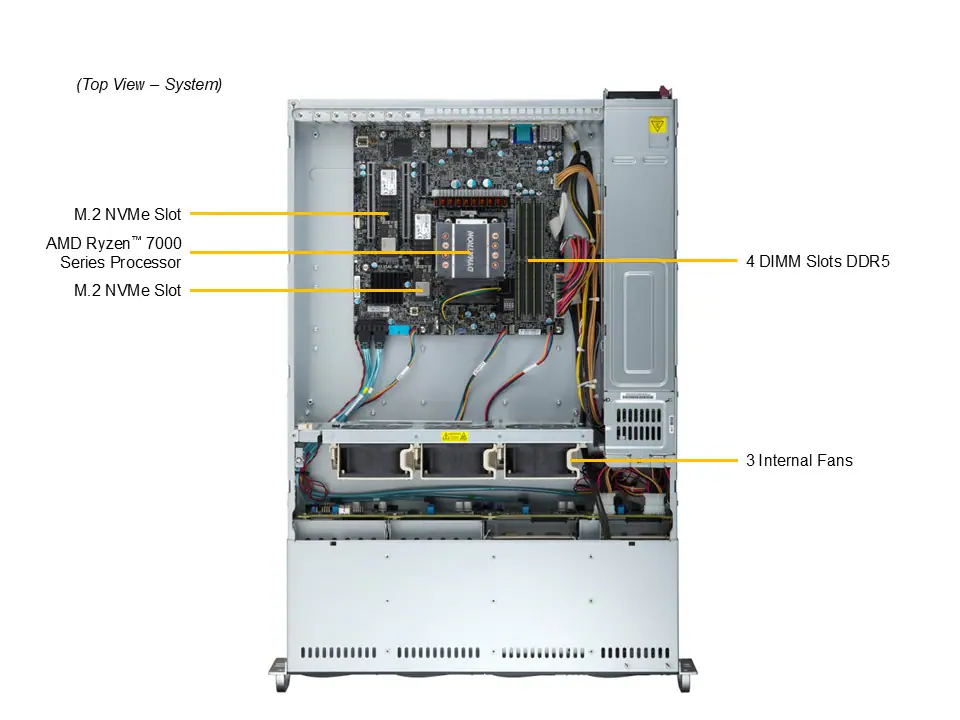

M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

Fans
  • Up to 3x 80mm Fan(s)
Air Shroud
  • 1 Air Shroud
2x 800W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input800W: 100-240Vac / 50-60Hz
800W: 200-240Vdc / 50-60Hz
+12VMax: 66A / Min: 0A (100Vac-240Vac)
Max: 66A / Min: 0A (200Vdc-240Vdc)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
