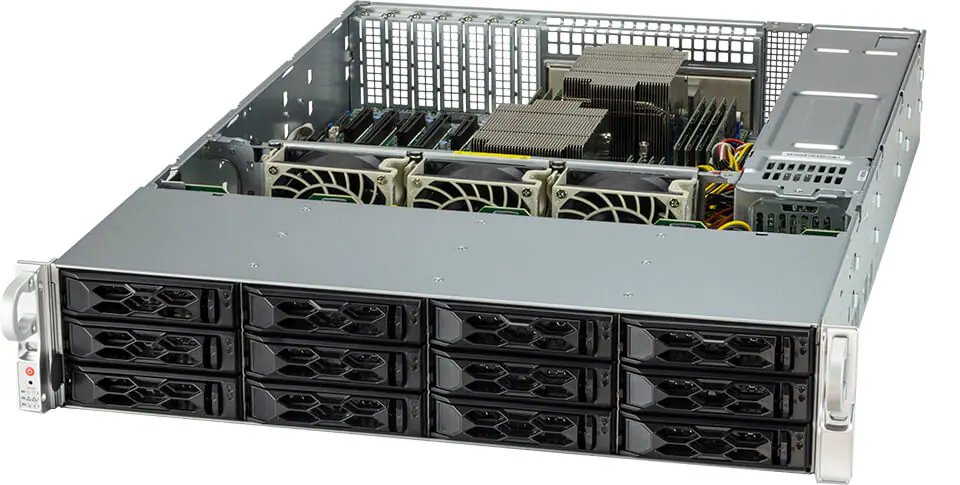

Mainstream A+ Server AS -2024S-TR

(AS -2024S-TR)
instock
  • Ready to Ship Today
Categories: Servers, SuperMicro, Rack Servers

2U Mainstream with dual AMD® EPYC™ and 6 PCIe 4.0 slots

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors Supports Up to 240W CPU TDP
  2. AMD® SP3
  3. Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz in 16 DIMMS
  4. 3 PCIe 4.0 x16 Low Profile (LP) 3 PCIe 4.0 x8 Low Profile (LP)
  5. Dual Gigabit LAN

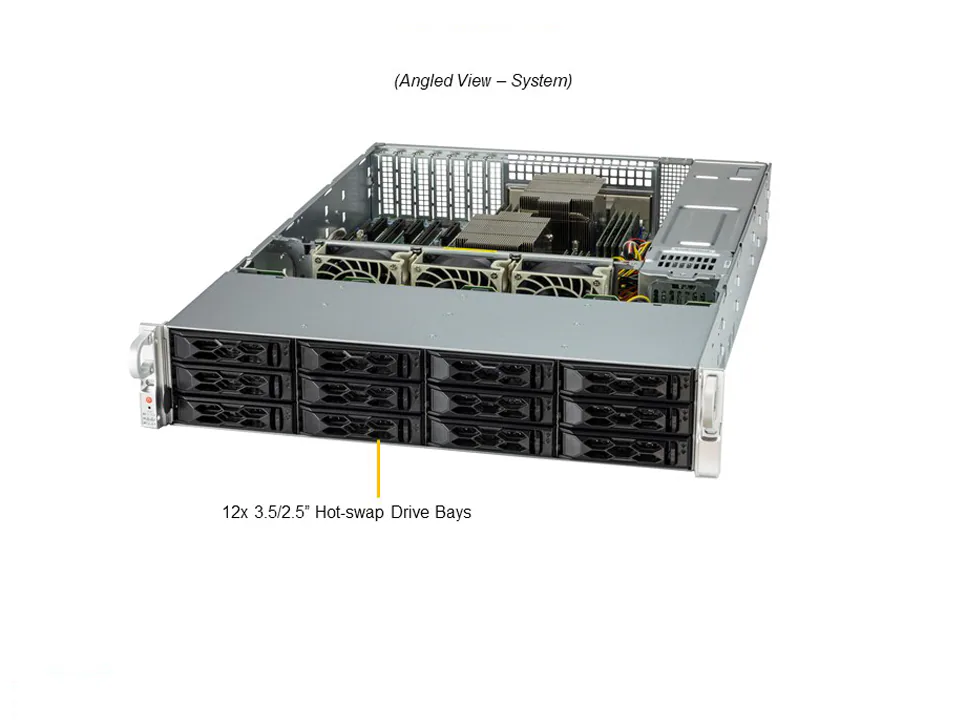

  6. 12 Hot-swap 3.5″ (tool-less) or 2.5″ (screw) drive bays (default configuration is 8 SATA + 4 NVMe) (up to 12 NVMe drives supported with optional NVMe kit) 1 M.2 support: – M.2 Interface: PCIe 3.0 x4 – M.2 form factor: 2260, 2280, 22110 – M.2 Key: M-Key
  7. 920W Redundant Power Supplies Platinum level
  8. 1 rear VGA, 1 Type A port, 1 COM Port, and 4 USB ports
MSRP*
N/A
Call for pricing
request for quote

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

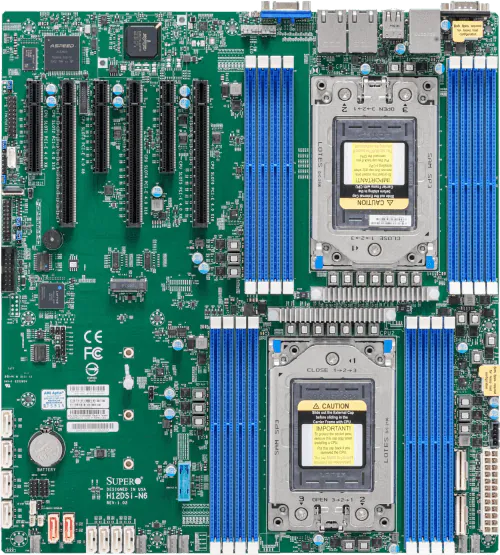

Motherboard
Super H12DSi-N6
CPU
Core Count
  • Up to 64C/128T; Up to 256MB Cache per CPU
Note
  • Supports up to 240W TDP CPUs (Air Cooled)

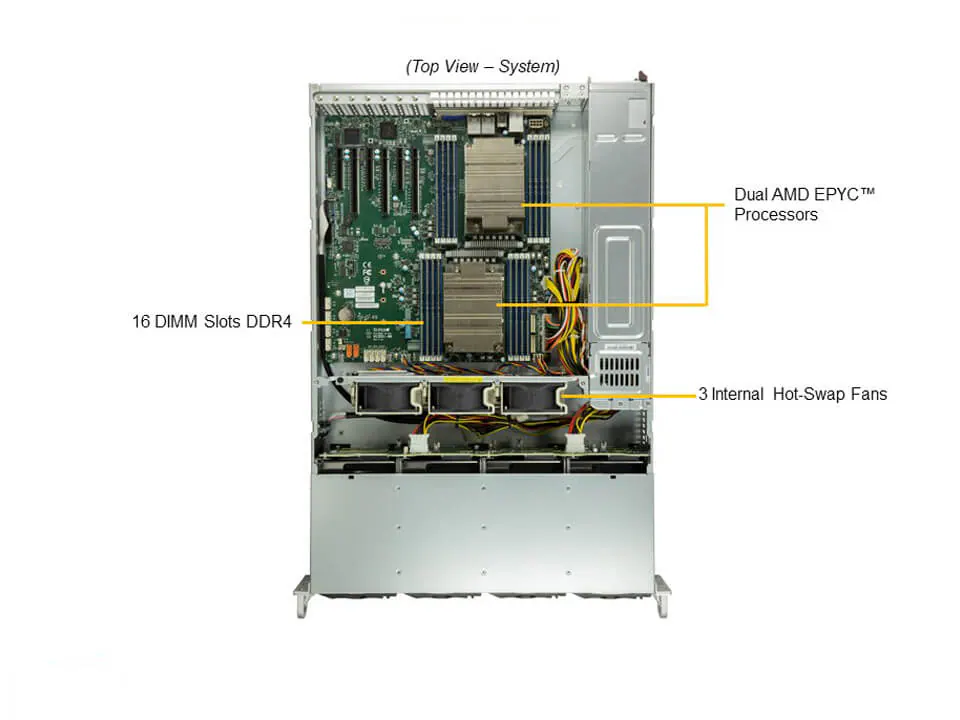

Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

Memory Voltage
    • 1.2V


Chipset
    • AMD SP3


Network Connectivity
    • 2 RJ45 1GbE

LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 1 GbE LAN ports
USB
  • 2 USB 2.0 ports(rear)
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
Software
Power configurations
  • ACPI/APM Power Management
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 7 Phase-switching voltage regulator
Form Factor
  • 2U Rackmount
Model
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 60 lbs (27.2 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Silver
LED
  • HDD activity LED
  • Information LED
  • Network activity LEDs
  • Power Fail LED
  • Power status LED
Buttons
  • Power On/Off button
  • Reset button

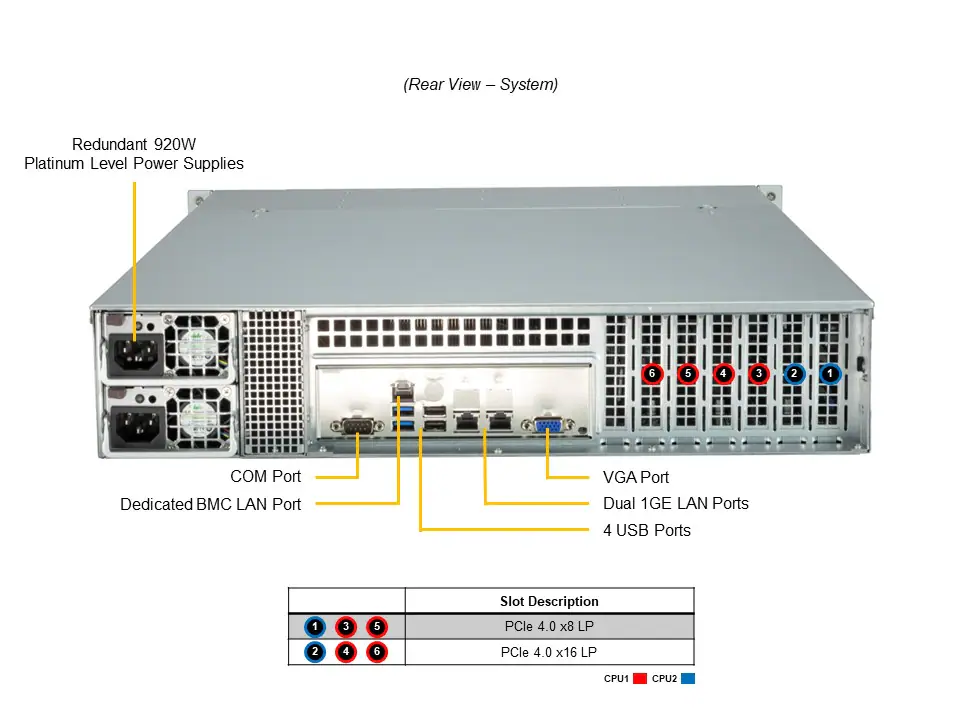

PCI-Express (PCIe) Configuration
    • Default
      • 3 PCIe 4.0 x8 LP slots
      • 3 PCIe 4.0 x16 LP slots

Drive Bays Configuration

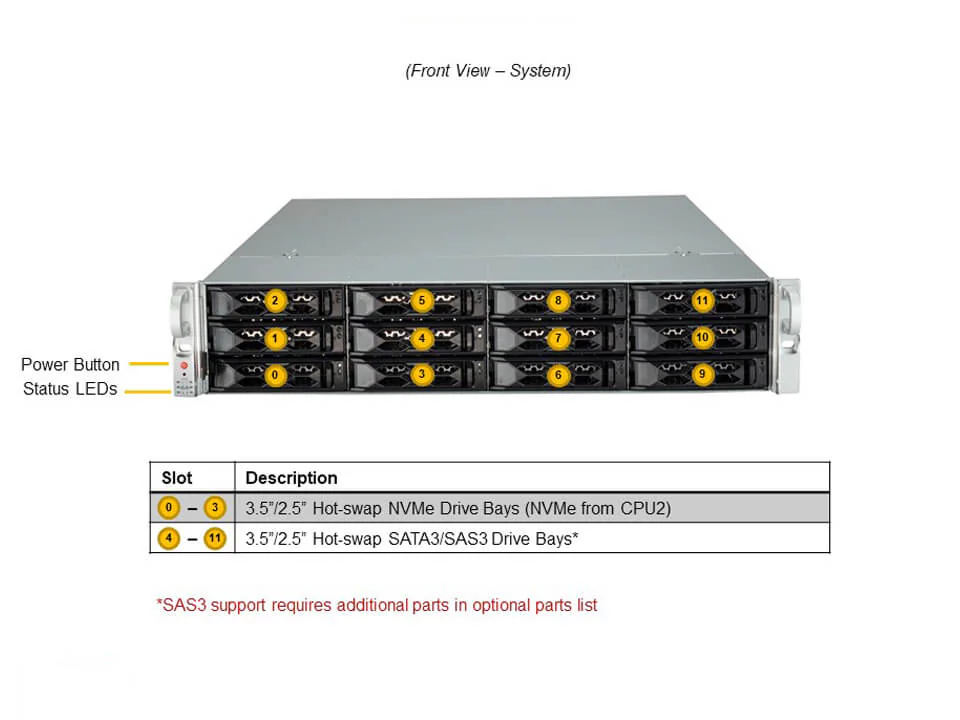

    • Default: Total 12 bays
      • 4 front hot-swap 3.5″ NVMe drive bays
      • 8 front hot-swap 3.5″ SAS*/SATA drive bays
    • Option A: Total 12 bays
      • 12 front hot-swap 2.5″ SAS/SATA drive bays
    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2
    • 1 M.2 NVMe slot (M-key 2280/22110)

Fans
  • Up to 3 Middle 80mm Fan(s)
Air Shroud
  • 1 Clear Plastic Air Shroud
2x 920W Redundant Platinum Level (94%) power supplies
Dimension (WxHxL)76 x 40 x 336 mm
Input920W: 100-127Vac
920W: 100-127Vac / 50-60Hz
920W: 200-240Vac
920W: 200-240Vdc / 50-60Hz
920W: 200-240Vac / 50-60Hz
+12VMax: 75A / Min: 0A (100Vac-127Vac)
Max: 75A / Min: 0A (200Vac-240Vac)
5V SBMax: 4A / Min: 0A
Output TypeBackplanes (gold finger)
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
