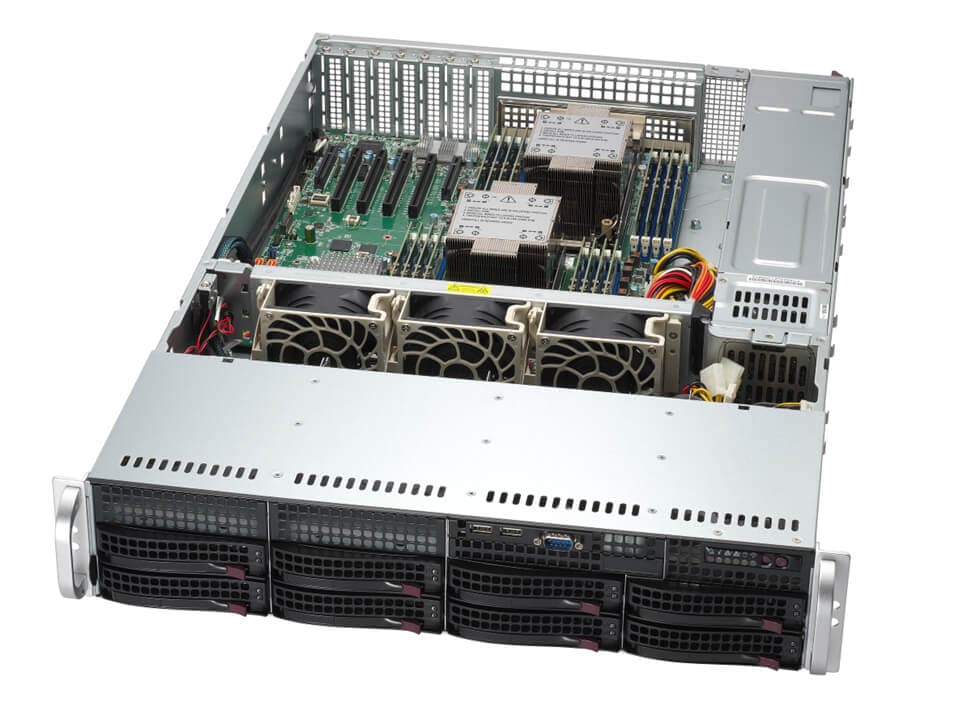

Mainstream SuperServer SYS-621P-TR

(SYS-621P-TR)

instock

Categories: Servers, SuperMicro, Rack Servers

2U Mainstream with 6 PCIe 5.0 slots and dual 1GbE LAN

Key Features

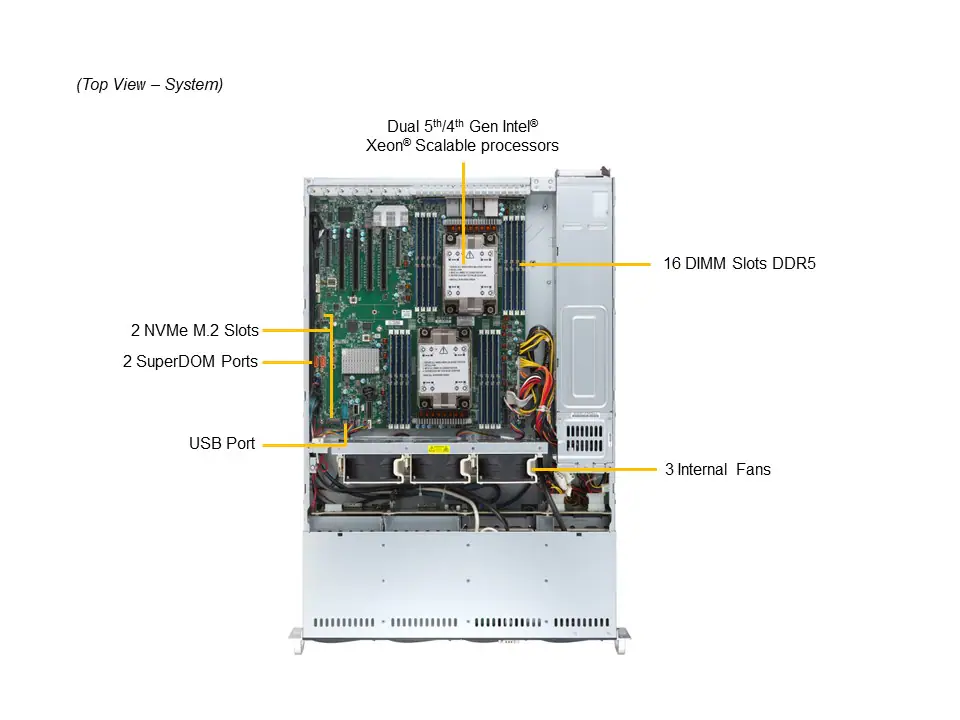

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
4 PCIe 5.0 x16 Low Profile (LP), 2 PCIe 5.0 x8 Low Profile (LP)
1200W Redundant Titanium level Power Supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

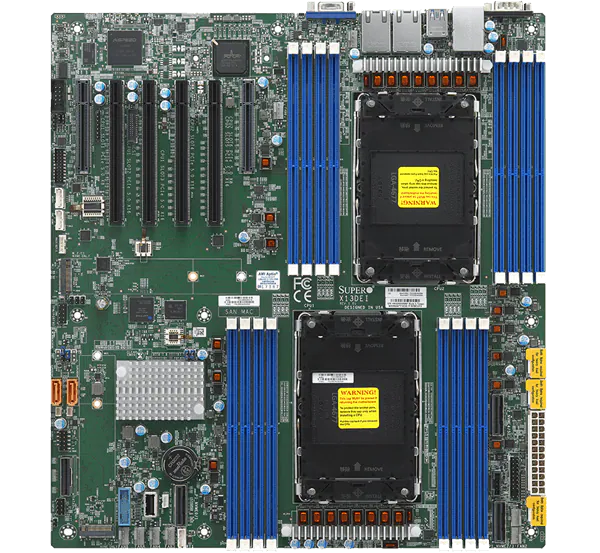

Super X13DEI

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 300W TDP CPUs (Air Cooled)

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA

- SATA (6Gbps)

Chipset

- Intel® C741

Network Connectivity

- 2 RJ45 1GbE

- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 2.0 ports(front) 4 USB 3.0 ports(rear)
Video	1 VGA port
Serial	1 COM port(Rear) 1 COM port(Front)
DOM	2 SuperDOM (Disk on Module) ports
TPM	1 TPM Onboard/port 80

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	2U Rackmount
Model	CSE-825BTS-R1K23LPP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (647 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 69 lbs (31.2 kg) Net Weight: 36.38 lbs (16.5 kg)
Available Color	Black

LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off System Reset

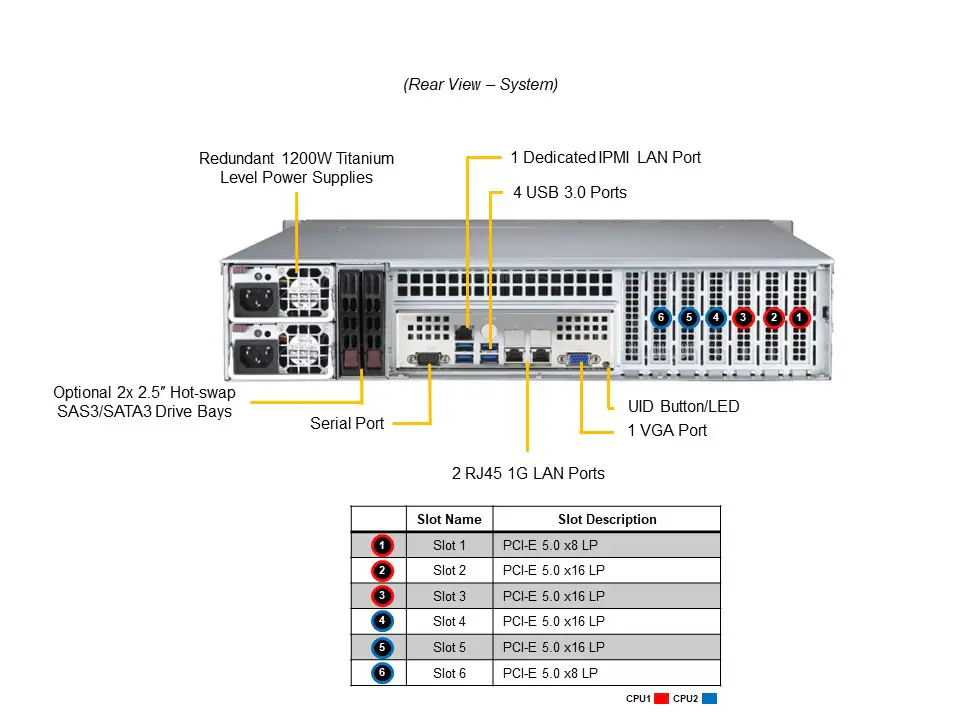

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x8 LP slots
  - 4 PCIe 5.0 x16 LP slots

- View AOC Options

M.2

- 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)

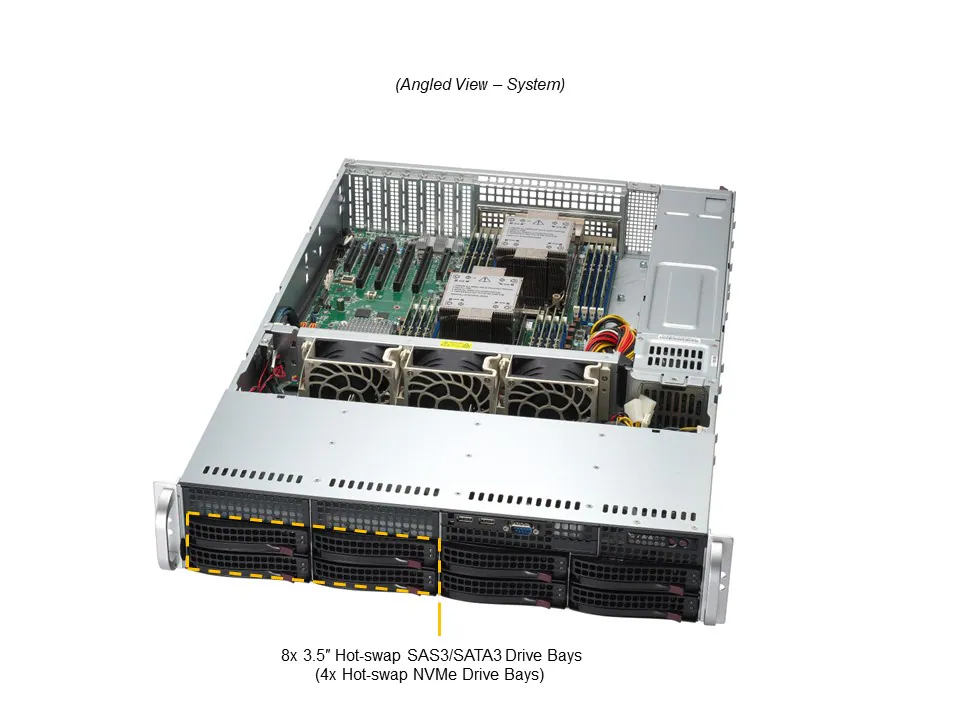

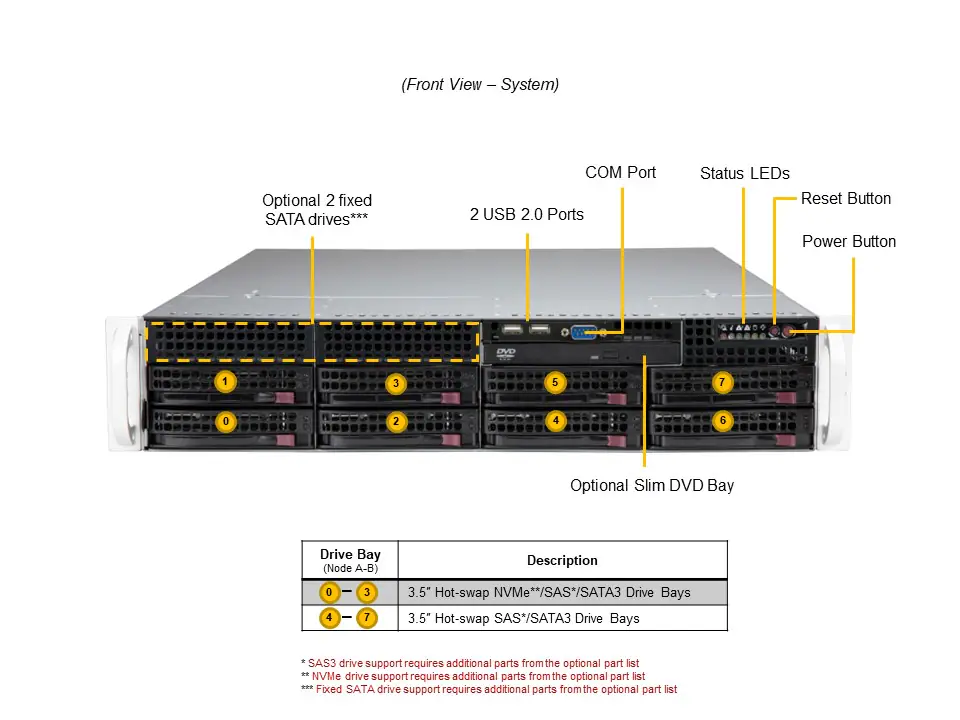

Drive Bays Configuration

- Default: Total 8 bays
  - 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  - 4 front hot-swap 3.5″ SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

Peripheral Bays

- 1 slim DVD bay (optional)

Fans	Up to 3 middle 8cm Fan(s)

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
