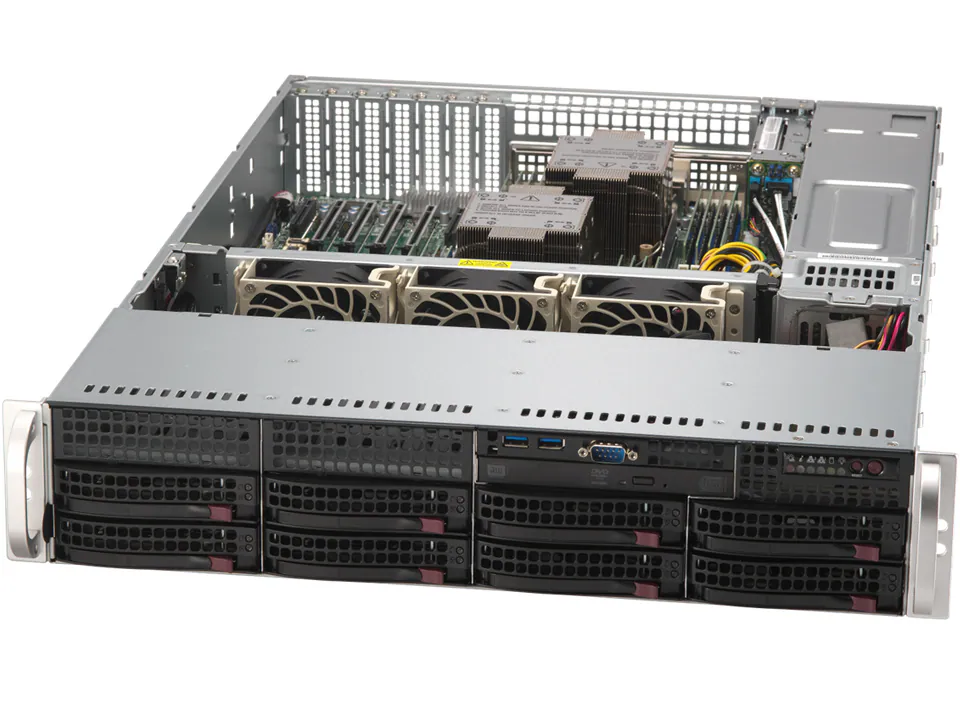

Mainstream SuperServer SYS-622B-TRT

(SYS-622B-TRT)

instock

Categories: Servers, SuperMicro, Rack Servers

2U Mainstream with 6 PCIe 5.0 slots and dual 10GbE LAN

Key Features

Dual Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, up to 350W TDP (air cooled)
Up to 2TB 6400MT/s ECC DDR5 RDIMM in 16 DIMM slots
2 RJ45 10GbE ports
Up to 2 PCIe 5.0 x8 LP + 4 PCIe 5.0 x16 LP slots

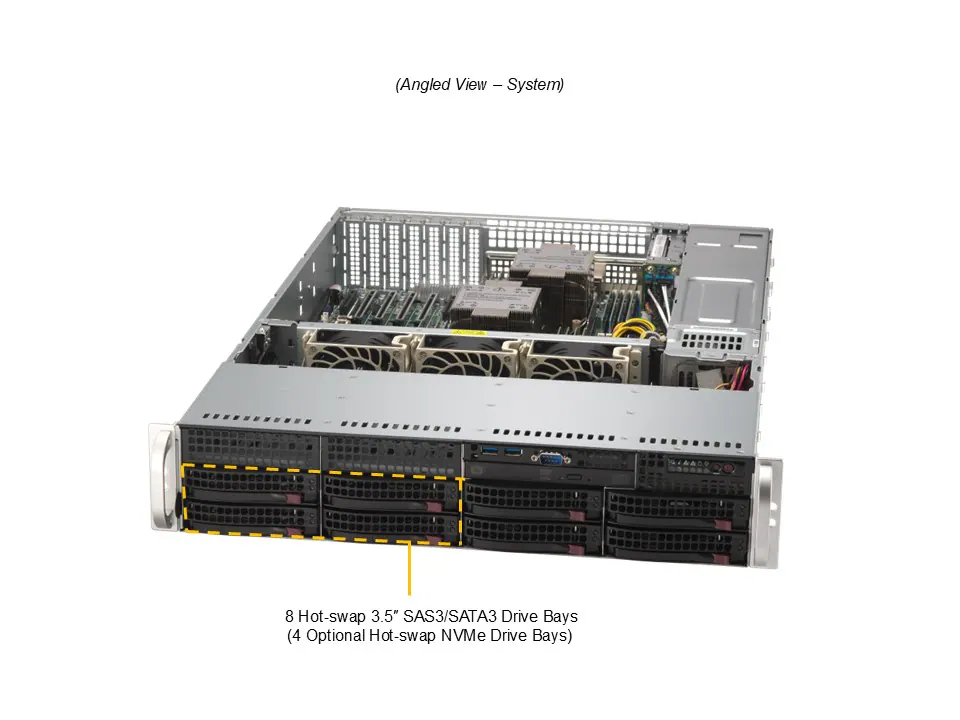

Up to 4 front hot-swap 3.5″ NVMe/SAS/SATA + 4 front hot-swap 3.5″ SAS/SATA drive bays
2 Redundant 1200W Titanium Level power supplies
2U Rackmount chassis with 25.5″ (647mm) depth

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

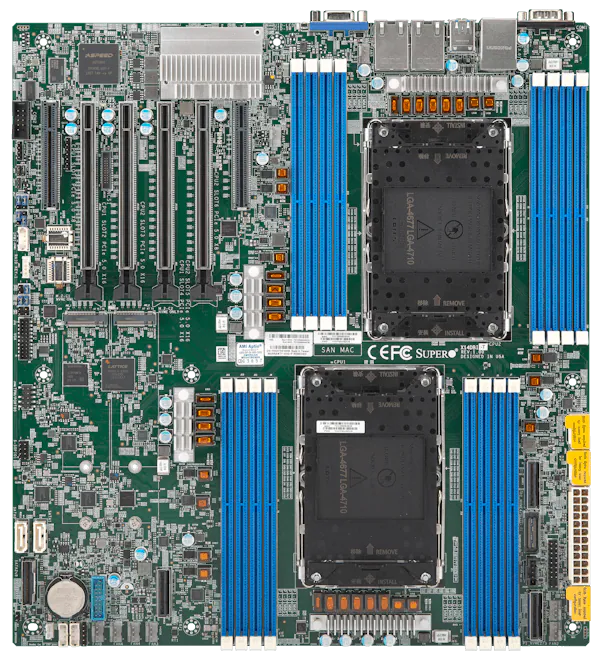

Super X14DBI-T

CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 128C/256T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled)

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA

- SATA (6Gbps)

Chipset

- System on Chip

Network Connectivity

- 2 RJ45 10GbE

- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(front) 4 USB 3.0 ports(rear)
Video	1 VGA port
Serial	1 COM port(Rear) 1 COM port(Front)
TPM	1 TPM Onboard/port 80

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors

Form Factor	2U Rackmount
Model	CSE-825BTS-R1K23LPP1

Height	3.5″ (89 mm)
Width	17.2″ (437 mm)
Depth	25.5″ (647 mm)
Package	11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight	Gross Weight: 69 lbs (31.2 kg) Net Weight: 36.38 lbs (16.5 kg)
Available Color	Black

LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off System Reset

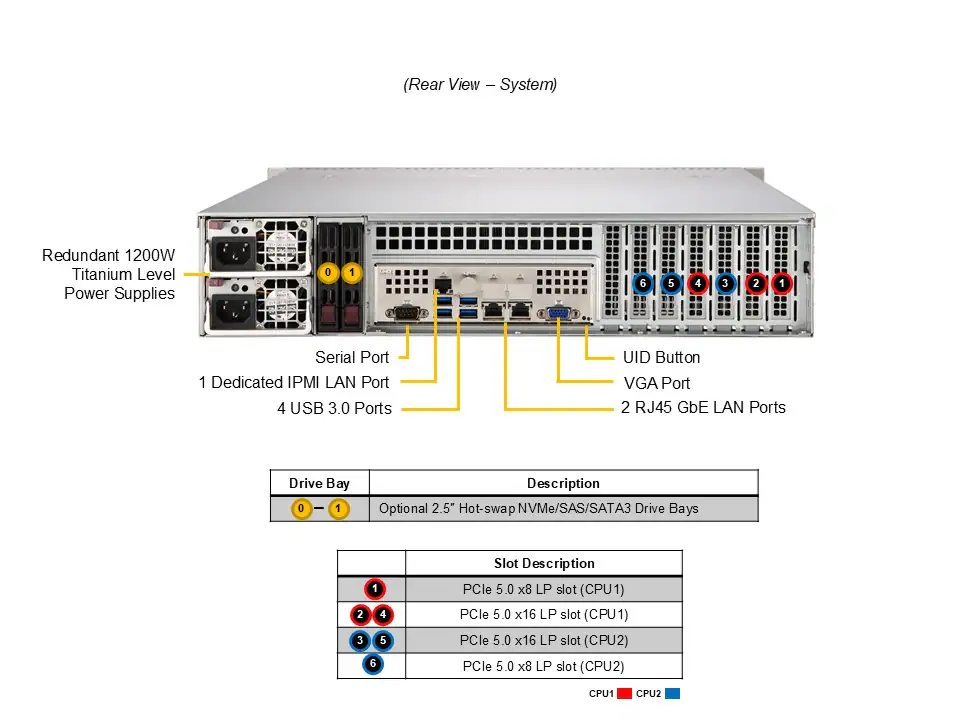

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x8 LP slots
  - 4 PCIe 5.0 x16 LP slots

- View AOC Options

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

Drive Bays Configuration

- Default: Total 8 bays
  - 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  - 4 front hot-swap 3.5″ SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)

- View M.2 Options

Peripheral Bays

- 1 slim DVD bay (optional)

Fans	Up to 3 middle 8cm Fan(s)

2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vdc-240Vdc) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
