Mainstream SuperServer SYS-741P-TRT

(SYS-741P-TRT)

instock

Categories: Servers, SuperMicro, Rack Servers

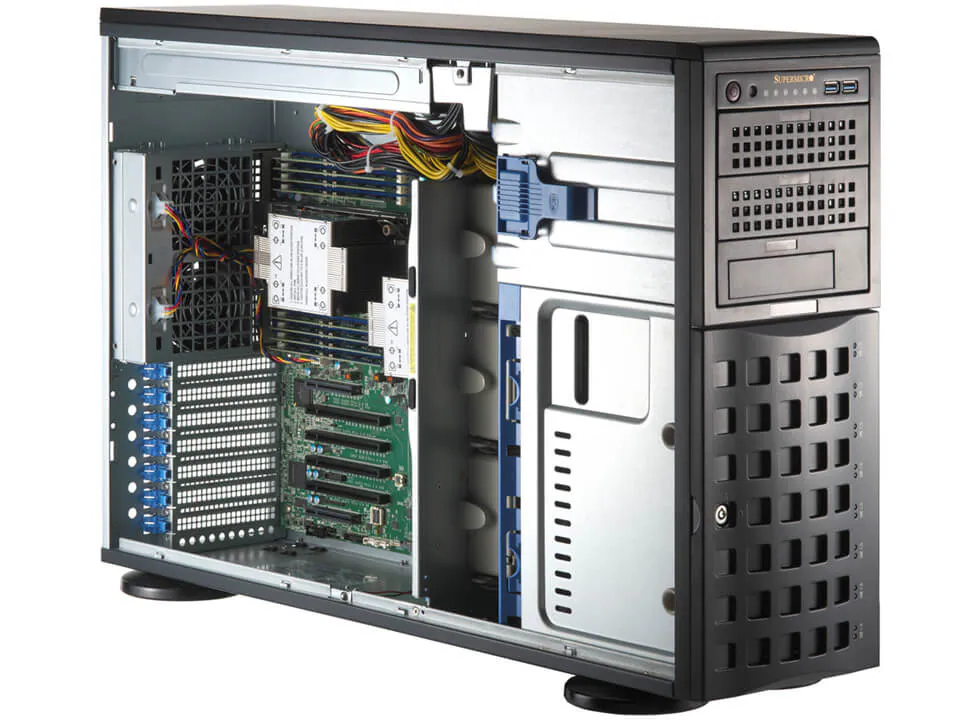

DP 4U rackmount tower workstation with 10GbE for virtualization and enterprise server applications

Key Features

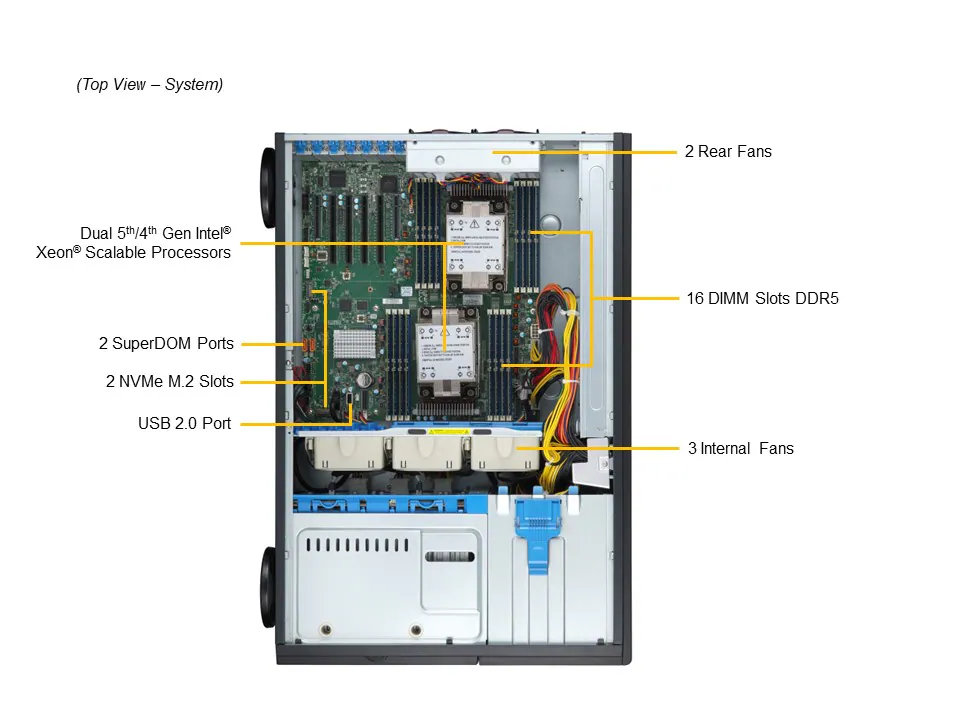

Dual Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors,supports up to 300W TDP
16 DIMM slots, Up to 4TB DDR5-5600MHZ/4800MHz ECC Registered RDIMM
4 PCIe 5.0 x16 full height slot(s), 2 PCIe 5.0 x8 full height slot(s)
1200W Redundant Titanium level Power Supplies

MSRP^*

N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

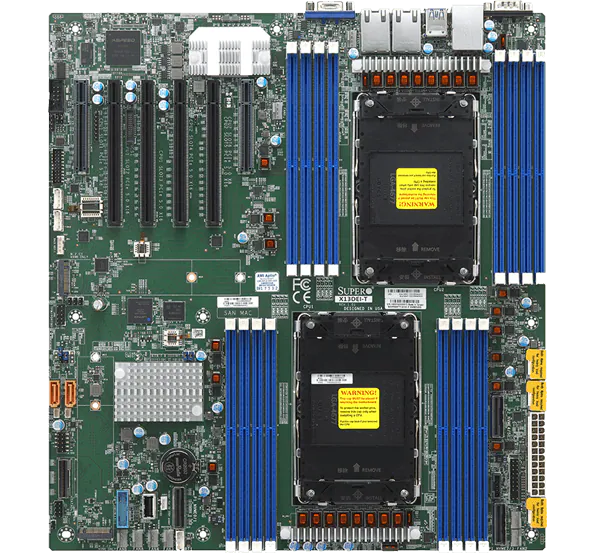

Super X13DEI-T

CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note	Supports up to 300W TDP CPUs (Air Cooled)

Max GPU Count

- Up to 2 double-width or 2 single-width GPUs

Supported GPU

- NVIDIA PCIe: H100 NVL, RTX 5000 Ada, RTX 4500 Ada, RTX 2000 Ada, A1000, RTX 4000 SFF Ada Generation, T1000, RTX A4000, RTX A2000, RTX 6000 Ada Generation, L40S, L4, A16, A2

- View GPU Options

Memory

- Slot Count: 16 DIMM slots
- Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

- View Memory Options

Memory Voltage

- 1.1V

SATA

- SATA (6Gbps)

Chipset

- Intel® C741

Network Connectivity

- 2 RJ45 10GbE

- View AOC Options

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(front) 4 USB 3.0 ports(rear)
Video	1 VGA port
Serial	1 COM port(rear)
DOM	2 SuperDOM (Disk on Module) ports
TPM	1 TPM Onboard/port 80

BIOS Type

AMI 32MB SPI Flash EEPROM

Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management

Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors

Form Factor	Tower/4U
Model	CSE-745BTS-R1K23BP

Height	17.8″ (452 mm)
Width	7″ (178 mm)
Depth	25.5″ (647 mm)
Package	24.6″ (H) x 14″ (W) x 31.3″ (D)
Weight	Gross Weight: 73.5 lbs (33.9 kg) Net Weight: 56 lbs (25.9 kg)
Available Color	Black

LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off System Reset

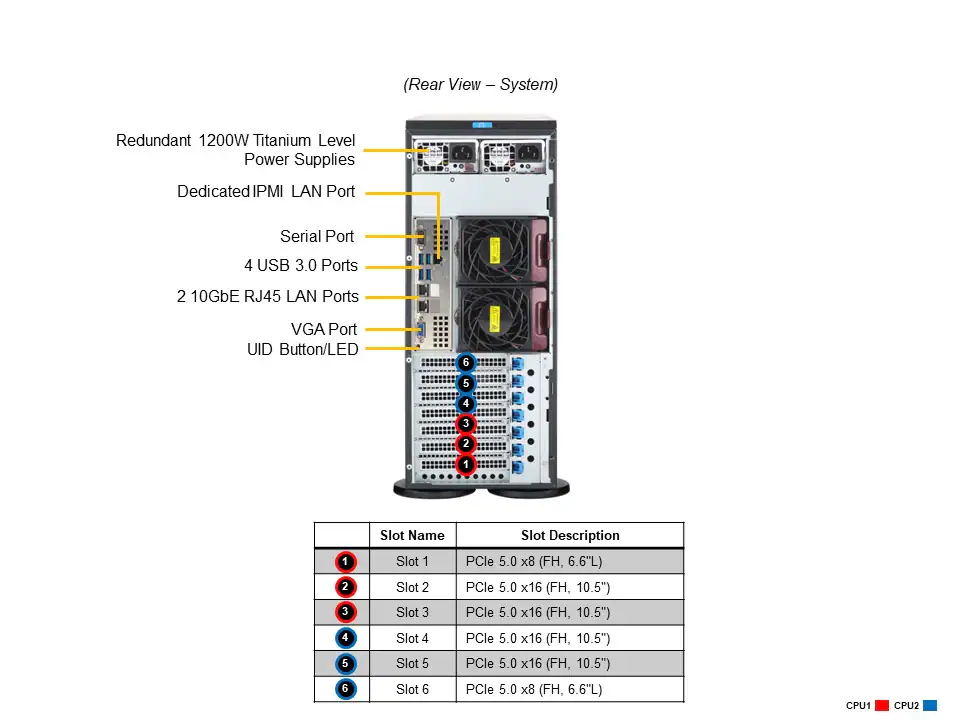

PCI-Express (PCIe) Configuration

- Default
  - 2 PCIe 5.0 x8 FHFL slots
  - 4 PCIe 5.0 x16 FHFL slots

- View AOC Options

M.2

- 2 M.2 PCIe 4.0 x2 NVMe slots (M-key)

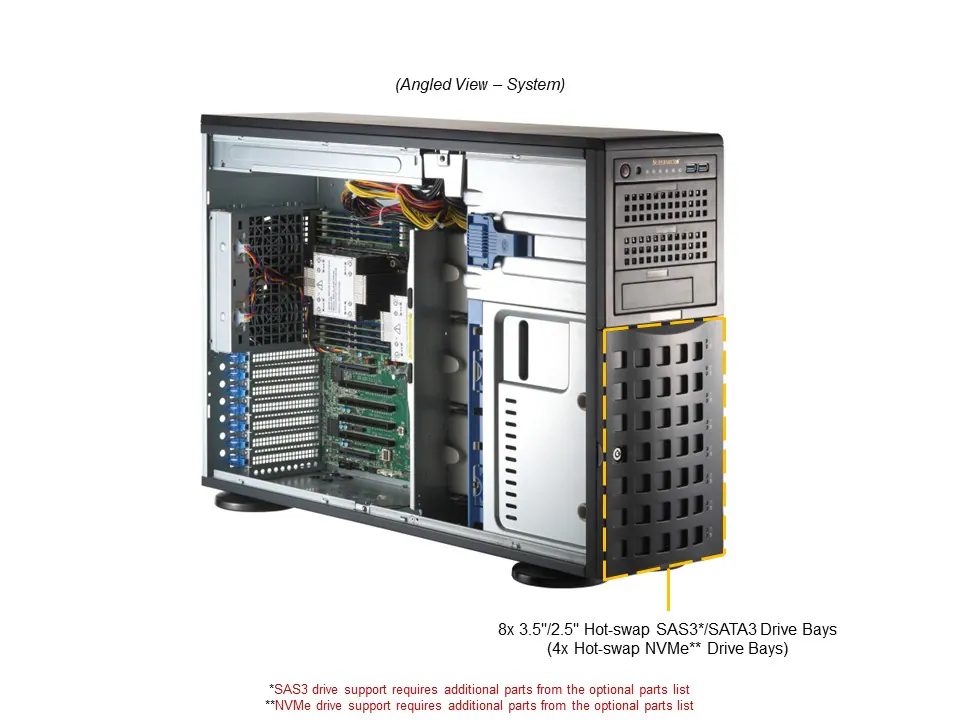

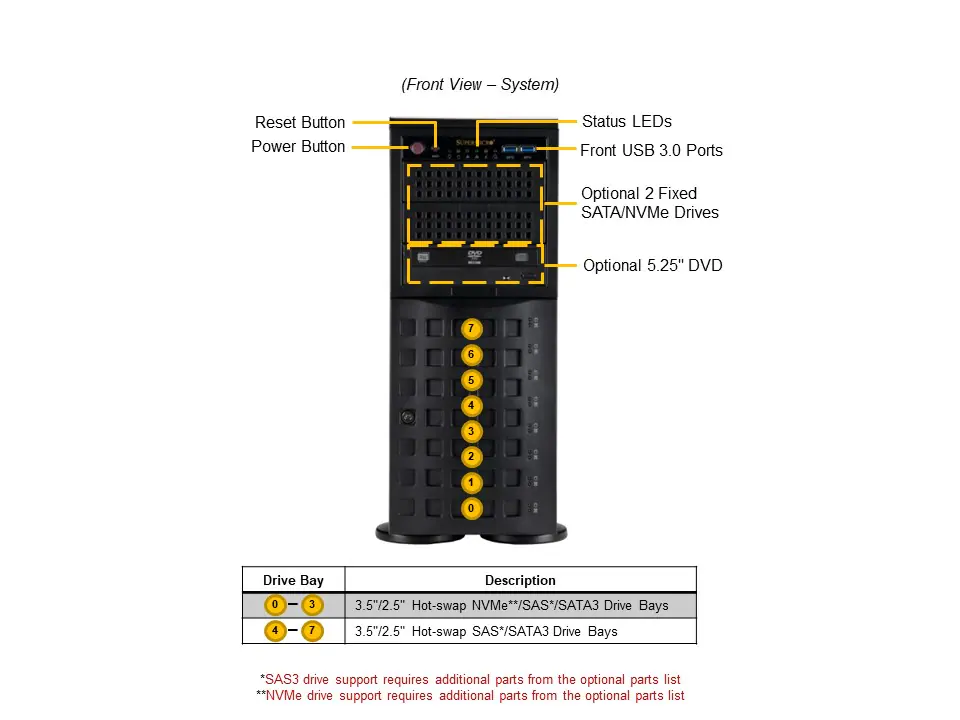

Drive Bays Configuration

- Default: Total 8 bays
  - 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  - 4 front hot-swap 3.5″ SAS*/SATA drive bays
- Option A: Total 8 bays
  - 4 front hot-swap 2.5″ NVMe*/SAS*/SATA drive bays
  - 4 front hot-swap 2.5″ SAS*/SATA drive bays
- (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)

- View NVMe Options
- View Drive Options

M.2

- 2 M.2 NVMe slots (M-key)

- View M.2 Options

Peripheral Bays

- 3 5.25″ DVD bays (optional)

Fans	Up to 3 middle Fan(s) Up to 2 rear Fan(s)

2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies

Dimension (WxHxL)	76 x 40 x 336 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac) Max: 100A / Min: 0A (200Vac-240Vac)
5V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)

ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
