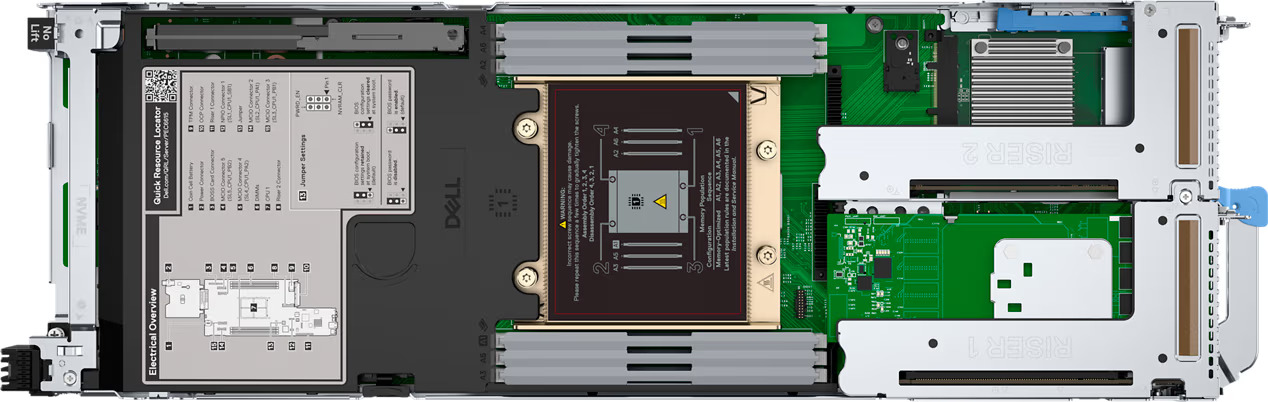

PowerEdge C6615 Server Node

Dell PowerEdge C6600 chassis

Up to 4 hot-swappable 1-socket C6615 sleds in a 2U C6600 chassis

One AMD EPYC processor, with up to 64 cores

6 DDR5 DIMM slots, supports RDIMM of 576 GB (6 x 96 GB) max, speeds up to 4800 MT/s
Supports registered ECC DDR5 DIMMs only

Internal controllers (RAID): PERC H755N, PERC H355
Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs
Internal 12 Gbps SAS HBAs (non-RAID): HBA355i
Software RAID: S160

Hot-plug redundant drives and PSUs

Front bays:
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) drives max 61 TB
Up to 16 x 2.5-inch SATA/NVMe drives max 15.36 TB on Universal Backplane configuration
Up to 16 x 2.5-inch on NVMe backplane
Up to 8 x E3.s on NVMe SSDs hard drive backplane

3200W 277 VAC or 336 VDC
2800W Titanium 200-240 VAC or 240 VDC
2400W Platinum 100-240 VAC or 240 VDC
1800W Titanium 200-240 VAC or 240 VDC

Air cooling

Up to 4 cold swap fans

Height – 40.0 mm (1.57 inches)
Width – 174.4 mm (6.86 inches)
Depth – 549.7 mm (21.64 inches), 561.3 mm (22.10 inches) – SAS/SATA or NVMe or E3.S or Universal configuration

3.7 kg (8.15 pounds)

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
RedHat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external
key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or
Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

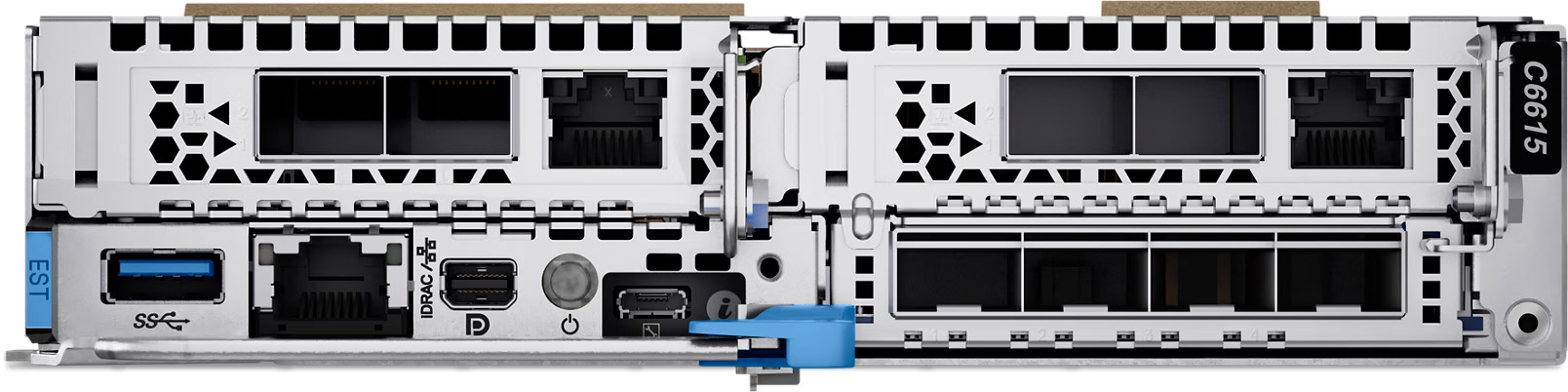

1 x 1 GbE

1 x USB 3.0
1 x iDRAC ethernet port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort

Up to 2 x PCIe x16 Gen5 Low-Profile slots
1 x OCP 3.0 x16 Gen5

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi/vSAN
For specifications and interoperability details,
see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com > Solutions > OEM Solutions.
