PowerEdge C6620 Multi-node Server

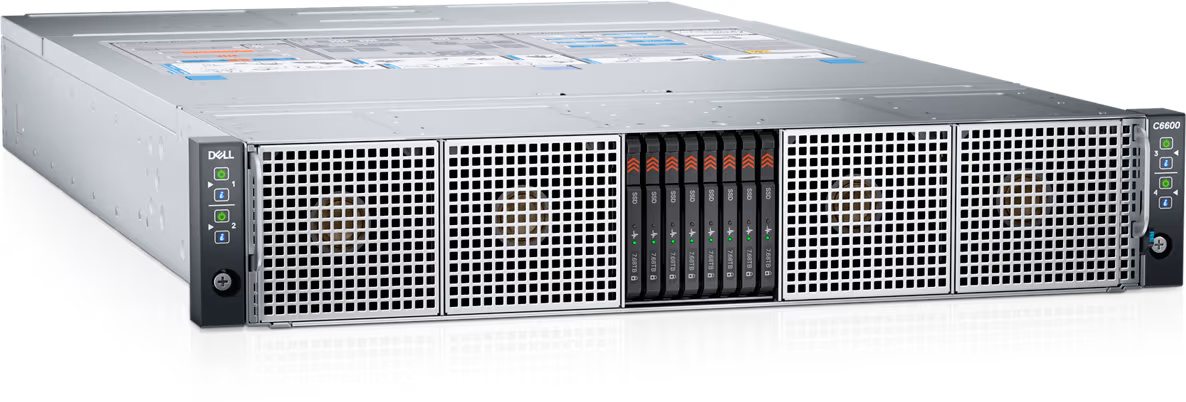

Dell PowerEdge C6600 chassis

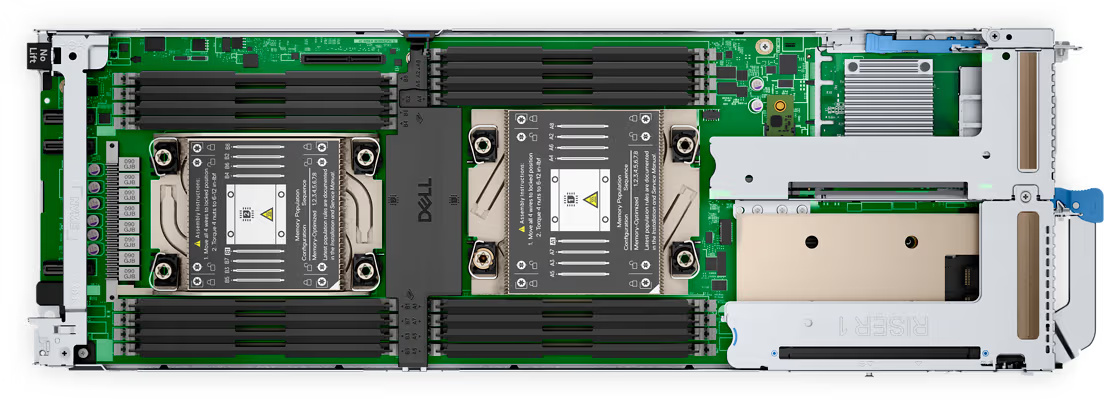

Up to 4 hot-swappable 2-socket C6620 sleds in a 2U C6600 chassis

Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores and 4th Generation Intel Xeon Scalable processor with up to
56 cores per processor

16 DDR5 DIMM slots, supports RDIMM of 4 TB max, speeds up to 5600 MT/s
Supports registered ECC DDR5 DIMMs only

Internal controllers (RAID): PERC H965, PERC H755, PERC H355
Internal boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Internal 12 Gbps SAS HBAs (non-RAID): Internal HBA355i
Software RAID: S160

Hot-plug redundant drives and PSUs

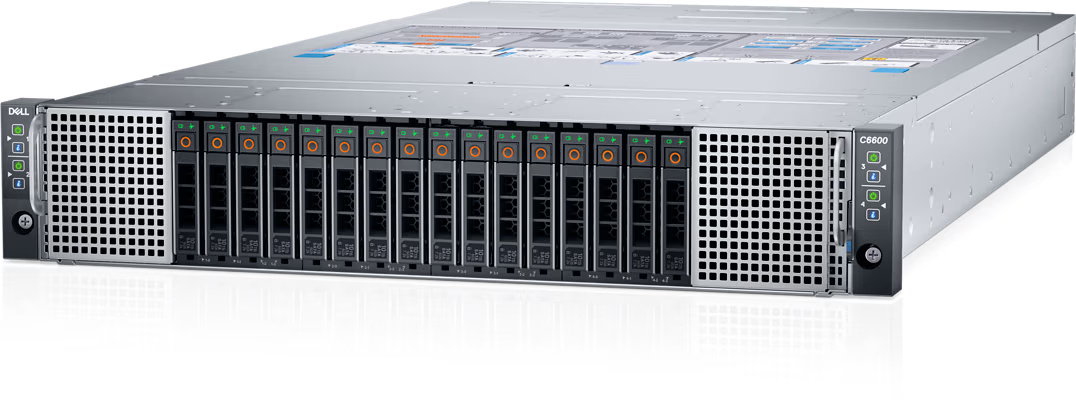

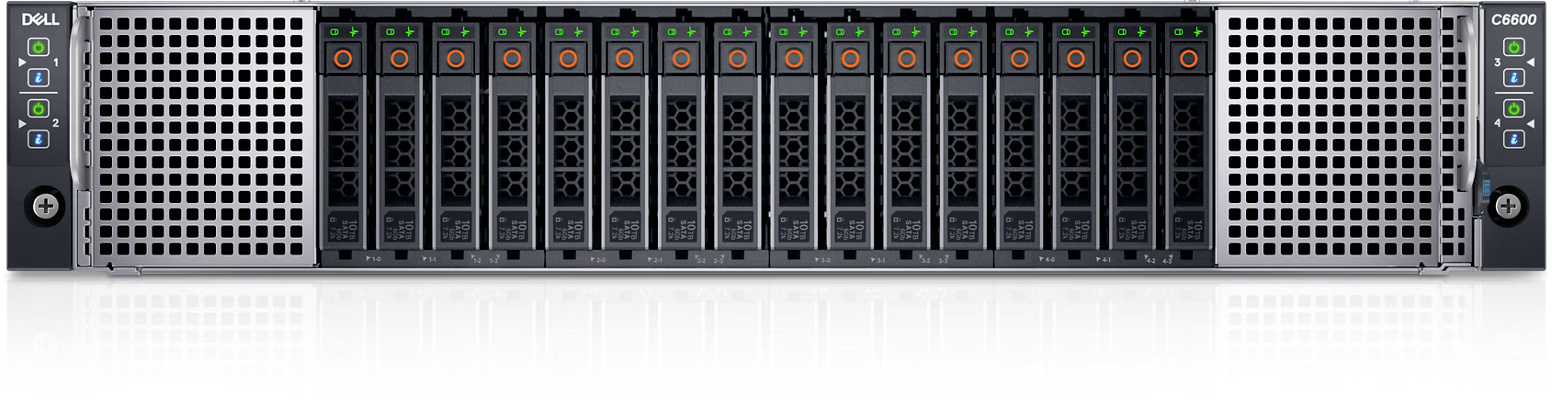

Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) drives max
61 TB
Up to 8 x E3.s NVMe SSD drives max 288 TB
System with no backplane

3200W 277 VAC or 336 VDC
2800W Titanium 200-240 VAC or 240 VDC
2400W Platinum 100-240 VAC or 240 VDC
1800W Titanium 200-240 VAC or 240 VDC

Air cooling, optional processor liquid cooling

Up to 4 cold swap fans

Height – 40.0 mm (1.57 inches)
Width – 174.4 mm (6.86
inches)
Depth – 549.7 mm (21.64 inches)

42.5 kg (93.69 pound)

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

CloudIQ for PowerEdge plugin
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
RedHat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or
Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

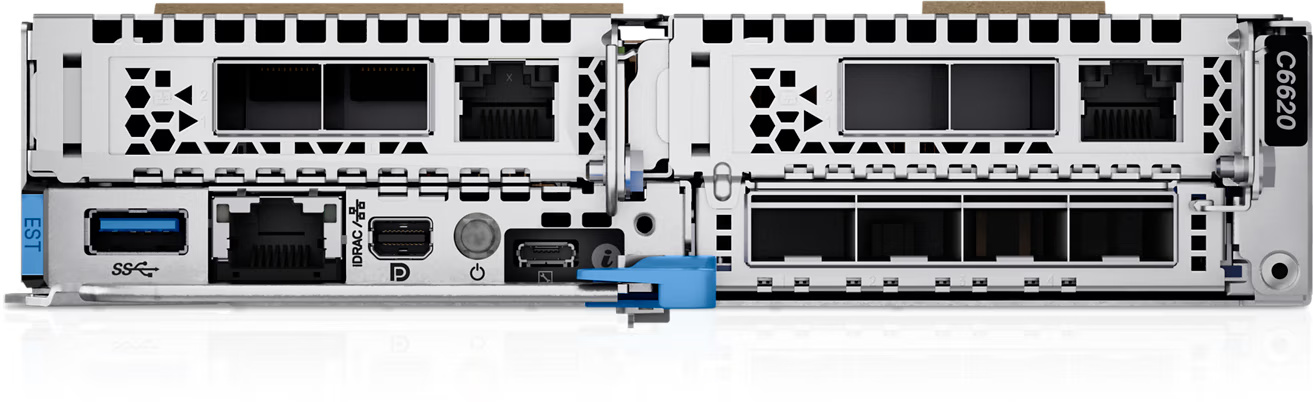

1 x 1 GbE

Up to 2 x 75W low-profile, half-length

1 x OCP 3.0 x16 Gen4 (for network controller)

1 x USB 3.0
1 x iDRAC ethernet port
1 x iDRAC Direct (Micro-AB USB) port
1 x Mini-DisplayPort

2 x PCIe Gen5 slots:
1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 1 optional)
1 x16 Gen5 (x8 + x8 PCIe) low-profile, half-length for SNAP I/O
module (slot 1 optional)
1 x16 Gen5 (x16 PCIe) low-profile, half-length (slot 2
optional)
1 x16 Gen5 (x8 PCIe) low-profile, half-length (slot 2
optional)

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi/vSAN
For specifications and interoperability details, see Dell.com/
OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit
Dell.com > Solutions > OEM Solutions
