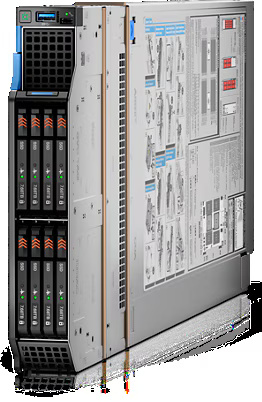

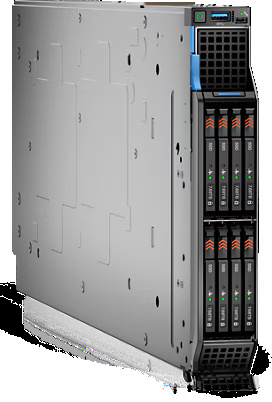

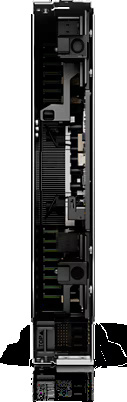

PowerEdge MX760c Compute Sled

Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor
Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
Intel® C741 chipset with optional Intel® QuickAssist Technology

32 DDR5 DIMM slot, supports RDIMM max 8 TB, speeds up to 5600 MT/s

Supports registered ECC DDR5 DIMMs only

Internal controllers: PERC H755 MX, PERC H965i MX, HBA350i MX
Internal boot: USB or Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 SSDs 480 GB or 960 GB
Software RAID: S160

Up to 4 x 2.5-inch SAS/SATA (HDD/SSD) max 61 TB
Up to 6 x 2.5-inch SAS /SATA (HDD/SSD) max 46.08 TB
Up to 6 x 2.5-inch NVMe/SAS/SATA (HDD/SSD) max 92 TB
Up to 8 x E3.s NVMe PCIe Gen 5 SSD max 61 TB

MX7000 chassis: Up to six 3000 W AC Platinum PSU and grid redundancy support

MX7000 chassis: 5 rear and 4 front-accessible hot-swap fans with full redundancy (Gen 2 fan required)

Height — 51.0 mm (2 inches)
Width — 257.0 mm (10 inches)
Depth — 631.77 mm (24.8 inches)

8.59 kg (18.93 pound)

Up to 8 independent hot-swappable, 1U single-width compute sled in a MX7000 chassis

MX7000 chassis: OpenManage Enterprise Modular Edition (OME-Modular);
Up to 2 redundant MX9002m management modules
Unified control: single management point for server, storage and
networking
Intelligent automation: Operational template methodology and
comprehensive RESTful API
Quick Sync 2 Bluetooth Low Energy (BLE) / wireless module option
On compute sled:
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or
Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Front ports
1 x iDRAC Direct port (Micro-AB USB)
1 x USB 3.0
Internal port
1 x USB 3.0

MX7000 chassis Fabric options: up to 2 pairs redundant general purpose switch or passthrough modular bays (Fabrics A and B); redundant
pair of storage specific switch bays (Fabric C)
Up to 25 Gb CNA/NIC or 100 Gb NIC per port for Mezz A/B, 32 Gb Fibre Channel

One x16 PCIe Gen4 slot for PERC – connected to processor 1
One x16 PCIe Gen4 slot for Mezz A – connected to processor 1
One x16 PCIe Gen5 slot for Mezz B – connected to processor 2
One x16 PCIe Gen4 slot for Mini Mezz – connected to processor 1
Two x8 PCIe Gen5 (SL1, SL2) connectors for NVMe drive –
connected to processor 1
Two x8 PCIe Gen5 (SL4, SL5) connectors for NVMe drive –
connected to processor 2
One x4 PCIe Gen4 for BOSS-N1 HWRAID card

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware vSAN/ESXi
For specifications and interoperability details, see
Dell.com/OSsupport.
