PowerEdge R260

One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or
One Intel® Pentium® G7400/G7400T processor with 2 cores

4 DDR5 DIMM slots, supports UDIMM 128 GB max, speeds up to 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only

Internal Controllers: HBA355i Adpt, PERC H355 Adpt, PERC H755 Adpt
Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1)
HWRAID 2 x M.2 SSDs
External HBAs (non-RAID): HBA355e Adpt
Software Controller: S160

Front bays:
Up to 2 x 3.5-inch cable SAS/SATA HDD, max 32 TB
Up to 6 x 2.5-inch hot-plug SAS/SATA HDD/SSD, max 46.08TB

450 W Platinum 100 — 240 VAC, non redundant
700 W Titanium 200 — 240 VAC or 240 VDC, non redundant

Air cooling

Up to six cabled fans

Height – 42.8 mm (1.68 inches)
Width – 482.0 mm (18.97 inches)
Depth – 461.14 mm (18.15 inches) without bezel
Depth – 496.8 mm (19.55 inches) with bezel
Depth – 426.6 mm (16.80 inches) with cable PSU and without bezel

1U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Manual

Security bezel or optional Filter bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Secured-core server
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

N/A

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0

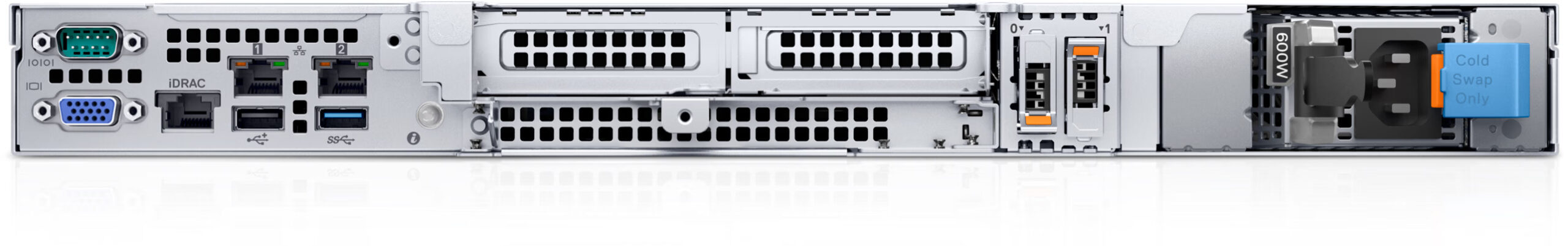

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.2 Gen1
1 x VGA
1 x Serial

Up to two PCIe Gen4 slots on the Gen4 Riser
Slot 1: 1 x8 with x8 bandwidth, Half Length, Low Profile
Slot 2: 1 x16 with x8 bandwidth, Half Length, Low Profile

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
