PowerEdge R450 Rack Server

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 24 cores per processor

Memory 16 DDR4 DIMM slots, supports RDIMM max 1 TB, speeds up to 2933 MT/s

Internal controllers (RAID): PERC H345, PERC H355, HBA355i, PERC H745, PERC H755, S150
Internal Boot: Internal Dual SD Module or Boot Optimized Storage Subsystem (BOSS-S1): HWRAID 2x M.2 SSDs or USB
External PERC (RAID): PERC H840
External HBA (non-RAID) HBA355e

Front bays:
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 64 TB
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.4 TB

600W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
700W Titanium Mixed Mode (200-240Vac or 240Vdc) hot swap redundant
800W Platinum Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100W Titanium Mixed Mode (100-240Vac or 240Vdc) hot swap redundant
1100W -48Vdc hot swap redundant (CAUTION: only works with -48Vdc to -60Vdc power input)

Air cooling

Standard (STD) fans or High performance SLVR fans
Up to seven cold swap fans

Height – 42.8 mm (1.7 inches)
Width – 482 mm (18.97 inches)
Depth – 734.95 mm (28.92 inches) – without bezel
748.79 mm (29.47 inches) – with bezel

1U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage SupportAssist plugin
OpenManage Update Manager plugin

OpenManage Mobile

OpenManage Integrations
BMC Truesight
Microsoft System Center
Red Hat Ansible Modules
VMware vCenter and vRealize Operations Manager

OpenManage Connections
IBM Tivoli Netcool/OMNIbus
IBM Tivoli Network Manager IP Edition
Micro Focus Operations Manager
Nagios Core
Nagios XI

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

1 x OCP 3.0

NA

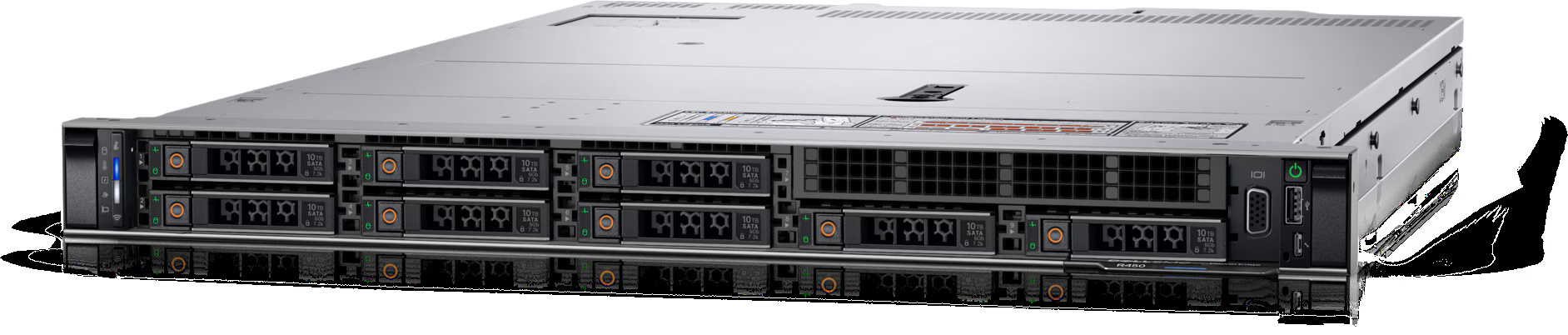

Front Ports
1 x Dedicated iDRAC Direct micro-USB
1 x USB 2.0
1 x VGA

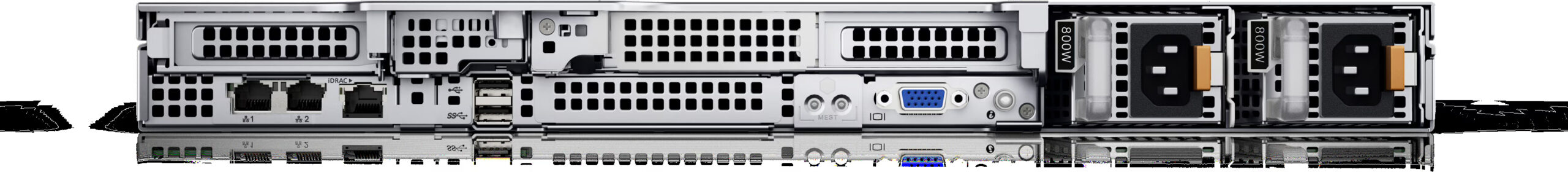

Rear Ports
1 x USB 2.0
1 x Serial (optional)
1 x iDRAC ethernet port
1 x USB 3.0
2 x Ethernet
1 x VGA

2 x PCIe Gen4 slots + PCIe Gen
2 x16 Gen4 (x16 connector) low profile, half length
1 x4 Gen3 (x8 connector) low profile, half length

Canonical Ubuntu Server LTS
Citrix Hypervisor
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
