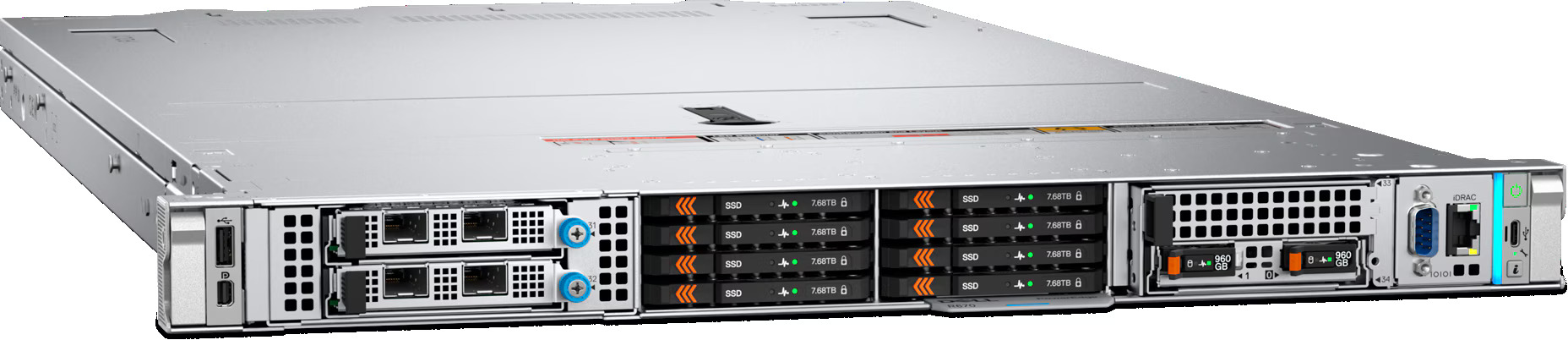

PowerEdge R470 Rack Server

One Intel® Xeon 6 E-core processor with up to 144 cores per processor or
One Intel® Xeon 6 P-core processor with up to 86 Cores with R1S option

16 DDR5 DIMM slot, supports RDIMM 4TB max, speeds up to 6400 MT/s
Intel® Xeon® 6 E-core processor – supports 1 TB max
Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option – supports 4 TB max
Supports registered ECC DDR5 DIMMs only
Note: The installed processor may reduce the operating speed of the DIMM

Internal Controllers (RAID): PERC H365i DC-MHS, front PERC H965i DC-MHS, PERC H365i adapter, PERC H965i adapter
External Controllers: HBA465e, H965e(RAID)
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 xM.2 NVMe SSDs, M.2 interposer
with upto 2 x M.2 NVMe SSDs or USB

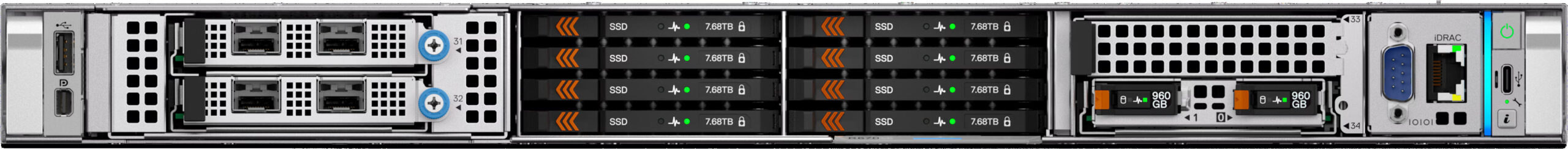

Front bays:
Up to 8 x EDSFF E3.S Gen5 NVMe max 491.52 TB
Up to 16 x EDSFF E3.S Gen5 NVMe max 983.04 TB
Up to 8 x 2.5-inch SATA/NVMe max 491.52 TB
Up to 10 x 2.5 – inch SATA/NVMe (with 4 x 2.5 -inch universal) max 614.4 TB
Up to 4 x 3.5 – inch SATA max 128 TB* (only supported with rear 2 x E3.S drives; not supported as standalone front-only
configuration)
Rear bays:
Up to 2 x EDSFF E3.S Gen5 NVMe max 122.88 TB

800W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W 277 Vac and HVDC Titanium, hot swap redundant*
1400W -48v DC Titanium, hot swap redundant
1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*

Air cooling

Up to 4 sets (dual fan module) hot swappable fans

Height – 42.8 mm (1.69 inches)
Width – 482 mm (19.0 inches)
Depth – 816.92 mm (32.16 inches) with bezel
Depth – 815.14 mm (32.09 inches) without bezel
Depth (Front I/O Configuration) — 829.44 mm (32.09 inches) without bezel
Note: Front I/O configuration will not have a bezel.

1U rack server

iDRAC
iDRAC Direct
iDRAC RESTfull API with redfish
RACADM CLI
iDRAC Service Module

Optional security bezel

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC10 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)
Slot Numbers: 2,5,31,32

1 Gb dedicated BMC Ethernet port

Up to 4 x 75 W SW

Front Ports
1 x USB 2.0 Type – C port
1 x USB 2.0 Type A port (optional)
1 x Mini-DisplayPort (optional)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O
configuration)

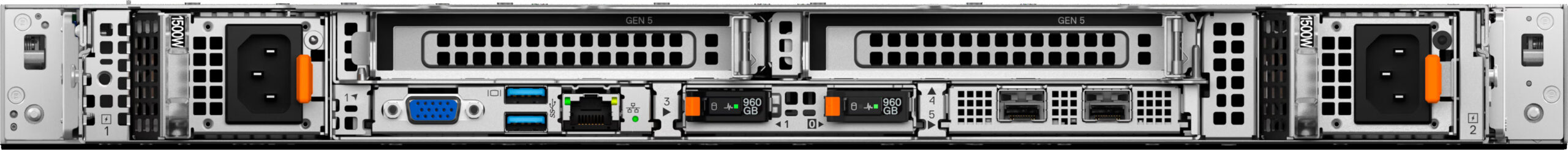

Rear Ports
x Dedicated BMC Ethernet port
2 x USB 3.1 Type A ports
• 1 x VGA

Up to 4 Gen5 PCIe slots (x16 connectors)
Slot 1 -1 x8 Gen5 Low Profile
Slot 1 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
Slot 4 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
Slot 31 -1 x16 Gen5 (x16 connector) full height, half length on rear riser
Slot 32 -1 x16 Gen5 (x16 connector) full height, half length on rear riser

Canonical Ubuntu Server LTS
Red Hat Enterprise Linux
SUSE Linux Enterprise ServerVMware ESXi
Windows Server
Windows Server Datacenter
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
