PowerEdge R570 Rack Server

One Intel® Xeon® 6 E-core processor with up to 144 cores
One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option

16 DDR5 DIMM slots, speeds up to 6400 MT/s
One Intel® Xeon® 6 E-core processor – supports RDIMM 1 TB max
One Intel® Xeon® 6 P-core processor with up to 86 cores with R1S option – supports RDIMM 4 TB max
Supports registered ECC DDR5 DIMMs only Supports registered ECC DDR5 DIMMs only

Internal Controllers (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, PERC H365i Adapter PERC H965i Adapter
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS), M.2 interposer with up to 2 x M.2 NVMe SSDs, USB
External Controllers: PERC H965e, HBA 465e

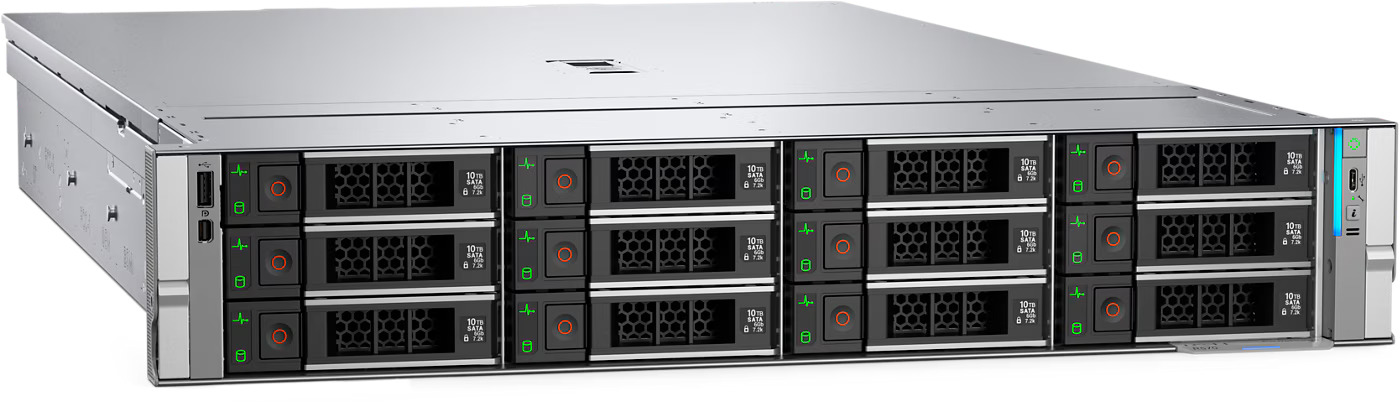

Front bays:
Up to 12 x 3.5-inch SATA (HDD) RAID max 384 TB*
Up to 8 x 2.5-inch NVMe RAID max 491.52 TB
Up to 8 x 2.5-inch NVMe max 491.52 TB
Up to 8 x 2.5-inch SATA max 30.72 TB
Up to 8 x 2.5-inch SATA/Universal max 491.52 TB
Up to 16 x 2.5-inch SATA RAID max 61.44 TB
Up to 24 x 2.5-inch SATA max 92.16 TB
Up to 8 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 491.52 TB
Up to 8 x EDSFF E3.S (cold-aisle) Gen5 NVMe 491.52 TB
Up to 16 x EDSFF E3.S (cold-aisle) Gen5 NVMe max 983.04 TB
Up to 16 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 983.04 TB
Up to 32 x EDSFF E3.S (hot-aisle) Gen5 NVMe max 1966.08 TB

800 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1100 W Platinum/Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant
1500 W 277 Vac and HVDC Titanium, hot swap redundant*
1400 W -48 VDC, hot swap redundant
1800 W Titanium 100-240 VAC or 240 HVDC, hot swap redundant*

iDRAC
iDRAC Direct
iDRAC RESTful API with Redfish
RACADM CLI
iDRAC Service Module (iSM)

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

Air cooling

Up to six hot plug fans

Height – 86.8 mm (3.42 inches)
Width – 482.0 mm (18.98 inches)
Depth – 802.38 mm (31.59 inches) with bezel
Depth – 801.49 mm (31.55 inches) without bezel
Depth (Cold aisle/Front I/O Configuration) – 814.5 mm (32.06 inches) without bezel
Note: Front I/O configuration will not have a bezel.

2U rack server

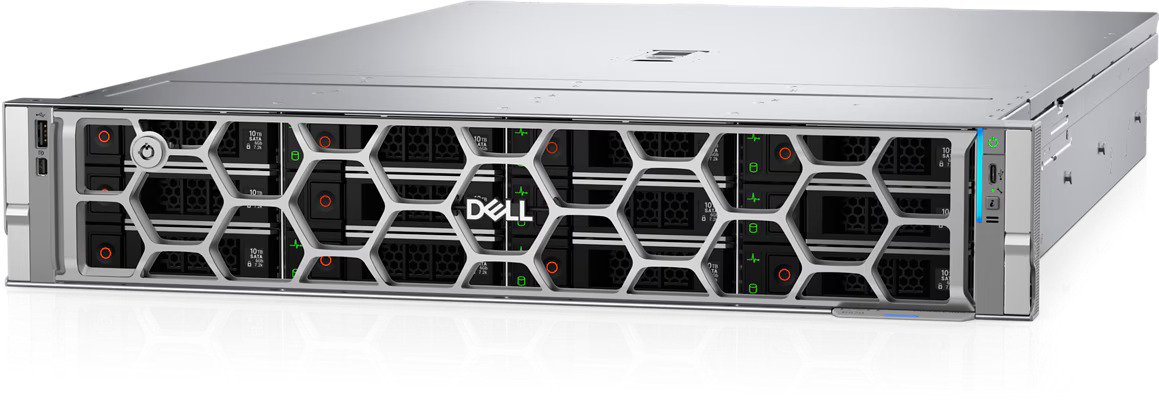

Optional security bezel

Up to 3 x 400W DW; Up to 4 x 75W SW

Front Ports
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x USB 2.0 Type-A (optional LCP – Secondary KVM)
1 x Mini DisplayPort (optional LCP – Secondary KVM)
1 x DB9 Serial (with front I/O configuration)
1 x Dedicated BMC Ethernet port (with front I/O configuration)

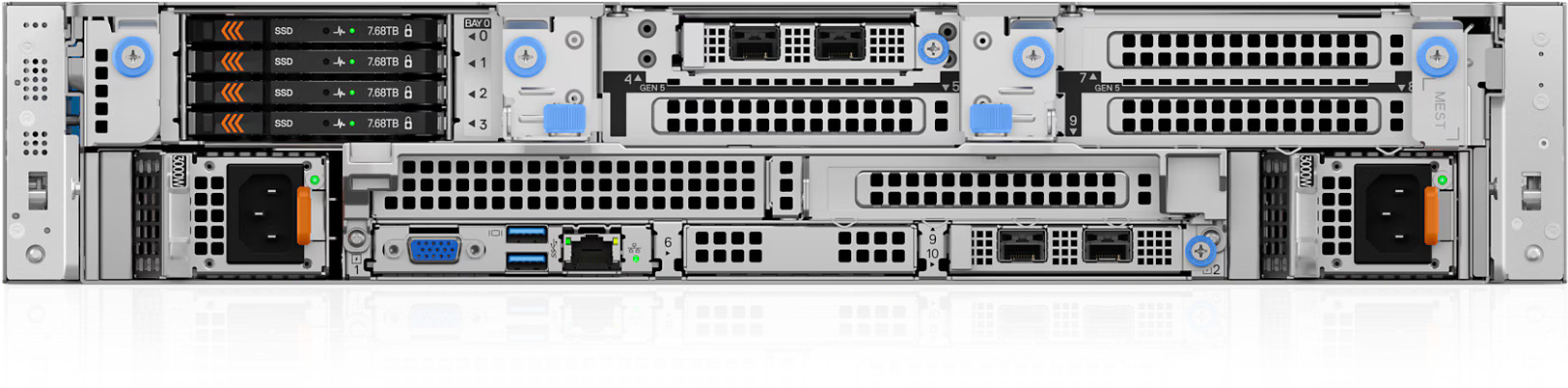

Rear Ports
1 x Dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA

Up to six PCIe slots* (x16 connector)
Slot 2: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
Slot 3: 1 x16 Gen5 Full Height, Half Length
Slot 4: 1 x16 Gen5 Full Height, Half Length* or 1 x16 Full Height, Full Length or 1 x16 OCP3.0
Slot 6: 1 x4 Gen4 Boss (optional)
Slot 7: 1 x16 Gen5 Full Height, Half Length or 1 x16 Full Height, Full Length
Slot 9: 1 x16 Gen5 Full Height, Half Length
Slot 10: 1 x16 OCP3.0
Slot 31: 1 x16 Gen5 Full Height, Half Length
Slot 34: 1 x16 OCP3.0 or 1 x4 Gen4 Boss (optional)
Slot 36: 1 x16 Gen5 Full Height, Half Length
Slot 38: 1 x16 OCP3.0

4

Up to two OCP NIC card 3.0: Two slots on the front or two slots on the rear (optional)

1 Gb dedicated BMC Ethernet port

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.
