PowerEdge R6525 Rack Server

Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor

Up to 32 x DDR4
Maximum RAM
RDIMM 2 TB
LRDIMM 4TB Max
Bandwidth up to 3200 MT/S

Hot plug redundant Hard drives, Fans, PSUs

PERC 10.5 – HBA345, H345, H745, H840, 12G SAS HBA
PERC 11 – H755, H755N
Chipset SATA/SW RAID (S150): Yes

Front Bays
Up to 4 x 3.5” hot plug SAS/SATA (HDD)
Up to 8 x 2.5” hot plug SAS/SATA (HDD)

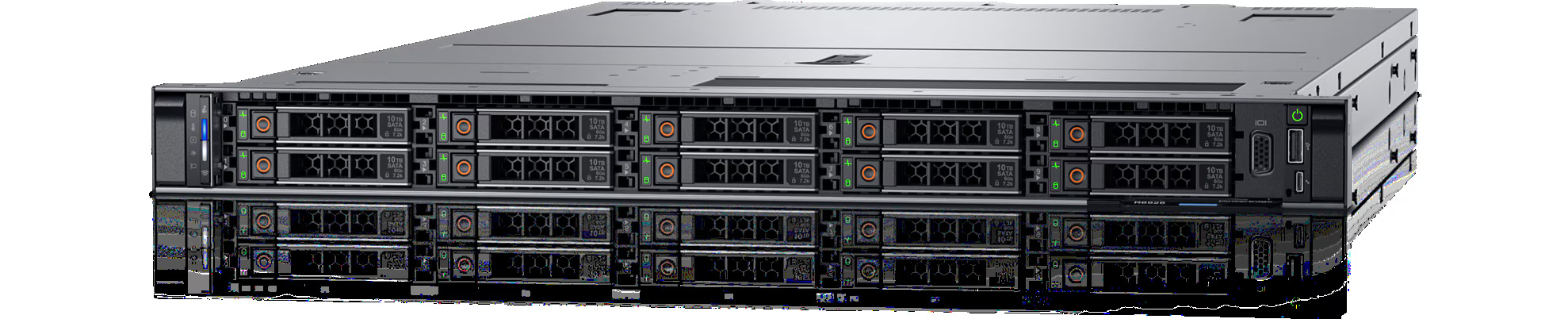

Up to 12 x 2.5” (10 Front + 2 Rear)
hot plug SAS/SATA/NVMe
Optional Internal: 2 x M.2 (BOSS)
Optional Rear: 2 x M.2 (BOSS-S2)

800W Platinum
1400W Platinum
1100W Titanium

Hot plug Fans

Height: 42.8mm (1.7”)
Width: 434.0mm (17.1”)
Depth: 736.54mm (29”)
Weight: 21.8kg (48.06lbs)

1U Rack Server

iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module

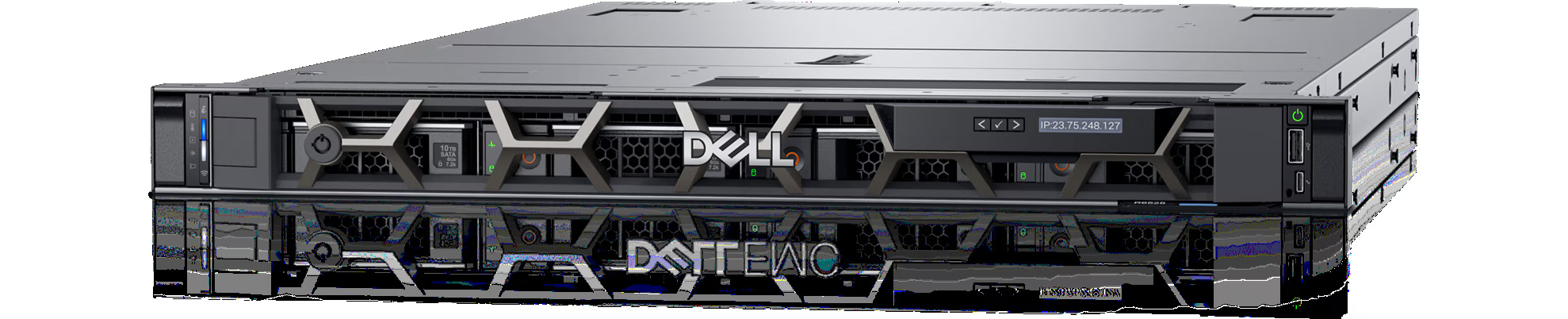

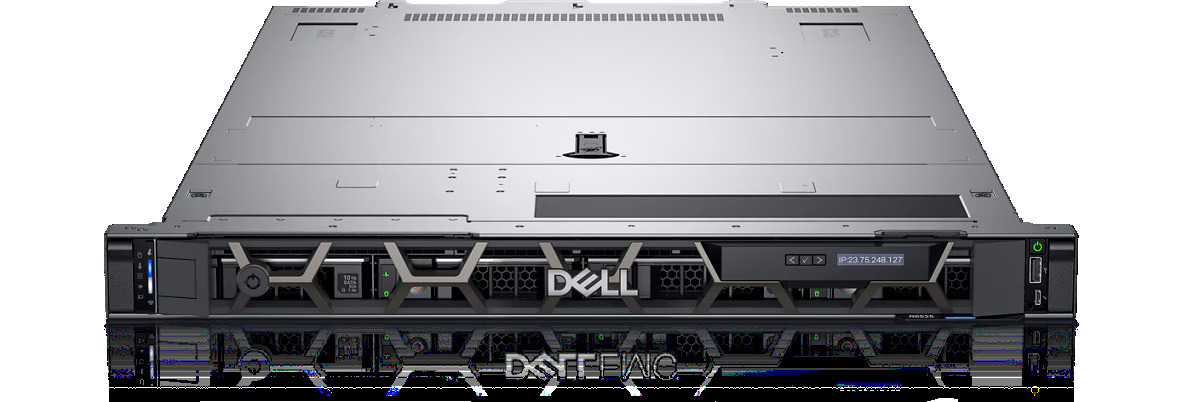

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Enterprise Power Manager
OpenManage Mobile

OpenManage Integrations
BMC Truesight
Microsoft® System Center
Redhat® Ansible® Modules
VMware® vCenter™

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 1.2/2.0, TCM 2.0 optional

2 x 1 GbE LOM ports

OCP x16 Mezz 3.0 + 2 x 1GE LOM

Up to 2 Single-Wide GPU

Front Ports:
1 x Dedicated iDRAC direct micro-USB
1 x USB 2.0
1 x VGA

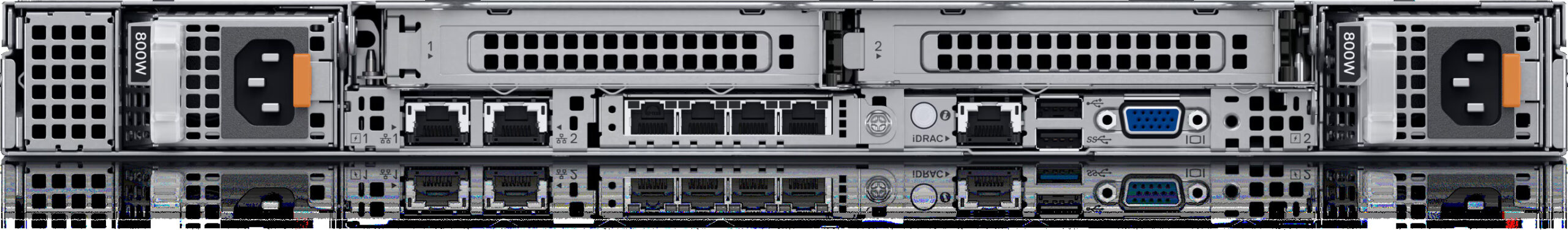

Rear Ports:
1 x Dedicated iDRAC network port
1 x Serial (optional)
1 x USB 3.0
1 x VGA

3 x Gen4 slots (x16) at 16GT/s

Canonical® Ubuntu® Server LTS
Citrix® HypervisorTM
Microsoft® Windows Server® with Hyper-V
Red Hat® Enterprise Linux
SUSE® Linux Enterprise Server
VMware® ESXi®

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
For more information, visit Dell.com/OEM.

Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge
solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more
information. Availability and terms of Dell Services vary by region. For more information, visit Dell.com/ServiceDescriptions

ProSupport Plus with SupportAssist provides proactive and predictive support for critical systems. ProSupport provides
comprehensive hardware and software support. Get more from your technology starting on day one with ProDeploy
Enterprise Suite deployment offers. For more information, visit Dell.com/Services.
