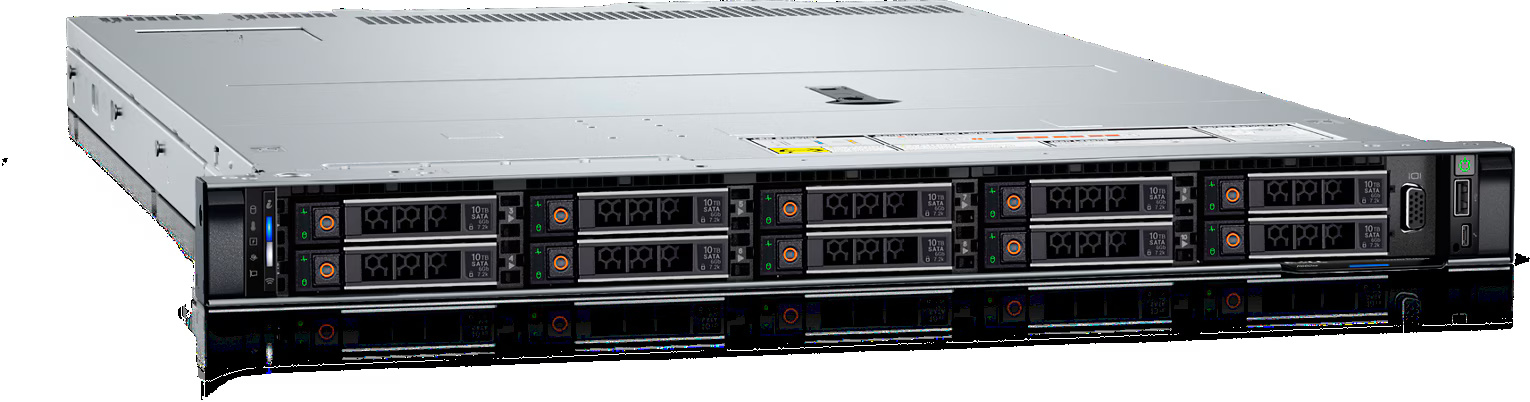

PowerEdge R660xs Rack Server

Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to
32 cores per processor

16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, Supports registered ECC DDR5 DIMMs only

Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or USB
External HBA (non-RAID): HBA355e
Software RAID: S160

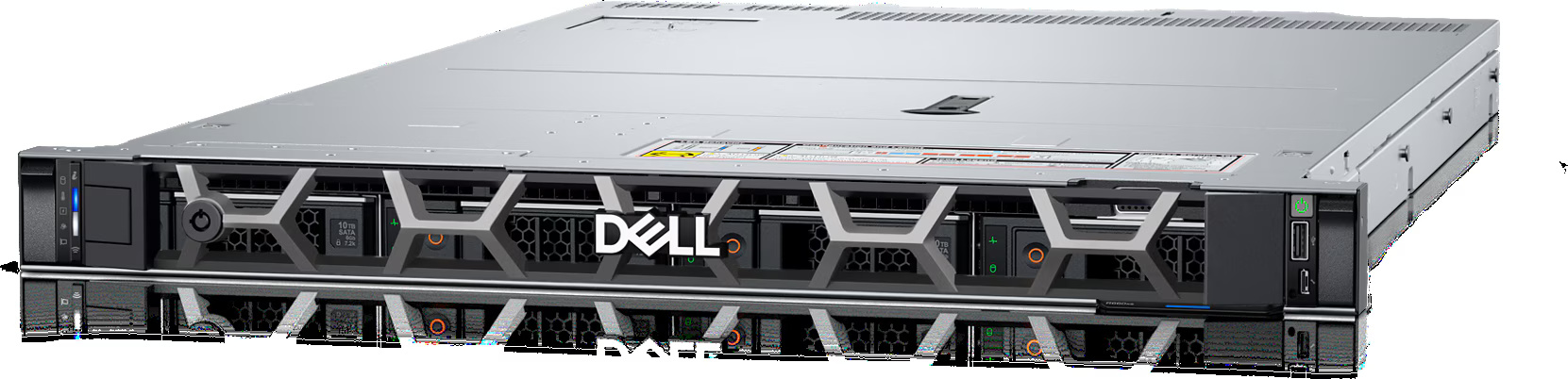

Front bays:
0 drive bay
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 96 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 15.2 TB

1800 W Titanium 200—240 VAC or 240 VDC
1400 W Titanium 100—240 VAC or 240 VDC
1400 W Platinum 100—240 VAC or 240 VDC
1400 W Titanium 277 VAC or HVDC (HVDC stands for HighVoltage DC, with 336V DC)
1100 W Titanium 100—240 VAC or 240 VDC
1100 W -(48V — 60V) DC
800 W Platinum 100—240 VAC or 240 VDC
700 W Titanium 200—240 VAC or 240 VDC
600 W Platinum 100—240 VAC or 240 VDC

Air cooling

Standard (STD) fans / High performance Gold (VHP) fans, Up to 7 hot swappable fans

Height – 42.8 mm (1.68 inches)
Width – 482 mm (18.97 inches)
Depth – 748.79 mm (29.85 inches) with bezel
712.95 mm (28.05 inches) without bezel
Weight – 19.45 Kg (55.33 pound)

1U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

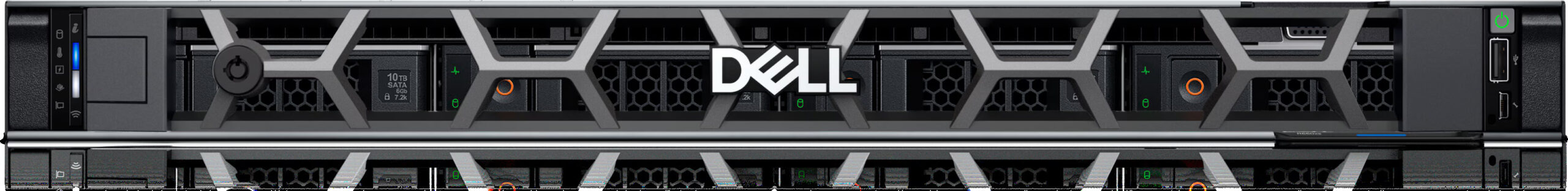

Optional LCD bezel or security bezel

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM card

1 x OCP card 3.0 (optional)

Front Ports
1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Internal Ports
1 x USB 3.0 (optional)

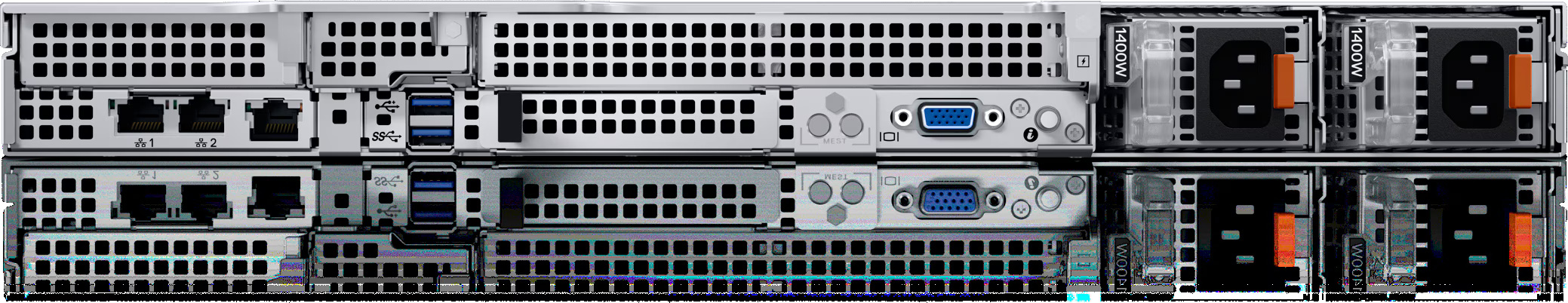

Rear Ports
1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0,
1 x VGA, 1 x Serial (optional)

1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5)
2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5)

Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server.
VMware ESXi
Canonical Ubuntu Server LTS
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com
-> Solutions -> OEM Solutions.
