PowerEdge R6615 Rack Server

One AMD EPYC 4th Generation 9004 Series with up to 128 cores

12 DDR5 DIMM slots, supports RDIMM 3 TB max, speed up to 4800 MT/s
Supports registered ECC DDR5 DIMMs only

Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e
Software Raid: S160

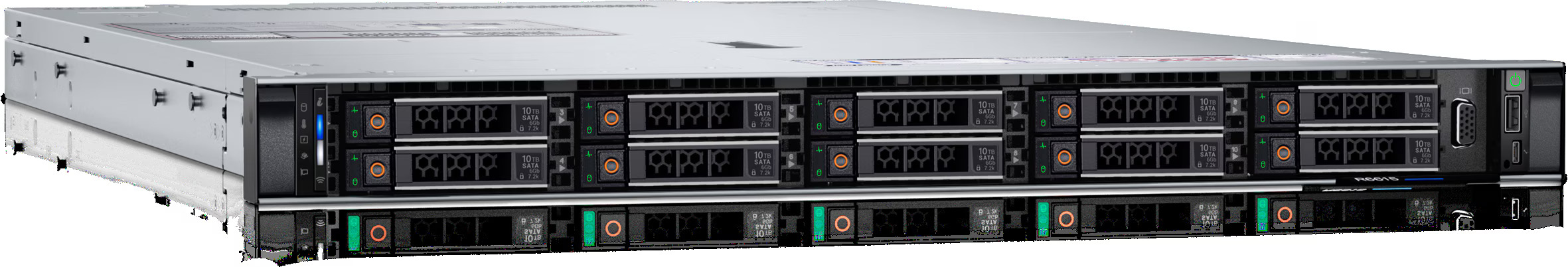

Front bays:
Up to 4 x 3.5-inch SAS/SATA (HDD/SSD) max 80 TB
Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB
Up to 10 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 153.6 TB
Up to 14 x EDSFF E3.S Gen5 NVMe (SSD) max 107.52 TB
Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB
Up to 2 x EDSFF E3.S Gen5 NVMe (SSD) max 15.36 TB

1800 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant
1400 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
1400 W Titanium 277 V AC or 336 HVDC, hot swap redundant
1100 W Titanium 100–240 V AC or 240 HVDC, hot swap redundant
1100 W LVDC -48 – -60 VDC hot swap redundant
800 W Platinum 100–240 V AC or 240 HVDC, hot swap redundant
700 W Titanium 200–240 V AC or 240 HVDC, hot swap redundant

Air cooling
Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

Standard (STD) fans/High performance GOLD (VHP) fans
Up to 4 sets (dual fan module) hot plug fans

Height – 42.8 mm (1.685 inches)
Width – 482 mm (18.97 inches)
Depth – 822.89 mm (32.39 inches) with bezel
809.05 mm (31.85 inches) without bezel

1U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM card (optional)

1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

Up to 2 x 75 W SW

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

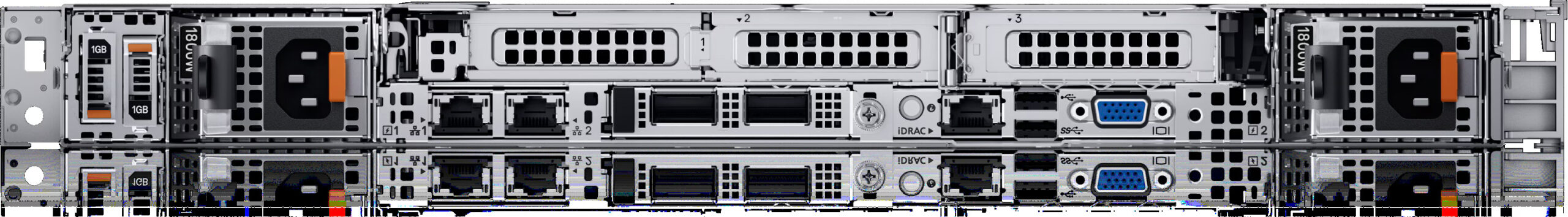

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 3.0
1 x USB 2.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)

Up to three PCIe slots:
Slot 1: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 1 x8 Gen4 Low profile,
Half length
Slot 2: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen5 Full height, Half length or 1 x8 Gen4 Low profile, Half length
Slot 3: 1 x16 Gen5 or 1 x16 Gen4 Low profile, Half length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more
information, visit Dell.com > Solutions > OEM Solutions.
