PowerEdge R6715

One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor

24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
Supports registered ECC DDR5 DIMMs only

Internal Controllers (RAID): PERC H365i, H965i, H975i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
External HBAs (non-RAID): HBA465e

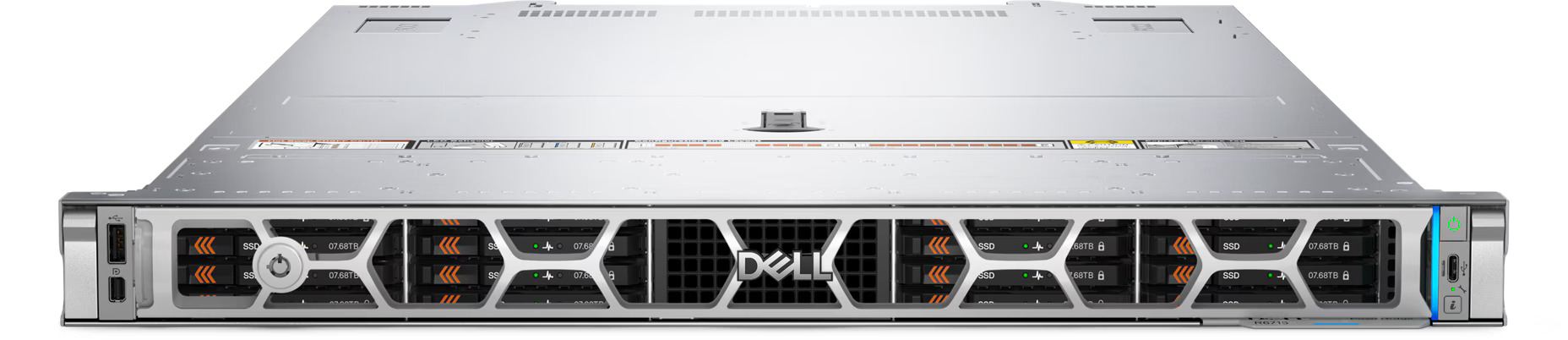

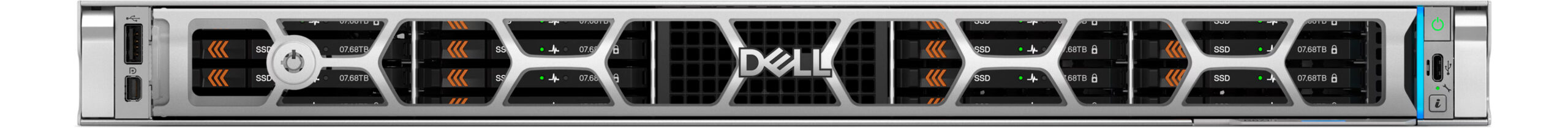

Front bays:
4 x 3.5-inch SAS/SATA
8 x 2.5-inch Universal or U.2 / 10 x 2.5-inch SAS/SATA
10 x 2.5-inch with 4 x Universal
16 x EDSFF E3.S Gen5 NVMe drives
20 x EDSFF E3.S + Rear 2 x EDSFF E3.S

Platinum 800W, 1100W
Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC*, 1800W*
Telco: 1400W -48VDC

Air cooling, Direct Liquid Cooling (DLC)

Up to four sets (dual fan module) hot plug fans

Height – 42.8 mm (1.68 inches)
Width – 482.0 mm (18.97 inches)
Depth – 816.921 mm (32.16 inches) with bezel
– 815.141 mm (32.09 inches) without bezel

1 U rack server

iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
Quick Sync 2 wireless module

Optional metal bezel

OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME Integration for Microsoft System Center
OpenManage Integration for Windows Admin Center

N/A

IPMI

OpenManage Integrations
Redhat Ansible Collections
Terraform Providers

Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)

AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SED with local or external key management)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

Up to 3 x 75W SW

Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x MiniDisplay port (optional LCP KVM)

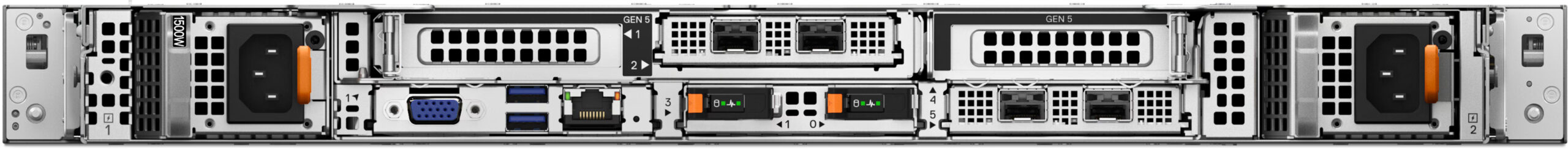

Rear Ports
Two USB 3.1 Type-A
1 x VGA
1 Gb dedicated BMC Ethernet port

Up to three PCIe slots (x16 connector)
Slot 1 1 x16 Gen5 Full Height or Low Profile
Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
Slot 4: 1 x16 Gen5 Full Height or Low profile

3

2 x OCP card 3.0 (optional) and 1GbE, 10GbE, 25GbE,100GbE and 400GbE
Slot 2: 1 x16 Gen5 OCP 3.0
Slot 5: 1 x16 Gen5 OCP 3.0

1 Gb dedicated BMC Ethernet port

100 GbE and 400GbE; NDR VPI (400GbE); FC 32

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linuxr
VMware ESXi
SUSE Linux Enterprise Server
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
