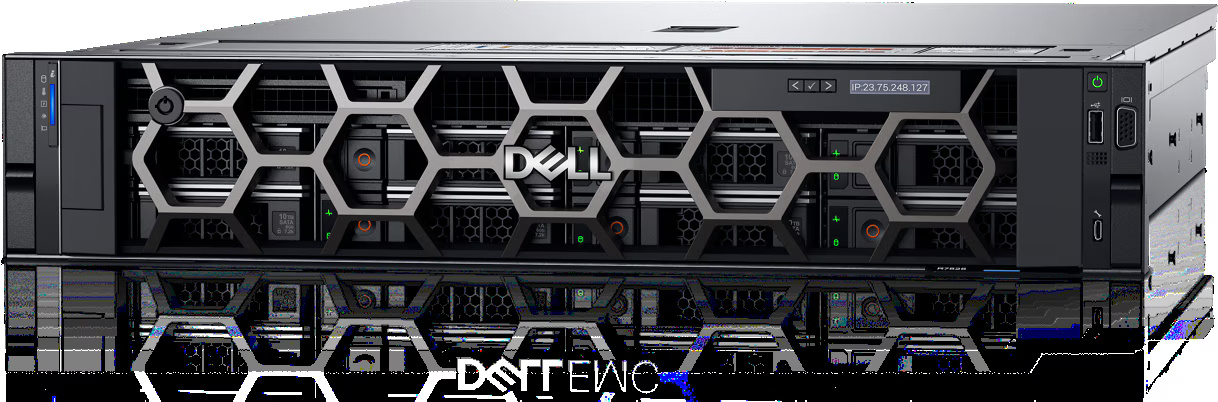

PowerEdge R7525 Rack Server

Two 2nd or 3rd Generation AMD EPYCTM Processors with up to 64 cores per processor

DDR4: Up to 32 x DDR4 RDIMM (2TB), LRDIMM (4TB), bandwidth up to 3200 MT/S

HBA345, PERC H345, PERC H745, H840, 12Gbps SAS HBA
Chipset SATA/SW RAID(S150): Yes
PERC11 – H755, H755N

Front Bays:

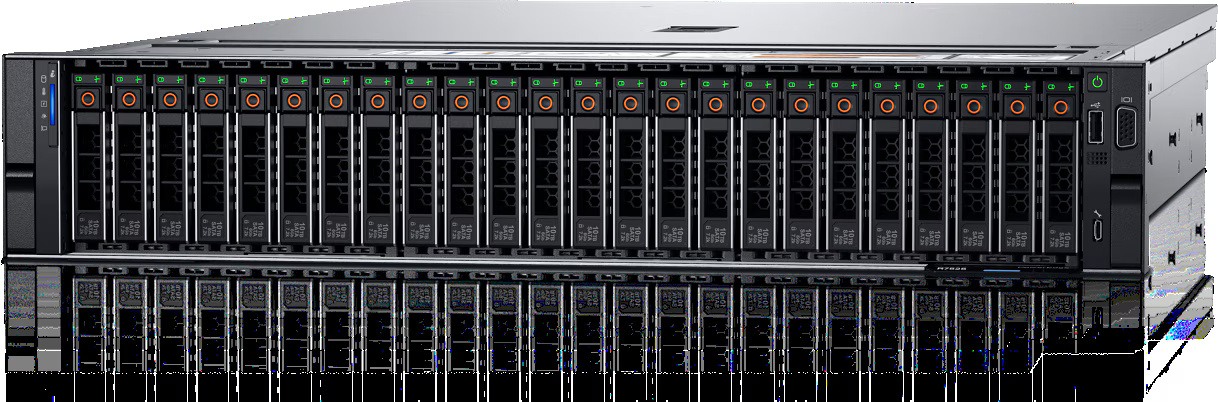

Up to 24 x 2.5” with up to 24 NVMe, SAS/SATA (SSD/HDD)
Up to 12 x 3.5” SAS/SATA (HDD)
Up to 16 x 2.5” SAS/SATA (SSD/HDD)
The 24 x 2.5” SAS/SATA backplane won’t be available until April block

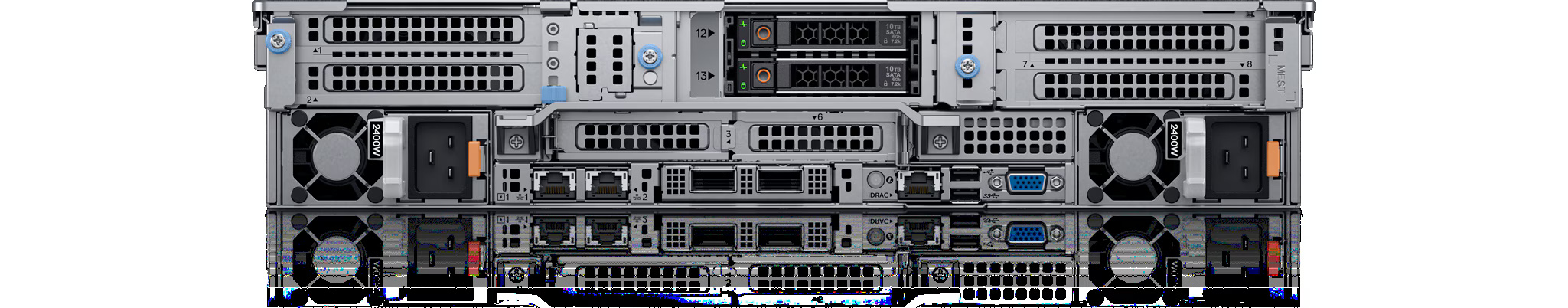

Rear Bays:
Up to 2 x 2.5” SAS/SATA (HDD/SSD)

800W Platinum
1400W Platinum
2400W Platinum

Standard/High Performance/Very High Performance
Hot Plug Fans

Height: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 736.29mm (28.99”)
Weight: 36.3KG (80lb)

2U Rack Server

iDRAC9
iDRAC RESTful API with Redfish
iDRAC Direct
Quick Sync 2 BLE/wireless module

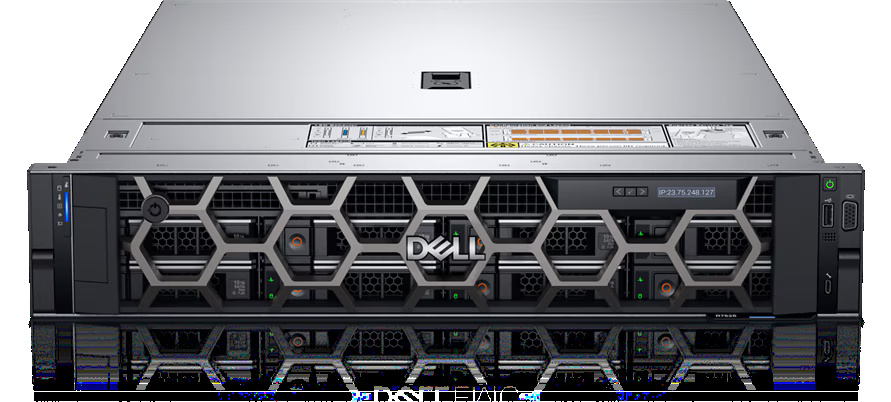

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Enterprise Power Manager
OpenManage Mobile

OpenManage Integrations
BMC Truesight
Microsoft® System Center
RedHat® Ansible® Modules
VMware® vCenter

OpenManage Connections
IBM Tivoli® Netcool/OMNIbus
IBM Tivoli® Network Manager IP Edition
Micro Focus® Operations Manager I
Nagios® Core
Nagios® XI

Cryptographically signed firmware
Secure Boot
Secure Erase
Silicon Root of Trust
System Lockdown (requires OpenManage Enterprise)
TPM 1.2/2.0, TCM 2.0 optional
AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)

2 x 1GE LOM

OCP x16 Mezz 3.0

Up to three double wide 300W or six single wide 75W accelerators
