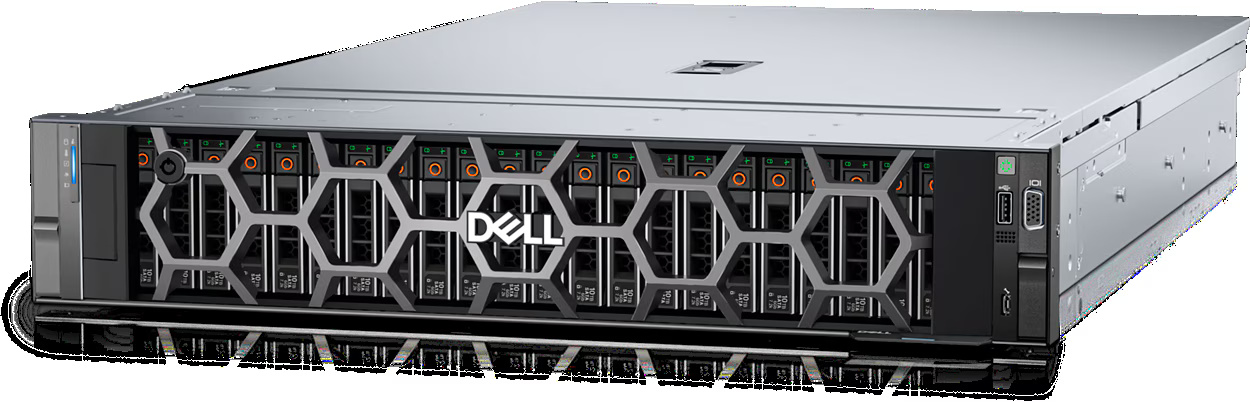

PowerEdge R760 Rack Server

Up to two 4th Generation Intel Xeon Scalable or Intel Xeon Max processors with up to 56 cores per processor and with
optional Intel® QuickAssist Technology
Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor

32 DDR5 DIMM slots, supports RDIMM 8 TB max,
Speeds up to 4800 MT/s on the 4th Generation Intel Xeon Scalable or Intel Xeon Max processors
Speeds up to 5600 MT/s on the 5th Generation Intel Xeon Scalable processors
Supports registered ECC DDR5 DIMMs only

Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355
External Controller: PERC H965e
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
SAS HBA (non-RAID): HBA355e, HBA355i, HBA465i
Software RAID: S160

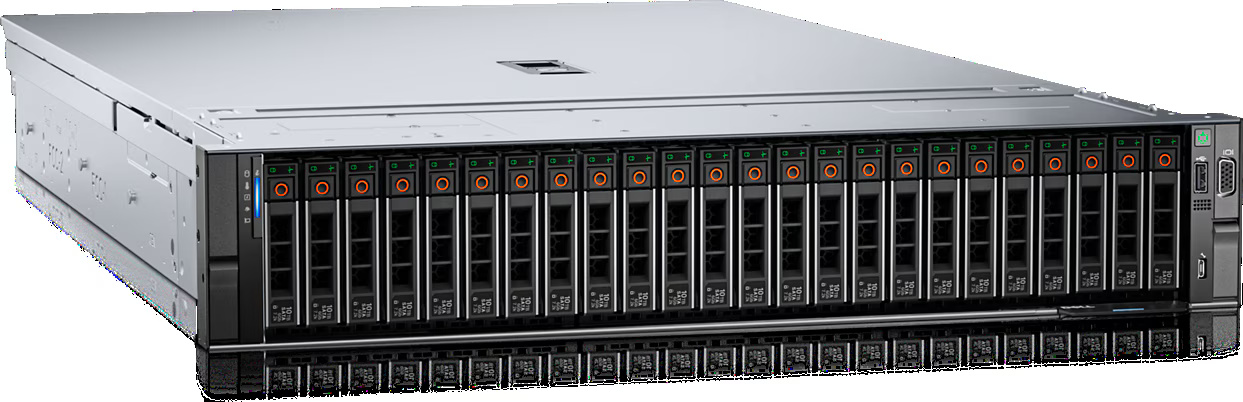

Front bays:
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 16 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) max 30.72 TB

3200 W Titanium 277 VAC or 336 HVDC, hot swap redundant
2800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant
2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant
1400 W Titanium 277 VAC or 336 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W -(48—60) VDC, hot swap redundant
800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
700 W Titanium 200—240 HLAC or 240 HVDC, hot swap redundant

Air cooling
Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

Standard (STD) fans/High performance Silver (HPR Silver) fans/ High performance Gold (HPR Gold) fans
Up to 6 hot plug fans

Height – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 772.13 mm (30.39 inches) with bezel
758.29 mm (29.85 inches) without bezel

2U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

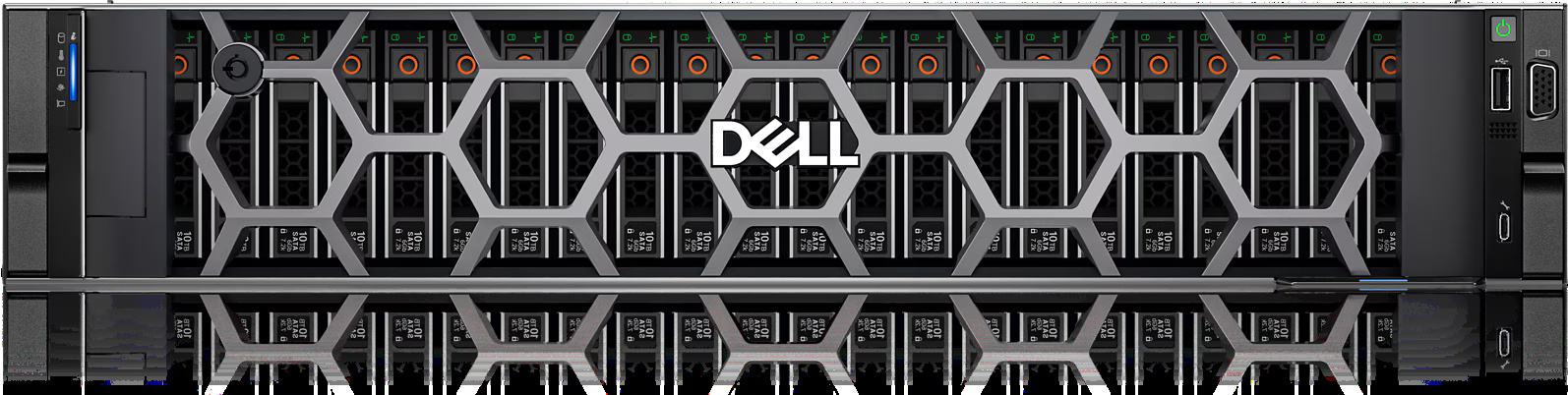

Optional LCD bezel or security bezel

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM card (optional)

1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
1 x Management Interface Card (MIC) to support Dell Data Processing Unit (DPU) card (optional)
Note: The system allows either LOM card or MIC card to be installed in the system.

Up to 2 x 350 W DW and 6 x 75 W SW

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

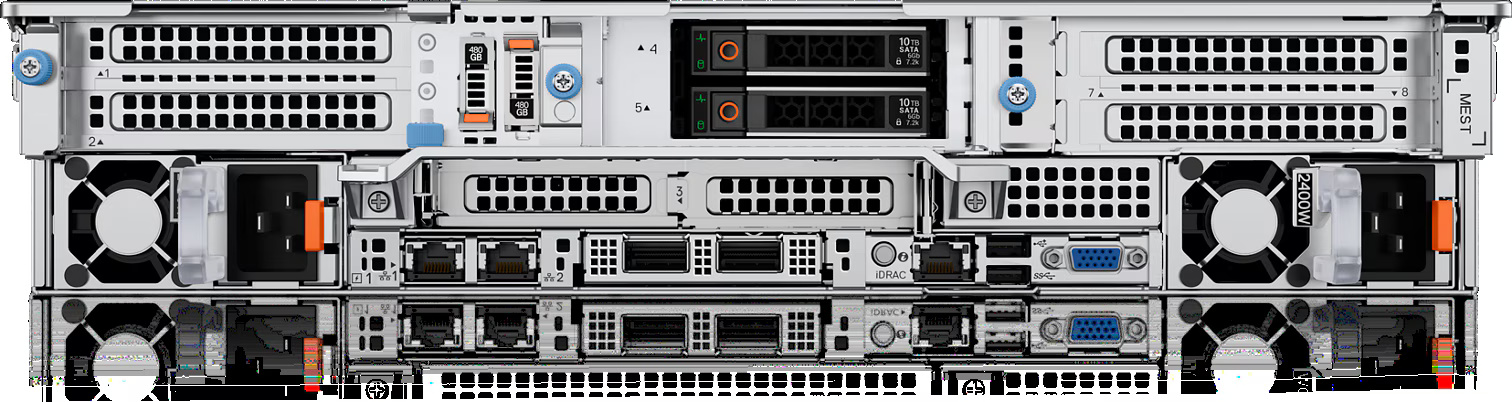

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)

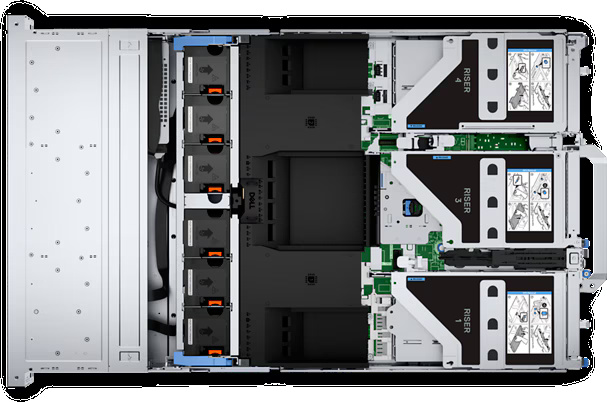

Up to eight PCIe slots:
Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 3: 1 x16 Gen4 Low profile, Half length
Slot 4: 1 x8 Gen4 Full height, Half length
Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 6: 1 x16 Gen4 Low profile, Half length
Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions.
