PowerEdge R760XA Rack Server

Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and optional Intel® QuickAssist
Technology
Up to two 5th Generation Intel Xeon Scalable processor with up to 64 cores per processor and optional Intel® QuickAssist
Technology

32 DDR5 DIMM slot, supports RDIMM 8 TB max
Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
Speeds up to 5600 MT/s on the 5th Generation Intel® Xeon Scalable processor
Supports registered ECC DDR5 DIMMs only

Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs, or USB
External HBA (non-RAID): HBA355e, HBA465e, H965e
Software RAID: S160

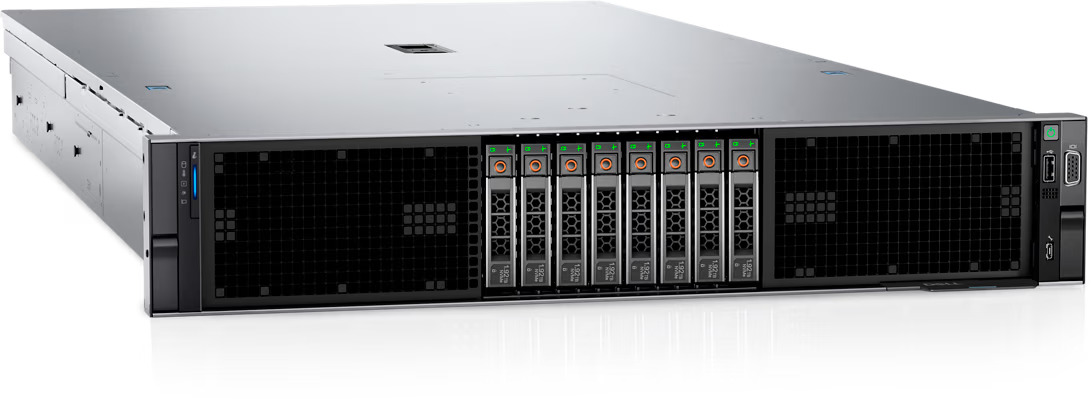

Front bays:
Up to 6 x E3.S Gen5 NVMe, max 46.08 TB
Up to 6 x 2.5-inch NVMe, max 92.16 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe, max 122.88 TB

3200 W Titanium 277–305 VAC or 336 HVDC, hot swap redundant
2800 W Titanium 200–240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100–240 VAC or 240 HVDC, hot swap redundant

Air cooling
Optional Direct Liquid Cooling (DLC)
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate

Standard (STD) fan
Up to six hot plug fans

Height – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 946.73 mm (37.27 inches) – without bezel
93

2U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

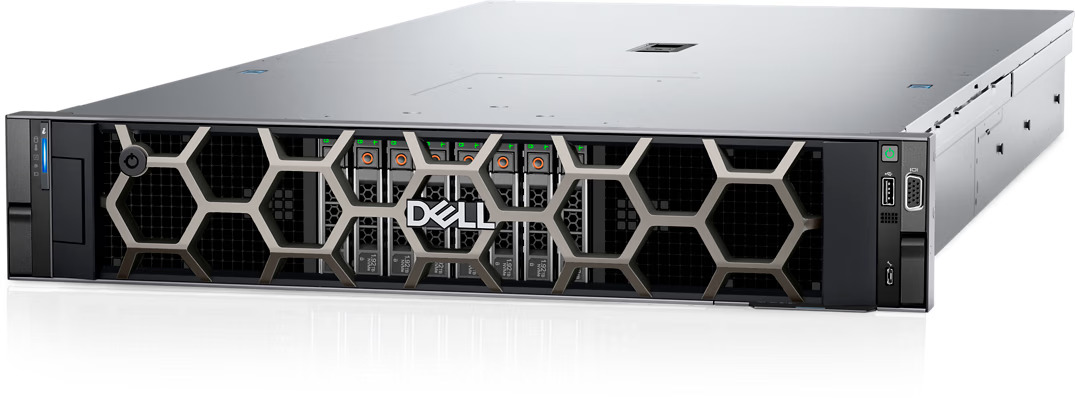

Optional LCD bezel or security bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external
key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or
Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1GbE LOM card (optional)

1 x OCP card 3.0 (optional)
NOTE: The system allows either LOM card or an OCP card or both to be installed in the system.

Up to 4 x 400 W DW PCIe x16 GPU cards
Up to 12 x 75 W SW PCIe x8 GPU cards

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

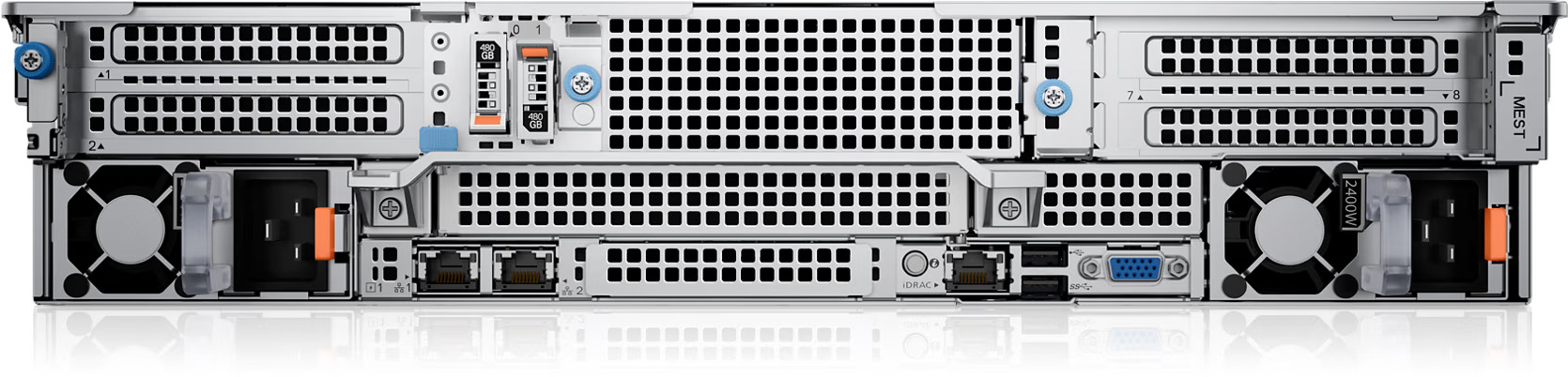

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)
Internal Ports
1 x USB 3.0 (optional)

Up to twelve PCIe slots (x16 connector)
4 x16 Rear Full height, Half length + 4 x16 Front Full height, Full length DW
4 x16 Rear Full height, Half length + 8 x 8 Front Full height, Full length SW

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions..
