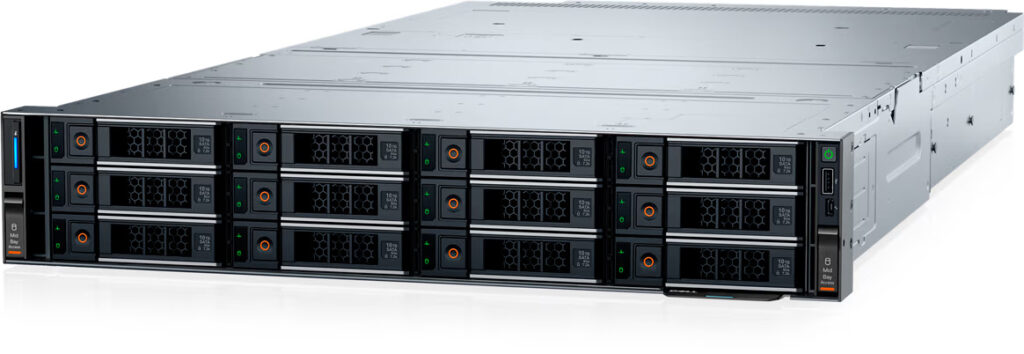

PowerEdge R760xd2 Rack Server

instock

The Dell PowerEdge R760xd2 is a 2U 2 socket server ideal for file and object storage, video capture/retrieval, and content delivery networks.

MSRP*
N/A

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

Up to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor or
Up to two 5th Generation Intel Xeon Scalable processors, with up to 28 cores per processor and optional Intel® QuickAssist
Technology

16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5600 MT/s
Supports registered ECC DDR5 DIMMs only
Note: The maximum memory speed the system will support is 4800 MT/s due to the limitation of the processor.
Note: 5600 MT/s RDIMMs are applicable for 5th Gen Intel Xeon Scalable Processors

Internal Controllers (RAID): PERC H755, PERC H965i, PERC H355
Internal Controllers (non-RAID): HBA355i, HBA465i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives (hot swappable), or USB
External HBAs (non-RAID): HBA355e, HBA465e
External Controllers (RAID): H965e

Front bays:
Up to 12 x 3.5-inch SAS/SATA max 264 TB
Mid bays:
Up to 12 x 3.5-inch SAS/SATA max 264 TB
Rear bays:
Up to 4 x 3.5-inch SAS/SATA max 88 TB
Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
Up to 2 x 2.5-inch NVMe max 15.36 TB
4 x E3.S NVMe max 61.44 TB

1800 W Titanium 200—240 VAC or 240 VDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 VDC, hot swap redundant
1400 W Titanium 277 VAC or 336 VDC, hot swap redundant
1400 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 VDC, hot swap redundant
1100W LVDC –48 — –60 VDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 VDC, hot swap redundant

Air cooling

Up to 6 Standard (STD) fans, hot swappable.

Height — 86.8 mm (3.41 inches)
Width — 481.6 mm (18.96 inches)
Depth — 837 mm (32.95 inches)

2U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

N/A

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

iDRAC RESTful API with Redfish
IPMI
RACADM CLI
Dell System Update
Enterprise Catalogs
Dell Repository Manager

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

1 x OCP card 3.0 (optional)

Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x VGA

Up to five PCIe slots:
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height,
Half length
Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Note: Slot 5 is dedicated for internal PERC card

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions.
