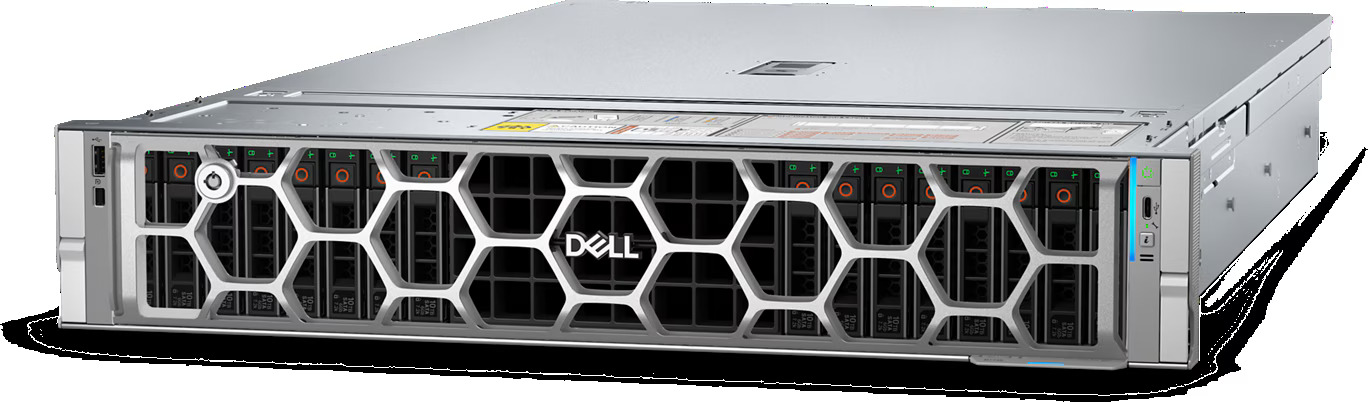

PowerEdge R7715 Rack Server

One 5th Generation AMD EPYC 9005 Series processor with up to 160 cores per processor

24 DDR5 DIMM slots, supports RDIMM 6 TB max, speeds up to 5200 MT/s
Supports registered ECC DDR5 DIMMs only

Internal Controllers (RAID): PERC H365i, H965i, H975i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
External HBAs (non-RAID): HBA465e

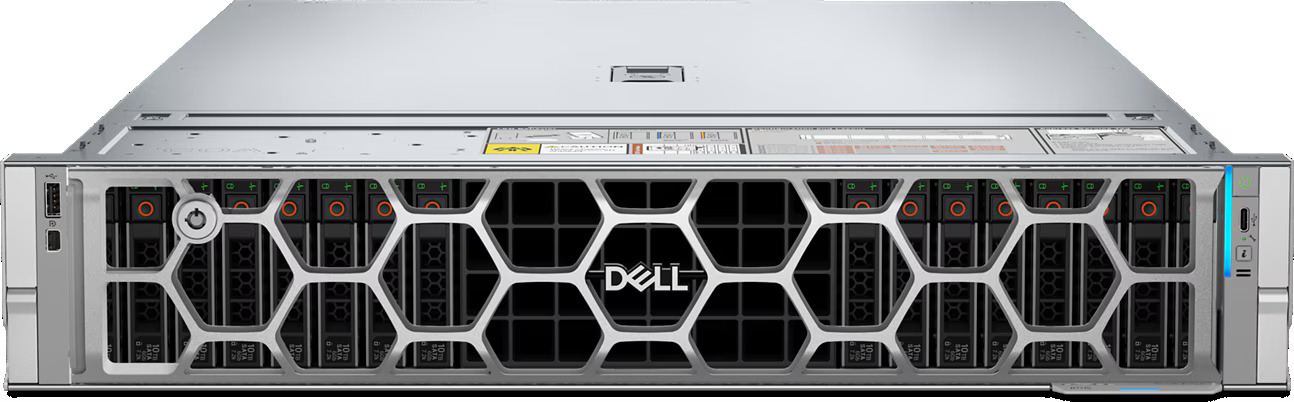

Front bays:
2 x U.2
12 x 3.5-inch SAS/SATA
8 x 2.5 Universal/ 16 x 2.5-inch SAS/SATA / 24 x 2.5-inch SAS/SATA
16 x 2.5-inchSAS/SATA SSD + 8 x U.2 NVMe drives
8 x EDSFF E3.S / 16 x EDSFF E3.S / 32 x EDSFF E3.S / 40 x EDSFF E3.S

Platinum 800W, 1100W
Titanium: 800W, 1100W, 1500W, 1500W 277Vac & HVDC*, 1800W*, 2400W*, 3200W, 3200W 277Vac & HVDC
Telco: 1400W -48VDC

Air cooling, Direct Liquid Cooling (DLC)

Up to six hot plug fans

Height – 86.8 mm (3.41 inches)
Width – 482.0 mm (18.97 inches)
Depth – 802.4 mm (31.59 inches) with bezel
801.51 mm (31.55 inches) without bezel

2U rack server

iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI
Quick Sync 2 wireless module

Optional metal bezel

OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OpenManage Integration for Microsoft System Center
OpenManage Integration for Windows Admin Center

N/A

IPMI

RedHat Ansible Collections
Terraform Providers

Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)

AMD Secure Encrypted Virtualization (SEV)
AMD Secure Memory Encryption (SME)
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

Up to 3x 450W DW; Up to 6x 75W SW

Front Ports
1 x USB 2.0 Type-A (optional LCP KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini DisplayPort (optional LCP KVM)

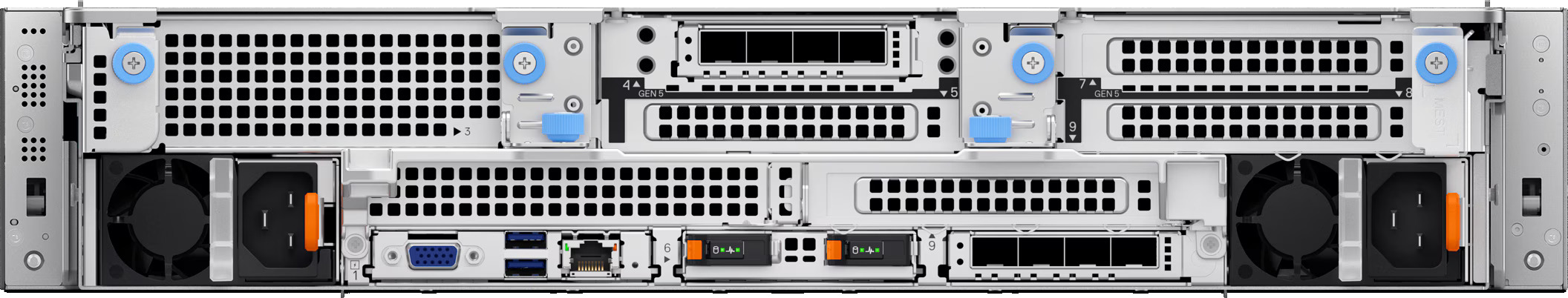

Rear Ports
1 x 1 Gb Dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA

Up to eight PCIe slots (x16 connectors)
Slot 1: 1 x16 Gen5 Full Height
Slot 2: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 3: 1 x16 Gen5 Full Height or Low Profile
Slot 4: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length or 1 x16 OCP3.0
Slot 5: 1 x16 Gen5 Full Height
Slot 7: 1 x16 Gen5 Full Height or 1 x16 Dual Width Full Length
Slot 8: 1 x16 Gen5 Full Height
Slot 9: 1 x16 Gen5 Full Height or Low Profile

Up to 8

2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE, 25GbE, 100GbE and 400GbE
Slot 4: 1 x16 Gen5 OCP3.0
Slot 10: 1 x16 Gen5 OCP3.0

1 Gb dedicated BMC Ethernet port

100 GbE and 400GbE; NDR VPI (400GbE); FC 32

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
RedHat Enterprise Linux
VMware ESXi
SUSE Linux Enterprise Server
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
