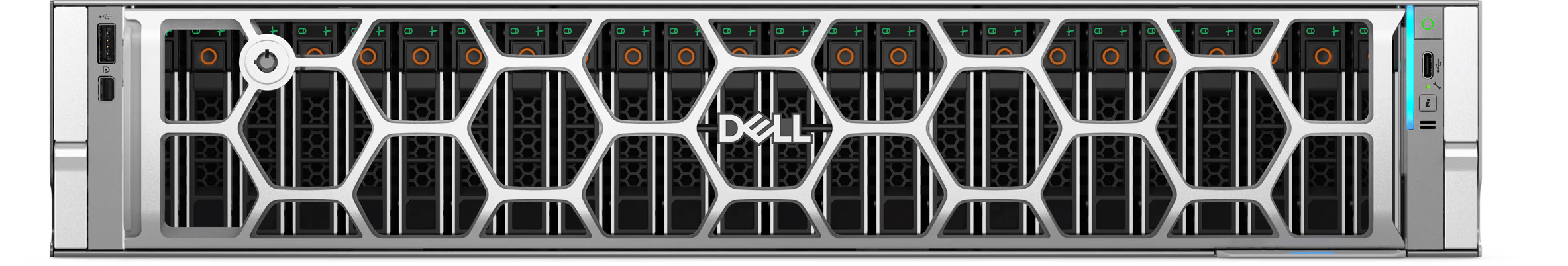

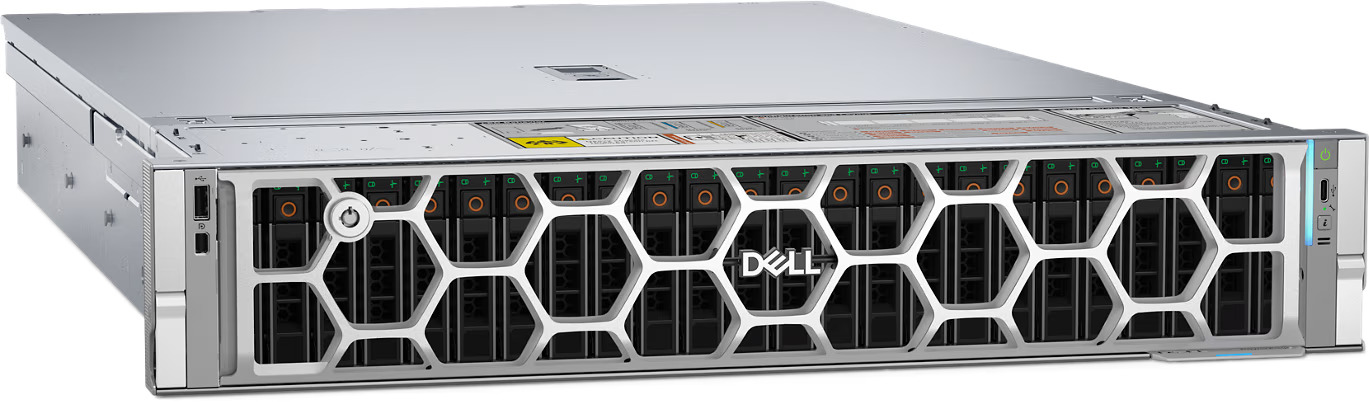

PowerEdge R7725xd Rack Server

Two 5th Generation AMD EPYC 9005 Series processors with up to 192* cores per processor

24 DDR5 DIMM slots, supports RDIMM 3 TB max*, speeds up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only

Internal Controllers (RAID): N/A
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS)
External HBAs (non-RAID): N/A

Front bays:
24 x 2.5-inch U.2 Gen5 NVMe max 2928 TB*

1500 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant*
2400 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant*
3200 W Titanium 200-240 VAC or 240 HVDC, hot swap redundant

Air cooling

Up to six hot plug fans

Height – 86.8 mm (3.42 inches)
Width – 482 mm (18.98 inches)
Depth – 802.4 mm (31.59 inches) with bezel
801.51 mm (31.55 inches) without bezel

2U rack server

iDRAC 10
iDRAC Direct
iDRAC RESTful API with Redfish
Racadm CLI

Optional metal bezel*

OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria Operations)
OME integration for Microsoft System Center
OpenManage Integration for Windows Admin Center

N/A

IPMI

OpenManage Integrations
RedHat Ansible Collections
Terraform Providers

Dell Repository Manager
Dell System Update
Enterprise Catalogs
Server Update Utility (SUU)

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
TPM 2.0 FIPS, CC-TCG certified
Chassis Intrusion Detection

N/A

Front Ports
1 x USB 2.0 Type-A (optional LCP-Secondary KVM)
1 x USB 2.0 Type-C (HOST/BMC Direct)
1 x Mini DisplayPort (optional LCP-Secondary KVM)
Rear Ports
1 x dedicated BMC Ethernet port
2 x USB 3.1 Type-A
1 x VGA

Up to five* PCIe slots (x16 connector)
Slot 2: 1 x16 Gen5 Full Height
Slot 3: 1 x16 Gen5 Full Height or 1 x16 Gen5 Low Profile
Slot 4: 1 x16 Gen5 Full Height*
Slot 7: 1 x16 Gen5 Full Height
Slot 8: 1 x16 Gen5 Full Height
Slot 9: 1 x16 Gen5 Low Profile

5*

1 x OCP NIC 3.0 card (optional) and 10GbE
Slot 10: 1 x4 Gen3 OCP3.0

1 Gb dedicated BMC Ethernet port

100 GbE and 400GbE; NDR VPI (400GbE)

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V*
Red Hat Enterprise Linux
VMware ESXi*
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com/OEM.
