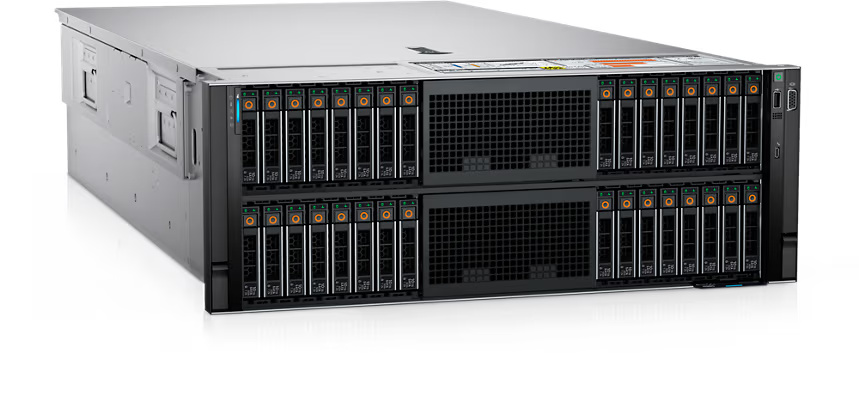

PowerEdge R960 Rack Server

Up to four 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel® QuickAssist
Technology

64 DDR5 DIMM slots, supports RDIMM 16 TB max, speeds up to 4800 MT/s
Supports registered ECC DDR5 DIMMs only

Internal Controllers: PERC H965i, PERC H755, PERC H355, HBA355i, HBA465ii
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e, HBA465e
Software RAID: S160

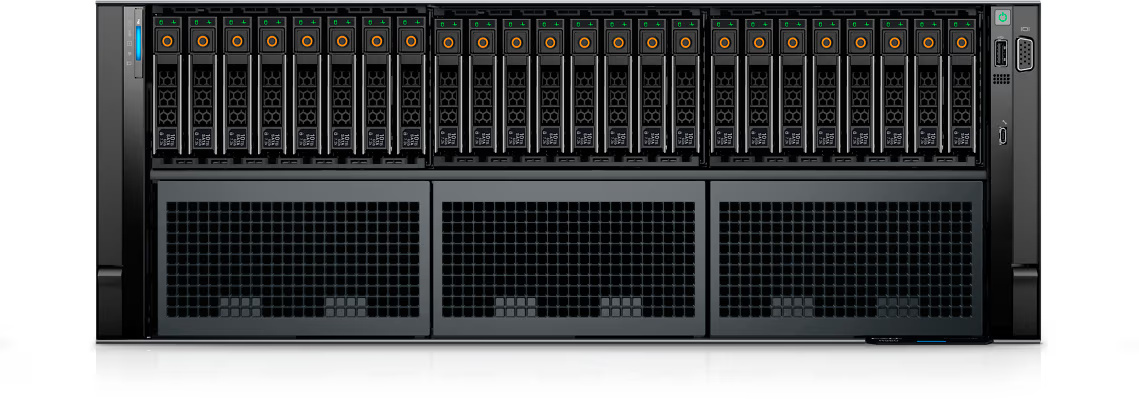

Front bays:
Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB
Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB
Up to 32 x 2.5-inch SAS/SATA (HDD/SSD) max 491.52 TB

1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
1100W LVDC –48 — –60 VDC, hot swap redundant

Air cooling
Optional Direct Liquid Cooling (DLC)*
Note: DLC is a rack solution and requires rack manifolds and a cooling distribution unit (CDU) to operate.

Standard (STD) fans
Up to 6 sets (dual fan module) hot plug fans

Height – 174.3 mm (6.86 inches)
Width – 482 mm (18.97 inches)
Depth – 883.195 mm (34.77 inches) with bezel
869.195 mm (34.22 inches) without bezel

4U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

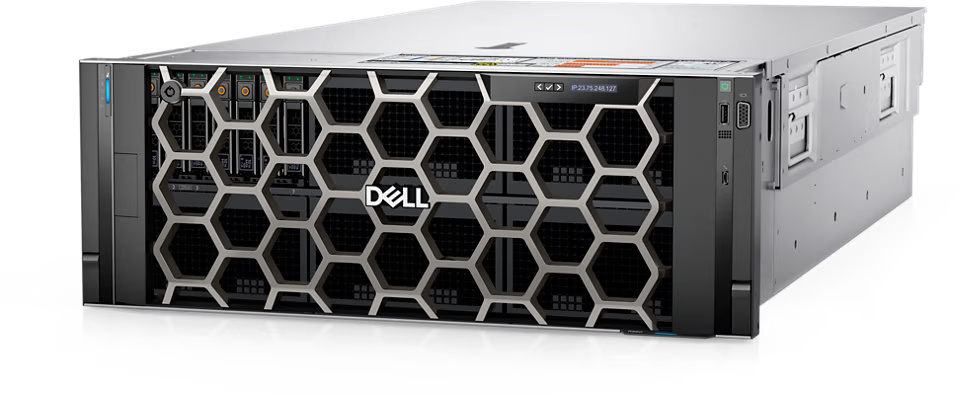

Optional LCD bezel or security bezel

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM card (optional)

1 x OCP card 3.0 (optional)
Note: The system allows either LOM card or an OCP card or both to be installed in the system.

Up to 4 x 400 W DW

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

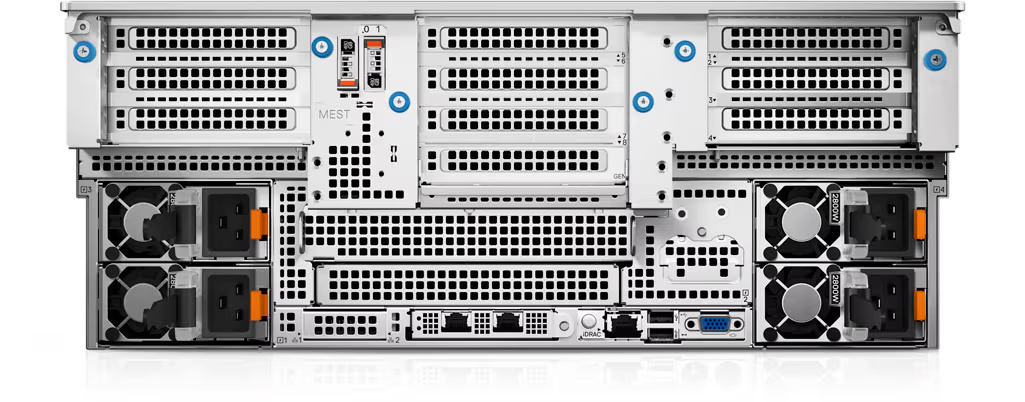

Rear Ports
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)

Up to twelve PCIe slots:
Slot 1: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 2: 1 x16 Gen5 Full height, Half length
Slot 3: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
Slot 4: 1 x16 Gen5 Low profile, Half length
Slot 5: 1 x16 Gen5 Low profile, Half length
Slot 6: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
Slot 7: 1 x16 Gen5 Full height, Half length
Slot 8: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
Slot 9: 1 x16 Gen5 Low profile, Half length
Slot 10: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 11: 1 x16 Gen5 Full height, Half length or 1 x16 Gen5 Full height, Full length (double width)
Slot 12: 1 x16 Gen5 Full height, Half length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions.
