PowerEdge T160 Tower Server

One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to 8 cores or
One Intel® Pentium® G7400/ G7400T processor with up to 2 cores

4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only

Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
Internal Boot: Internal USB 3.0, or Boot Optimized Storage Subsystem (BOSS-N1)
HWRAID 2 x M.2 SSDs
External HBA (non-RAID): HBA355e Adpt
Software RAID: S160

Front bays:
Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB
Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB

300 W Bronze 100—240 V AC, cabled
500 W Platinum 100—240 V AC, cabled

Air cooling

One Standard (STD) fan and one optional High performance (HPR) fan
Up to two cabled fans

Height – 332.5 mm (13.09 inches)
Width – 132.52 mm (5.21 inches)
Depth – 408.8 mm (16.09 inches) (with bezel)

3U tower server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Manual

Filter bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plugin
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Secured-core server
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

N/A

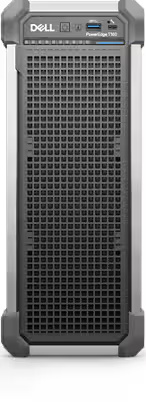

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.2 Gen1

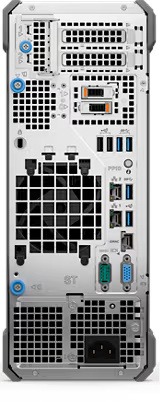

Rear Ports
3 x USB 2.0
3 x USB 3.2 Gen1
1 x Dedicated iDRAC Ethernet port
1 x Serial
1 x VGA
2 x Ethernet ports

Up to two PCIe slots
Slot 1: 1 x8 slot with x4 bandwidth, Half Height, Half Length
Slot 2: 1 x16 slot with x16 bandwidth, Half Height, Half Length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

T160 is partially made from recycled steel.
T160 exterior metal is made from plated steel without any chemical paint*.
NOTE: * Plated steel has a different appearance than regular painted steel.
