PowerEdge T360 Tower Server

One Intel® Xeon® 6300 series or one Intel® Xeon® E-2400 series processor with up to eight cores or
One Intel® Pentium® G7400/ G7400T processor with up to two cores

4 DDR5 DIMM slots, supports UDIMM up to 32 GB per DIMM, speeds up to 4400 MT/s
Supports unregistered ECC DDR5 DIMMs only

Internal: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs drives, or USB
External HBA (non-RAID): HBA355e Adpt
Software RAID: S160

Front bays:
Up to 4 x 3.5-inch SATA HDD/SSD, max 64 TB
Up to 8 x 3.5-inch SAS/SATA HDD/SSD, max 128 TB
Up to 8 x 2.5-inch SAS/SATA HDD/SSD with 3.5-inch to 2.5-inch adapter, max 61.44 TB

450 W Platinum 100-240 V AC, cabled
600 W Platinum 100-240 V AC or 600 W 240 V DC, hot swap redundant
700 W Titanium 200-240 V AC or 700 W 240 V DC, hot swap redundant

Air cooling

One Standard (STD) fan and one optional High performance (HPR) fan
Up to two cabled fans

Height – 382.5 mm (15.06 inches)
Width – 175 mm (6.89 inches)
Depth – 579.72 mm (22.82 inches) with bezel

4.5U tower server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Manual

Security bezel or Optional Filter bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plugin
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Secured-core server
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1 GbE LOM

1 x 60 W SW GPU

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 3.2 Gen1

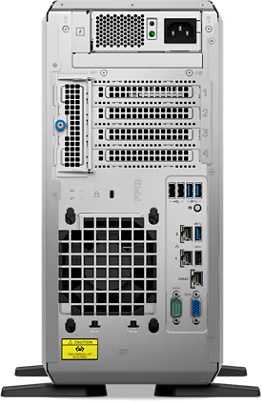

Rear Ports
3 x USB 2.0
3 x USB 3.2 Gen1
1 x Dedicated iDRAC Ethernet port
1 x Serial
1 x VGA
2 x Ethernet ports

Up to four PCIe slots
Slot 1: x8 Gen4 Full height, half length
Slot 2: x16 Gen5 Full height, half length
Slot 3: x1 Gen4 Full height, half length
Slot 4: x8 Gen4 Full height, half length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions
