PowerEdge T560 Tower Server

instock

A purpose-built office-friendly server, maximizing next-gen technologies with GPU options to achieve enterprise-level performance.

MSRP*
$3,179.00

* Manufacturer’s Suggested Retail Price

Product Specifications

System Features

Up to two 4th Generation Intel® Xeon Scalable processor, with up to 32 cores per processor
Up to two 5th Generation Intel® Xeon Scalable processor, with up to 28 cores per processor

16 DDR5 DIMM slots, supports RDIMM 1.5 TB max
Speeds up to 4800 MT/s on the 4th Generation Intel® Xeon Scalable processor
Speeds up to 5200 MT/s on the 5th Generation Intel® Xeon Scalable processor
Supports registered ECC DDR5 DIMMs only

Internal PERC: fPERC H965i, fPERC H755N, fPERC H755, fPERC H355, fPERC HBA355i, HBA465i fPERC
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB
External HBA (non-RAID): PERC HBA355e
Software RAID: S160 (for NVMe drives only)

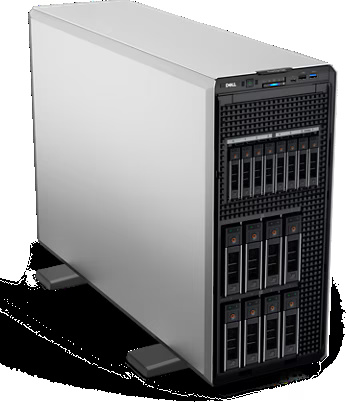

Front bays:
Up to 12 x 3.5-inch SAS/SATA HDD drives, max 180 TB
Up to 8 x 3.5-inch SAS/SATA HDD drives, max 120 TB
Up to 8 x 3.5-inch SAS/ SATA HDD + 8 x 2.5-inch NVMe SSD drives, max 240 TB
Up to 8 x 2.5-inch SAS/SATA HDD drives, max 120 TB
Up to 16 x 2.5-inch SAS/SATA HDD drives, max 240 TB
Up to 24 x 2.5-inch SAS/SATA HDD drives, max 360 TB

600 W Platinum 100-240 VAC/240 VDC
700 W Titanium 200-240 VAC/240 VDC
800 W Platinum 100-240 VAC/240 VDC
1100 W Titanium 100-240 VAC/240 VDC
1100 W DC/-48-(-60) V
1400 W Platinum 100-240 VAC/240 VDC
1400 W Titanium 100-240 VAC/240 VDC
1400 W Titanium 277 VAC/336 VDC
1800 W Titanium 200-240 VAC/240 VDC
2400 W Platinum 100-240 VAC/240 VDC
2800 W Titanium 200-240 VAC/240 VDC

Air cooling

Up to eight Standard (STD) fans or High performance (HPR) fans

Height — 464.0 mm (18.26 inches) (with feet)
508.8 mm (20.03 inches) (with caster wheels)
446.0 mm (17.60 inches) (without feet)
Width — 200.0 mm (7.87 inches)
Depth — 678.2 mm (26.70 inches) (with bezel)
660.6 mm (26 inches) (without bezel)

4.5U tower server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module

Optional security bezel

OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin
CloudIQ for PowerEdge plug in
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manage

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

2 x 1GbE LOM on Planar

1 x OCP x8 card 3.0
Note: The system allows both LOM on planar and OCP card to be installed on the system.

Up to 2 x 300 W DW or 6 x 75 W SW

Front Ports
1 x USB 2.0
1 x USB 3.0
1 x iDRAC Direct (Micro-AB USB) port

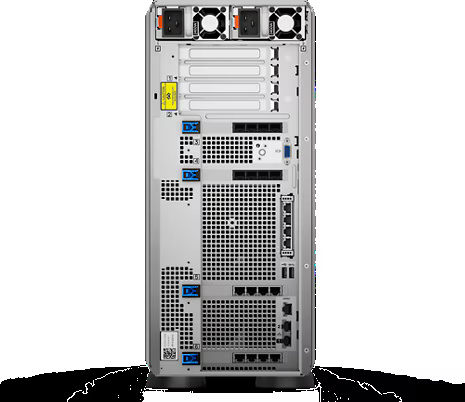

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x Serial port (optional)
1 x Dedicated iDRAC (RJ45) port
1 x VGA port
2 x Ethernet ports

Up to six PCIe slots:
Slot 1: x16 Gen5 Full height, Full length
Slot 2: x16 Gen5 Full height, Full length
Slot 3: x16 Gen4 Full height, Half length
Slot 4: x16 Gen4 Full height, Half length
Slot 5: x16 (x8 lanes) Gen4 Full height, Half length
Slot 6: x16 Gen4 Full height, Half length

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information,
visit Dell.com -> Solutions -> OEM Solutions
