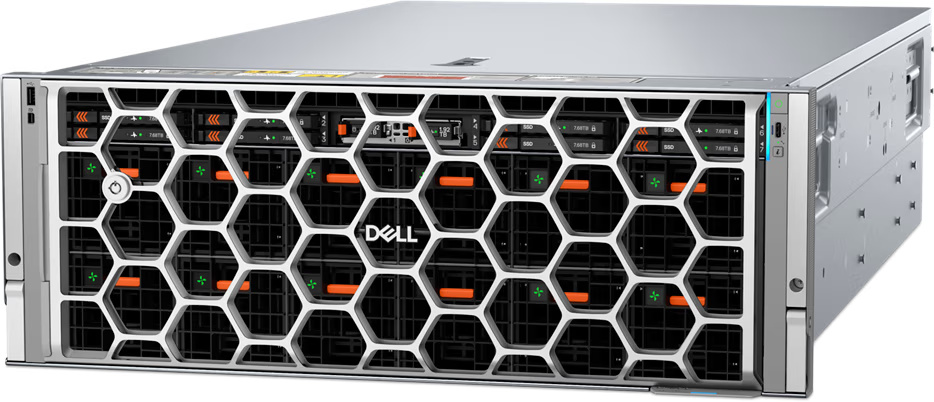

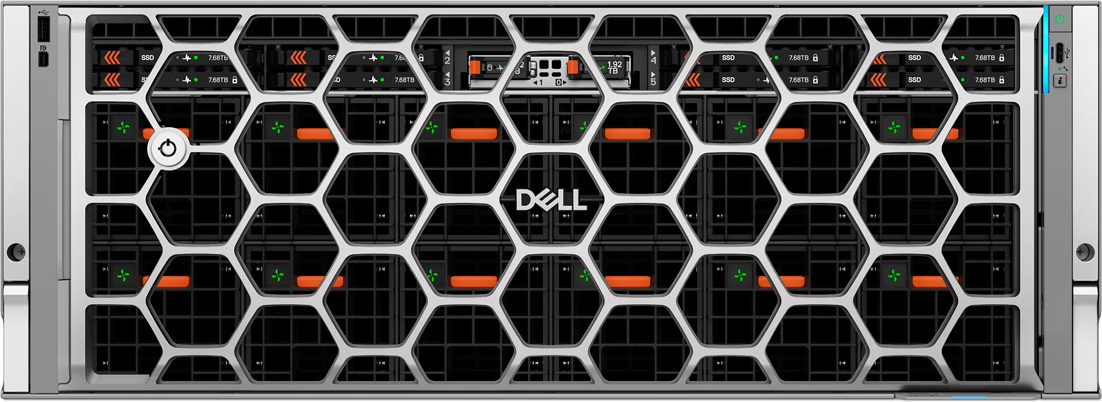

PowerEdge XE7745 Rack Server

Two 5th Generation AMD EPYC 9005 Series processors with up to 192 cores per processor

24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
Supports unregistered ECC DDR5 DIMMs only

8x PCIe Gen 5 x16 DW-FHFL up to 600W or
16x PCIe Gen 5 x16 SW-FHFL up to 75W

Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or USB

Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.88 TB

3200W Titanium 200-240 V AC or 240 V DC, hot swap redundant
Multi capacity for 3200W PSU:3200W for 220.1-240 V AC or 2900W for 200-220 V AC

Air cooling

Up to four sets of high performance (HPR) platinum grade fans (dual fan module) installed in mid tray
Up to twelve high performance (HPR) platinum grade fans installed on the front of the system
All are hot swap fans

Height – 174.3 mm (6.86 inches)
Width – 482 mm (18.98 inches)
Depth – 899.56 mm (35.42 inches) with bezel
886.73 mm (34.91 inches) without bezel

4U rack server

iDRAC10
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module (iSM)
RACADM CLI

OpenManage Enterprise (OME)
OME Power Manager
OME Services
OME Update Manager
OME APEX AIOps Observability
OME Integration for VMware vCenter (with VMware Aria
Operations)

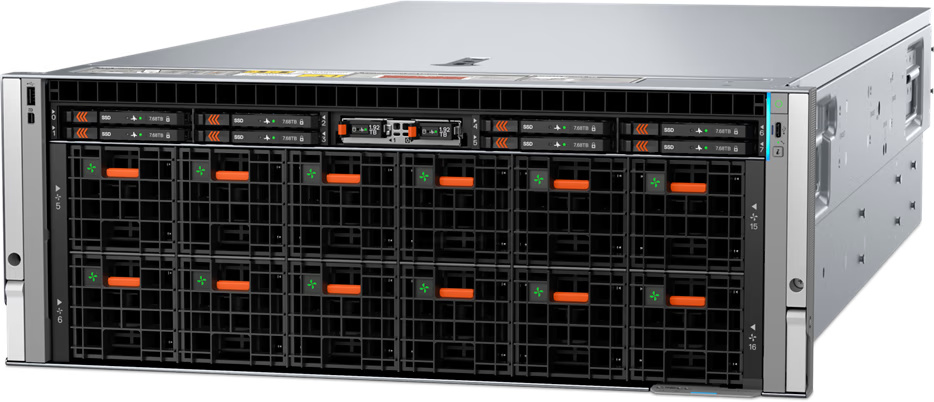

Optional security bezel

IPMI

Enterprise Catalogs / Linux Repositories

RedHat Ansible Collections
Terraform Providers

AMD Secure Memory Encryption (SME)
AMD Secure Encrypted Virtualization (SEV)
Chassis Intrusion Detection
Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key
mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC10 Enterprise or
Datacenter)
TPM 2.0 FIPS, CC-TCG certified

Front Ports:
1 x USB 2.0 Type-A (optional)
1 x Mini-Display port (optional)
1 x USB 2.0 Type-C dual mode (Host/iDRAC Direct port)
Rear Ports on DC-SCM:
1 x Dedicated iDRAC/BMC Direct Ethernet port
2 x USB 3.1 Type A port
1 x VGA

Up to 8 PCIe Gen5 x16 SW-FHHL cards, each up to 150W

1 x OCP NIC card 3.0 (optional)

Canonical Ubuntu Server LTS
RedHat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi*
For specifications and interoperability details, see
Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit
Dell.com/OEM.
