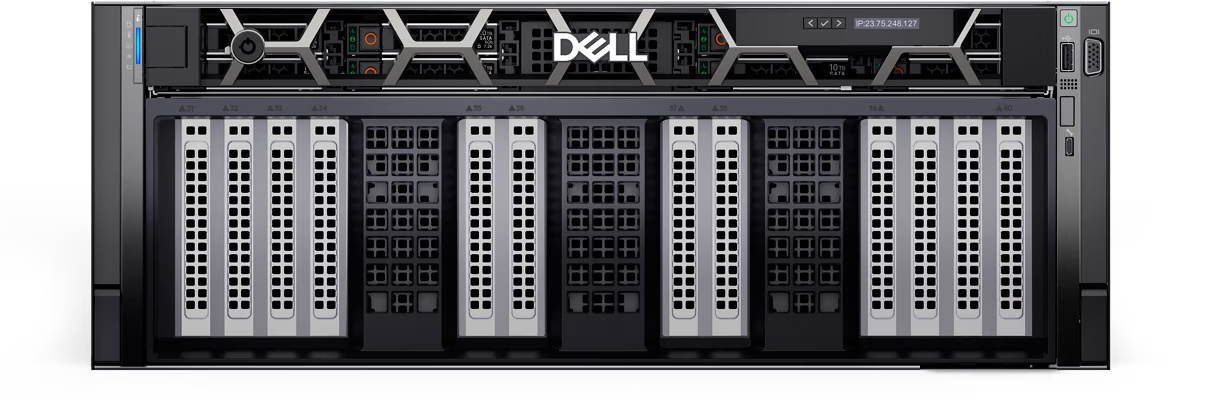

PowerEdge XE9685L Rack Server

Two 5th Generation AMD EPYC™ 9005 Series processors with up to 192 cores per processor

24 DDR5 DIMM slots, supports RDIMM 3 TB max, speeds up to 6400 MT/s
Note: Supports registered ECC DDR5 DIMMs only

Internal Boot: Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs

8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology

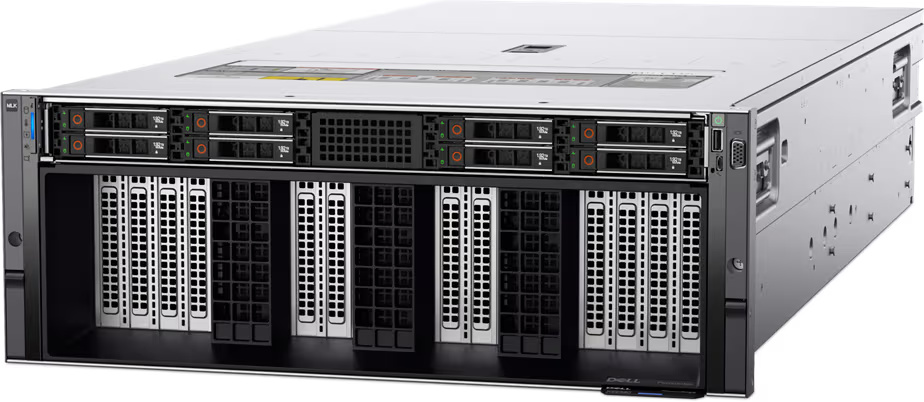

Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB

3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant
3000W when used at 209.1-240 VAC or 240 VDC
2800W when used at 200-209 VAC

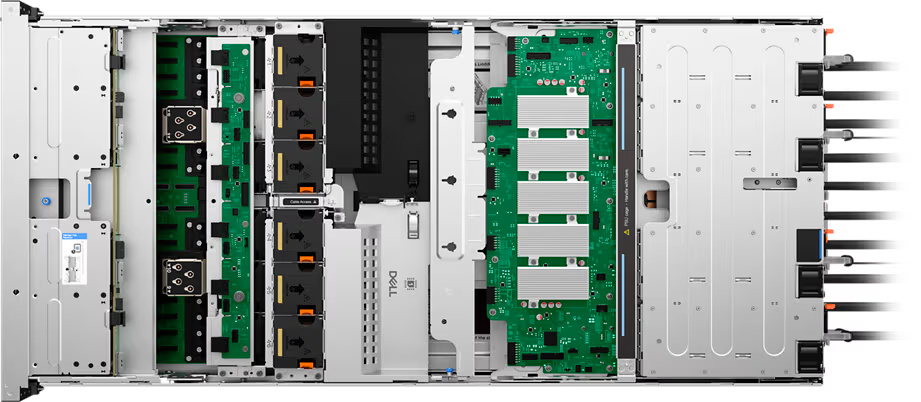

Liquid cooled CPUs, GPUs, and NVLink Switches

Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length slots

2 x 1 GbE

1 x OCP 3.0 (x8 PCIe lanes)

Up to six high performance (HPR) gold grade fans installed on the top layer
Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system

Height — 174.3 mm (6.86 inches)
Width — Upper 2U: 447 mm (17.59 inches)
— Lower 2U: 434 mm (17.08 inches)
Depth — 1037.57 mm (40.82 inches) with bezel
— 1025.62 mm (40.37 inches) without bezel
Weight — 91.63 kg ( 202.00 pounds)

4U rack server

iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Manual

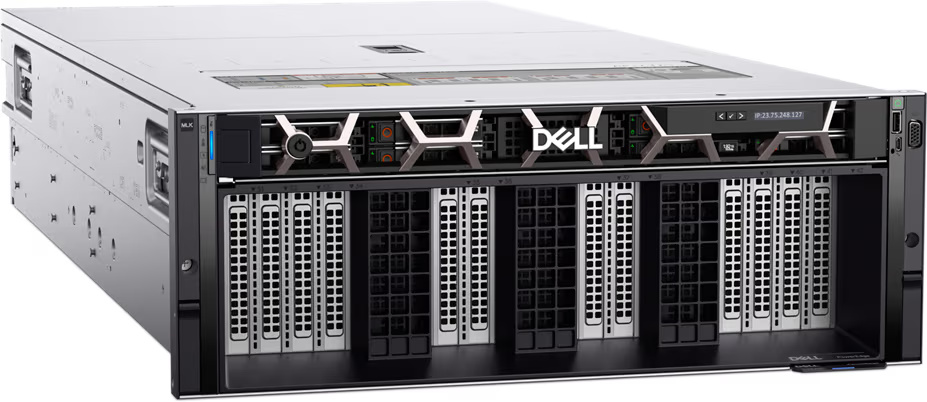

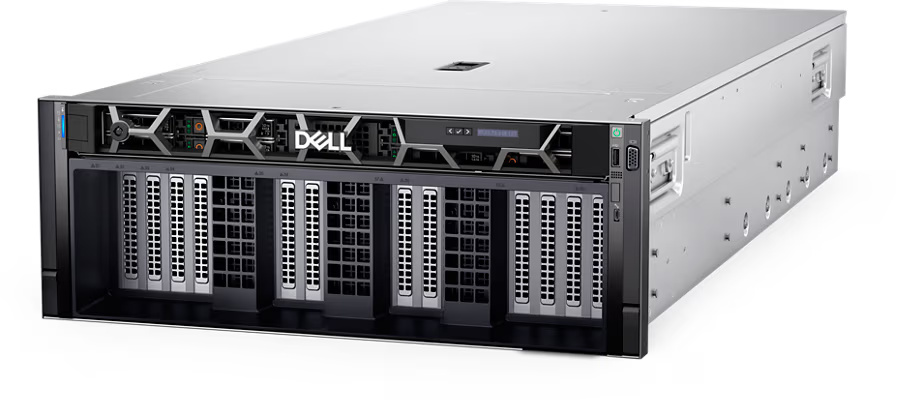

Optional LCD bezel or security bezel

OME APEX AIOps Observability
OpenManage Enterprise
OpenManage Service plugin
OpenManage Power Manager plugin
OpenManage Update Manager plugin

OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers

Cryptographically signed firmware
Data at Rest Encryption
(SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification
(Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown
(requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified

Front ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

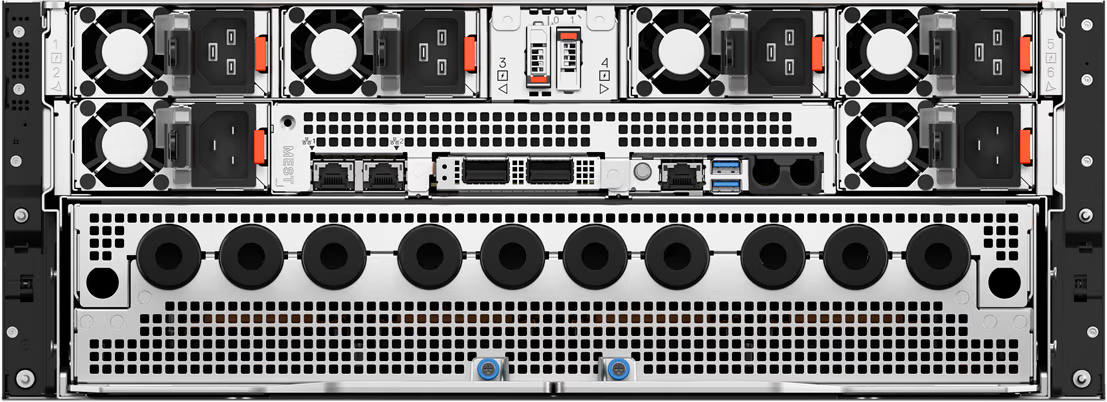

Rear ports
1 x USB 2.0
1 x USB 3.0
1 x iDRAC Direct ethernet port

Canonical Ubuntu Server LTS
For specifications and interoperability details, see Dell.com/OSsupport
