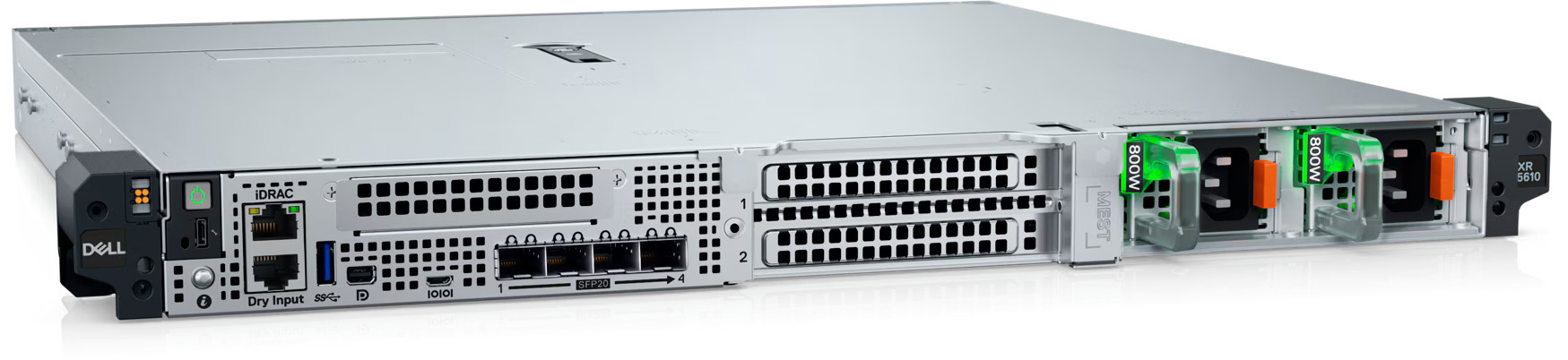

PowerEdge XR5610 Edge Server

One 5th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 16 cores per processor
One 4th Generation Intel Xeon Scalable and Edge-Enhanced processor with up to 32 cores per processor

8 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 5600 MT/s. Supports registered ECC DDR5 DIMMs only

Internal Controllers: PERC H965i, PERC H965e, PERC
H755, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem
(BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs
External HBA (non-RAID): HBA355e
Software RAID: S160

Front bays: Up to 4 x 2.5-inch SATA, SAS, or NVMe SSDs max 30.72 TB

1800 W Titanium 200—240 VAC or 240 HVDC
1400 W Platinum 100—240 VAC or 240 HVDC
1100 W Titanium 100—240 VAC or 240 HVDC
1100 W -48 — (-60) VDC
800 W Platinum 100—240 VAC or 240 HVD

Air cooling

6 Standard cold swap fans

Rear Accessed configuration Front Accessed configuration
Height: 42.8 mm (1.68 inches)
Width: 482.6 mm (19 inches)
Depth: 400 mm (15.74 inches) ear to rear wall
487.7 mm (19.20 inches) with bezel
463 mm (18.22 inches) without bezel
Weight: 11.27 kg (24.84 pounds)
Height: 42.8 mm (1.68 inches)
Width: 482.6 mm (19 inches)
Depth: 400 mm (15.74 inches) ear to rear wall
566.05 mm (22.28 inches) with bezel
472.7 mm (18.61 inches) without bezel
Weight: 11.37 kg (25.06 pounds)

1U rack server

iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator

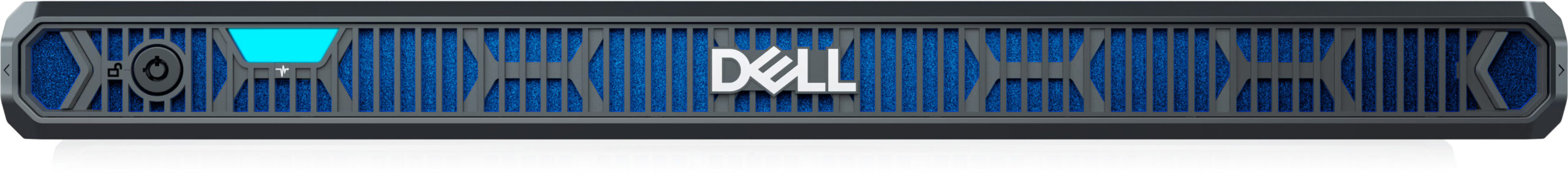

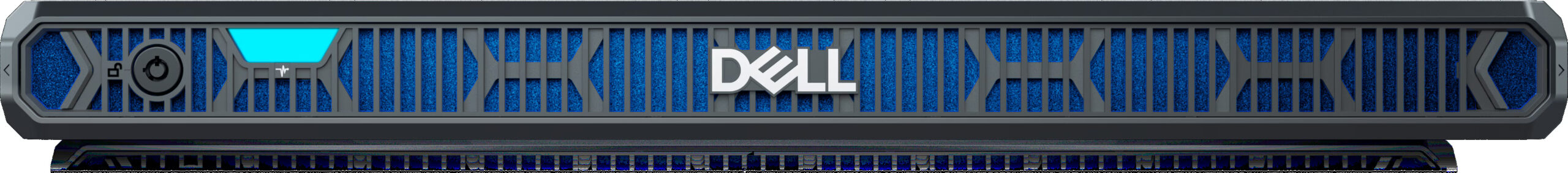

Optional bezel or security bezel with dust filter

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Enterprise Integration for VMware vCenter
OpenManage Integration for Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

BMC Truesight
Microsoft System Center
OpenManage Integration with ServiceNow
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key
mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

4 x 25 GbE SFP+ LOM

1 x OCP card 3.0 (optional)
2 x RAN DPU (optional)

For Rear Accessed configuration For Front Accessed configuration
Front Ports
1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x USB 2.0

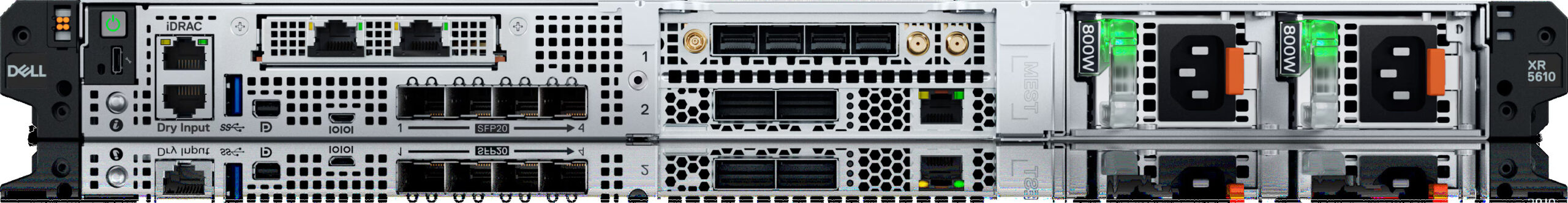

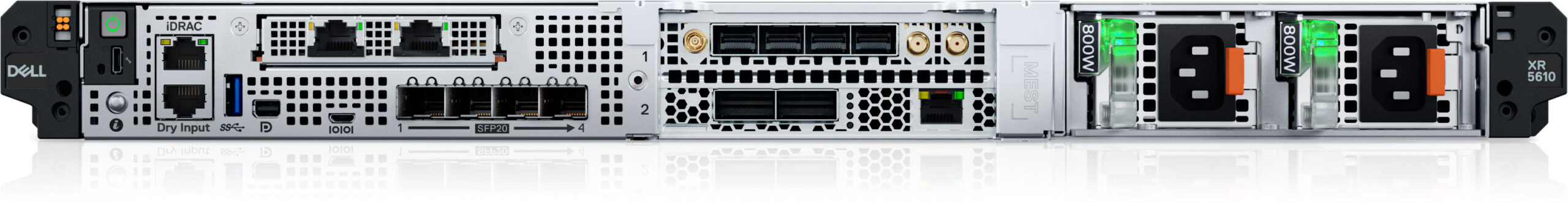

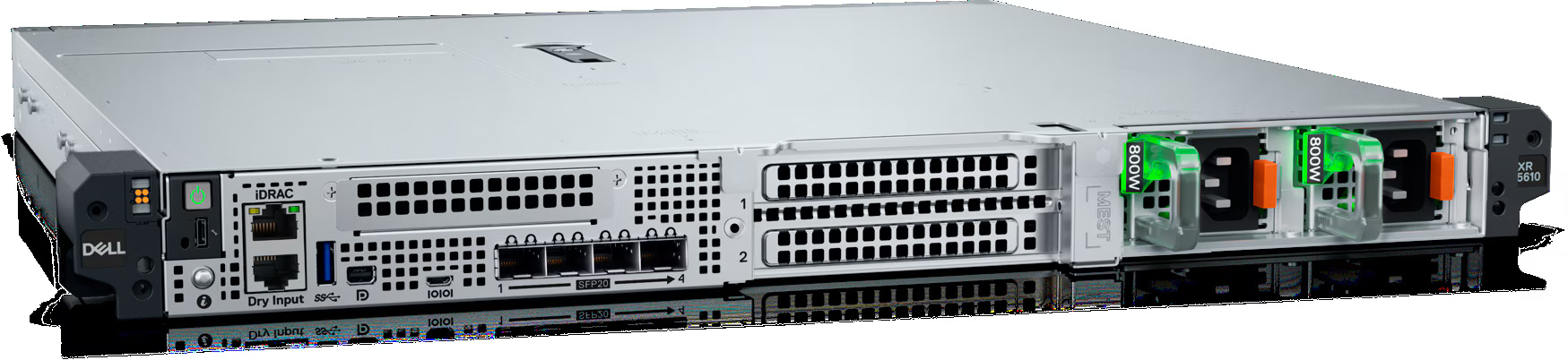

Rear Ports
1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial (MicroAB USB 2.0) port, 1 x Mini-DisplayPort, 1 x RJ45 for dry
contact, 4 x 25 GbE SFP+ LOM
Front Ports
1 x iDRAC Direct (Micro-AB USB 2.0) port, 1 x iDRAC dedicated
port, 1 x USB 3.0, 1 x Serial (Micro-AB USB 2.0) port
1 x Mini-DisplayPort, 4 x 25 GbE SFP+ LOM, 1 x RJ45 for dry
contact
Rear Ports
N/A

1 CPU configuration: Up to 2 PCIe slots (2 x16 Gen5)

Up to 2 x 75 W GPUs (single-width, full-height, half-length)

Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESX
Dell NativeEdge OS
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit
Dell.com -> Solutions -> OEM Solutions.
