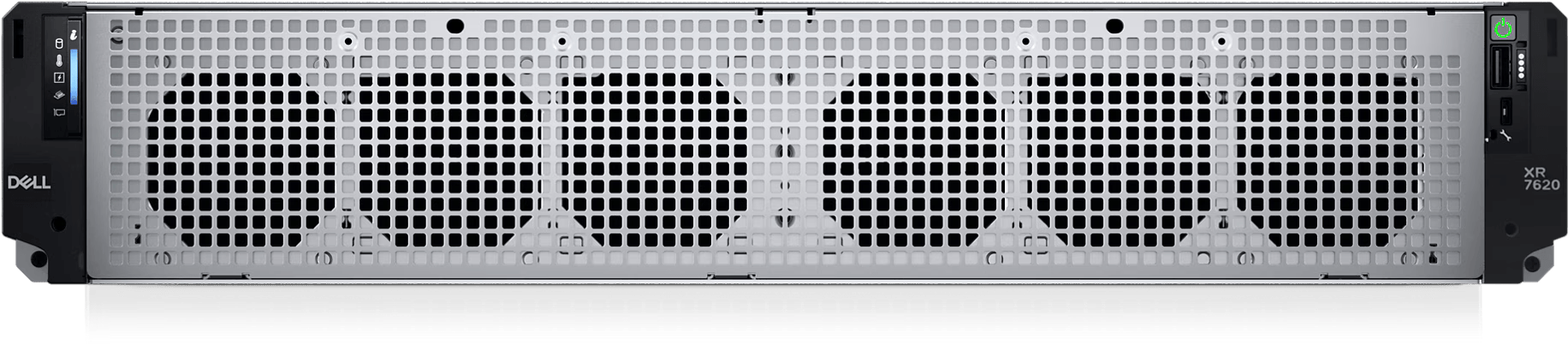

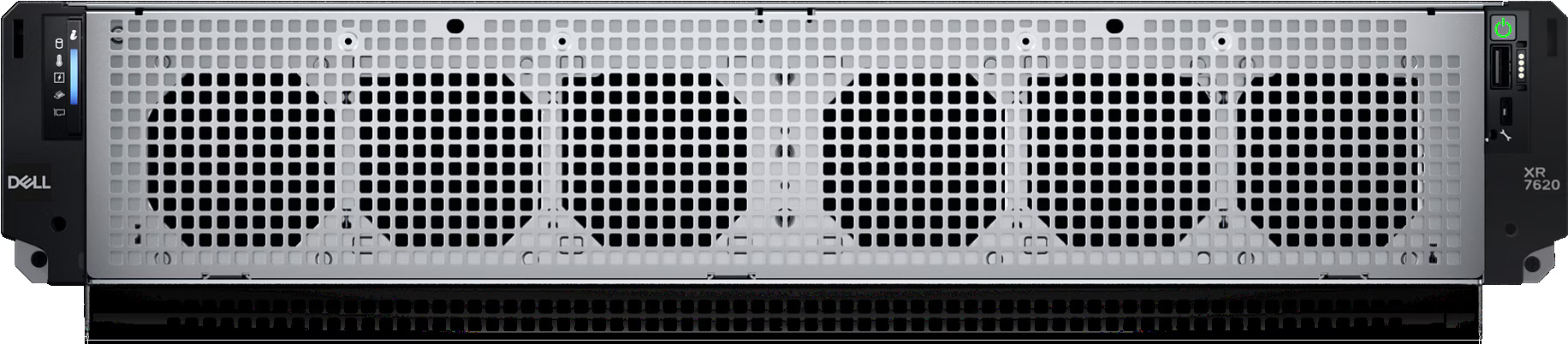

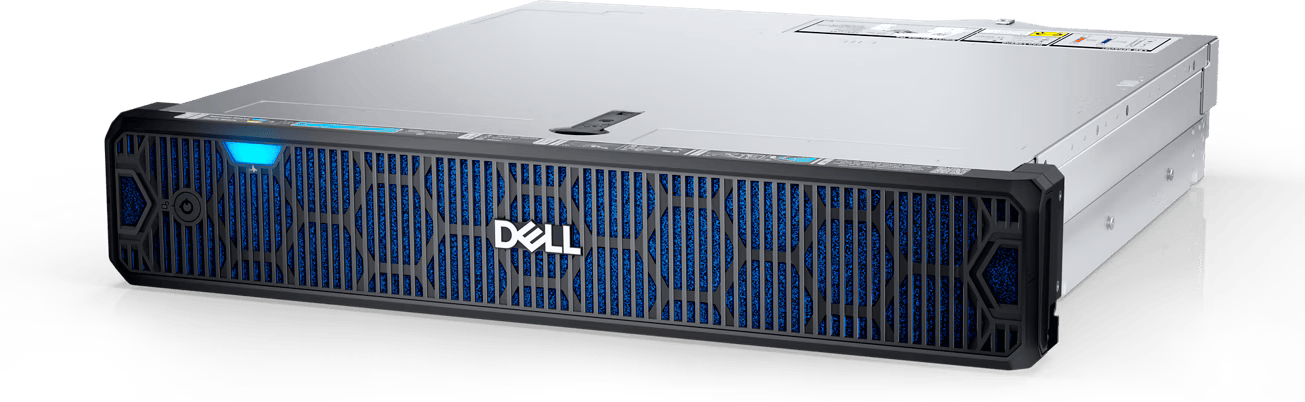

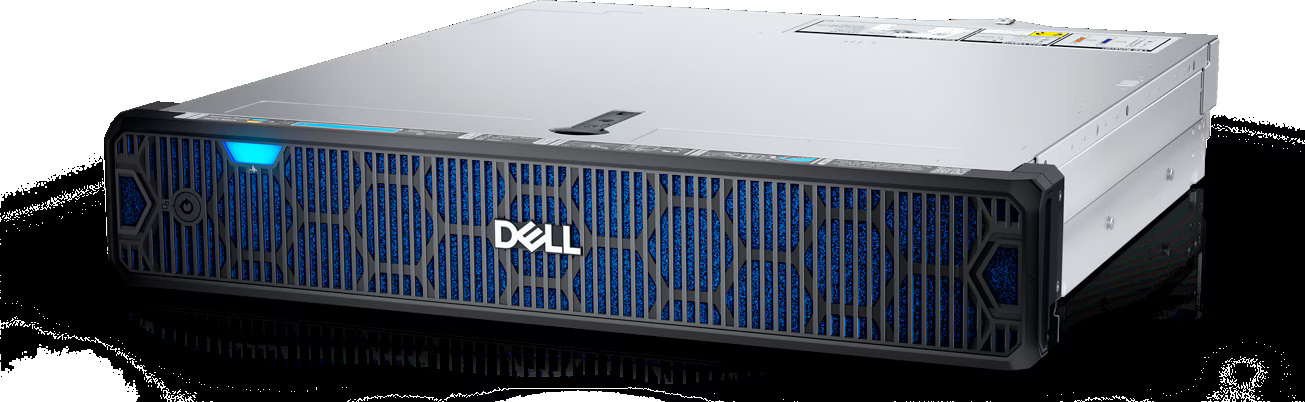

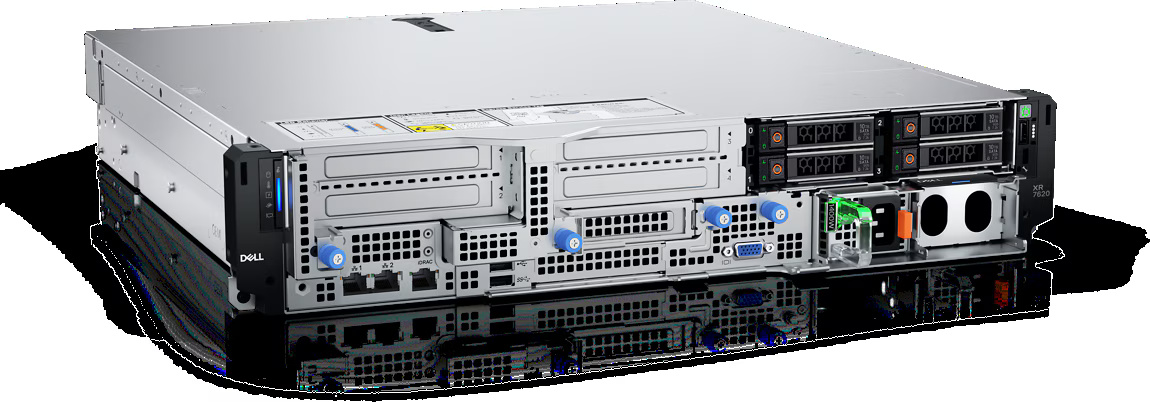

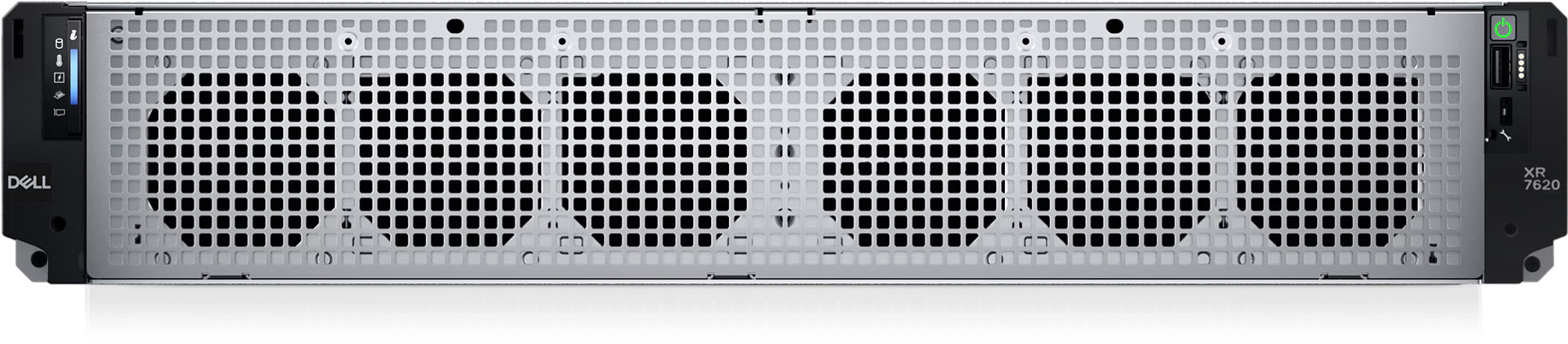

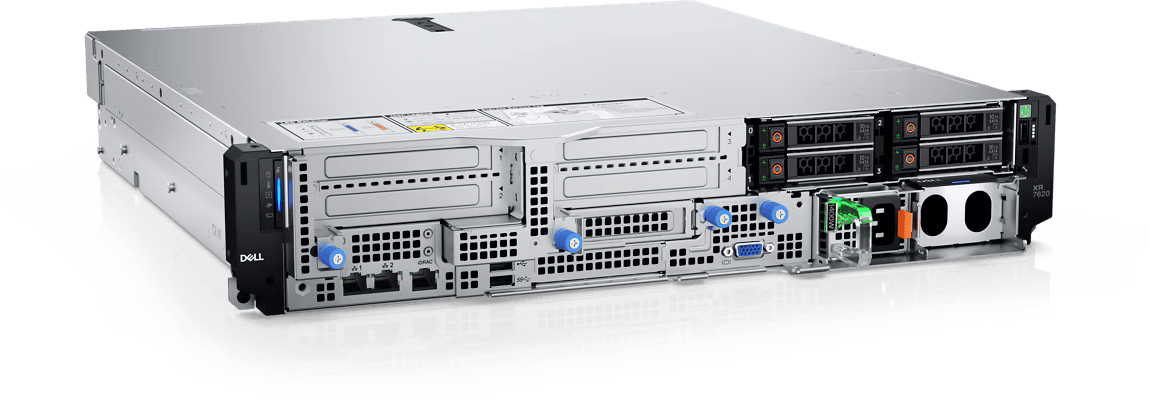

PowerEdge XR7620 Edge Server

Two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor or
Two 5th Generation Intel® Xeon® Scalable processors with up to 16 cores per processor

16 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 5200 MT/s. Supports registered ECC DDR5 DIMMs only

Internal Controllers: PERC H965i, PERC H755, PERC
H355, HBA355i
Software RAID: S160
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1):
HWRAID 1, 2 x M.2 NVMe SSDs (cold swap) or internal
USB module

Front bays: Up to 4 x 2.5-inch SAS/SATA/NVMe SSD drives, 61.44 TB max, Up to 8 x E3.S NVMe direct drives, 51.2 TB max

1800 W Titanium 200—240 VAC or 240 HVDC
1400 W Platinum 100—240 VAC or 240 HVDC
1400 W Titanium 277 VAC or 336 VDC
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W -48 — (-60) VDC

Air cooling

Six cold swap cooling fans

Rear Accessed configuration Front Accessed configuration
Height: 86.8 mm (3.41 inches)
Width: 482.6 mm (19 inches)
Depth: 448.8 mm (17.6 inches) Ear to rear wall
496.3 mm (19.53 inches) with bezel
471.8 mm (18.57 inches) without bezel
Height: 86.8 mm (3.41 inches)
Width: 482.6 mm (19 inches)
Depth: 572 mm (22.51 inches) with bezel
471.8 mm (18.57 inches) without bezel

Max 21.16 kg (46.64 pounds)

2U rack server

• iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, NativeEdge Endpoint Orchestrator

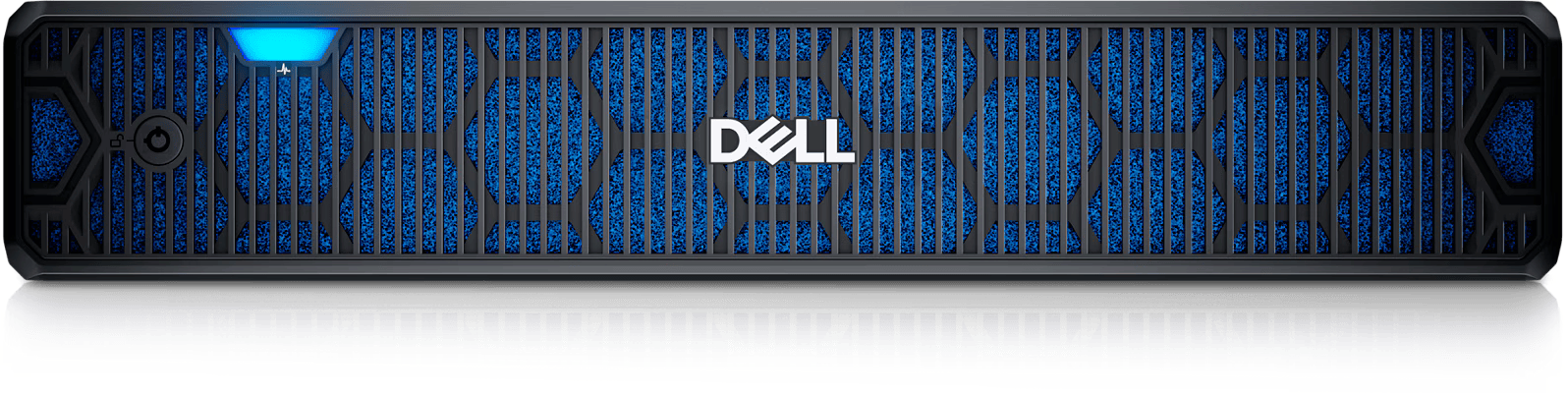

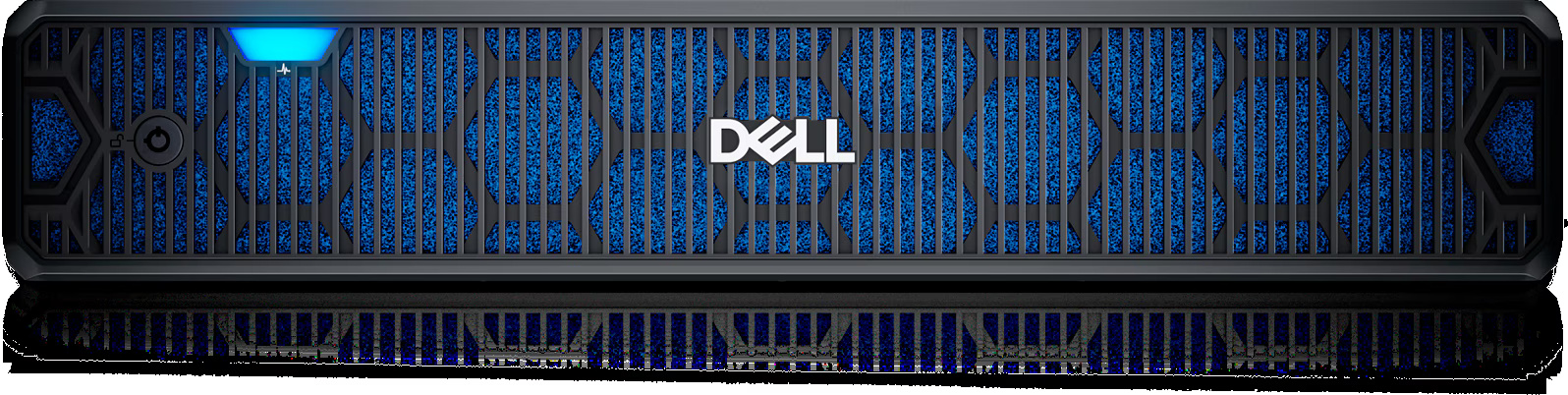

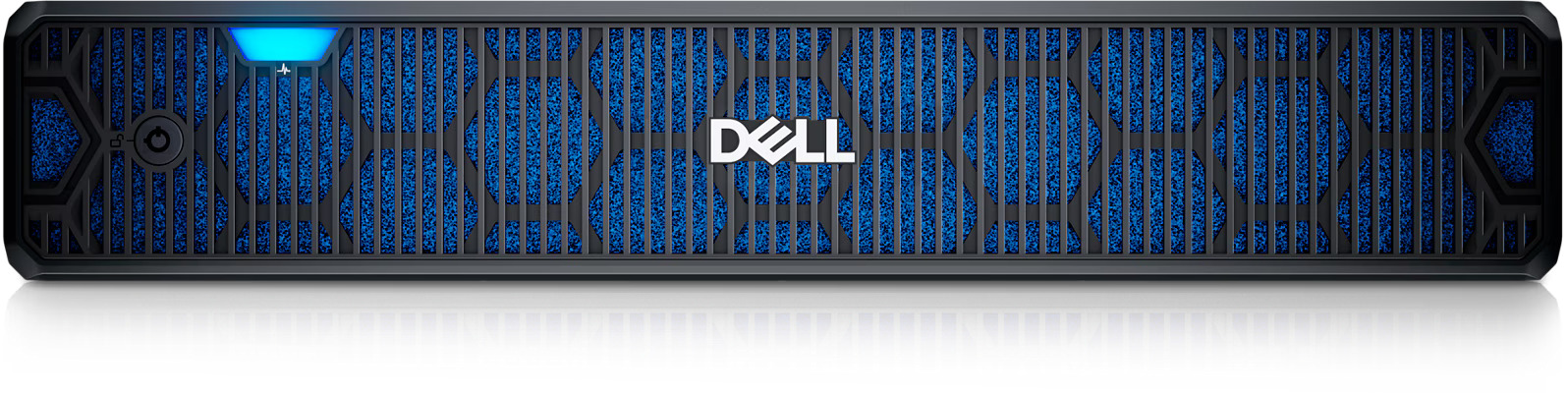

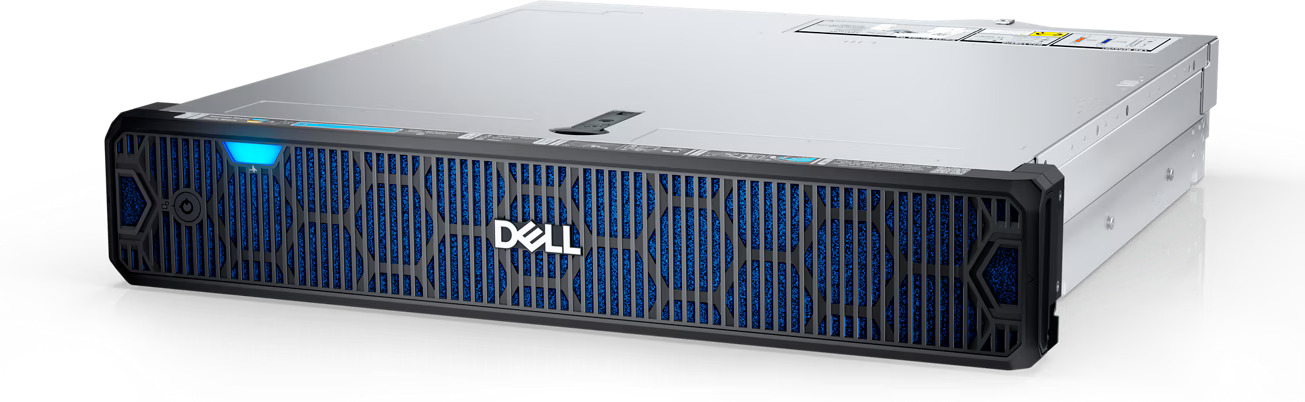

Optional security bezel with dust filter (dust sensor available only for Front Accessed configuration systems)

CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

OpenManage Mobile

Microsoft System Center
OpenManage Integration with Windows Admin Center
OpenManage Integration with ServiceNow
OpenManage Integration for Microsoft System Center
OpenManage Enterprise Integration for VMware vCenter
Red Hat Ansible Modules
Terraform Providers
VMware vCenter and vRealize Operations Manager

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external
key mgmt)
Secure Boot
Secure Erase
Secured Component Verification (Hardware integrity check)
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Up to four 75 W single-width full-height/half-length + one 75 W low-profile, or
Up to two 350 W double-width full-height/full-length

2 x 1 GbE LOM

1 x OCP card 3.0 (optional)

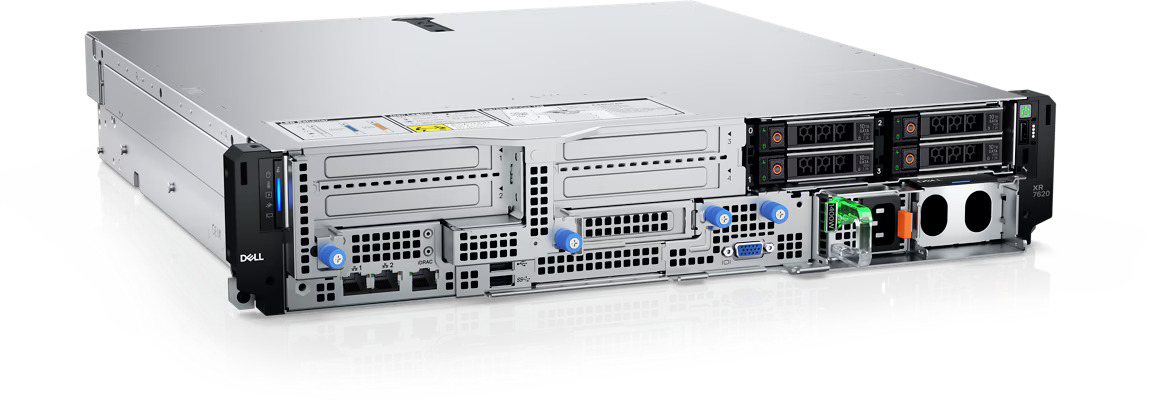

For Rear Accessed configuration For Front Accessed configuration
Front Ports:
1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0
Internal Ports:
1 x USB 3.0 (optional)
Rear Ports:
1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0,
1 x Serial port (optional on slot 5), 1 x VGA
Front Ports:
1 x USB 2.0, 1 x iDRAC dedicated port, 1 x USB 3.0, 1 x Serial port
(optional on slot 5), 1 x VGA, 1 x iDRAC Direct (Micro-AB USB)
port
Internal Ports:
1 x USB 3.0 (optional)
Rear Ports: NA

2 CPU configuration: Up to 5 PCIe slots (4 x16 Gen4/5, 1 x16 LP Gen4)

Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
Canonical Ubuntu Server LTS
Dell NativeEdge OS
For specifications and interoperability details, see Dell.com/OSsupport.

From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit
Dell.com -> Solutions -> OEM Solutions.
