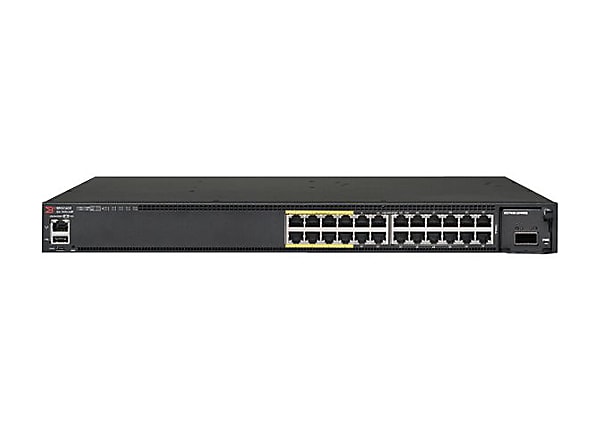

Ruckus ICX 7450-24P – switch – 24 ports – managed – rack-mountable

(ICX7450-24P)

Categories: Networking, Ruckus, ICX7450, ICX Switches

The Ruckus ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network. The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling. The modular design of the switch enables deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.

Main Features

24P
Switch
L3
managed
24 x 10/100/1000 (PoE+)
rack-mountable
PoE+

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7450-24P

Packaged Quantity1

Chassis

Installed Devices / Modules Qty0

Supported Devices / Modules Qty3

RAM

Installed Size2 GB

Flash Memory

Installed Size2 GB

Performance

PerformanceForwarding capacity: 214 Mpps, Forwarding performance: 214 Mpps, Switching capacity: 288 Gbps

Capacity

CapacityIPv4 routes: 15168, IPv4 routes: 16000, IPv6 routes: 3000, IPv6 routes: 5120, Latency: 1.3 µs, Maximum ports per trunk: 16, PVLANs supported: 32, QoS priority queues per port: 8, Spanning Tree Protocol instances: 254, Trunk groups: 256, Virtual interfaces (VLANs): 4096

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

SubtypeGigabit Ethernet

Form FactorRack-mountable

StackableStackable

Max Units In A Stack12

Ports Qty24

Advanced SwitchingLayer 3

Routing ProtocolECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, RIP-1, RIP-2, RIPng, Static IPv4 routing, Static IPv6 routing

MAC Address Table Size32000 entries, 32768 entries

Jumbo Frame Support9216 bytes

ManageableYes

Remote Management ProtocolCLI, DHCP, HTTP, HTTPS, NTP, RMON, SCP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP

Power Over Ethernet (PoE)PoE+

Features4MB packet buffer, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Carrier Sense Multiple Access with Collision Detection (CSMA/CD), Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, DSCP based QoS, DSCP based ToS, Dynamic ARP Inspection (DAI), Encapsulated Remote SPAN (ERSPAN), Encapsulating Security Payload (ESP), Energy Efficient Ethernet, Energy-Efficient Ethernet (EEE), Flow control, Full duplex capability, GARP VLAN Registration Protocol (GVRP), High Availability, Hot swappable fan, Hybrid OpenFlow 1.3, IGMP proxy, IGMP snooping, In-Service Software Upgrade (ISSU), Inter-Packet Gap (IPG) adjustment, IPv4 support, IPv6 support, LACP support, Layer 2 switching, Link Aggregation, Link Aggregation Control Protocol (LACP), Link Fault Signaling (LFS), LLDP support, LLDP-MED, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Management Information Base (MIB), Media Access Control Security (MACsec), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Neighbor Discovery Protocol (NDP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port based access control, Port Loop Detection, Port mirroring, Port Security, Private VLAN, PVLAN support, Q-in-Q tunneling, Quality of Service (QoS), Rapid PVST+ (RPVST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, sFlow, Software Defined Networking (SDN), Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Strict Priority Queuing (SPQ), Syslog support, Tagged VLAN, Telnet client, Telnet server, Trunking, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, VLAN support, VLAN Tagging, Voice VLAN, Weighted Round Robin (WRR) queuing

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Ports

Qty24

Type10/100/1000 (PoE+)

Expansion Slots

Expansion Slots3 (total) / 3 (free) x expansion slot

Interface Provided

Interfaces1 x 1000Base-T RJ-45 management, 1 x console management, 1 x management (Gigabit LAN) RJ-45 management, 1 x mini-USB management, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE+ – 30 W

Cable Details

Cables Included1 x console cable

Power Device

TypeInternal power supply, Internal power supply (not installed)

Hot-PlugHot-plug

Power RedundancyOptional

Power Redundancy Scheme1+1 (with optional power supply)

Installed Qty0

Max Supported Qty2

Power Consumption Operational75 watt

System Requirements

OS RequiredHP-UX, IBM AIX, Microsoft Windows, SunSoft Solaris

Miscellaneous

Color CategoryBlack

Rack Mounting KitIncluded

Height (Rack Units)1

Encryption Algorithm256-bit SHA, 384-bit SHA, AES, ECDSA, ESP, IKEv2

Authentication MethodExtensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF317,719 Hours, 466,576 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60825-2, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022, EN55022 Class A, EN55024, FCC Part 15 A, ICES-003, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 60950-1, IEC 60950-1 Second Edition, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth15.5 inch

Height1.7 inch

Weight15.21 lbs

Service & Support

TypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature23 degree Fahrenheit

Max Operating Temperature122 degree Fahrenheit

Min Storage Temperature-13 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating10 – 90% (non-condensing), 5 – 95% (non-condensing)

Humidity Range Storage0 – 95% (non-condensing), 5 – 95% (non-condensing)
