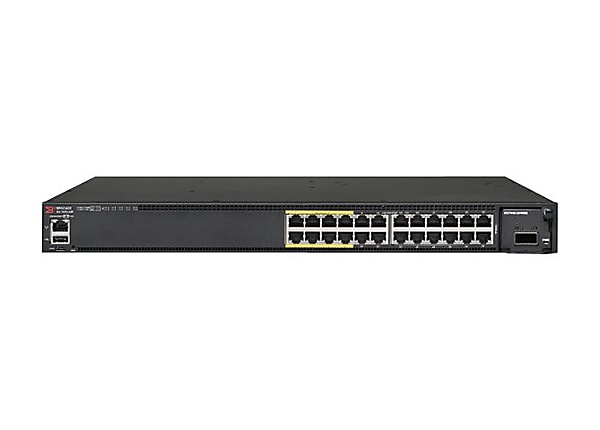

Ruckus ICX 7450-24P – switch – 24 ports – managed – rack-mountable

(ICX7450-24P-E2)

Categories: Networking, Ruckus, ICX7450, ICX Switches

The Ruckus ICX 7450 delivers unprecedented scale-out density with enterprise-class availability. With SDN support, a service module for IPsec VPN, and 40 GbE ports for uplinks all in a stackable design, these switches enable services to be added anywhere in the network. The ICX 7450 is an ideal network solution for campus networks requiring 1 GbE access or small aggregation deployments with upgradeable uplink modules. The switch also makes a suitable data center Top-of-Rack (ToR) solution, providing a ToR access-layer that can be upgraded to run on 10GbE/40GbE in the future with minimum costs and changes to cabling. The modular design of the switch enables the deployment of additional services such as high-performance IPsec encryption to meet increasing compliance and data security requirements.

Main Features

24P
Switch
L3
managed
16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoH) + 4 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+
front to back airflow
rack-mountable
PoH

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7450-24P

Packaged Quantity1

Chassis

Airflow DirectionFront to back airflow

Performance

PerformanceAggregate stacking bandwidth: 960 Gbps, Forwarding performance: 214 Mpps, Switching capacity: 288 Gbps, VPN throughput (IPSec): 10 Gbps

Capacity

CapacityHardware multicast groups: 8192, IPSec tunnels: 20, IPv4 routes: 15168, IPv6 routes: 5120, QoS hardware queues per port: 8, Spanning Tree Protocol instances: 254, Virtual interfaces (VLANs): 4096

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

SubtypeGigabit Ethernet

Form FactorRack-mountable

StackableStackable

Max Units In A Stack12

Ports Qty24

Advanced SwitchingLayer 3

Routing ProtocolECMP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSDP, Static IPv4 routing, Static IPv6 routing

MAC Address Table Size32768 entries

Jumbo Frame Support9216 bytes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, RMON, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP

Power Over Ethernet (PoE)PoH

FeaturesAccess Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), BOOTP support, Class of Service (CoS), DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DiffServ support, Digital Optical Monitoring (DOM) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flow control, Front to back airflow, Full duplex mode, Generic VLAN Registration Protocol (GVRP), High Availability, Hot swappable fan, IGMP proxy, IGMP snooping, IPv4 support, IPv6 support, LACP support, Link Fault Signaling (LFS), MAC address filtering, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, NTP time synchronization, OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), Port based access control, Port mirroring, Port Security, Power over HDBaseT (PoH), Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Fault Notification (RFN), sFlow, Spanning Tree Protocol (STP) support, STP Root Guard, Strict Priority (SP), Syslog support, Tagged VLAN, Trunking, Type of Service (ToS), Uni-Directional Link Detection (UDLD), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, VLAN support, Weighted Round Robin (WRR) queuing

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Ports

Qty16

Type10/100/1000 (PoE+)

Ports (2nd)

Qty8

Type10/100/1000 (PoH)

Ports (3rd)

Qty4

Type10 Gigabit SFP+

Ports (4th)

Qty2

Type40 Gigabit QSFP+

Expansion Slots

Expansion Slots3 (total) / 0 (free) x expansion slot

Interface Provided

Interfaces1 x 1000Base-T RJ-45 management, 1 x mini-USB management, 1 x USB Type A, 16 x 1000Base-T RJ-45 PoE+ – 30 W, 2 x 40Gbit LAN QSFP+ uplink/stacking, 4 x 10Gbit LAN SFP+ uplink, 8 x 1000Base-T RJ-45 PoH – 90 W

Power Device

TypeInternal power supply

Hot-PlugHot-plug

Power RedundancyOptional

Power Redundancy Scheme1+1 (with optional power supply)

Installed Qty2

Max Supported Qty2

Power Provided1000 watt

Nominal VoltageAC 120/230 V

Frequency Required50/60 hertz

Power Consumption Operational75 watt

System Requirements

OS RequiredHP-UX, IBM AIX, Microsoft Windows, SunSoft Solaris

Miscellaneous

Color CategoryBlack

Height (Rack Units)1

Encryption AlgorithmAES, ECDSA, IKEv2

Authentication MethodExtensible Authentication Protocol (EAP), RADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF466,576 Hours

Compliant StandardsCAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55022 Class A, EN55024, FCC Part 15 A, HMAC, ICES-003, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 60950-1, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth15.5 inch

Height1.7 inch

Weight15.21 lbs

Service & Support

TypeLimited lifetime warrantyTypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature23 degree Fahrenheit

Max Operating Temperature122 degree Fahrenheit

Min Storage Temperature-40 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating10 – 90% (non-condensing)

Humidity Range Storage5 – 95% (non-condensing)
