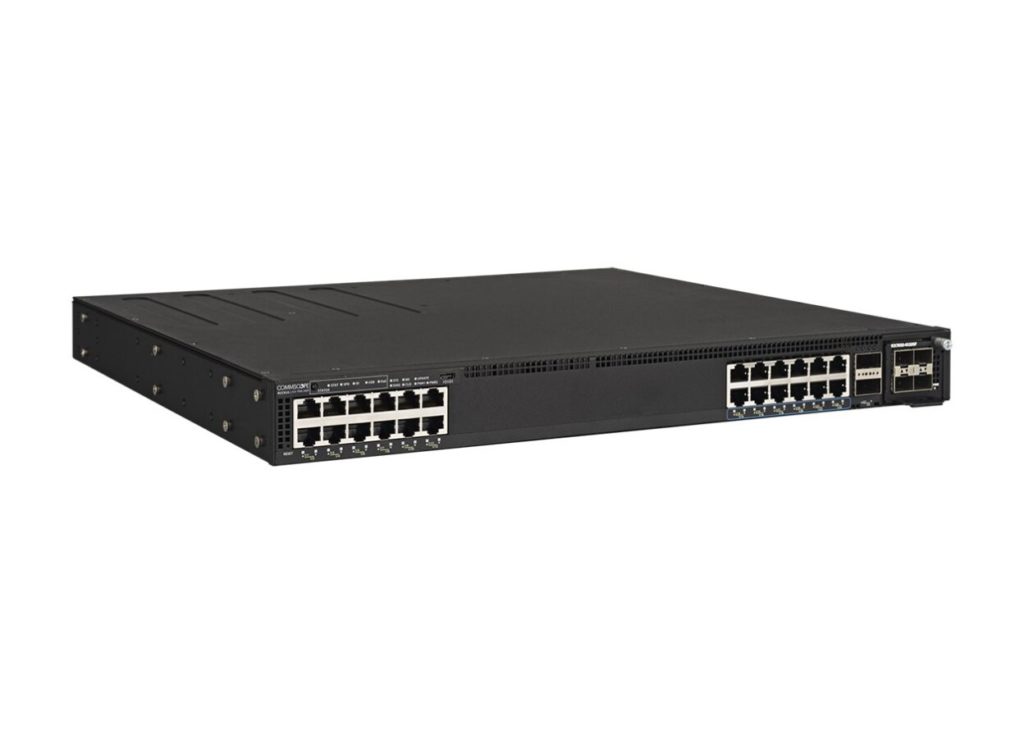

Ruckus ICX 7550-24ZP-E2 – switch – 24 ports – managed – rack-mountable

(ICX7550-24ZP-E2)

Categories: , , ,

The CommScope RUCKUS ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments with multigigabit connectivity and great PoE power per port with perpetual and fast-boot PoE support. It offers quality stacking density and combines chassis-level performance with pay as you grow scalability of a stackable solution. The stackable switch enables enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

Main Features

  • 24ZP-E2
  • L3
  • 12 x 10/100/1000/2.5G (PoE++) + 12 x 100/1000/2.5/5/10G (PoE++) + 2 x 40/100 Gigabit QSFP+
  • rack-mountable
  • Switch
  • managed
  • front to back airflow
  • PoE+ (2000 W)

Call for Pricing

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus ICX
Model7550-24ZP-E2
Packaged Quantity1

Airflow DirectionFront to back airflow

Installed Size4 GB

Installed Size4 GB

PerformanceAggregate stacking bandwidth: 2.4 Tbps, Forwarding capacity: 521 Mpps, Switching capacity: 700 Gbps

CapacityMaximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128

TypeSwitch
SubcategoryNetwork hubs and switches
Subtype10 Gigabit Ethernet
Form FactorRack-mountable
StackableStackable
Max Units In A Stack12
Ports Qty24
Advanced SwitchingLayer 3
Routing ProtocolECMP, RIP-1, RIP-2, Static IPv4 routing, Static IPv6 routing
Jumbo Frame Support12288 bytes
ManageableYes
Remote Management ProtocolCLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP
Power Over Ethernet (PoE)PoE+
PoE Budget2000 watt
Features802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)
Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.2af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Qty12

Qty12
Type100/1000/2.5/5/10G (PoE++)
Qty2
Type40/100 Gigabit QSFP+

Expansion Slots1 (total) / 1 (free) x expansion slot

Interfaces1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 12 x 10/100/1000/2.5G RJ-45 PoE++ – 90 W, 12 x 100/1000/2.5G/5G/10G RJ-45 PoE++ – 90 W, 2 x 100Gbit/40Gbit LAN QSFP+ uplink/stacking

TypeInternal power supply
Hot-PlugHot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Power Provided1200 watt
Nominal VoltageAC 120/230 V
Frequency Required50/60 hertz
Power Consumption Operational1152 watt
Color CategoryBlack
Height (Rack Units)1
Encryption AlgorithmAES
Authentication MethodRADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+
MTBF287.828 Hours
Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE
Width17.3 inch
Depth16 inch
Height1.7 inch
Weight15.39 lbs

TypeLimited lifetime warranty

Min Operating Temperature32 degree Fahrenheit
Max Operating Temperature113 degree Fahrenheit
Min Storage Temperature-40 degree Fahrenheit
Max Storage Temperature158 degree Fahrenheit
Humidity Range Operating10 – 90% (non-condensing)
Humidity Range Storage5 – 95% (non-condensing)
