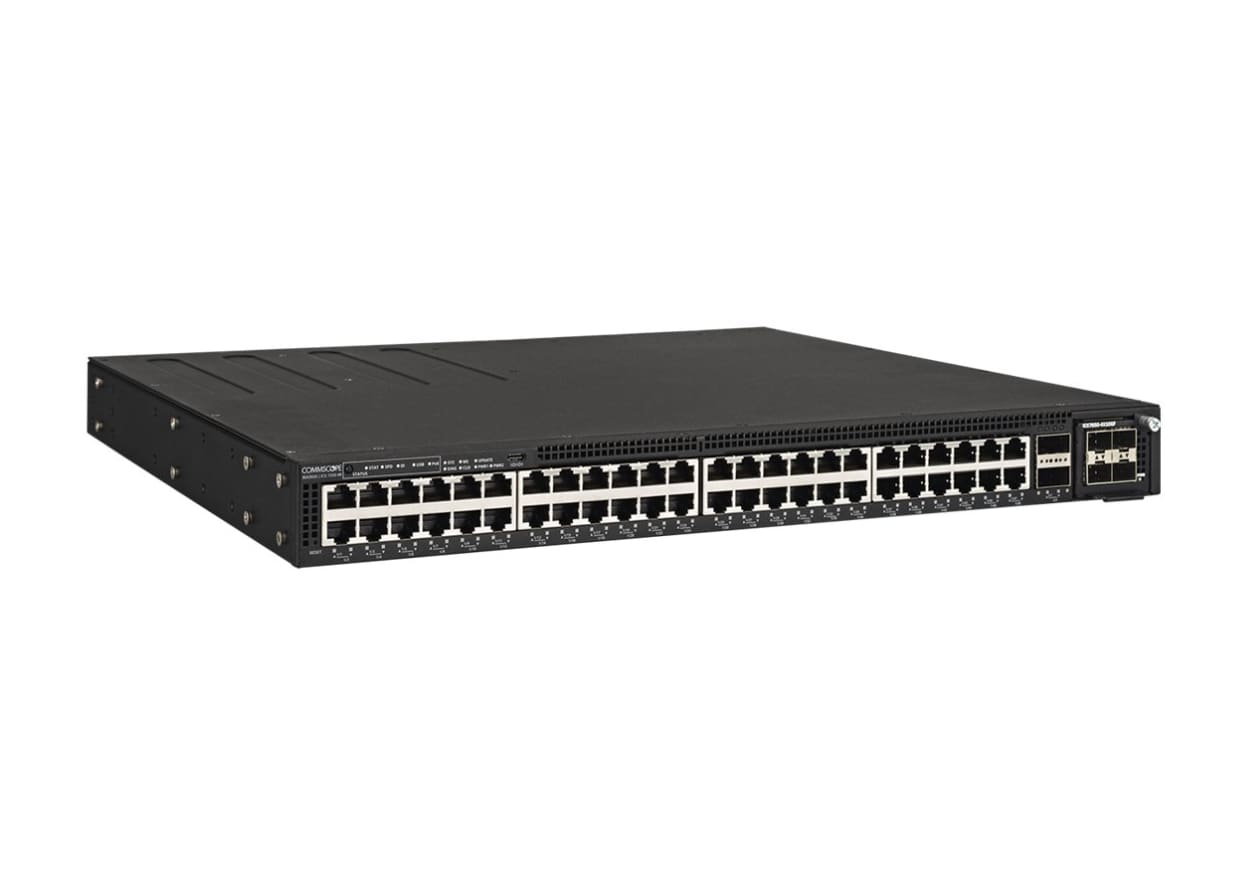

Ruckus ICX 7550-48-E2 – switch – 48 ports – managed – rack-mountable

(ICX7550-48-E2)

Categories: Networking, Ruckus, ICX7550, ICX Switches

The CommScope RUCKUS ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.

Main Features

48-E2
Switch
L3
managed
48 x 10/100/1000 + 2 x 40 Gigabit QSFP+ (uplink/stacking)
front to back airflow
rack-mountable
AC 100
240 V

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus ICX

Model7550-48-E2

Packaged Quantity1

Chassis

Airflow DirectionFront to back airflow

RAM

Installed Size4 GB

Flash Memory

Installed Size4 GB

Performance

PerformanceAggregate stacking bandwidth: 960 Gbps, Forwarding capacity: 309 Mpps, Switching capacity: 416 Gbps

Capacity

CapacityMaximum ports per trunk: 32, Multicast groups: 8192, Priority QoS queues: 48, PVLANs supported: 256, Spanning Tree Protocol instances: 512, Trunk groups: 256, Virtual interfaces (VLANs): 4095, VRF instances: 128

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

SubtypeGigabit Ethernet

Form FactorRack-mountable

StackableStackable

Max Units In A Stack12

Ports Qty48

Advanced SwitchingLayer 3

Routing ProtocolBGP for IPv6, BGP-4, BGP-4+, ECMP, GRE, MSDP, OSPF for IPv6, OSPFv2, OSPFv3, Policy-based routing (PBR), RIP-1, RIPng, Static IPv4 routing, Static IPv6 routing, VRRPE, VRRPv3

Jumbo Frame Support12288 bytes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH-2, TFTP

Features3 fans, 802.1x authentication, Access Control List (ACL) support, Authentication, Authorization and Accounting (AAA), Auto-uplink (auto MDI/MDI-X), BOOTP support, BPDU Guard, Change of Authorization (CoA), Class of Service (CoS), Denial of Service (DoS), DHCP server, DHCP snooping, Digital Optical Monitoring (DOM) support, Dynamic VLAN Support (GVRP), Encapsulated Remote SPAN (ERSPAN), Flexible authentication, Flow control, Full duplex capability, IGMP snooping, Inter-Packet Gap (IPG) adjustment, Link Fault Signaling (LFS), MAC address authentication, MAC address filtering, MAC based VLAN, MAC Learning Disable, MACsec support, Metro Ring Protocol (MRP) support, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Network Timing Protocol (NTP), OpenFlow support, Per-VLAN Rapid Spanning Tree (PVRST), Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, Port Loop Detection, Port mirroring, Precision Time Protocol (PTP), Private VLAN, Protected ports, Q-in-Q tunneling, Quality of Service (QoS), Remote Fault Notification (RFN), Remote Switch Port Analyzer (RSPAN), Root Guard, Secure Copy (SCP), sFlow, SmartZone, Strict Priority (SP), Syslog support, Telnet client, Telnet server, Uni-Directional Link Detection (UDLD), Virtual Cable Test (VCT) technology, Virtual Extensible LAN (VXLAN), Virtual Switch Redundancy Protocol (VSRP) support, Voice VLAN, Web authentication, Weighted Round Robin (WRR)

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Ports

Qty48

Ports (2nd)

Qty2

Type40 Gigabit QSFP+ (uplink/stacking)

Interface Provided

Interfaces1 x 1000Base-T RJ-45 management, 1 x console (USB) Type C, 1 x console RJ-45, 40Gbit LAN QSFP+ uplink/stacking, 48 x 1000Base-T RJ-45

Power Device

TypeInternal power supply

Hot-PlugHot-plug

Power RedundancyYes

Power Redundancy Scheme1+1

Installed Qty2

Max Supported Qty2

Power Provided400 watt

Nominal VoltageAC 100 – 240 V

Frequency Required50 – 60 hertz

Power Consumption Operational65 watt

Miscellaneous

Color CategoryBlack

Height (Rack Units)1

Encryption AlgorithmAES

Authentication MethodRADIUS, Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF612,791 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-1, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN55024, FCC Part 15 A, ICES-003, IEC 60950-1, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 6/6, UL 60950-1, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth16 inch

Height1.7 inch

Weight13.89 lbs

Service & Support

TypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature32 degree Fahrenheit

Max Operating Temperature113 degree Fahrenheit

Min Storage Temperature-40 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating10 – 90% (non-condensing)

Humidity Range Storage5 – 95% (non-condensing)
