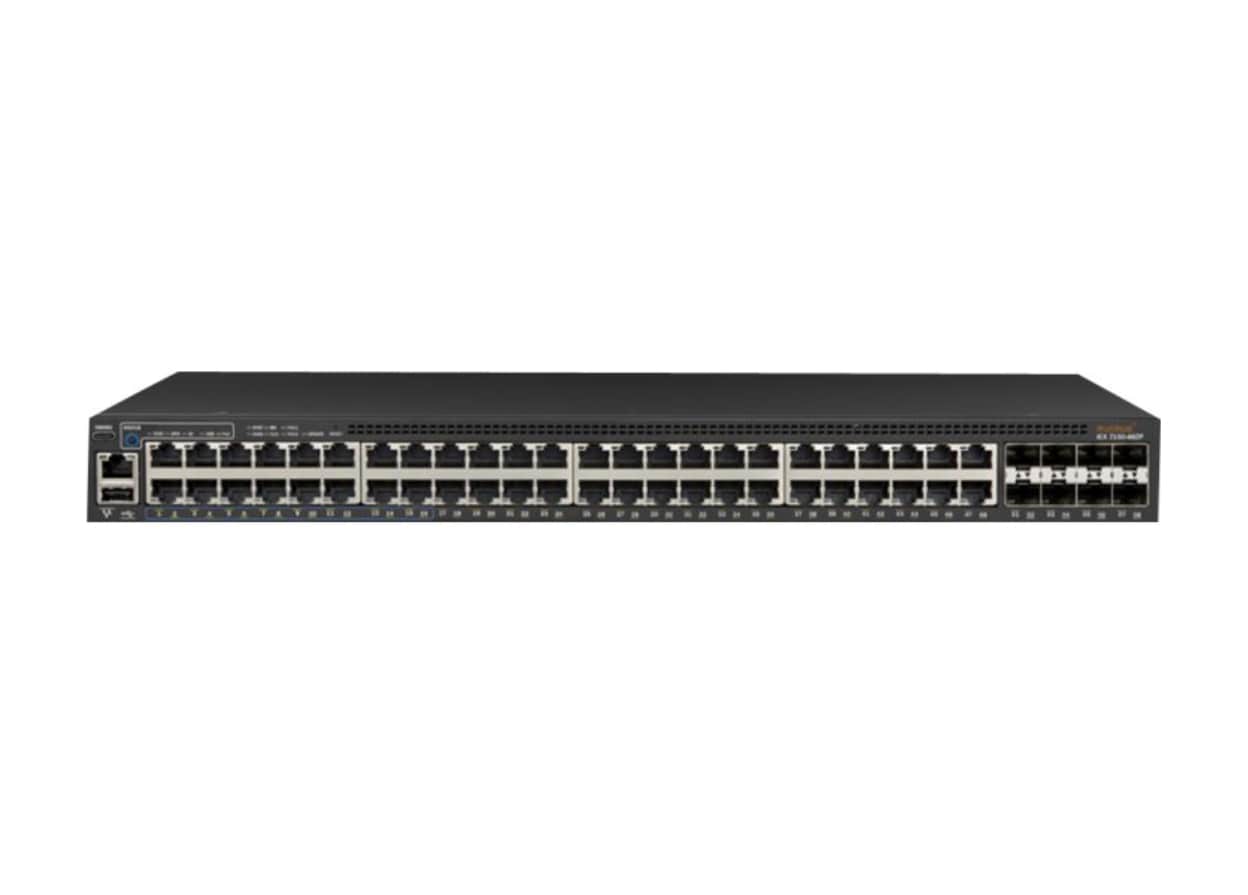

Ruckus ICX7150-48ZP-Z Series switch, 48 ports, managed, rack-mountable

Ruckus ICX7150-48ZP-Z Series – switch – 48 ports – managed – rack-mountable

(ICX7150-48ZP-E8X10GR)

Ruckus ICX7150-48ZP, Z-Series switch, 16×100/1000 Mbps/2.5 Gbps PoH ports, 32×10/100/1000 PoE+ ports, 8×10 GbE SFP+ stacking/uplink-ports (max 4 for stacking), 1×920 W AC power supply, 1 fan, 740 W PoE budget, L3 features (OSPF, VRRP, PIM, PBR).

Main Features

48ZP
Z-Series
switch
L3
managed
16 x 100/1000/2.5G (PoH) + 32 x 10/100/1000 (PoE+) + 8 x 10 Gigabit SFP+ (uplink)
front to back airflow
rack-mountable
PoH / PoE+ (740 W)
AC 100
240 V

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus, Ruckus ICX

Model7150-48ZP, ICX 7150-48ZP

EditionZ-Series

Packaged Quantity1

Chassis

Airflow DirectionFront to back airflow

RAM

Installed Size1 GB

Flash Memory

Installed Size2 GB, 2 GB

Performance

PerformanceAggregate stacking bandwidth: 480 Gbps, Forwarding performance (full duplex): 226 Mbps, Switching capacity (full duplex): 304 Gbps

Capacity

CapacityARP entries: 4094, IPv4 routes: 1000, IPv6 routes: 1000, Jumbo frame size: 9216, Layer 2 multicast groups: 3072, Layer 3 multicast groups: 2048, MAC addresses: 16384, Next hop address: 4094, Port Extender (PE) cascade depth (units): up to 6, Port Extenders (PE) per fabric: 36, Ports per trunk group: 16, PVLANs supported: 32, QoS priority queues per port: 8, STP instances: 254, Switches in a stack: 12, Trunk groups: 128, VLANs supported: 4095

Networking

TypeSwitch

SubcategoryNetwork hubs and switches

Subtype2.5 Gigabit Ethernet

Form FactorRack-mountable

StackableStackable

Ports Qty48

Advanced SwitchingLayer 3

Routing ProtocolECMP, IGMP, IGMPv2, IGMPv3, OSPF, Policy-based routing (PBR), RIP, RIP-1, RIP-2, RIPng, Static IP routing, VRRP

Jumbo Frame SupportYes

ManageableYes

Remote Management ProtocolCLI, HTTP, HTTPS, NTP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP

Power Over Ethernet (PoE)PoH / PoE+

PoE Budget740 watt

Status IndicatorsPower, Status

FeaturesAES encryption, Authentication, Authorization and Accounting (AAA), Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), BOOTP support, Broadcast Storm Control, Class of Service (CoS), DDos attack prevention, DiffServ Code Point (DSCP) support, DiffServ support, Dynamic VLAN Support (GVRP), Equal-Cost Multipath (ECMP), Extended Fabric, Firmware upgradable, Flow control, Front to back airflow, GARP VLAN Registration Protocol (GVRP), Generic Attribute Registration Protocol (GARP), High Availability, Hot swappable dual fans, Hot swappable power supply, Hybrid OpenFlow 1.3, IGMP fast leave, IGMP proxy, IGMP snooping, IP Precedence, IPv4 support, IPv6 support, Jumbo Frames support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, Loopback detection, MAC address authentication, MAC address learning, MAC address lockout, MAC address mapping, MAC based VLAN, Management Information Base (MIB), Metro Ring Protocol (MRP) support, MLD snooping, OpenFlow support, Per-VLAN Spanning Tree (PVST), Per-VLAN Spanning Tree Plus (PVST+), PIM-SM snooping, PoE+, Port mirroring, Power over Ethernet (PoE), Power over HDBaseT (PoH), Private VLAN, Rate limit, Redundant fans, Remote Fault Notification (RFN), Root Guard, sFlow, SNTP support, SSH support, Static Link Aggregation, STP BPDU Guard, Strict Priority (SP), Syslog support, Traffic shaping, Trunking, Trusted Platform Module (TPM), Type of Service (ToS), Uni-Directional Link Detection (UDLD), VLAN Double Tagging (Q-in-Q), VLAN mirroring, VLAN support, VLAN Tagging, Weighted Round Robin (WRR) queuing

Compliant StandardsIEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1BR, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z

Ports

Qty16

Type100/1000/2.5G (PoH)

Ports (2nd)

Qty32

Type10/100/1000 (PoE+)

Ports (3rd)

Qty8

Type10 Gigabit SFP+ (uplink)

Interface Provided

Interfaces1 x console (USB) Type C management, 1 x management (LAN) RJ-45, 1 x serial (console) RJ-45 management, 1 x USB Type A, 16 x 100/1000/2.5G RJ-45 PoH – 15.4 W, 32 x 10/100/1000 Base-T RJ-45 PoE+, 8 x 10Gbit LAN SFP+

Cable Details

Cables Included1 x console cable

Power Device

TypeInternal power supply

Hot-PlugHot-plug

Power RedundancyOptional

Power Redundancy Scheme1+1 (with optional power supply)

Installed Qty1

Max Supported Qty2

Power Provided920 watt

Nominal VoltageAC 100 – 240 V

Frequency Required50/60 hertz

Miscellaneous

Color CategoryBlack

Included AccessoriesRubber feet

Rack Mounting KitIncluded

Height (Rack Units)1

Encryption AlgorithmAES

Authentication MethodRADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS, TACACS+

MTBF104,626 Hours

Compliant StandardsAS/NZS 55022, CAN/CSA C22.2 No. 60950-1-07, EN 55022/CISPR 22 Class A, EN 60825-2, EN 60950-1:2006, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-3, EN50081-1, FCC Part 15 A, ICES-003, IEC 60950-1 Second Edition, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, Plug and Play, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A, WEEE

Dimensions & Weight

Width17.3 inch

Depth13.1 inch

Height1.7 inch

Weight14.57 lbs

Service & Support

TypeLimited lifetime warranty

Environmental Parameters

Min Operating Temperature23 degree Fahrenheit

Max Operating Temperature113 degree Fahrenheit

Min Storage Temperature-13 degree Fahrenheit

Max Storage Temperature158 degree Fahrenheit

Humidity Range Operating5 – 95% (non-condensing)

Humidity Range Storage0 – 95% (non-condensing)
