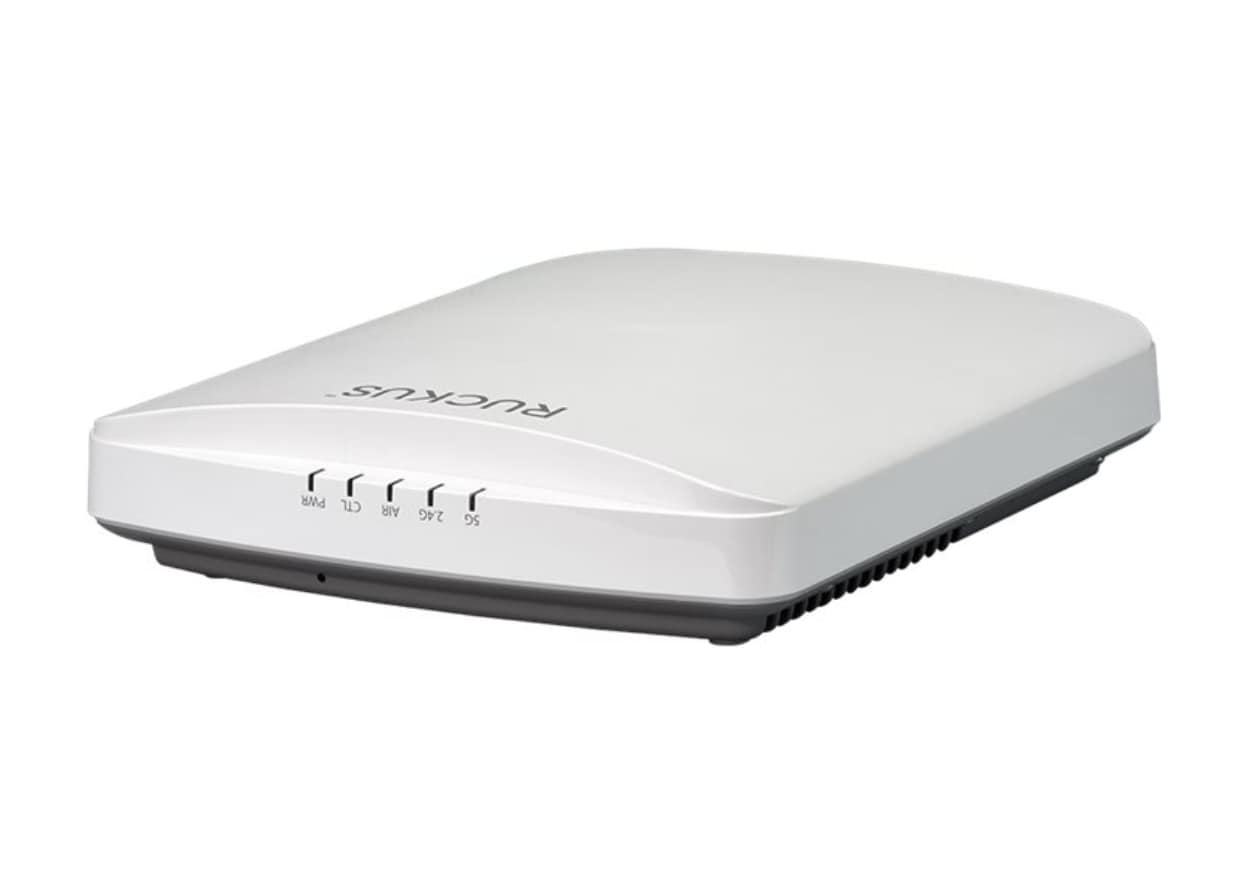

Ruckus R650 – Unleashed – wireless access point

(9U1-R650-US00)

Categories: , , , ,

The R650 access point (AP) with the Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is the midrange dual-band, dual-concurrent AP that supports six spatial streams (4×4:4 in 5GHz, 2×2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

Main Features

  • Unleashed
  • wireless access point
  • ZigBee
  • 802.11ax
  • Wi-Fi
  • Dual Band

Product Specifications

ManufacturerRuckus Wireless
BrandRuckus
Product LineRuckus
ModelR650
EditionUnleashed
Country KitsUnited States
Packaged Quantity1
Antenna Form FactorInternal
Gain Level3 DBi

CapacityMaximum number of clients: 512, Maximum number of configured SSIDs: 31

TypeWireless access point
Form FactorExternal
Connectivity TechnologyWireless
Data Link ProtocolBluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, ZigBee
Wireless Protocol802.11a/b/g/n/ac/ax
Data Transfer Rate2.5 GBps
Wi-Fi Bands2.4 GHz, 5 GHz
Power Over Ethernet (PoE)PoE+
Features4×4:4 MU-MIMO technology, Access Control List (ACL) support, Adaptive band balancing, Airtime Fairness, Application recognition and control, Background scan based, BeamFlex+ Smart Antenna Technology, Bluetooth (BLE) clients support, Captive Portal, ChannelFly, Client load balancing, Device fingerprinting, HotSpot 2.0, IPv4 and IPv6 dual stack, Low Density Parity Check (LDPC), Polarization Diversity with Maximal Ratio Combining (PD-MRC), Smart QoS, SmartMesh, SmartRoam, SmartZone, Spectrum Analysis, SpeedFlex, STBC support, VLAN pooling, VLAN support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISP mode, WMM Power Save
Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Interfaces1 x 1000Base-T – RJ-45, 1 x 2.5 GBase-T (PoE+) – RJ-45, 1 x USB 2.0 – Type A

Power Consumption Operational21.59 watt

Internet of Things (IoT) CompatibleYes
Communications TechnologyBluetooth Low Energy (LE), Zigbee
Color CategoryWhite
Encryption AlgorithmTKIP, WPA, WPA3, WPA-PSK
Authentication MethodRADIUS
Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, ISTA 2A, RoHS, UL 2043, WEEE
Width7.6 inch
Depth8.8 inch
Height1.9 inch
Weight30.12 ounce

Service & SupportLimited warranty – lifetime

Min Operating Temperature32 degree Fahrenheit
Max Operating Temperature104 degree Fahrenheit
Humidity Range Operating0 – 95% (non-condensing)
