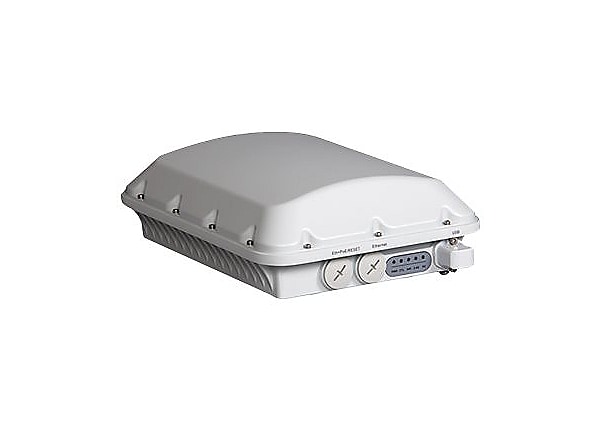

Ruckus T610 Outdoor 802.11ac Wave 2 Wi-Fi Access Point

(9U1-T610-US01)

Categories: Networking, Ruckus, T610, Wireless Access Points, T Series

The Ruckus T610 Outdoor Access Point delivers fast and reliable connectivity in busy outdoor public venues like campuses, arenas and transportation hubs. It offers blazing-fast Wave 2 Wi-Fi for medium-density outdoor deployments, with data rates up to 2.5 GB/s. Its secure image download and an IP67-compliant USB port make it easy to deploy Internet of Things applications for Smart Cities or large-scale video surveillance and monitoring systems.

Main Features

Maximum PHY Rate: 1733Mbps (5GHz),800 Mbps (2.4GHz)
Wi-Fi Technology: 802.11ac Wave 2 (5GHz),802.11n (2.4GHz)
BeamFlex Gain: 6dB
Ethernet Ports: 2

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus

ModelT610

EditionUnleashed

Country KitsUnited States

Packaged Quantity1

Antenna

Antenna Form FactorInternal

DirectivityOmni-directional

Chassis

Ruggedized DesignOutdoor

Capacity

CapacityConcurrent stations: 512

Networking

TypeWireless access point

Form FactorExternal

Connectivity TechnologyWireless

Data Link ProtocolIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless Protocol802.11a/b/g/n/ac Wave 2

Data Transfer Rate1.733 GBps

Wi-Fi Bands2.4 GHz, 5 GHz

Power Over Ethernet (PoE)PoE+

FeaturesBeamFlex+ Smart Antenna Technology, Captive Portal, Hardware encryption, IPv6 support, L2TP passthrough, LDAP support, MU-MIMO technology, Pole mountable, Quality of Service (QoS), RADIUS support, SmartMesh, SU-MIMO technology, VLAN support, Wall mountable

Compliant StandardsIEEE 802.11a, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, Wi-Fi CERTIFIED

Authentication MethodActive Directory, Basic Service Set Identifier (BSSID), LDAP, RADIUS

Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, IEC 61373, IP67, RoHS, WEEE

Dimensions & Weight

Width9.5 inch

Depth12.5 inch

Height3.7 inch

Weight5.95 lbs

Service & Support

Service & SupportLimited warranty – 1 year

Environmental Parameters

Min Operating Temperature-40 degree Fahrenheit

Max Operating Temperature149 degree Fahrenheit
