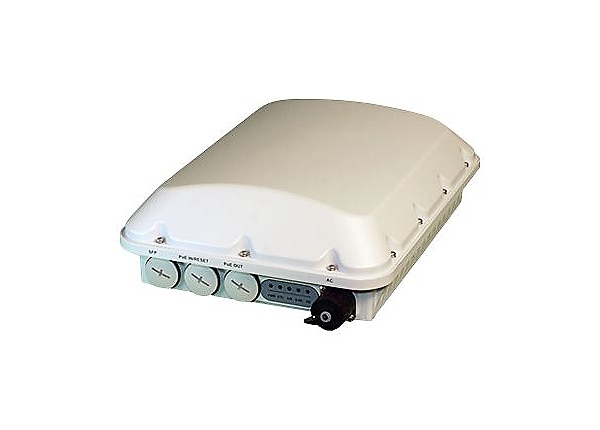

Ruckus T750 – wireless access point

(901-T750-US51)

Categories: Networking, Ruckus, T750, Wireless Access Points, T Series

Outdoor locations such as stadiums, arenas can have the most demanding wireless requirements due to high client density. The T750 access point (AP), based on the Wi-Fi 6 standard, brings in multi-gigabit Wi-Fi to support the ever-raising expectation for the highest quality of service from the users. T750 is IP-67 rated to withstand the rigors of outdoor deployments.

Main Features

Wireless access point
Wi-Fi 6
2.4 GHz
5 GHz

Call for Pricing

Product Specifications

Header

ManufacturerRuckus Wireless

BrandRuckus

Product LineRuckus

ModelT750

Country KitsUnited States

Packaged Quantity1

Chassis

Ruggedized DesignOutdoor

Built-in DevicesGLONASS, GPS

Line Properties

Line Coding FormatOFDMA

Performance

PerformanceMaximum data rate (2.4 GHz): 1148 Mbps, Maximum data rate (5 GHz): 2400 Mbps

Capacity

CapacityMaximum number of clients: 1024

Networking

TypeWireless access point

Form FactorExternal

Connectivity TechnologyWireless

Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Wireless Protocol802.11a/b/g/n/ac/ax

Network / Transport ProtocolIPv4, IPv6, L2TP

Wi-Fi Bands2.4 GHz, 5 GHz

Power Over Ethernet (PoE)PoE+

Features4×4 MU-MIMO technology, 4×4 SU-MIMO technology, 4×4:4 streams, 802.1x authentication, Access Control List (ACL) support, Airtime Fairness, BeamFlex+ Smart Antenna Technology, Beamforming technology, Captive Portal, GRE tunneling, HotSpot 2.0, Hotspot Access Point Capability, IPv4 and IPv6 dual stack, Link Aggregation Control Protocol (LACP), Load balancing, Low Density Parity Check (LDPC), Mesh networking, Pole mountable, Port-based VLAN, Quality of Service (QoS), Rate limit, Smart Mesh technology, SmartRoam, SmartZone, Space Time Blocking Code (STBC), Spectrum Analysis, SpeedFlex, Weatherproof, Wi-Fi Multimedia (WMM) support, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), WISPr authentication

Compliant StandardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt, Wi-Fi CERTIFIED 6

Interface Provided

Interfaces1 x 1000Base-T (PoE+) – RJ-45, 1 x 1Gb Ethernet/10Gb Ethernet – SFP+, 1 x 2.5 GBase-T (PoE+) – RJ-45

Power Device

TypeExternal power adapter

Nominal VoltageAC 120/230 V

Power Consumption Operational63.7 watt

Internet of Things (IoT)

Internet of Things (IoT) CompatibleYes

Miscellaneous

Color CategoryWhite

Encryption AlgorithmAES, TKIP, WPA2, WPA3, WPA-PSK

Authentication MethodBasic Service Set Identifier (BSSID), RADIUS

Compliant StandardsEN 50121-1, EN 50121-4, EN 60601-1-2, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN 62311, IEC 61373, IP67, ISTA 2A, RoHS, WEEE

Dimensions & Weight

Width9.5 inch

Depth13.6 inch

Height4 inch

Weight6.26 lbs

Service & Support

Service & SupportLimited warranty – 1 year

Environmental Parameters

Min Operating Temperature-40 degree Fahrenheit

Max Operating Temperature149 degree Fahrenheit

Humidity Range Operating0 – 95% (non-condensing)
